SIST EN 1118:1999

Heat exchangers - Refrigerant cooled liquid coolers - Test procedures for establishing the performance

This European Standard applies to series produced liquid coolers which operate with a (primary) refrigerant and its purpose is to establish uniform methods to test and ascertain the following: - Product identification - Capacity-Liquid flow rate-Liquid side pressure drop. This Standard does not cover technical safety aspects.

Wärmeaustauscher - Kältemittelgekühlte Flüssigkeitskühler - Prüfverfahren zur Leistungsfeststellung

Diese Europäische Norm gilt für serienmäßig produzierte Flüssigkeitskühler, die mit einem Kältemittel arbeiten. Der Zweck ist, einheitliche Verfahren festzulegen, um folgende Punkte zu prüfen und sicherzustellen: - Produktidentifizierung; - Leistung; - Flüssigkeitsmassenstrom; - Druckabfall auf der Flüssigkeitsseite. Sicherheitstechnische Gesichtspunkte sind nicht Gegenstand dieser Europäischen Norm.

Echangeurs thermiques - Refroidisseurs de liquides - Procédures d'essai pour la détermination de la performance

La présente norme européenne s'applique aux refroidisseurs de liquides fabriqués en série qui fonctionnent avec un fluide frigorigène ; elle vise à définir des méthodes d'essai uniformes.  Les essais et les vérifications portent sur les points suivants :  - identification du produit ;  - puissance thermique ;  - débit du liquide ;  - perte d'énergie mécanique côté liquide.  La présente norme européenne ne couvre pas les aspects techniques concernant la sécurité.

Prenosniki toplote – Hladilniki tekočin, hlajeni s hladivom – Postopki preskušanja za ugotavljanje tehničnih karakteristik

General Information

• Status: Published
• Publication Date: 30-Nov-1999
• ICS: 27.060.30 - Boilers and heat exchangers
• ICS: 27.200 - Refrigerating technology
• Technical Committee: OGS - Heating for buildings
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-1999
• Due Date: 01-Dec-1999
• Completion Date: 01-Dec-1999
• Ref Project: EN 1118:1998 - Heat exchangers - Refrigerant cooled liquid coolers - Test procedures for establishing the performance

Relations

• Amended By: SIST EN 1118:1999/A1:2004 - Heat exchangers - Refrigerant cooled liquid coolers - Test pocedure for establishing the performance
• Effective Date: 22-Dec-2008

Overview

EN 1118:1998 - Heat exchangers: Refrigerant cooled liquid coolers - Test procedures for establishing the performance (CEN) defines uniform methods for laboratory and production testing of series‑produced liquid coolers that are cooled by a primary refrigerant. The standard’s main purpose is to provide consistent, reproducible procedures to determine the performance characteristics needed for product identification and rating. EN 1118:1998 applies to mass‑produced refrigerant cooled liquid coolers and explicitly does not address technical safety aspects.

Key Topics

• Scope and applicability
  • Applies to series‑produced liquid coolers operating with a primary refrigerant.
  • Excludes safety requirements - focuses on performance testing only.
• Product identification
  • Standardizes the information required to identify and label liquid cooler models for test reporting and comparison.
• Performance measurements
  • Procedures to establish cooling capacity under defined test conditions.
  • Methods to measure liquid flow rate through the liquid side of the heat exchanger.
  • Determination of liquid‑side pressure drop across the heat exchanger at specified flow rates.
• Test uniformity
  • Prescribes consistent test conditions and reporting conventions so manufacturers, laboratories, and specifiers can compare results.
• Reporting
  • Defines the key performance data and how it should be presented for product literature and technical dossiers.

Applications

EN 1118:1998 is practical for organizations that design, manufacture, test, specify, or procure refrigerant cooled liquid coolers:

• Manufacturers use the standard to certify performance claims, produce consistent product data sheets, and conduct factory or type testing.
• Independent test laboratories apply the procedures to deliver repeatable performance reports used for compliance or marketing.
• HVACR engineers and system designers rely on standardized capacity, flow rate, and pressure drop data when selecting heat exchangers for refrigeration, process cooling, and industrial cooling systems.
• Procurement and specification professionals use the standard to define test requirements in tender documents and to compare competing products on an equal basis.

Related Standards

• EN 1118:1998 sits within the broader family of CEN/EN standards for heat exchangers and refrigerating technology. For complete compliance and system design, consult other applicable EN standards for heat exchangers, refrigeration systems, and test methods relevant to your product category.

Keywords: EN 1118:1998, refrigerant cooled liquid coolers, heat exchangers, test procedures, cooling capacity, liquid flow rate, liquid‑side pressure drop, CEN standard, performance testing, HVACR.

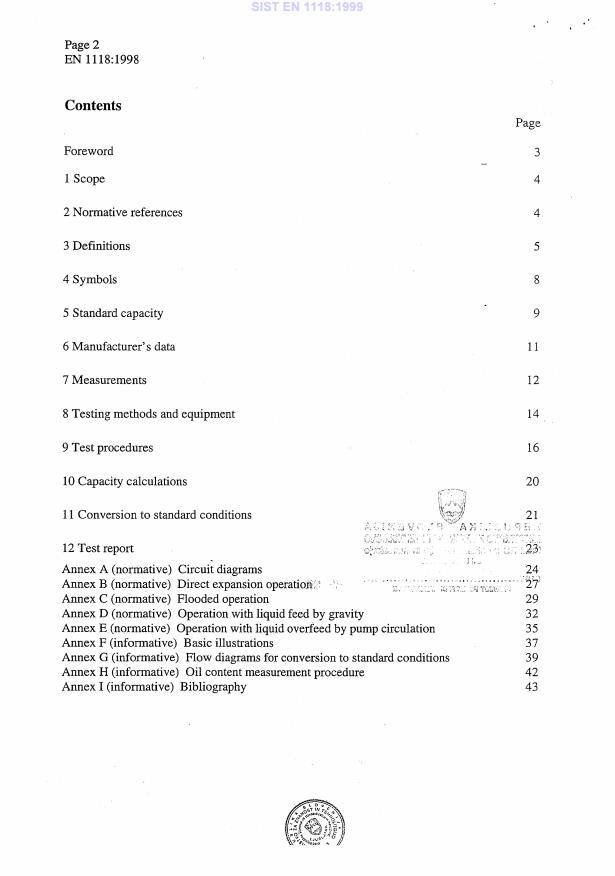

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Wärmeaustauscher - Kältemittelgekühlte Flüssigkeitskühler - Prüfverfahren zur LeistungsfeststellungEchangeurs thermiques - Refroidisseurs de liquides - Procédures d'essai pour la détermination de la performanceHeat exchangers - Refrigerant cooled liquid coolers - Test procedures for establishing the performance27.200Hladilna tehnologijaRefrigerating technology27.060.30Grelniki vode in prenosniki toploteBoilers and heat exchangersICS:Ta slovenski standard je istoveten z:EN 1118:1998SIST EN 1118:1999en01-december-1999SIST EN 1118:1999SLOVENSKI
STANDARD
...
