SIST EN 15269-5:2014/kFprA1:2016

Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 5: Fire resistance of hinged and pivoted metal framed glazed doorsets and openable windows

This European Standard covers hinged and pivoted steel (any kind) and aluminium based framed, glazed
doorsets or openable windows.
This European Standard prescribes the methodology for extending the application of test results obtained
from resistance to fire test(s) conducted in accordance with EN 1634-1.
Subject to the completion of the appropriate test or tests selected from those identified in Clause 4 the
extended application may cover all or some of the following examples:
- integrity (E), integrity/radiation (EW) or integrity/insulation (EI1 or EI2) classifications;
- doorsets and openable windows;
- door / window leaf (leaves);
- glazing and non-glazed panels in doorset and openable window;
- items of building hardware;
- decorative finishes;
- intumescent, smoke, draught or acoustic seals;
- alternative supporting construction(s).

Erweiterter Anwendungsbereich von Prüfergebnissen zur Feuerwiderstandsfähigkeit und/oder Rauchdichtigkeit von Türen, Toren und Fenstern einschließlich ihrer Baubeschläge - Teil 5: Feuerwiderstandsfähigkeit von verglasten Drehflügeltüren und zu öffnenden Fenstern mit Metall(rohr)rahmen

Application étendue des résultats d'essais en matière de résistance au feu et/ou d'étanchéité à la fumée des blocs-portes, blocs-fermetures et ouvrants de fenêtre, y compris leurs éléments de quincaillerie intégrés - Partie 5: Résistance au feu des blocs-portes vitrés battants et pivotants, à ossature métallique, et des fenêtres vitrées à ossature métallique

Razširjena uporaba rezultatov preskusov požarne odpornosti in/ali dimotesnosti za vrata, zaporne elemente in okna, ki se odpirajo, vključno z njihovim okovjem - 5. del: Požarna odpornost zastekljenih vrat v kovinskih okvirjih in oken, ki se odpirajo

General Information

• Status: Not Published
• Public Enquiry End Date: 28-Jan-2016
• ICS: 13.220.50 - Fire-resistance of building materials and elements
• ICS: 91.060.50 - Doors and windows
• ICS: 91.190 - Building accessories
• Technical Committee: POZ - Požarna varnost
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 23-Apr-2020
• Due Date: 28-Apr-2020
• Completion Date: 23-Apr-2020
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/117 - Horizontal complement to the mandates to CEN/CENELEC concerning the execution of standardization work for the valuation of construction products and elements in respect of their resistance to fire
• Ref Project: EN 15269-5:2014/FprA1 - Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 5: Fire resistance of hinged and pivoted metal framed glazed doorsets and openable windows

Relations

• Consolidated By: SIST EN 15269-5:2014+A1:2017 - Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 5: Fire resistance of hinged and pivoted metal framed glazed doorsets and openable windows
• Effective Date: 18-Jan-2023
• Amends: SIST EN 15269-5:2014 - Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 5: Fire resistance of hinged and pivoted metal framed glazed doorsets and openable windows
• Effective Date: 01-Jan-2016

Overview

SIST EN 15269-5:2014/kFprA1:2016 is a European Standard developed by CEN that focuses on the extended application of fire resistance and smoke control test results for hinged and pivoted metal framed glazed doorsets and openable windows. This standard specifically addresses steel and aluminium framed glazed door and window assemblies, providing a standardized methodology to extrapolate fire resistance performance based on tests conducted under EN 1634-1.

This standard is essential for manufacturers, designers, and safety professionals involved in the construction and certification of fire-resistant door and window assemblies. It enables the extended application of test results to various configurations while ensuring compliance with European fire safety regulations.

Key Topics

• Scope of Application
  Covers glazed doorsets and openable windows with steel or aluminium frames, including single and double leaf doors with glazing beads, toplights, and non-glassed panels.

• Extended Test Application Methodology
  Provides rules and guidelines to extend fire resistance classifications from tested specimens to a wider range of assemblies and conditions, reducing the need for multiple tests.

• Fire Resistance Classifications
  Includes classifications for:

  • Integrity (E)
  • Integrity and radiation (EW)
  • Integrity and insulation (EI1, EI2)

• Components Covered

  • Door and window leaves
  • Glazed and non-glazed panels within doorsets and openable windows
  • Building hardware elements
  • Decorative finishes and seals (intumescent, smoke, draught, acoustic)
  • Alternative supporting constructions

• Reference to EN 1634-1
  Incorporates fire resistance test results based on the harmonized test method defined in EN 1634-1, ensuring consistency across fire safety assessments.

• Amendments and Updates
  Includes detailed modifications to extend test applications such as:

  • Inclusion of glazing beads on fire side
  • Variations in door leaf configurations with toplights
  • Updated graphical figures supporting application rules

Applications

SIST EN 15269-5:2014/kFprA1:2016 is primarily utilized for:

• Fire Safety Certification
  Helping manufacturers demonstrate compliance of glazed metal framed door and window assemblies with fire resistance standards.

• Product Development and Testing
  Streamlining testing processes by allowing extended application of validated fire test results to other configurations and elements, optimizing R&D efforts.

• Building Design and Construction
  Assisting architects and engineers to specify fire-resistant doorsets and openable windows that meet regulatory requirements for integrity and insulation.

• Fire Protection Planning
  Enabling specification of appropriate building hardware, seals, and finishes that maintain fire resistance in door and window assemblies.

• Regulatory Compliance and Market Access
  Supporting manufacturers and suppliers in meeting European market entry criteria by adhering to a harmonized standard accepted across CEN member countries.

Related Standards

• EN 1634-1 – Fire resistance and smoke control tests for door and shutter assemblies, forming the basis for test methods referenced in EN 15269-5.
• EN 15269 Series – Other parts covering extended application of test results for various door, shutter, and window types.
• EN 14351-1 – Performance characteristics for external windows and doors, often used in conjunction with fire resistance standards.
• EN 1364 – Fire resistance tests for non-loadbearing elements, relevant for supporting constructions in some cases.

---

By applying SIST EN 15269-5:2014/kFprA1:2016, stakeholders can ensure robust fire safety performance extends across a wide variety of glazed metal framed door and window assemblies. This improves safety, compliance, and reduces the need for repeated testing, offering practical benefits throughout the design, manufacturing, and approval processes.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2016
5D]ãLUMHQDXSRUDEDUH]XOWDWRYSUHVNXVRYSRåDUQHRGSRUQRVWLLQDOLGLPRWHVQRVWL
]DYUDWD]DSRUQHHOHPHQWHLQRNQDNLVHRGSLUDMRYNOMXþQR]QMLKRYLPRNRYMHP
GHO3RåDUQDRGSRUQRVW]DVWHNOMHQLKYUDWYNRYLQVNLKRNYLUMLKLQRNHQNLVH
RGSLUDMR
Extended application of test results for fire resistance and/or smoke control for door,
shutter and openable window assemblies, including their elements of building hardware -
Part 5: Fire resistance of hinged and pivoted metal framed glazed doorsets and openable
windows
Erweiterter Anwendungsbereich von Prüfergebnissen zur Feuerwiderstandsfähigkeit
und/oder Rauchdichtigkeit von Türen, Toren und Fenstern einschließlich ihrer
Baubeschläge - Teil 5: Feuerwiderstandsfähigkeit von verglasten Drehflügeltüren und zu
öffnenden Fenstern mit Metall(rohr)rahmen
Application étendue des résultats d'essais en matière de résistance au feu et/ou
d'étanchéité à la fumée des blocs-portes, blocs-fermetures et ouvrants de fenêtre, y
compris leurs éléments de quincaillerie intégrés - Partie 5: Résistance au feu des blocs-
portes vitrés battants et pivotants, à ossature métallique, et des fenêtres vitrées à
ossature métallique
Ta slovenski standard je istoveten z: EN 15269-5:2014/FprA1
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.060.50 Vrata in okna Doors and windows
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

FINAL DRAFT
EUROPEAN STANDARD
EN 15269-5:2014
NORME EUROPÉENNE
EUROPÄISCHE NORM
FprA1
November 2015
ICS 13.220.50; 91.060.50
English Version
Extended application of test results for fire resistance
and/or smoke control for door, shutter and openable
window assemblies, including their elements of building
hardware - Part 5: Fire resistance of hinged and pivoted
metal framed glazed doorsets and openable windows
Application étendue des résultats d'essais en matière Erweiterter Anwendungsbereich von Prüfergebnissen
de résistance au feu et/ou d'étanchéité à la fumée des zur Feuerwiderstandsfähigkeit und/oder
blocs-portes, blocs-fermetures et ouvrants de fenêtre, y Rauchdichtigkeit von Türen, Toren und Fenstern
compris leurs éléments de quincaillerie intégrés - einschließlich ihrer Baubeschläge - Teil 5:
Partie 5: Résistance au feu des blocs-portes vitrés Feuerwiderstandsfähigkeit von verglasten
battants et pivotants, à ossature métallique, et des Drehflügeltüren und zu öffnenden Fenstern mit
fenêtres vitrées à ossature métallique Metall(rohr)rahmen
This draft amendment is submitted to CEN members for unique acceptance procedure. It has been drawn up by the Technical
Committee CEN/TC 127.
This draft amendment A1, if approved, will modify the European Standard EN 15269-5:2014. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

EUROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15269-5:2014/FprA1:2015 E
worldwide for CEN national Members.

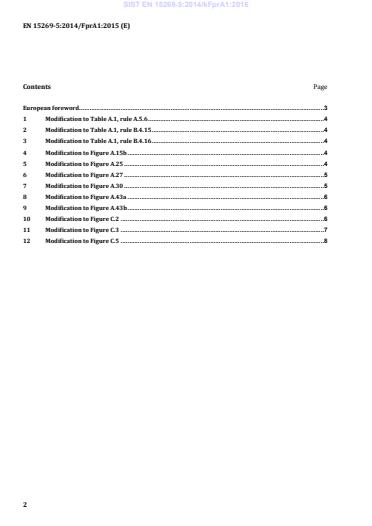

Contents Page
European foreword .
...
