kSIST FprEN 13707:2018
(Main)Flexible sheets for waterproofing - Reinforced bitumen sheets for roof waterproofing - Definitions and characteristics
Flexible sheets for waterproofing - Reinforced bitumen sheets for roof waterproofing - Definitions and characteristics
This draft European Standard specifies definitions and characteristics for flexible reinforced bitumen sheets for which the intended use is roofing. This covers sheets used as top layers, intermediate layers and underlayers.
Abdichtungsbahnen - Bitumenbahnen mit Trägereinlage für Dachabdichtungen - Definitionen und Eigenschaften
Dieser Europäische Norm-Entwurf legt die Definitionen und Eigenschaften von Bitumenbahnen mit Trägereinlagen fest, die für Dachabdichtungen vorgesehen sind. Dies beinhaltet Bahnen, die als Oberlagen, Zwischenlagen und Unterlagen verwendet werden.
Feuilles souples d'étanchéité - Feuilles bitumineuses armées pour l'étanchéité de toiture - Définitions et caractéristiques
Ce document spécifie les définitions et les caractéristiques pour les feuilles bitumineuses souples armées, dont l'utilisation prévue est l'étanchéité de toiture. Elle s'applique aux feuilles utilisées comme dernière couche, couche intermédiaire ou couche inférieure.
Hidroizolacijski trakovi - Ojačeni bitumenski trakovi za tesnjenje streh - Definicije in lastnosti
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
oSIST prEN 13707:2017
01-julij-2017
+LGURL]RODFLMVNLWUDNRYL2MDþHQLELWXPHQVNLWUDNRYL]DWHVQMHQMHVWUHK'HILQLFLMH
LQODVWQRVWL
Flexible sheets for waterproofing - Reinforced bitumen sheets for roof waterproofing -
Definitions and characteristics
Abdichtungsbahnen - Bitumenbahnen mit Trägereinlage für Dachabdichtungen -
Definitionen und Eigenschaften
Ta slovenski standard je istoveten z: prEN 13707
ICS:
01.040.91 Gradbeni materiali in gradnja Construction materials and
(Slovarji) building (Vocabularies)
91.060.20 Strehe Roofs
91.100.50 Veziva. Tesnilni materiali Binders. Sealing materials
oSIST prEN 13707:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 13707:2017
---------------------- Page: 2 ----------------------
oSIST prEN 13707:2017
DRAFT
EUROPEAN STANDARD
prEN 13707
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2017
ICS 01.040.91; 91.100.50 Will supersede EN 13707:2013
English Version
Flexible sheets for waterproofing - Reinforced bitumen
sheets for roof waterproofing - Definitions and
characteristics
Abdichtungsbahnen - Bitumenbahnen mit
Trägereinlage für Dachabdichtungen - Definitionen
und Eigenschaften
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 254.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13707:2017 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)

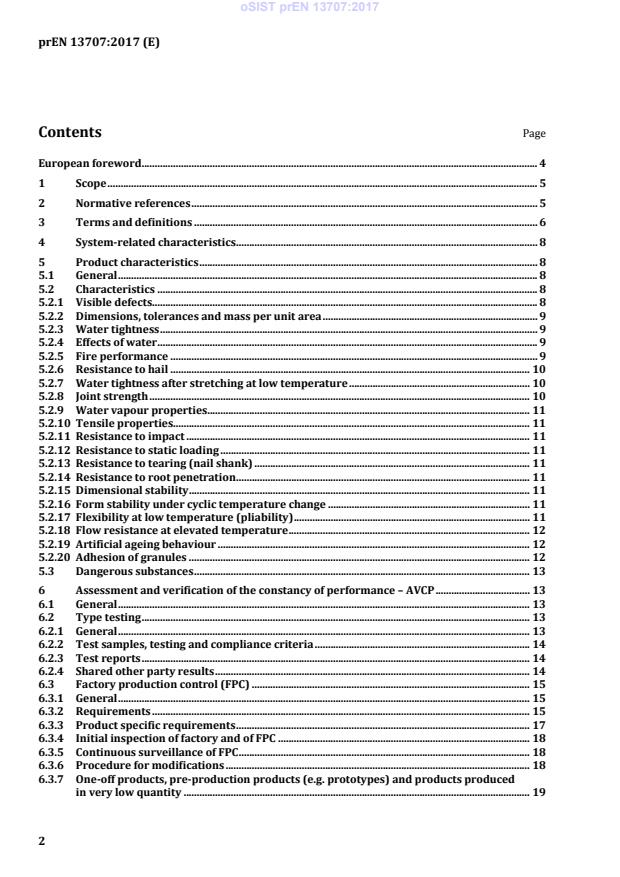

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 System-related characteristics . 8
5 Product characteristics . 8
5.1 General . 8
5.2 Characteristics . 8
5.2.1 Visible defects . 8
5.2.2 Dimensions, tolerances and mass per unit area . 9
5.2.3 Water tightness . 9
5.2.4 Effects of water . 9
5.2.5 Fire performance . 9
5.2.6 Resistance to hail . 10
5.2.7 Water tightness after stretching at low temperature . 10
5.2.8 Joint strength . 10
5.2.9 Water vapour properties. 11
5.2.10 Tensile properties. 11
5.2.11 Resistance to impact . 11
5.2.12 Resistance to static loading . 11
5.2.13 Resistance to tearing (nail shank) . 11
5.2.14 Resistance to root penetration . 11
5.2.15 Dimensional stability . 11
5.2.16 Form stability under cyclic temperature change . 11
5.2.17 Flexibility at low temperature (pliability) . 11
5.2.18 Flow resistance at elevated temperature . 12
5.2.19 Artificial ageing behaviour . 12
5.2.20 Adhesion of granules . 12
5.3 Dangerous substances . 13
6 Assessment and verification of the constancy of performance – AVCP . 13
6.1 General . 13
6.2 Type testing . 13
6.2.1 General . 13
6.2.2 Test samples, testing and compliance criteria . 14
6.2.3 Test reports . 14
6.2.4 Shared other party results . 14
6.3 Factory production control (FPC) . 15
6.3.1 General . 15
6.3.2 Requirements . 15
6.3.3 Product specific requirements . 17
6.3.4 Initial inspection of factory and of FPC . 18
6.3.5 Continuous surveillance of FPC . 18
6.3.6 Procedure for modifications . 18
6.3.7 One-off products, pre-production products (e.g. prototypes) and products produced
in very low quantity . 19
2
---------------------- Page: 4 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
7 Labelling and packing . 19
Annex A (normative) Applicability of characteristics . 20
Annex B (normative) Frequencies of testing for factory production control . 22
Annex C (informative) Information about chemical resistance . 24
Annex D (normative) Standard Test Built up Broof (t1) — Insulated Standard Test Built up . 27
Annex E (informative) Example of information from testing . 28
Annex F (informative) Wind-uplift properties of mechanically fixed bituminous membranes
— General information . 30
Annex ZA (informative) Relationship of this European Standard with Regulation (EU)
No.305/2011 . 31
ZA.1 Scope and relevant characteristics . 31
ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) . 32
ZA.3 Assignment of AVCP tasks . 32
Bibliography . 36
3
---------------------- Page: 5 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
European foreword
This document (prEN 13707:2017) has been prepared by Technical Committee CEN/TC 254 “Flexible
sheets for waterproofing”, the secretariat of which is held by NEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13707:2013.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Regulation 305/2011.
For relationship with EU Regulation 305/2011, see informative Annex ZA, which is an integral part of
this document.
The main technical changes that have been made in this new edition are as follows:
a) Subclause 5.2.5 Fire performance has been modified;
b) the wording and Annex ZA have been adapted to the CPR.
4
---------------------- Page: 6 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
1 Scope
This draft European Standard specifies definitions and characteristics for flexible reinforced bitumen
sheets for which the intended use is roofing. This covers sheets used as top layers, intermediate layers
and underlayers.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 1107-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing —
Determination of dimensional stability
EN 1108, Flexible sheets for waterproofing — Bitumen sheets for roof waterproofing — Determination of
form stability under cyclical temperature changes
EN 1109, Flexible sheets for waterproofing — Bitumen sheets for roof waterproofing — Determination of
flexibility at low temperature
EN 1110, Flexible sheets for waterproofing — Bitumen sheets for roof waterproofing — Determination of
flow resistance at elevated temperature
CEN/TS 1187:2012, Test methods for external fire exposure to roofs
EN 1296, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roofing — Method of
artificial ageing by long term exposure to elevated temperature
EN 1297, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof
waterproofing — Method of artificial ageing by long term exposure to the combination of UV radiation,
elevated temperature and water
EN 1848-1, Flexible sheets for waterproofing — Determination of length, width and straightness — Part 1:
Bitumen sheets for roof waterproofing
EN 1849-1, Flexible sheets for waterproofing — Determination of thickness and mass per unit are —
Part 1: Bitumen sheets for roof waterproofing
EN 1850-1, Flexible sheets for waterproofing — Determination of visible defects — Part 1: Bitumen sheets
for roof waterproofing
EN 1928:2000, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof
waterproofing — Determination of watertightness
EN 12039, Flexible sheets for waterproofing — Bitumen sheets for roof waterproofing — Determination of
adhesion of granules
EN 12310-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for waterproofing —
Determination of resistance to tearing (nail shank)
EN 12311-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing —
Determination of tensile properties
5
---------------------- Page: 7 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
EN 12316-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing —
Determination of peel resistance of joints
EN 12317-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing —
Determination of shear resistance of joints
EN 12691, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof
waterproofing — Determination of resistance to impact
EN 12730:2001, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof
waterproofing — Determination of resistance to static loading
EN 13416:2001, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof
waterproofing — Rules for sampling
EN 13163, Thermal insulation products for buildings — Factory made expanded polystyrene (EPS)
products — Specification
EN 13501-1:2002, Fire classification of construction products and building elements — Part 1:
Classification using test data from reaction to fire tests
EN 13501-5:2016, Fire classification of construction products and building elements — Part 5:
Classification using data from external fire exposure to roofs tests
EN 13897, Flexible sheets for waterproofing - Bitumen, plastic and rubber sheets for roof waterproofing —
Determination of watertightness after stretching at low temperature
EN 13948, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof
waterproofing — Determination of resistance to root penetration
EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of
flame — Part 2: Single-flame source test (ISO 11925-2)
3 Terms and definitions
For the purposes of this document the terms and definitions given in EN 13416:2001 and the following
apply.
3.1
waterproofing
action to prevent the passage of water from one plane to another
3.2
waterproofing system
assembly of one or more layers of roofing sheet in its applied and jointed form, which has certain
performance characteristics, to be assessed as a whole
Note 1 to entry: Where only one layer is used this is usually referred to as a single layer system.
Note 2 to entry: A bituminous roofing system is formed on site by connecting and sealing one or more
superimposed layers of bitumen sheets to form a single composite waterproof layer for use over flat, pitched or
vertical surfaces according to building application requirements.
6
---------------------- Page: 8 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
3.3
roofing
waterproofing used in the roof of a building including roofs used for parking of vehicles and for roof
gardens
Note 1 to entry: Reinforced bitumen sheets for waterproofing of concrete bridge decks and other trafficked
areas of concrete where the waterproofing system is bonded to the concrete deck and overlaid by asphalt are
specified in EN 14695.
3.4
roof system
assembly of a waterproofing system, insulation, vapour barrier and supporting elements
3.5
roofing sheet
factory made flexible sheet including any carriers, facings, surface texture and/or backing
3.6
carrier
material incorporated into or onto the factory-made roofing sheet to ensure its stability and/or
mechanical resistance
3.7
backing
material incorporated onto the factory-made roofing sheet without a permanent mechanical function
3.8
surfacing
material applied on one or both sides of roofing sheets, either as a permanent light surface protection
against weathering on the upper surface or as an anti-sticking substance of the roofing sheets
3.9
batch
amount of product manufactured to the same specification within a maximum period of 24 h
3.10
manufacturer's limiting value
MLV
value which is stated by the manufacturer to be met during testing and which can be a minimum or a
maximum value according to statements made under product characteristics of this document
3.11
manufacturer's declared value
MDV
value declared by the manufacturer accompanied by a declared tolerance
3.12
reinforced bitumen sheet
factory made flexible layer of bitumen with internal or external incorporation of one or more carriers,
supplied in roll form ready for use
7
---------------------- Page: 9 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
3.13
oxidized bitumen
straight run petroleum bitumen or a fluxed bitumen which has been hardened and rendered less
temperature susceptible by blowing with air at high temperature with or without the use of a catalyst
3.14
elastomeric bitumen
petroleum bitumen and/or oxidized bitumen modified by the addition of thermo-plastic rubbers
3.15
plastomeric bitumen
petroleum bitumen and/or oxidized bitumen modified by the addition of polyolefin or polyolefin
copolymer compound
3.16
sampling
procedure used to select or constitute a sample
3.17
sample
sheet from which a test piece is taken
3.18
test piece
part of the sample from which test specimens are taken
3.19
test specimen
piece of precise dimensions taken from the test piece
4 System-related characteristics
System-related characteristics with respect to multilayer systems, sheets for single layer application,
mechanically fastened systems (see Annex F) and roof gardens or under heavy protection are given in
Annex A.
5 Product characteristics
5.1 General
Where a tolerance is limited by this standard it does not have to be declared by the manufacturer.
When tested for purposes other than type testing or factory production control, the tests to determine
product characteristics indicated in this standard shall be started within one month of delivery from the
manufacturer.
NOTE This time period is chosen in order to limit the effect of inappropriate handling and storage after
delivery by people other than the manufacturer.
5.2 Characteristics
5.2.1 Visible defects
The product shall be free of visible defects, as determined in accordance with EN 1850-1.
8
---------------------- Page: 10 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
5.2.2 Dimensions, tolerances and mass per unit area
The length, width and straightness of the sheet shall be determined in accordance with EN 1848-1. The
length and width shall not be shorter than the manufacturer's limiting value. The maximum deviation
from straightness shall not exceed 20 mm per 10 m length or in proportion for other lengths (e.g.
10 mm per 5 m length).
Where a product is specified by mass per unit area, it shall be measured in accordance with EN 1849-1,
except that the sample shall be 100 mm × 100 mm, and the results shall lie within the declared
tolerance of the manufacturer's declared value.
Where a product is specified by thickness, it shall be measured in accordance with EN 1849-1 and the
results shall lie within the declared tolerance of the manufacturer's declared value.
Where sheets with incorporated mineral protection are specified by thickness, the measurement of
thickness may be carried out on the granule-free selvedge. This shall be declared in the report.
5.2.3 Water tightness
The water tightness shall be determined in accordance with EN 1928:2000 using method A or B at an
applied water pressure of 10 kPa (0,1 bar) and shall give a pass result.
5.2.4 Effects of water
Not specified.
NOTE Experience has shown that water has little or no effect upon the in-service performance of reinforced
bitumen sheets. See also Annex C.
5.2.5 Fire performance
5.2.5.1 External fire performance
5.2.5.1.1 Product
When there is a requirement on external fire performance for products, the external fire performance
shall be declared in accordance to EN 13501-5 and CEN/TS 1187.
For B (t1) classification the product might be tested by using a fixed test configuration as shown in
roof
Annex D.
NOTE 1 Classification of the external fire performance of the product is given in the Commission Decision
2001/671/EC as amended.
NOTE 2 Products intended to be fully covered in normal usage, see Commission Decision 2000/553/EC, are
considered to fulfil requirements for the performance characteristics 'external fire performance' without the need
for testing.
NOTE 3 Different roof systems can lead to different classifications.
5.2.5.1.2 System
When there is no requirement on external fire performance for products but only roof systems, no
external fire performance classification of the product is relevant.
5.2.5.2 Reaction to fire
Where required, the product shall be tested and classified in accordance with EN 13501-1:2002,
Table 1. When tested according to EN ISO 11925-2, the products shall be tested under conditions of
surface flame attack.
9
---------------------- Page: 11 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
NOTE It is currently considered that the Euro classes Classification system at Classes D and above requires
investigation to determine its appropriateness to the products covered by this document (the SBI test may be
inappropriate for products covered by the standard). Pending results of such an investigation and discussions in
the Fire Regulators Group, products covered by this document are tested to EN ISO 11925-2. If and when new fire
test scenario and test methods are developed for the products, this document will be amended to refer to them.
Reaction to fire is by definition a product test, as distinct from Resistance to fire, which is a system test.
Therefore, it is considered important to provide guidance in order to reduce the number of tests
required.
According to EN ISO 11925-2, the test is required to be undertaken on the exposed surface without any
substrate, in one direction only, and the reinforcement shall be stated by the manufacturer as “organic”
or “inorganic”.
c) Test results from EN ISO 11925-2 for a product with a given reinforcement and a bituminous
compound having a certain percentage of organic content shall apply to the same product having a
lower organic content.
d) Test results from EN ISO 11925-2 for a product with a given organic reinforcement and a
bituminous compound shall apply to a product having the same bituminous compound and an
inorganic reinforcement.
e) Test results from EN ISO 11925-2 for a product with a given reinforcement and bituminous
2
compound, with a thickness of above 2 mm or a mass per unit area of above 2 kg/m , shall apply to
any product with the same type of reinforcement and the same type of bituminous compound but
2
lower thickness or mass per unit area, down to a limit of 2 mm or 2 kg/m respectively.
Test results from EN ISO 11925-2 for a product with a given reinforcement and bituminous compound
2
with a thickness or mass per unit area below 2 mm or 2kg/m , shall apply to any product with the same
type of reinforcement and the same type of bituminous compound but with higher thickness or mass
2
per unit area, up to a limit of 2 mm or 2 kg/m respectively.
5.2.6 Resistance to hail
Not specified.
NOTE Experience has shown that hail has little or no effect upon the in-service performance of reinforced
bitumen sheets.
5.2.7 Water tightness after stretching at low temperature
Where required, the water tightness after stretching at low temperature shall only be determined for
mechanically fastened single layer applications in accordance with EN 13897 and the results shall be
greater than or equal to the manufacturer's limiting value.
5.2.8 Joint strength
The peel resistance of joints shall only be determined for mechanically fastened single layer
applications in accordance with EN 12316-1 and the results shall lie within the declared tolerance of the
manufacturer's declared value.
The shear resistance of joints shall be determined for all single layer applications in accordance with
EN 12317-1 and the results shall lie within the declared tolerance of the manufacturer's declared value.
10
---------------------- Page: 12 ----------------------
oSIST prEN 13707:2017
prEN 13707:2017 (E)
5.2.9 Water vapour properties
If necessary, the moisture resistance factor μ of reinforced bitumen sheets may be determined in
accordance with EN 1931. If the factor μ is not determined, a value of 20 000 may be used for
calculation purposes.
5.2.10 Tensile properties
The tensile properties shall be determined in accordance with EN 12311-1 and the results (for the
longitudinal and transverse directions) shall lie within the declared tolerance of the manufacturer's
declared value.
5.2.11 Resistance to impact
Where required, the resistance to impact shall be determined in accordance with EN 12691 and shall be
expressed as the maximum drop height of the puncturing tool in millimetres, which has not caused
leakage of the flexible sheet, which shall be greater than or equal to the manufacturer's limiting value.
Products shall be tested in accordance with EN 12691, method A.
Where subject to regulatory requirements or where the manufacturer wishes to make such a
declaration, products shall also be tested in accordance with EN 12691, method B.
The method(s) used shall be stated in the product data sheet.
5.2.12 Resistance to static loading
The resistance to static loading shall be determined in accordance with EN 12730:2001, method A and
shall be greater than or equal to the manufacturer's limiting value.
5.2.13 Resistance to tearing (nail shank)
The resistance to tearing (nail shank) shall be determined in accordance with EN 12310-1 and the
results shall lie within the declared tolerance of the manufacturer's declared value.
5.2.14 Resistance to root penetration
The resistance to root penetration shall be determined only for products used as root barriers in roof
gardens in accordance with EN 13948 and shall give a pass result.
5.2.15 Dimensional stability
The dimensional stability shall be determined in accordance with EN 1107-1 and shall be less than or
equal to the manufacturer's limiting value. This test shall only be carried o
...
