SIST EN 10244-5:2002

Steel wire and wire products - Non-ferrous metallic coatings on steel wire - Part 5: Nickel coatings

This part of this European Standard specifies the requirements for mass, other properties and testing of nickel coatings on steel wire and steel wire products of round or other cross-section.

Stahldraht und Drahterzeugnisse - Überzüge aus Nichteisenmetall auf Stahldraht - Teil 5: Überzüge aus Nickel

Dieser Teil dieser Europäischen Norm legt die Anforderungen an Masse, andere Eigenschaften und Prüfung von Überzügen aus Nickel auf Stahldraht und Stahldrahterzeugnissen mit rundem oder anderem Querschnitt fest.

Fils et produits tréfilés en acier - Revetements métalliques non ferreux sur fils d'acier - Partie 5: Revetements de nickel

Domaine d'application
La présente partie de la présente norme européenne spécifie les exigences en matière de masse, des autres applications et d'essai de revêtements de nickel sur fils en acier et produits dérivés de section circulaire ou autre.

Jeklena žica in žični izdelki - Neželezne kovinske prevleke na jekleni žici - 5. del: Nikljeve prevleke

General Information

• Status: Published
• Publication Date: 31-Aug-2002
• ICS: 25.220.40 - Metallic coatings
• ICS: 77.140.65 - Steel wire, wire ropes and link chains
• Technical Committee: IFEK - Ferrous metals
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Sep-2002
• Due Date: 01-Sep-2002
• Completion Date: 01-Sep-2002
• Ref Project: EN 10244-5:2001 - Steel wire and wire products - Non-ferrous metallic coatings on steel wire - Part 5: Nickel coatings

Overview

EN 10244-5:2001 is the CEN European Standard that specifies requirements and test methods for nickel coatings on steel wire and steel wire products (round or other cross-sections). It covers material composition, coating mass requirements, sampling and test procedures, and adherence testing for nickel-plated steel wire. The standard applies to wires with nickel applied by electrolytic deposition, either before drawing or after final sizing.

Key Topics

• Scope and definition
  • Defines “wire with nickel coating” as steel wire plated by electrolytic nickel deposition.
• Material requirements
  • Coating must be pure, non‑alloy nickel; impurities limited to a maximum of 2%.
• Mass of coating
  • Coating mass (when required) is agreed at enquiry/order or specified by the product standard.
• Sampling and test conditions
  • Sample length must be sufficient to perform all required tests, per general rules in EN 10244‑1.
• Determination of coating mass
  • Two accepted methods:
    • Gravimetric method: degrease (if needed), weigh to 0.1 mg accuracy, strip nickel in concentrated nitric acid (density 1.4 at 20 °C), reweigh and calculate mass following EN 10244‑1 procedures.
    • Atomic absorption spectrometry (AAS): determines nickel quantity in pickling solution; recommended when gravimetric accuracy is reduced by aggressive stripping.
  • Note: gravimetric errors can vary with substrate steel composition; AAS offers higher accuracy.
• Adherence test
  • Per EN 10244‑1: bend the wire around a mandrel with a diameter three times the wire diameter; nickel coating must show no flaking.

Applications

• Intended for manufacturers, suppliers and quality labs involved in nickel-plated steel wire production and testing.
• Useful to engineers, specifiers and purchasers who require verified coating mass, adhesion and material purity for applications such as corrosion resistance, electrical contacts, decorative wire, fasteners and industrial components where nickel plating properties are critical.
• Ensures repeatable, comparable test results and contractual clarity when ordering nickel-coated steel wire.

Related Standards

• EN 10244-1 - Steel wire and wire products - Non‑ferrous metallic coatings on steel wire - Part 1: General principles
• EN 10244-4 - Part 4: Tin coatings
• EN 10244 series (Parts 1–6) covering other non‑ferrous coatings (zinc, aluminium, tin, nickel, copper/bronze/brass)

Compliance with EN 10244-5:2001 provides a clear technical basis for specifying nickel coatings on steel wire and for consistent laboratory testing and quality control.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stahldraht und Drahterzeugnisse - Überzüge aus Nichteisenmetall auf Stahldraht - Teil 5: Überzüge aus NickelFils et produits tréfilés en acier - Revetements métalliques non ferreux sur fils d'acier - Partie 5: Revetements de nickelSteel wire and wire products - Non-ferrous metallic coatings on steel wire - Part 5: Nickel coatings77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chains25.220.40Kovinske prevlekeMetallic coatingsICS:Ta slovenski standard je istoveten z:EN 10244-5:2001SIST EN 10244-5:2002en01-september-2002SIST EN 10244-5:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10244-5March 2001ICS 25.220.40English versionSteel wire and wire products - Non-ferrous metallic coatings onsteel wire - Part 5: Nickel coatingsFils et produits tréfilés en acier - Revêtements métalliquesnon ferreux sur fils d'acier - Partie 5: Revêtements de nickelStahldraht und Drahterzeugnisse - Überzüge ausNichteisenmetall auf Stahldraht - Teil 5: Überzüge ausNickelThis European Standard was approved by CEN on 21 January 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10244-5:2001 ESIST EN 10244-5:2002

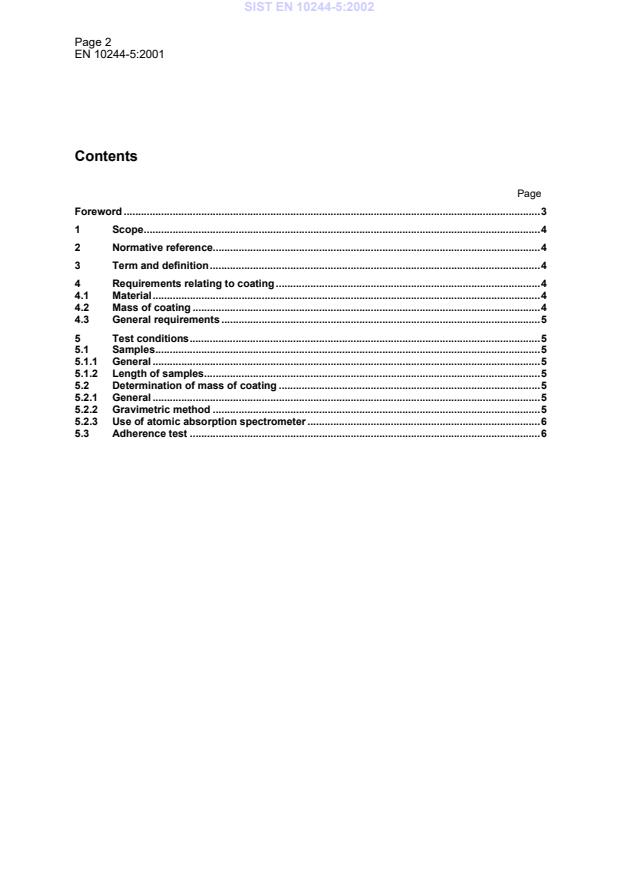

Page 2EN 10244-5:2001ContentsPageForeword.31Scope.42Normative reference.43Term and definition.44Requirements relating to coating.44.1Material.44.2Mass of coating.44.3General requirements.55Test conditions.55.1Samples.55.1.1General.55.1.2Length of samples.55.2Determination of mass of coating.55.2.1General.55.2.2Gravimetric method.55.2.3Use of atomic absorption spectrometer.65.3Adherence test.
...
