Composites made from cellulose-based materials and thermoplastics (usually called wood-polymer composites (WPC) or natural fibre composites (NFC)) - Part 6: Specifications for fencing profiles and elements

This part of EN 15534 specifies the characteristics of fencing profiles and elements made from cellulose-based materials and thermoplastics, usually called wood-polymer composites (WPC) or natural fibre composites (NFC).
It is applicable to fencing profiles and elements for non-structural fencing systems.
The security systems, perimeter protections, handrails and load bearing applications are out of the scope of this part of EN 15534.
Any systems made from profiles in the scope of this part of EN 15534 that are affected by regulations are under the responsibility of the system supplier.
EN 15534 1 specifies some of the test methods relevant to this part of EN 15534.
NOTE   For editorial reasons, in EN 15534 the abbreviation "WPC" is used for "composites made from cellulose-based materials and thermoplastics".

Verbundwerkstoffe aus cellulosehaltigen Materialien und Thermoplasten (üblicherweise Holz-Polymer-Werkstoffe (WPC) oder Naturfaserverbundwerkstoffe (NFC) genannt) - Teil 6: Anforderungen an Zaunprofile und -elemente

Dieser Teil von EN 15534 legt die Eigenschaften von Profilen aus cellulosehaltigen Materialien und Thermoplasten, üblicherweise Holz-Polymer-Werkstoffe (WPC, en: wood-polymer composites) oder Naturfaserverbundwerkstoffe (NFC, en: natural fibre composites) genannt, für (dekorative) Zaunsysteme fest.
Sicherheitssysteme, Grundstücksschutz, Handläufe und lasttragende Anwendungen liegen außerhalb des Anwendungsbereiches dieses Teils von EN 15534.
Für Systeme aus Profilen, die innerhalb des Anwendungsbereiches dieses Teils von EN 15534 liegen, die Vorschriften unterliegen, ist der Hersteller des Zaunsystems verantwortlich.
In EN 15534 1 sind einige der Prüfverfahren festgelegt, die für diesen Teil von EN 15534 relevant sind.
ANMERKUNG   Aus redaktionellen Gründen wird in EN 15534 die Abkürzung „WPC“ für „Verbundwerkstoffe aus cellulosehaltigen Materialien und Thermoplasten“ verwendet.

Composites à base de matières cellulosiques et de thermoplastiques (communément appelés composites bois-polymères (WPC) ou composites fibres d'origine naturelle (NFC)) - Partie 6 : Spécifications relatives aux profilés et éléments pour clôtures

La présente partie de l’EN 15534 spécifie les caractéristiques des profilés à base de matières cellulosiques et de thermoplastiques, communément appelés composites bois-polymères (WPC) ou composites fibres d’origine naturelle (NFC), destinés à être utilisés dans les systèmes pour clôtures (décoratifs).
Les systèmes de sécurité, protections de périmètre, mains courantes et applications porteuses sont hors du domaine d’application de la présente partie de l’EN 15534.
Tout système fabriqué à partir de profilés entrant dans le domaine d’application de la présente partie de l’EN 15534, qui est soumis aux réglementations, relève de la responsabilité du fournisseur du système.
L’EN 15534 1 spécifie certaines des méthodes d’essai pertinentes pour la présente partie de l’EN 15534.
NOTE   Pour des raisons éditoriales, dans l’EN 15534, l’abréviation « WPC » est utilisée pour « matériaux composites à base de matières cellulosiques et de thermoplastiques ».

Kompoziti iz materialov na osnovi celuloze in plastomerov (navadno imenovani lesno-polimerni kompoziti (WPC) ali kompoziti iz naravnih vlaken (NFC)) - 6. del: Specifikacije za profile ograj in elementov

Ta del standarda EN 15534 določa lastnosti profilov in elementov ograj iz materialov na osnovi celuloze in plastomerov, navadno imenovanih lesno-polimerni kompoziti (WPC) ali kompoziti iz naravnih vlaken (NFC).
Uporablja se za profile in elemente nekonstrukcijskih ograj.
Ta del standarda EN 15534 ne obravnava varnostnih sistemov, obmejnih zaščitnih ograj, stopniščnih ograj in nosilnih ograj.
Za sisteme ograj, izdelanih iz profilov, ki spadajo na področje uporabe tega dela standarda EN 15534 in za katere veljajo predpisi, je odgovoren dobavitelj sistemov.
Standard EN 15534-1 določa nekatere preskusne metode, ki se nanašajo na ta del standarda EN 15534.
OPOMBA: Zaradi uredniških razlogov se v standardu EN 15534 kratica »WPC« uporablja za »kompozite iz materialov na osnovi celuloze in plastomere«.

General Information

Status
Published
Publication Date
18-Dec-2017
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
09-Nov-2017
Due Date
14-Jan-2018
Completion Date
19-Dec-2017

Relations

Buy Standard

Standard
EN 15534-6:2015+A1:2018
English language
22 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kompoziti iz materialov na osnovi celuloze in plastomerov (navadno imenovani lesno-polimerni kompoziti (WPC) ali kompoziti iz naravnih vlaken (NFC)) - 6. del: Specifikacije za profile ograj in elementovVerbundwerkstoffe aus cellulosehaltigen Materialien und Thermoplasten (üblicherweise Holz-Polymer-Werkstoffe (WPC) oder Naturfaserverbundwerkstoffe (NFC) genannt) - Teil 6: Anforderungen an Zaunprofile und -elementeComposites à base de matières cellulosiques et de thermoplastiques (communément appelés composites bois-polymères (WPC) ou composites fibres d'origine naturelle (NFC)) - Partie 6 : Spécifications relatives aux profilés et éléments pour clôturesComposites made from cellulose-based materials and thermoplastics (usually called wood-polymer composites (WPC) or natural fibre composites (NFC)) - Part 6: Specifications for fencing profiles and elements83.140.99Drugi izdelki iz gume in polimernih materialovOther rubber and plastics products79.080Polizdelki iz lesaSemi-manufactures of timberICS:Ta slovenski standard je istoveten z:EN 15534-6:2015+A1:2017SIST EN 15534-6:2015+A1:2018en,fr,de01-februar-2018SIST EN 15534-6:2015+A1:2018SLOVENSKI
STANDARD



SIST EN 15534-6:2015+A1:2018



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15534-6:2015+A1
October
t r s y ICS
y {ä r z râ
z uä s v rä { { Supersedes EN
s w w u væ xã t r s wEnglish Version
Composites made from celluloseæbased materials and Specifications for fencing profiles and elements Composites à base de matières cellulosiques et de profilés et éléments pour clôtures
Verbundwerkstoffe aus cellulosehaltigen Materialien und æelemente This European Standard was approved by CEN on
s w August
t r s w and includes Amendment
s approved by CEN on
{ August
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s w w u væ xã t r s w ªA sã t r s y ESIST EN 15534-6:2015+A1:2018

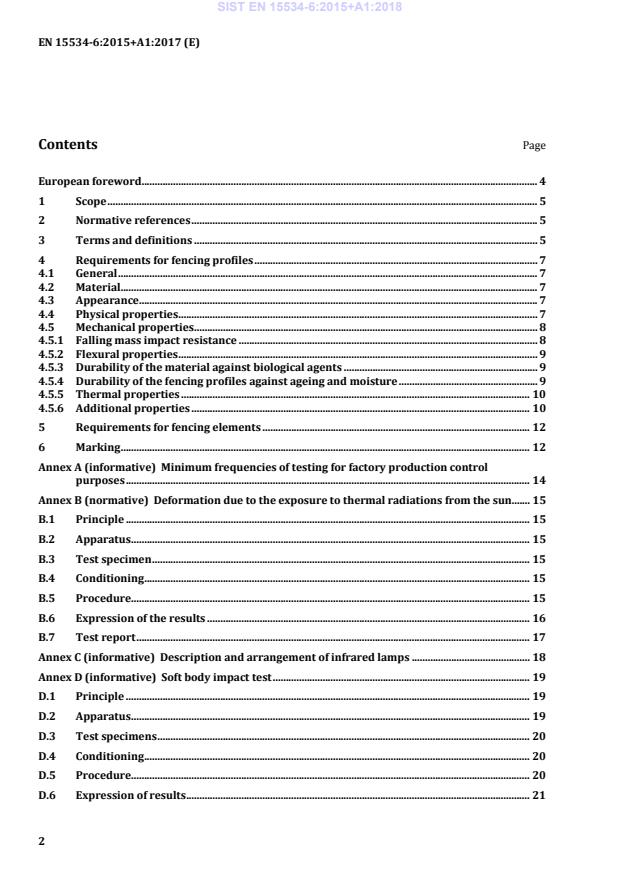

EN 15534-6:2015+A1:2017 (E) 2 Contents Page European foreword . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 5 4 Requirements for fencing profiles . 7 4.1 General . 7 4.2 Material . 7 4.3 Appearance . 7 4.4 Physical properties . 7 4.5 Mechanical properties . 8 4.5.1 Falling mass impact resistance . 8 4.5.2 Flexural properties . 9 4.5.3 Durability of the material against biological agents . 9 4.5.4 Durability of the fencing profiles against ageing and moisture . 9 4.5.5 Thermal properties . 10 4.5.6 Additional properties . 10 5 Requirements for fencing elements . 12 6 Marking . 12 Annex A (informative)
Minimum frequencies of testing for factory production control purposes . 14 Annex B (normative)
Deformation due to the exposure to thermal radiations from the sun. 15 B.1 Principle . 15 B.2 Apparatus . 15 B.3 Test specimen . 15 B.4 Conditioning . 15 B.5 Procedure. 15 B.6 Expression of the results . 16 B.7 Test report . 17 Annex C (informative)
Description and arrangement of infrared lamps . 18 Annex D (informative)
Soft body impact test . 19 D.1 Principle . 19 D.2 Apparatus . 19 D.3 Test specimens . 20 D.4 Conditioning . 20 D.5 Procedure. 20 D.6 Expression of results . 21 SIST EN 15534-6:2015+A1:2018



EN 15534-6:2015+A1:2017 (E) 3 D.7 Test report . 21 Bibliography . 22
SIST EN 15534-6:2015+A1:2018



EN 15534-6:2015+A1:2017 (E) 4 European foreword This document (EN 15534-6:2015+A1:2017) has been prepared by Technical Committee CEN/TC 249 “Plastics”, the secretariat of which is held by NBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2018, and conflicting national standards shall be withdrawn at the latest by April 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 15534-6:2015. This document includes Amendment 1 approved by CEN on 09 August 2017. The start and finish of text introduced or altered by amendment is indicated in the text by tags !". EN 15534 comprises the following parts: — EN 15534-1, Composites made from cellulose-based materials and thermoplastics (usually called wood-polymer composites (WPC) or natural fibre composites (NFC)) — Part 1: Test methods for characterization of compounds and products — EN 15534-4, Composites made from cellulose-based materials and thermoplastics (usually called wood-polymer composites (WPC) or natural fibre composites (NFC)) — Part 4: Specifications for decking profiles and tiles — EN 15534-5, Composites made from cellulose-based materials and thermoplastics (usually called wood-polymer composites (WPC) or natural fibre composites (NFC)) — Part 5: Specifications for cladding profiles and tiles — EN 15534-6, Composites made from cellulose-based materials and thermoplastics (usually called wood-polymer composites (WPC) or natural fibre composites (NFC)) — Part 6: Specifications for fencing profiles and fencing elements According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 15534-6:2015+A1:2018



EN 15534-6:2015+A1:2017 (E) 5 1 Scope This part of EN 15534 specifies the characteristics of fencing profiles and elements made from cellulose-based materials and thermoplastics, usually called wood-polymer composites (WPC) or natural fibre composites (NFC). It is applicable to fencing profiles and elements for non-structural fencing systems. The security systems, perimeter protections, handrails and load bearing applications are out of the scope of this part of EN 15534. Any systems made from profiles in the scope of this part of EN 15534 that are affected by regulations are under the responsibility of the system supplier. EN 15534-1 specifies some of the test methods relevant to this part of EN 15534. NOTE For editorial reasons, in EN 15534 the abbreviation “WPC” is used for “composites made from cellulose-based materials and thermoplastics”. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 927-6, Paints and varnishes — Coating materials and coating systems for exterior wood — Part 6: Exposure of wood coatings to artificial weathering using fluorescent UV lamps and water EN 16472, Plastics — Method for artificial accelerated photoageing using medium pressure mercury vapour lamps EN 15534-1:2014, Composites made from cellulose-based materials and thermoplastics (usually called wood-polymer composites (WPC) or natural fibre composites (NFC)) — Part 1: Test methods for characterisation of compounds and products EN ISO 4892-1:2000, Plastics — Methods of exposure to laboratory light sources — Part 1: General guidance (ISO 4892-1:1999) EN ISO 4892-2, Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps (ISO 4892-2) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 15534-1:2014 and the following apply. 3.1 fencing profile single profile intended to be assembled in a fencing element 3.2 fencing element assembly of two posts and one or several fencing profile(s) and possibly, fastenings and accessories SIST EN 15534-6:2015+A1:2018



EN 15534-6:2015+A1:2017 (E) 6 3.3 fencing system several assembled fencing elements 3.4 bow curvature of a fencing profile across its length Note 1 to entry: see Figure 1.
Key 1 bow Figure 1 — Illustration of bow 3.5 cupping curvature of a fencing profile across its width Note 1 to entry: see Figure 2.
Key 1 cupping Figure 2 — Illustration of cupping SIST EN 15534-6:2015+A1:2018



EN 15534-6:2015+A1:2017 (E) 7 4 Requirements for fencing profiles 4.1 General Initial type testing shall be performed to demonstrate compliance with the requirements specified in Clause 4 of this part of EN 15534. The tests according to 4.5.6 shall be carried out if the performance is to be declared by the manufacturer. Initial type testing shall be repeated, whenever a change occurs in the composition of the product, its geometry or in the production process. In case of a minor change, only the properties which could be influenced by this change shall be tested. NOTE Minimum frequencies of testing for factory production control purposes are given in Annex A. 4.2 Material The base polymer, from which the material is produced, and the type and content of cellulose-based material shall be declared by the manufacturer. Reprocessable and/or recyclable materials may be used for manufacturing profiles provided that they satisfy to the provisions of this part of EN 15534. WPC materials are recyclable materials which can be treated in a material recovery process intended to save resources while minimizing harmful emissions into air, water and soil as well as their impacts on human health. NOTE A scheme for the characterization of plastics waste is given in EN 15347 [1] and guideline for the recovery and recycling are given in ISO 15270 [2]. 4.3 Appearance For production control purposes, the manufacturer shall compare three samples drawn at random from the same profile production batch with a control sample, under the illumination conditions defined in EN 15534-1:2014, 6.1. The control samples shall be stored in a dark room and renewed every six months. If a control sample is put in contact with water, it shall be renewed immediately. 4.4 Physical properties When tested in accordance with the test methods as specified in Table 1, using the parameters indicated, the fencing profiles, as delivered to the customer, shall have properties conforming to the requirements given in Table 1. SIST EN 15534-6:2015+A1:2018



EN 15534-6:2015+A1:2017 (E) 8 Table 1 — Physical properties Property Requirements Test method Number of test specimens Linear mass Individual values
95 % declared value by the manufacturer. The linear mass and tolerances shall be declared by the manufacturer. EN 15534–1:2014, 6.5 3 specimens Thickness, width and length The relevant dimensional values and their tolerances shall be declared by the manufacturer. EN 15534–1:2014, 6.6.2 3 specimens Deviation from straightness The deviation of straightness and its tolerance shall be declared by the manufacturer. EN 15534–1:2014, 6.6.3 3 specimens Cupping (if relevant) The cupping value and its tolerance shall be declared by the manufacturer. EN 15534–1:2014, 6.6.4 3 specimens 4.5 Mechanical properties 4.5.1 Falling mass impact resistance When tested in accordance with the test methods as specified in Table 2, using the parameters indicated, the fencing profiles, as delivered to the customer, shall have properties conforming to the requirements given in Table 2. Table 2 — Falling mass impact resistance Requirements Test parameters Test method Number of test specimens Non-cellular material profiles No more than one test specimen out of 10 test specimens shall show a failure. H: (1 000 ± 5) mm Ms: (500 ± 2) g EN 15534–1:2014, 7.1.2.2.1 10 specimens/facea Cellular material profiles No more than one test specimen out of 10 test specimens shall show a failure. H: (1 000 ± 5) mm Ms: (500 ± 2) g EN 15534–1:2014, 7.1.2.2.2 10 speci
...
