SIST EN 10249-2:2024

Cold formed steel sheet piles - Part 2: Tolerances on dimensions and shape

This document specifies the tolerances on dimensions, squareness of ends, straightness and mass of cold formed steel sheet piles and is designed to be read in conjunction with EN 10249-1.
This document specifies the tolerances of cold formed steel sheet piles produced from hot rolled strip or sheet with a thickness equal to or greater than 3 mm.
The products specified are for general, structural and civil engineering works. The types of steel sheet piles covered by this document are: Z-shaped, Omega-shaped and trench sheets.
This document also specifies options that can be agreed between the purchaser and the manufacturer at the time of the order and enquiry.

Kaltgeformte Spundbohlen aus Stahl - Teil 2: Grenzabmaße und Formtoleranzen

Dieses Dokument legt die Grenzabmaße sowie die Rechtwinkligkeit der Enden, die Geradheit und die Masse von warmgewalzten Spundbohlen fest und ist zusammen mit EN 10249 1 zu verwenden.
Dieses Dokument legt die Toleranzen von kaltgeformten Spundwänden fest, die hergestellt wurden aus warmgewalztem Band oder Blech mit einer Dicke größer oder gleich 3 mm.
Die Erzeugnisse sind für allgemeine, strukturelle Anwendungen und für das Bauwesen verwendbar. Die Arten von Spundbohlen in diesem Dokument sind: Z Profil, Ω Profil und Kanaldiele.
Dieses Dokument legt auch Optionen fest, die zwischen dem Hersteller und dem Besteller bei der Anfrage und Bestellung vereinbart werden können.

Palplanches en acier profilées à froid - Partie 2 : Tolérances sur dimensions et forme

Le présent document spécifie les tolérances relatives aux dimensions, à l'équerrage des extrémités, à la rectitude et à la masse des palplanches en acier profilées à froid et est conçu pour être lu conjointement avec l’EN 10249-1.
Le présent document spécifie les tolérances des palplanches en acier formées à froid à partir de bandes ou tôles laminées à chaud d’épaisseur supérieure ou égale à 3 mm.
Les produits désignés sont destinés à être utilisés dans la réalisation d'ouvrages divers, d'éléments de construction et d'ouvrages de génie civil. Les types de palplanches en acier couverts dans le présent document sont : les palplanches en Z, Oméga et les rideaux de coffrage.
Le présent document spécifie également les options qui peuvent être convenues entre l'acheteur et le fabricant au moment de l’appel d’offres et de la commande.

Hladne oblikovane jeklene zagatnice - 2. del: Tolerance mer in oblik

Ta dokument določa tolerance mer, pravokotnosti na koncih, ravnosti in mase hladno oblikovanih jeklenih zagatnic ter je zasnovan tako, da se uporablja skupaj s standardom EN 10249-1.
Določa tolerance hladno oblikovanih jeklenih zagatnic, proizvedenih iz vroče valjanih trakov ali pločevine z debelino 3 mm ali več.
Navedeni izdelki so namenjeni za splošna, konstrukcijska in gradbena dela. Ta dokument zajema naslednje vrste jeklenih zagatnic: v obliki črke Z in črke omega terplošče za jarke.
Ta dokument prav tako določa možnosti, o katerih se lahko dogovorita kupec in proizvajalec v času naročila in povpraševanja.

General Information

• Status: Published
• Public Enquiry End Date: 25-Apr-2023
• Publication Date: 12-Aug-2024
• ICS: 77.140.70 - Steel profiles
• Technical Committee: IFEK - Ferrous metals
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Aug-2024
• Due Date: 06-Oct-2024
• Completion Date: 13-Aug-2024
• Ref Project: EN 10249-2:2024 - Cold formed steel sheet piles - Part 2: Tolerances on dimensions and shape

Relations

• Revises: SIST EN 10249-2:1998 - Cold formed sheet piling of non alloy steels - Part 2: Tolerances on shape and dimensions
• Effective Date: 28-Jan-2023

Overview

SIST EN 10249-2:2024 is a European standard developed by CEN that defines the tolerances on dimensions and shape for cold formed steel sheet piles. This document applies specifically to Z-shaped, Omega-shaped, and trench sheet piles made from hot rolled steel strip or sheet with a thickness of 3 mm or greater. It complements EN 10249-1, which covers the technical delivery conditions for these products.

The standard targets general, structural, and civil engineering applications and ensures consistent quality and interchangeability of steel sheet piles across projects. SIST EN 10249-2:2024 supersedes the 1995 edition and incorporates updated requirements on dimensions, squareness, straightness, mass, and interlocks.

Key Topics

This standard covers the following critical aspects of cold formed steel sheet piles:

• Dimensional tolerances:
  • Height tolerances range from ±4 mm to ±10 mm depending on profile size.
  • Width tolerances vary by pile type, with ±2% for single piles and ±3% for double piles.
  • Thickness tolerances conform to EN 10051 requirements.
• Straightness and shape:
  • Controls for sweep and bow (deviations in horizontal and vertical planes) set at a maximum of 0.25% of the pile length.
  • Twisting limits capped at 2% of the length or 100 mm maximum.
• Length tolerance:
  • Standard tolerance of ±50 mm, with options for reduced tolerance upon agreement.
• Squareness and angular deviations:
  • Squareness deviation at ends limited to 2% of pile width.
  • Flange angle tolerance fixed at ±2°, but adjustable by agreement.
• Mass tolerance:
  • Actual mass must be within ±7% of calculated mass, with options for tighter tolerances.
• Interlocks and overlapping:
  • Specifications ensure free play for assembly but prevent disengagement during handling and installation.
  • Verification through sample threading tests is recommended.
• Options available on order:
  • Reduced length tolerance
  • Different flange angle tolerance
  • Reduced mass tolerance

Applications

SIST EN 10249-2:2024 is essential for manufacturers, suppliers, engineers, and contractors involved in the design, fabrication, and installation of steel sheet piles. The standard ensures:

• Accurate manufacturing control of cold formed steel sheet piles to meet construction requirements.
• Reliable structural performance in civil engineering projects like retaining walls, foundations, and cofferdams.
• Compatibility and interchangeability of sheet piles from different manufacturers.
• Quality assurance during acceptance inspections on site or at the workshop.
• Clear communication of tolerances and order specifications between purchasers and manufacturers.

This standard thus supports efficient project execution while optimizing safety, durability, and cost-effectiveness in piling works.

Related Standards

SIST EN 10249-2:2024 should be used in conjunction with these key standards:

• EN 10249-1: Cold formed steel sheet piles - Part 1: Technical delivery conditions
• EN 10021: General technical delivery conditions for steel products
• EN 10079: Definitions of steel products
• EN 10051: Tolerances on dimensions and shape for hot-rolled strip and sheet
• EN 12063: Execution of special geotechnical work - Sheet pile walls and related structures

By aligning with these normative references, EN 10249-2 helps maintain harmonized European practice and supports compliance with national standards across CEN member countries.

---

Keywords: cold formed steel sheet piles, SIST EN 10249-2:2024, dimensional tolerances, steel sheet pile tolerances, straightness, squareness, mass tolerance, Z-shaped sheet piles, Omega-shaped sheet piles, trench sheets, structural steel profiles, civil engineering standards, steel piling standards.

Standards Content (Sample)

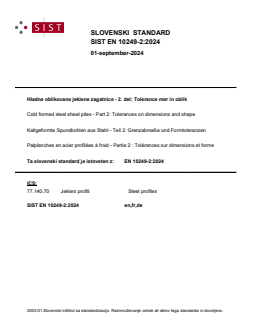

SLOVENSKI STANDARD
01-september-2024
Hladne oblikovane jeklene zagatnice - 2. del: Tolerance mer in oblik
Cold formed steel sheet piles - Part 2: Tolerances on dimensions and shape
Kaltgeformte Spundbohlen aus Stahl - Teil 2: Grenzabmaße und Formtoleranzen
Palplanches en acier profilées à froid - Partie 2 : Tolérances sur dimensions et forme
Ta slovenski standard je istoveten z: EN 10249-2:2024
ICS:
77.140.70 Jekleni profili Steel profiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 10249-2
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2024
EUROPÄISCHE NORM
ICS 77.140.70 Supersedes EN 10249-2:1995
English Version
Cold formed steel sheet piles - Part 2: Tolerances on
dimensions and shape
Palplanches en acier profilées à froid - Partie 2 : Kaltgeformte Spundbohlen aus Stahl - Teil 2:
Tolérances sur dimensions et forme Grenzabmaße und Formtoleranzen
This European Standard was approved by CEN on 10 June 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 10249-2:2024 E
worldwide for CEN national Members.

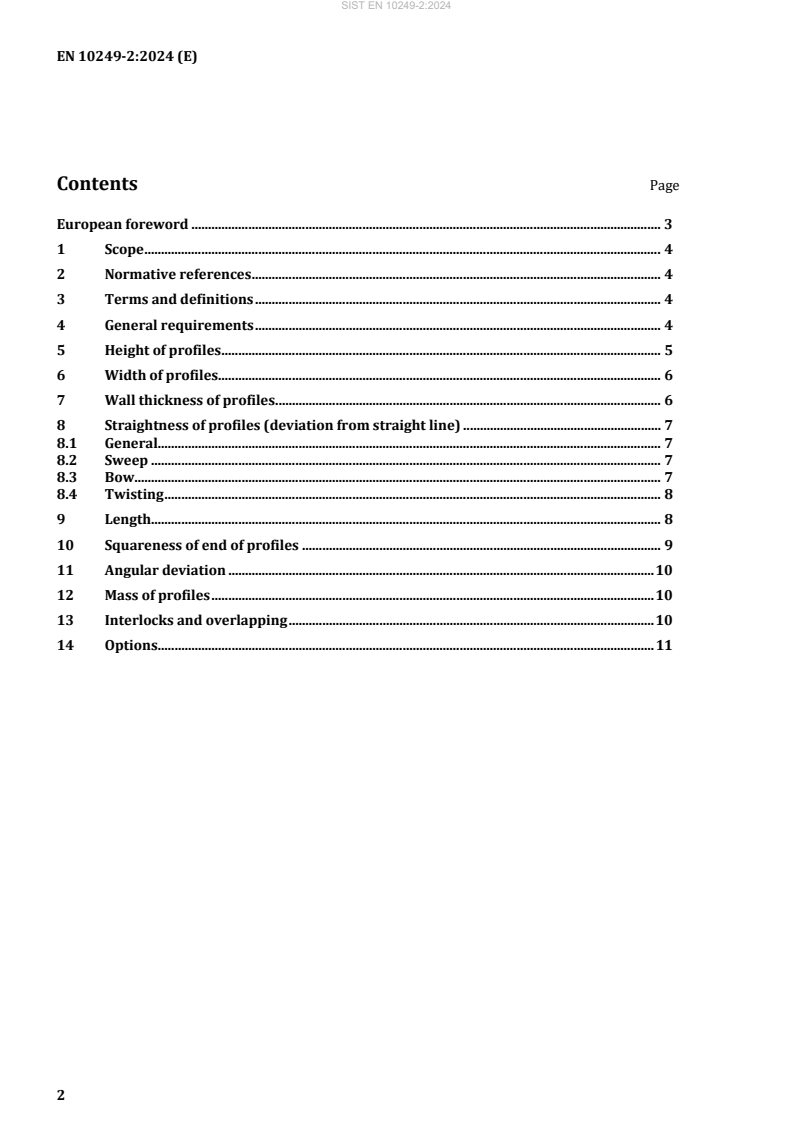

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 General requirements . 4
5 Height of profiles . 5
6 Width of profiles . 6
7 Wall thickness of profiles . 6
8 Straightness of profiles (deviation from straight line) . 7
8.1 General. 7
8.2 Sweep . 7
8.3 Bow. 7
8.4 Twisting . 8
9 Length. 8
10 Squareness of end of profiles . 9
11 Angular deviation . 10
12 Mass of profiles . 10
13 Interlocks and overlapping . 10
14 Options . 11

European foreword
This document (EN 10249-2:2024) has been prepared by Technical Committee CEN/TC 459/SC 3
“Structural steels other than reinforcements”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2025, and conflicting national standards shall
be withdrawn at the latest by January 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 10249-2:1995.
a) restructure of the standard;
b) update of the normative references and general requirements;
c) addition of a new Table 2 with the tolerance on the width;
d) adaptation of the terms “sweep” and “bow” in 8.2 and 8.3;
e) new wording for Clause 11 about the mass tolerance;
f) addition of two figures in Clause 13 about interlocks.
EN 10249 consists of the following parts under the general title Cold formed steel sheet piles:
— Part 1: Technical delivery conditions
— Part 2: Tolerances on dimensions and shape
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies the tolerances on dimensions, squareness of ends, straightness and mass of cold
formed steel sheet piles and is designed to be read in conjunction with EN 10249-1.
This document specifies the tolerances of cold formed steel sheet piles produced from hot rolled strip or
sheet with a thickness equal to or greater than 3 mm.
The products specified are for general, structural and civil engineering works. The types of steel sheet
piles covered by this document are: Z-shaped, Omega-shaped and trench sheets.
This document also specifies options that can be agreed between the purchaser and the manufacturer a
...
