EN 10249-2:2024

Cold formed steel sheet piles - Part 2: Tolerances on dimensions and shape

This document specifies the tolerances on dimensions, squareness of ends, straightness and mass of cold formed steel sheet piles and is designed to be read in conjunction with EN 10249-1.
This document specifies the tolerances of cold formed steel sheet piles produced from hot rolled strip or sheet with a thickness equal to or greater than 3 mm.
The products specified are for general, structural and civil engineering works. The types of steel sheet piles covered by this document are: Z-shaped, Omega-shaped and trench sheets.
This document also specifies options that can be agreed between the purchaser and the manufacturer at the time of the order and enquiry.

Kaltgeformte Spundbohlen aus Stahl - Teil 2: Grenzabmaße und Formtoleranzen

Dieses Dokument legt die Grenzabmaße sowie die Rechtwinkligkeit der Enden, die Geradheit und die Masse von warmgewalzten Spundbohlen fest und ist zusammen mit EN 10249 1 zu verwenden.
Dieses Dokument legt die Toleranzen von kaltgeformten Spundwänden fest, die hergestellt wurden aus warmgewalztem Band oder Blech mit einer Dicke größer oder gleich 3 mm.
Die Erzeugnisse sind für allgemeine, strukturelle Anwendungen und für das Bauwesen verwendbar. Die Arten von Spundbohlen in diesem Dokument sind: Z Profil, Ω Profil und Kanaldiele.
Dieses Dokument legt auch Optionen fest, die zwischen dem Hersteller und dem Besteller bei der Anfrage und Bestellung vereinbart werden können.

Palplanches en acier profilées à froid - Partie 2 : Tolérances sur dimensions et forme

Le présent document spécifie les tolérances relatives aux dimensions, à l'équerrage des extrémités, à la rectitude et à la masse des palplanches en acier profilées à froid et est conçu pour être lu conjointement avec l’EN 10249-1.
Le présent document spécifie les tolérances des palplanches en acier formées à froid à partir de bandes ou tôles laminées à chaud d’épaisseur supérieure ou égale à 3 mm.
Les produits désignés sont destinés à être utilisés dans la réalisation d'ouvrages divers, d'éléments de construction et d'ouvrages de génie civil. Les types de palplanches en acier couverts dans le présent document sont : les palplanches en Z, Oméga et les rideaux de coffrage.
Le présent document spécifie également les options qui peuvent être convenues entre l'acheteur et le fabricant au moment de l’appel d’offres et de la commande.

Hladne oblikovane jeklene zagatnice - 2. del: Tolerance mer in oblik

Ta dokument določa tolerance mer, pravokotnosti na koncih, ravnosti in mase hladno oblikovanih jeklenih zagatnic ter je zasnovan tako, da se uporablja skupaj s standardom EN 10249-1.
Določa tolerance hladno oblikovanih jeklenih zagatnic, proizvedenih iz vroče valjanih trakov ali pločevine z debelino 3 mm ali več.
Navedeni izdelki so namenjeni za splošna, konstrukcijska in gradbena dela. Ta dokument zajema naslednje vrste jeklenih zagatnic: v obliki črke Z in črke omega terplošče za jarke.
Ta dokument prav tako določa možnosti, o katerih se lahko dogovorita kupec in proizvajalec v času naročila in povpraševanja.

General Information

• Status: Published
• Publication Date: 16-Jul-2024
• ICS: 77.140.70 - Steel profiles
• Technical Committee: ECISS/TC 103 - Structural steels other than reinforcements
• Drafting Committee: CEN/TC 459/SC 3/WG 1 - Sheet piles
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 17-Jul-2024
• Due Date: 25-Dec-2024
• Completion Date: 17-Jul-2024
• Ref Project: SIST EN 10249-2:2024 - Cold formed steel sheet piles - Part 2: Tolerances on dimensions and shape

Relations

• Replaces: EN 10249-2:1995 - Cold formed sheet piling of non alloy steels - Part 2: Tolerances on shape and dimensions
• Effective Date: 28-Jan-2023
• Refers: EN 10051:2024 - Continuously hot-rolled strip and plate/sheet cut from wide strip of non-alloy and alloy steels - Tolerances on dimensions and shape
• Effective Date: 28-Jan-2026
• Refers: EN 10079:2007 - Definition of steel products
• Effective Date: 28-Jan-2026
• Refers: EN 10249-1:1995 - Cold formed sheet piling of non alloy steels - Part 1: Technical delivery conditions
• Effective Date: 28-Jan-2026
• Refers: EN 10021:2006 - General technical delivery conditions for steel products
• Effective Date: 28-Jan-2026
• Referred By: EN 12063:2024 - Execution of special geotechnical work - Sheet pile walls, combined pile walls, high modulus walls
• Effective Date: 28-Jan-2026
• Referred By: EN 1993-5:2007 - Eurocode 3 - Design of steel structures - Part 5: Piling
• Effective Date: 28-Jan-2026
• Referred By: EN 12699:2015 - Execution of special geotechnical works - Displacement piles
• Effective Date: 28-Jan-2026
• Referred By: EN 1993-5:2025 - Eurocode 3 - Design of steel structures - Part 5: Piling
• Effective Date: 28-Jan-2026
• Referred By: EN 1538:2010 - Execution of special geotechnical work - Diaphragm walls
• Effective Date: 28-Jan-2026
• Referred By: EN 1536:2010 - Execution of special geotechnical work - Bored piles
• Effective Date: 28-Jan-2026
• Referred By: EN 1538:2010+A1:2015 - Execution of special geotechnical work - Diaphragm walls
• Effective Date: 28-Jan-2026

Overview

EN 10249-2:2024 - Cold formed steel sheet piles: Tolerances on dimensions and shape is a European standard developed by CEN to ensure precision in the manufacturing of cold formed steel sheet piles. This document defines the permissible deviations in dimensions, straightness, squareness, and mass of steel sheet piles produced from hot rolled strip or sheet materials with a minimum thickness of 3 mm. These sheet piles are widely used in general, structural, and civil engineering projects, including infrastructure and geotechnical works.

Designed to be used in conjunction with EN 10249-1, this standard provides requirements for Z-shaped, Omega-shaped, and trench sheet piles. EN 10249-2:2024 also specifies optional parameters that can be customized by agreement between the purchaser and manufacturer to address unique project needs.

Key Topics

• Dimensional Tolerances

  • Specifies maximum permissible deviations for profile height, width, and wall thickness
  • Ensures uniformity in length, squareness of ends, and straightness

• Profile Types

  • Applies to Z-shaped, Omega-shaped, and trench sheet steel piles

• Shape and Mass Compliance

  • Covers straightness criteria such as sweep, bow, and twist
  • Defines mass tolerances for each product batch

• Interlocks and Overlapping

  • Provides guidance for the form and engagement of interlocks to facilitate installation
  • Verification process ensures consistent engagement and disengagement behavior

• Measurement and Agreement Options

  • All measurements must be taken on properly supported, flat surfaces
  • Special tolerances can be agreed for length, flange angle, and mass at the time of order

Applications

EN 10249-2:2024 is essential for manufacturers, contractors, and civil engineers involved in:

• Structural and Civil Engineering Works

  • Used in the construction of retaining walls, embankments, cofferdams, and marine structures

• Infrastructure Projects

  • Ideal for roads, railways, flood defenses, and waterfront engineering

• Geotechnical Works

  • Compliant with EN 12063 for special geotechnical work such as sheet pile walls and combined pile walls

By adhering to the dimensional and shape tolerances specified in EN 10249-2, projects benefit from greater predictability in pile performance, improved installation alignments, and reduced material waste. The options for agreed tolerances further allow project-specific customization, supporting diverse engineering requirements.

Related Standards

• EN 10249-1: Cold formed sheet piling of non-alloy steels - Technical delivery conditions
• EN 10021: General technical delivery conditions for steel products
• EN 10079: Definition of steel products
• EN 10051: Tolerances on dimensions and shape for hot-rolled strip and plate/sheet
• EN 12063: Execution of special geotechnical work - Sheet pile walls, combined pile walls, high modulus walls

These related standards complement EN 10249-2, collectively ensuring that steel sheet piles meet essential safety, quality, and interoperability criteria for modern construction and engineering projects across Europe.

---

By implementing EN 10249-2:2024, stakeholders in the steel and construction industries can maximize efficiency, comply with European requirements, and deliver lasting infrastructure solutions with high levels of dimensional accuracy and reliability.

Standards Content (Sample)

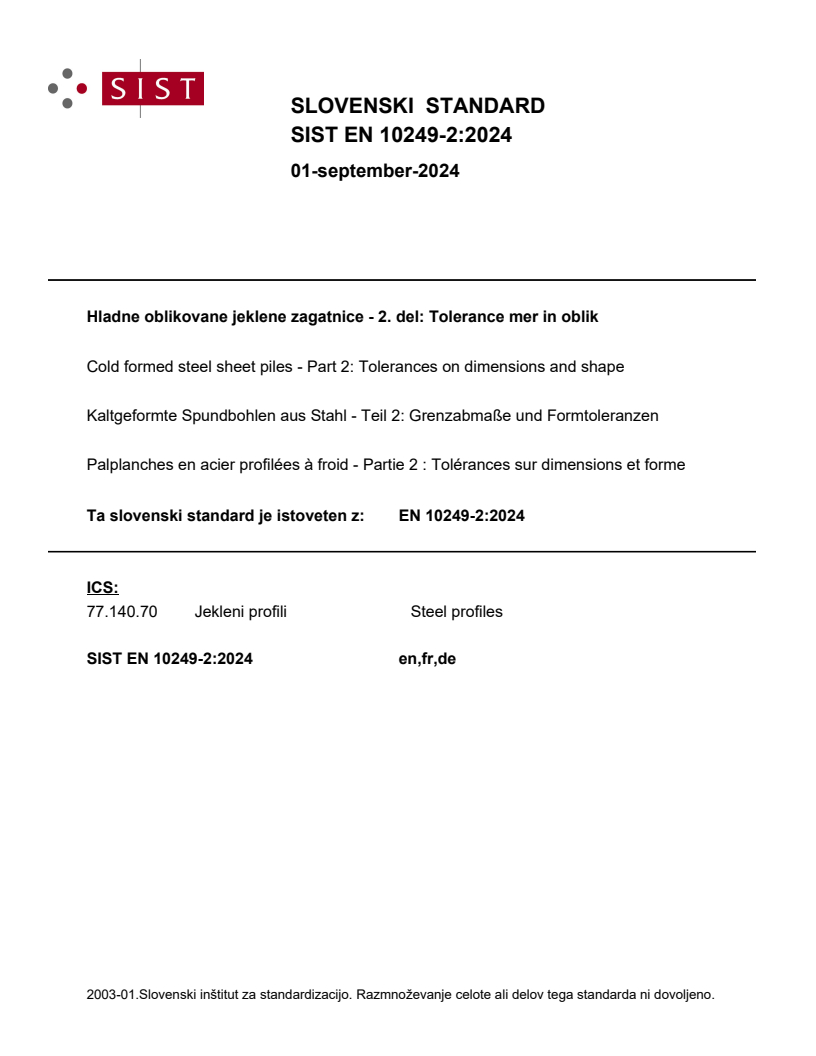

SLOVENSKI STANDARD
01-september-2024
Hladne oblikovane jeklene zagatnice - 2. del: Tolerance mer in oblik
Cold formed steel sheet piles - Part 2: Tolerances on dimensions and shape
Kaltgeformte Spundbohlen aus Stahl - Teil 2: Grenzabmaße und Formtoleranzen
Palplanches en acier profilées à froid - Partie 2 : Tolérances sur dimensions et forme
Ta slovenski standard je istoveten z: EN 10249-2:2024
ICS:
77.140.70 Jekleni profili Steel profiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

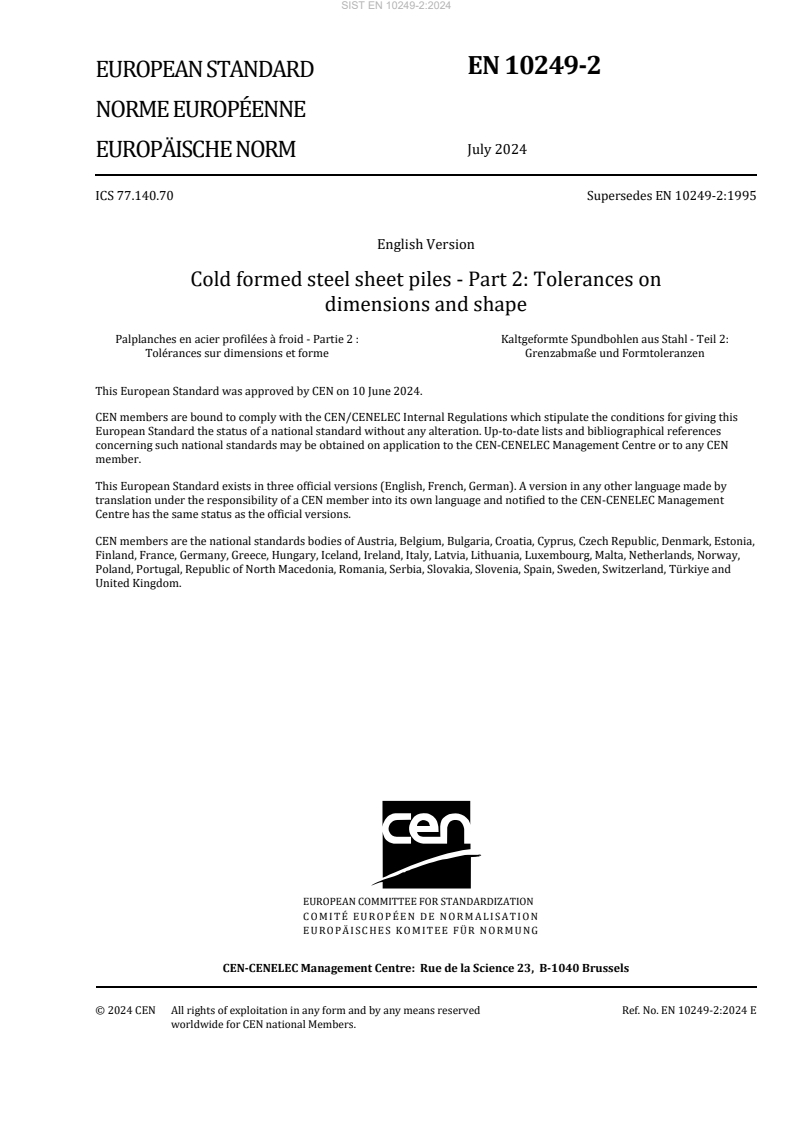

EN 10249-2
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2024
EUROPÄISCHE NORM
ICS 77.140.70 Supersedes EN 10249-2:1995
English Version
Cold formed steel sheet piles - Part 2: Tolerances on
dimensions and shape
Palplanches en acier profilées à froid - Partie 2 : Kaltgeformte Spundbohlen aus Stahl - Teil 2:
Tolérances sur dimensions et forme Grenzabmaße und Formtoleranzen
This European Standard was approved by CEN on 10 June 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 10249-2:2024 E
worldwide for CEN national Members.

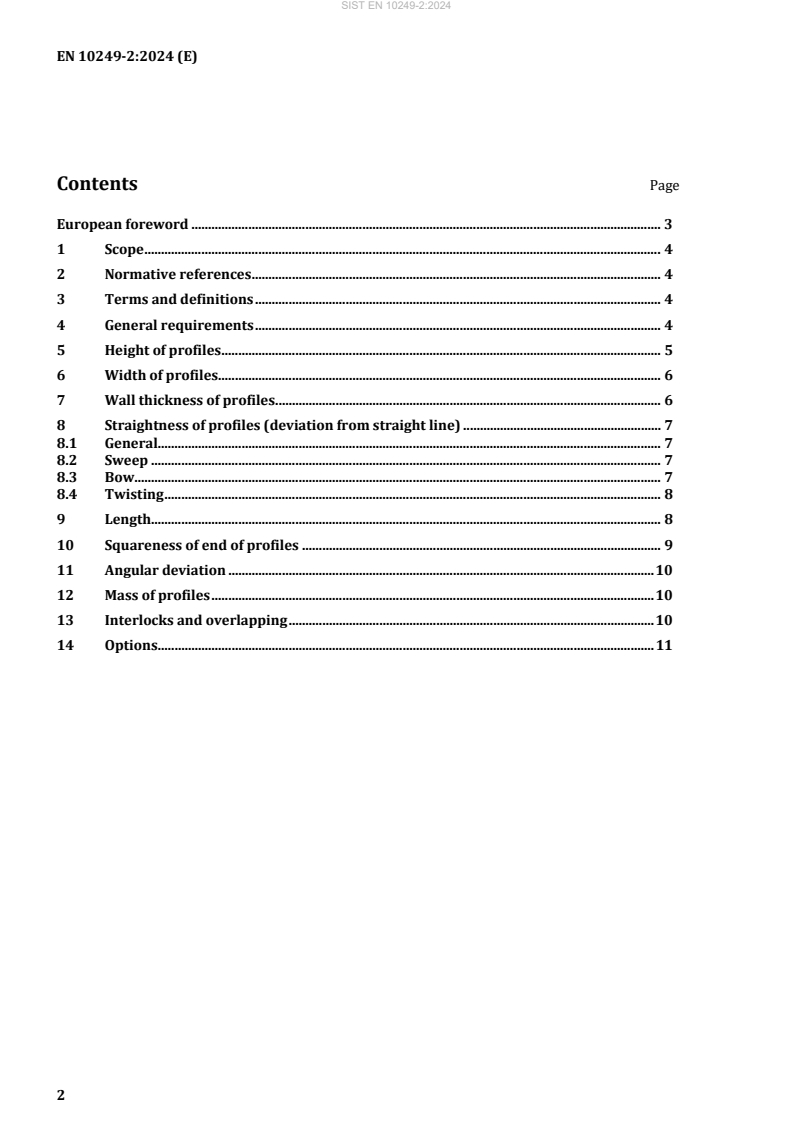

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 General requirements . 4
5 Height of profiles . 5
6 Width of profiles . 6
7 Wall thickness of profiles . 6
8 Straightness of profiles (deviation from straight line) . 7
8.1 General. 7
8.2 Sweep . 7
8.3 Bow. 7
8.4 Twisting . 8
9 Length. 8
10 Squareness of end of profiles . 9
11 Angular deviation . 10
12 Mass of profiles . 10
13 Interlocks and overlapping . 10
14 Options . 11

European foreword
This document (EN 10249-2:2024) has been prepared by Technical Committee CEN/TC 459/SC 3
“Structural steels other than reinforcements”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2025, and conflicting national standards shall
be withdrawn at the latest by January 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 10249-2:1995.
a) restructure of the standard;
b) update of the normative references and general requirements;
c) addition of a new Table 2 with the tolerance on the width;
d) adaptation of the terms “sweep” and “bow” in 8.2 and 8.3;
e) new wording for Clause 11 about the mass tolerance;
f) addition of two figures in Clause 13 about interlocks.
EN 10249 consists of the following parts under the general title Cold formed steel sheet piles:
— Part 1: Technical delivery conditions
— Part 2: Tolerances on dimensions and shape
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies the tolerances on dimensions, squareness of ends, straightness and mass of cold
formed steel sheet piles and is designed to be read in conjunction with EN 10249-1.
This document specifies the tolerances of cold formed steel sheet piles produced from hot rolled strip or
sheet with a thickness equal to or greater than 3 mm.
The products specified are for general, structural and civil engineering works. The types of steel sheet
piles covered by this document are: Z-shaped, Omega-shaped and trench sheets.
This document also specifies options that can be agreed between the purchaser and the manufacturer a
...
