Standard Specification for Warping Heads, Rope Handling (Gypsy Head, Capstan Head)

Standard Specification for Warping Heads, Rope Handling (Gypsy Head, Capstan Head)

ABSTRACT
This specification covers warping heads used with windlass, winch, and capstan drive units to pull rope on board ships. Warping heads are primarily for use with fiber rope, natural, or synthetic. Warping heads with external ribs or whelps on the barrel, notched flanges, attached storage drums, unfinished drums, or non heat-treated fabrications, are considered special. The size of the warping head shall be identified by the nominal barrel diameter measured at the smallest point of the barrel. These warping heads are furnished in two types: Type I is with a cylindrical barrel which is generally used in but not restricted to horizontal shaft applications and Type II is with a conical barrel which is mounted with the large end of the barrel toward the drive machinery. It is generally used in but not restricted to vertical shaft applications. On the other hand, the warping heads are divided into four grades according to composition: Grade 1 is fabricated from any combination of structural steel plate, pipe, tubing, or steel castings and joined by electric welding; Grade 2 is made from mild to medium strength steel; Grade 3 is fabricated from any combination of steel plate or steel castings and joined by electric welding; and Grade 4 is cast from high strength steel castings. Principal dimensions, tolerances, and strength requirements are discussed.
SCOPE
1.1 This specification covers warping heads used with windlass, winch, and capstan drive units to pull rope on board ships. Warping heads are primarily for use with fiber rope, natural, or synthetic.
1.2 Warping heads with external ribs or whelps on the barrel, notched flanges, attached storage drums, unfinished drums, or non heat-treated fabrications, are considered special and are permitted within the scope of this specification when fully described under special ordering information.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
30-Jun-2023
ICS
47.020.40 - Lifting and cargo handling equipment
Technical Committee
F25 - Ships and Marine Technology
Drafting Committee
F25.03 - Outfitting and Deck Machinery
Current Stage
Ref Project

Relations

Refers
ASTM A53/A53M-24 - Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
Effective Date
01-Mar-2024
Refers
ASTM A724/A724M-09(2023) - Standard Specification for Pressure Vessel Plates, Carbon-Manganese-Silicon Steel, Quenched and Tempered, for Welded Pressure Vessels
Effective Date
01-Nov-2023
Refers
ASTM A27/A27M-20 - Standard Specification for Steel Castings, Carbon, for General Application
Effective Date
01-May-2020
Refers
ASTM A148/A148M-20 - Standard Specification for Steel Castings, High Strength, for Structural Purposes
Effective Date
01-May-2020
Refers
ASTM A148/A148M-20e1 - Standard Specification for Steel Castings, High Strength, for Structural Purposes
Effective Date
01-May-2020
Refers
ASTM A27/A27M-19 - Standard Specification for Steel Castings, Carbon, for General Application
Effective Date
01-Sep-2019
Refers
ASTM A148/A148M-19 - Standard Specification for Steel Castings, High Strength, for Structural Purposes
Effective Date
01-Sep-2019
Refers
ASTM A724/A724M-09(2018) - Standard Specification for Pressure Vessel Plates, Carbon-Manganese-Silicon Steel, Quenched and Tempered, for Welded Pressure Vessels
Effective Date
01-Sep-2018
Refers
ASTM A27/A27M-17 - Standard Specification for Steel Castings, Carbon, for General Application
Effective Date
01-May-2017
Refers
ASTM A27/A27M-13(2016) - Standard Specification for Steel Castings, Carbon, for General Application
Effective Date
01-Sep-2016
Refers
ASTM A148/A148M-15a - Standard Specification for Steel Castings, High Strength, for Structural Purposes
Effective Date
01-Nov-2015
Refers
ASTM A148/A148M-15 - Standard Specification for Steel Castings, High Strength, for Structural Purposes
Effective Date
01-Sep-2015
Refers
ASTM A148/A148M-14 - Standard Specification for Steel Castings, High Strength, for Structural Purposes
Effective Date
15-Nov-2014
Refers
ASTM E10-14 - Standard Test Method for Brinell Hardness of Metallic Materials
Effective Date
01-May-2014
Refers
ASTM A27/A27M-13 - Standard Specification for Steel Castings, Carbon, for General Application
Effective Date
01-Nov-2013

Buy Standard

ASTM F1106-87(2023) - Standard Specification for Warping Heads, Rope Handling (Gypsy Head, Capstan Head)ASTM F1106-87(2023) - Standard Specification for Warping Heads, Rope Handling (Gypsy Head, Capstan Head)
PreviousNext
Technical specification
ASTM F1106-87(2023) - Standard Specification for Warping Heads, Rope Handling (Gypsy Head, Capstan Head)
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

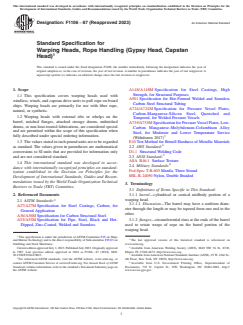

Designation: F1106 − 87 (Reapproved 2023) An American National Standard
Standard Specification for
Warping Heads, Rope Handling (Gypsy Head, Capstan
Head)
This standard is issued under the fixed designation F1106; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope A148/A148M Specification for Steel Castings, High
Strength, for Structural Purposes
1.1 This specification covers warping heads used with
A501 Specification for Hot-Formed Welded and Seamless
windlass, winch, and capstan drive units to pull rope on board
Carbon Steel Structural Tubing
ships. Warping heads are primarily for use with fiber rope,
A724/A724M Specification for Pressure Vessel Plates,
natural, or synthetic.
Carbon-Manganese-Silicon Steel, Quenched and
1.2 Warping heads with external ribs or whelps on the
Tempered, for Welded Pressure Vessels
barrel, notched flanges, attached storage drums, unfinished
A735/A735M Specification for Pressure Vessel Plates, Low-
drums, or non heat-treated fabrications, are considered special
Carbon Manganese-Molybdenum-Columbium Alloy
and are permitted within the scope of this specification when
Steel, for Moderate and Lower Temperature Service
fully described under special ordering information.
(Withdrawn 2017)
E10 Test Method for Brinell Hardness of Metallic Materials
1.3 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical 2.2 AWS Standard:
D1.1 Structural Welding Code
conversions to SI units that are provided for information only
and are not considered standard. 2.3 ANSI Standard:
ASA B46.1 Surface Texture
1.4 This international standard was developed in accor-
2.4 Military Standards:
dance with internationally recognized principles on standard-
Fed-Spec T-R-605 Manila, Three Strand
ization established in the Decision on Principles for the
MIL-R-24050 Nylon, Double Braided
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
3. Terminology
Barriers to Trade (TBT) Committee.
3.1 Definitions of Terms Specific to This Standard:
2. Referenced Documents 3.1.1 barrel—cylindrical or conical midbody portion of a
2 warping head.
2.1 ASTM Standards:
3.1.1.1 Discussion—The barrel may have a uniform diam-
A27/A27M Specification for Steel Castings, Carbon, for
eter through the length or may be tapered from one end to the
General Application
other.
A36/A36M Specification for Carbon Structural Steel
3.1.2 flanges—circumferential rims at the ends of the barrel
A53/A53M Specification for Pipe, Steel, Black and Hot-
used to retain wraps of rope on the barrel portion of the
Dipped, Zinc-Coated, Welded and Seamless
warping head.
This specification is under the jurisdiction of ASTM Committee F25 on Ships
and Marine Technology and is the direct responsibility of Subcommittee F25.03 on The last approved version of this historical standard is referenced on
Outfitting and Deck Machinery. www.astm.org.
Current edition approved July 1, 2023. Published July 2023. Originally approved Available from American Welding Society (AWS), 8669 NW 36 St., #130,
in 1987. Last previous edition approved in 2018 as F1106 – 87 (2018). DOI: Miami, FL 33166-6672, http://www.aws.org.
10.1520/F1106-87R23. Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
For referenced ASTM standards, visit the ASTM website, www.astm.org, or 4th Floor, New York, NY 10036, http://www.ansi.org.
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Available from U.S. Government Printing Office, Superintendent of
Standards volume information, refer to the standard’s Document Summary page on Documents, 732 N. Capitol St., NW, Washington, DC 20401-0001, http://
the ASTM website. www.access.gpo.gov.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F1106 − 87 (2023)
3.1.3 rope contact surfaces—portions of the barrel, flanges, 4.3.3 Grade 3—Fabricated from any combination of steel
and connecting fillets that a rope will contact when led in plate or steel castings and joined by electric welding. Heat
tangent to the barrel and normal to the shaft centerline, treated to provide a surface hardness ( ⁄8 in. (3 mm) deep) of
wrapped around the barrel, and led away tangent to the barrel 200 to 250 Brinell on rope contact surface. Rope contact
as in normal use. (See Fig. 1 and Fig. 2.) surface finished to an average 125 μin. to 160 μin. (3175 μmm
to 4064 μmm) finish.
3.1.4 warping head (also known as a gypsy head or capstan
4.3.4 Grade 4—Cast from high strength steel castings and
head)—cylindrical or conical rotating member to receive
heat treated to provide a surface hardness ( ⁄8 in. (3 mm) deep)
multiple wraps of rope around the circumference of the
of 200 to 250 Brinell on rope contact surface. Rope contact
member and of suitable strength to impart a pulling motion to
surface finished to an average 125 μin. to 160 μin. (3175 μmm
the rope by friction contact when the member is rotated.
to 4064 μmm) finish.
4. Classification
4.4 When required by ordering information, an accessory
4.1 The size of the warping head shall be identified by the
cover will be provided to cover the open end of the warping
nominal barrel diameter measured at the smallest point of the
head.
barrel.
5. Ordering Information
4.2 Warping heads under this specification are furnished in
two types as follows:
5.1 Orders for warping heads under this specification shall
4.2.1 Type I Warping Head With Cylindrical Barrel—
include the following:
Generally used in but not restricted to horizontal shaft appli-
5.1.1 Quantity (number),
cations. Also known as a gypsy head (see Fig. 1).
5.1.2 ASTM designation and year of issue,
4.2.2 Type II Warping Head With a Conical Barrel—
5.1.3 Size (barrel diameter),
Mounted with the large end of the barrel toward the drive
5.1.4 Type (I or II),
machinery. Generally used in but not restricted to vertical shaft
applications. Also known as a capstan head (see Fig. 2). 5.1.5 Grade (1, 2, 3, or 4),
5.1.6 As-cast or machined dimensions for warping head
4.3 Warping heads are divided into four grades as follows:
bore, hub length and location, hub puller holes, and shaft
4.3.1 Grade 1—Fabricated from any combination of struc-
keying,
tural steel plate, pipe, tubing, or steel castings and joined by
electric welding. 5.1.7 Requirement for optional accessory cover on open end
4.3.2 Grade 2—Cast from mild to medium strength steel. of warping head (see 4.4),
A B C D E
A B
Rope Pull, 1000 lb Tolerance, in. ± Concentricity, in.
Diameter, in. Diameter, in. Diameter, in. Length, in. Length, in.
1 3 15 1 1
6 12.5 8 9 ⁄16 2 ⁄4 5 ⁄32 ⁄4 ⁄8
5 1 3
9 25.0 12 13 ⁄8 4 ⁄16 8 ⁄16
3 3
⁄8 ⁄16
3 7 31 J J
12 37.5 16 18 ⁄16 5 ⁄16 10 ⁄32
3 3 11
15 50.0 20 22 ⁄4 6 ⁄4 13 ⁄16
1 1
⁄2 ⁄4
5 1 13 J J
18 75.0 24 27 ⁄16 8 ⁄16 16 ⁄32
7 7 3
21 100.0 28 31 ⁄8 9 ⁄16 19 ⁄16
5 5
⁄8 ⁄16
J J
3 13 7
24 125.0 32 36 ⁄8 10 ⁄16 21 ⁄8
15 3 31
27 150.0 36 41 ⁄16 12 ⁄16 24 ⁄32
3 3
⁄4 ⁄8
J J
1 1 3
30 175.0 40 45 ⁄2 13 ⁄2 27 ⁄8
1 13 3
33 200.0 44 50 ⁄16 14 ⁄16 30 ⁄32
7 7
⁄8 ⁄16
J J
5 3 7
36 225.0 48 54 ⁄8 16 ⁄16 32 ⁄8
A
Tolerance for dimensions A, B, C, D, and E.
B
Concentricity of rope contact surface and flanges relative to bore.
NOTE 1—1 in. = 25.4 mm.

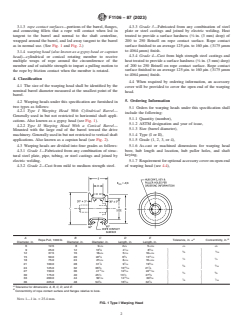

FIG. 1 Type I Warping Head
F1106 − 87 (2023)
A B C D E
A B
Rope Pull, 1000 lb Tolerance, in. ± Concentricity, in.
Diameter, in. Diameter, in. Diameter, in. Length, in. Length, in.
1 3 15 1 1
6 12.5 8 9 ⁄4 2 ⁄4 5 ⁄32 ⁄4 ⁄8
15 1 3
9 25.0 12 13 ⁄16 4 ⁄16 8 ⁄16
3 3
⁄8 ⁄16
J J
5 7 31
12 37.5 16 18 ⁄8 5 ⁄16 10 ⁄32
1 3 11
15 50.0 20 23 ⁄4 6 ⁄4 13 ⁄16
1 1
⁄2 ⁄4
J J
7 1 13
18 75.0 24 27 ⁄8 8 ⁄16 16 ⁄32
9 7 3
21 100.0 28 32 ⁄16 9 ⁄16 19 ⁄16
5 5
⁄8 ⁄16
J J
3 13 7
24 125.0 32 37 ⁄16 10 ⁄16 21 ⁄8
7 3 31
27 150.0 36 41 ⁄8 12 ⁄16 24 ⁄32
3 3
⁄4 ⁄8
J J
1 1 3
30 175.0 40 46 ⁄2 13 ⁄2 27 ⁄8
1 13 3
33 200.0 44 51 ⁄8 14 ⁄16 30 ⁄32
7 7
⁄8 ⁄16
13 3 7 J J
36 225.0 48 55 ⁄16 16 ⁄16 32 ⁄8
A
Tolerance for dimensions A, B, C, D, and E.
B
Concentricity of rope contact surface and flanges relative to bore.
NOTE 1—1 in. = 25.4 mm.

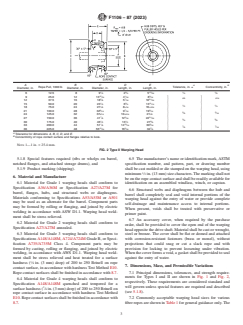

FIG. 2 Type II Warping Head
5.1.8 Special features required (ribs or whelps on barrel, 6.5
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM F1523-94(2023)(Guide)
Standard Guide for Selection of Booms in Accordance With Water Body Classifications

SIGNIFICANCE AND USE
4.1 This guide is to be used to assist in the selection of containment boom in accordance with water body classifications.
4.2 A small number of key parameters that generally affect boom performance have been used in Table 1, in order to enable the user to readily identify general criteria for boom selection.
4.3 Many factors, other than those listed in Table 1, may be important in selecting containment boom for a particular application. Such factors include: flotation element length, wave length, the effect of stronger than minimum required strength members, shock loads, abrasion resistance, stability in roll, resistance to bridging, interval between anchor points and hand holds, use of reflectors or lighting, compatibility with fresh or salt water, and resistance to sunlight exposure.
4.4 The values given in Table 1 are the recommended minimums for general purpose booms. As identified in 2.3, operational considerations may require trade-offs in boom properties. Special purpose booms, and general purpose booms used in special circumstances, may perform effectively with boom property values above or below those recommended in Table 1.
4.5 Effective operation of oil spill control equipment depends on many factors, of which the prevailing environmental conditions are just a few. Factors such as, but not limited to, deployment techniques, level of training, personnel performance, and mechanical reliability can also affect equipment performance.
SCOPE
1.1 This guide covers the selection of containment boom that may be used to control spills of oil and other substances that float on a body of water.
1.2 This guide does not address the compatibility of spill control equipment with spill products. It is the user's responsibility to ensure than any equipment selected is compatible with anticipated products.
1.3 The values stated in SI units are to be regarded as standard. The values given in parentheses after SI units are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    2 pages
    English language
    sale 15% off
ASTM
ASTM F1797-18(2022)(Test Method)
Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Digger Derricks

SIGNIFICANCE AND USE
5.1 This test method permits testing of the major components of a digger derrick generated by the rapid release of energy from localized sources within the digger derrick under controlled loading. The energy releases occur during intentional application of a predetermined load. These energy releases can be monitored and interpreted by qualified individuals. Acceptance/rejection criteria are beyond the scope of this test method. The test may be discontinued at any time to investigate a particular area of concern, or to prevent a fault from continuing to ultimate failure of the digger derrick resulting from the application of the test load.
5.2 This test method provides a means of detecting acoustic emission sources that may be defects, irregularities, or both, affecting the structural integrity or intended use of the aerial personnel device.
5.3 Significant sources of acoustic emission found with this test method shall be evaluated by either more refined acoustic emission test techniques or by other nondestructive methods (visual, liquid penetrant, radiography, ultrasonic, magnetic particle, etc.). Other nondestructive methods may be required in order to precisely locate defects in the digger derrick, and to estimate their size. Additional tests are outside the scope of this test method.
5.4 Defective areas found in digger derricks by this test method should be repaired and retested as appropriate. Repair procedure recommendations are outside the scope of this test method. Repair procedure recommendations are outside the scope of this test method.
SCOPE
1.1 This test method covers a procedure for acoustic emission (AE) testing of digger derricks.
1.1.1 Equipment Covered—This test method applies to special multipurpose vehicle-mounted machines, commonly known as digger derricks. These machines are primarily designed to dig holes, set poles, and position materials and apparatus.
1.1.1.1 Insulated and non-insulated type digger derricks may be evaluated with this test method.
1.1.1.2 Digger derricks, if so equipped to position personnel or equipment, or both, may also be evaluated with this test method in conjunction with Test Method F914.
1.1.2 Equipment Not Covered—Excluded from this test method are general-purpose cranes designed only for lifting service and machines primarily designed only for digging holes.
1.2 The AE test method is used to detect and area-locate emission sources. Verification of emission sources may require the use of other nondestructive test (NDT) methods, such as radiography, ultrasonic, magnetic particle, liquid penetrant, and visual inspection.
1.3 Warning—This test method requires that external loads be applied to the superstructure of the vehicle under test. During the test, caution must be taken to safeguard personnel and equipment against unexpected failure or instability of the vehicle or components.
FIG. 1 Digger Derrick Nomenclature
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM D6152/D6152M-12(2024)(Specification)
Standard Specification for SEBS-Modified Mopping Asphalt Used in Roofing

ABSTRACT
This specification covers SEBS (styrene-ethylenebutylene-styrene)-modified mopping asphalt intended for use in built-up roof construction, construction of some modified bitumen systems, construction of bituminous vapor retarder systems, and for adhering insulation boards used in various types of roofing systems. This specification is intended as a material specification and issues regarding the suitability of specific roof constructions or application techniques are beyond its scope. The specified tests and property values are intended to establish minimum properties. In place system design criteria or performance attributes are factors beyond the scope of this specification. The base asphalt shall be prepared from crude petroleum and the SEBS-modified asphalt shall incorporate sufficient SEBS as the primary polymeric modifier. The SEBS modified asphalt shall be homogeneous and free of water and shall conform to the prescribed physical properties including (1) softening point before and after heat exposure, (2) softening point change, (3) flash point, (4) penetration before and after heat exposure, (5) penetration change, (6) solubility in trichloroethylene, (7) tensile elongation, (8) elastic recovery, and (9) low temperature flexibility. The sampling and test methods to determine compliance with the specified physical properties, as well as the evaluation for stability during heat exposure are detailed.
SCOPE
1.1 This specification covers SEBS (styrene-ethylene-butylene-styrene)-modified asphalt intended for use in built-up roof construction, construction of some modified bitumen systems, construction of bituminous vapor retarder systems, and for adhering insulation boards used in various types of roof systems.
1.2 This specification is intended as a material specification. Issues regarding the suitability of specific roof constructions or application techniques are beyond its scope.
1.3 The specified tests and property values used to characterize SEBS-modified asphalt are intended to establish minimum properties. In-place system design criteria or performance attributes are factors beyond the scope of this specification.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.5 This standard does not purport to address the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    3 pages
    English language
    sale 15% off
ASTM
ASTM D5643/D5643M-06(2024)(Specification)
Standard Specification for Coal Tar Roof Cement, Asbestos Free

ABSTRACT
This specification covers coal tar roof cement suitable for trowel application in coal tar roofing and flashing systems. The chemical composition of coal tar roof cement shall conform to the requirements prescribed. The water, non-volatile matter, insoluble matter, behaviour at 60 deg. C, adhesion to wet surfaces, and flash point shall be tested to meet the requirements prescribed.
SCOPE
1.1 This specification covers coal tar roof cement suitable for trowel application in coal tar roofing and flashing systems.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    2 pages
    English language
    sale 15% off
ASTM
ASTM D396-24(Specification)
Standard Specification for Fuel Oils

ABSTRACT
This specification covers grades of fuel oil intended for use in various types of fuel-oil-burning equipment under various climatic and operating conditions. These grades include the following: Grades No. 1 S5000, No. 1 S500, No. 2 S5000, and No. 2 S500 for use in domestic and small industrial burners; Grades No. 1 S5000 and No. 1 S500 adapted to vaporizing type burners or where storage conditions require low pour point fuel; Grades No. 4 (Light) and No. 4 (Heavy) for use in commercial/industrial burners; and Grades No. 5 (Light), No. 5 (Heavy), and No. 6 for use in industrial burners. Preheating is usually required for handling and proper atomization. The grades of fuel oil shall be homogeneous hydrocarbon oils, free from inorganic acid, and free from excessive amounts of solid or fibrous foreign matter. Grades containing residual components shall remain uniform in normal storage and not separate by gravity into light and heavy oil components outside the viscosity limits for the grade. The grades of fuel oil shall conform to the limiting requirements prescribed for: (1) flash point, (2) water and sediment, (3) physical distillation or simulated distillation, (4) kinematic viscosity, (5) Ramsbottom carbon residue, (6) ash, (7) sulfur, (8) copper strip corrosion, (9) density, and (10) pour point. The test methods for determining conformance to the specified properties are given.
SCOPE
1.1 This specification (see Note 1) covers grades of fuel oil intended for use in various types of fuel-oil-burning equipment under various climatic and operating conditions. These grades are described as follows:
1.1.1 Grades No. 1 S5000, No. 1 S500, No. 1 S15, No. 2 S5000, No. 2 S500, and No. 2 S15 are middle distillate fuels for use in domestic and small industrial burners. Grades No. 1 S5000, No. 1 S500, and No. 1 S15 are particularly adapted to vaporizing type burners or where storage conditions require low pour point fuel.
1.1.2 Grades B6–B20 S5000, B6–B20 S500, and B6–B20 S15 are middle distillate fuel/biodiesel blends for use in domestic and small industrial burners.
1.1.3 Grades No. 4 (Light) and No. 4 are heavy distillate fuels or middle distillate/residual fuel blends used in commercial/industrial burners equipped for this viscosity range.
1.1.4 Grades No. 5 (Light), No. 5 (Heavy), and No. 6 are residual fuels of increasing viscosity and boiling range, used in industrial burners. Preheating is usually required for handling and proper atomization.
Note 1: For information on the significance of the terminology and test methods used in this specification, see Appendix X1.
Note 2: A more detailed description of the grades of fuel oils is given in X1.3.
1.2 This specification is for the use of purchasing agencies in formulating specifications to be included in contracts for purchases of fuel oils and for the guidance of consumers of fuel oils in the selection of the grades most suitable for their needs.
1.3 Nothing in this specification shall preclude observance of federal, state, or local regulations which can be more restrictive.
1.4 The values stated in SI units are to be regarded as standard.
1.4.1 Non-SI units are provided in Table 1 and Table 2 and in 7.1.2.1/7.1.2.2 because these are common units used in the industry.
Note 3: The generation and dissipation of static electricity can create problems in the handling of distillate burner fuel oils. For more information on the subject, see Guide D4865.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    13 pages
    English language
    sale 15% off
  • Technical specification
    13 pages
    English language
    sale 15% off
ASTM
ASTM D8165-24(Test Method)
Standard Test Method for Evaluation of Load-Carrying Capacity of Lubricants Used in Hypoid Final-Drive Axles Operated under Low-Speed and High-Torque Conditions

SIGNIFICANCE AND USE
5.1 This test method measures a lubricant's ability to protect hypoid final drive axles from abrasive wear, adhesive wear, plastic deformation, and surface fatigue when subjected to low-speed, high-torque conditions. Lack of protection can lead to premature gear or bearing failure, or both.
5.2 This test method is used, or referred to, in specifications and classifications of rear-axle gear lubricants such as:
5.2.1 Specification D7450.
5.2.2 American Petroleum Institute (API) Publication 1560.
5.2.3 SAE J308.
5.2.4 SAE J2360.
SCOPE
1.1 This test method, commonly referred to as the L-37-1 test, describes a test procedure for evaluating the load-carrying capacity, wear performance, and extreme pressure properties of a gear lubricant in a hypoid axle under conditions of low-speed, high-torque operation.3
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.2.1 Exceptions—Where there is no direct SI equivalent such as National Pipe threads/diameters, tubing size, or where there is a sole source supply equipment specification.
1.2.1.1 The drawing in Annex A6 is in inch-pound units.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific warning statements are provided in 7.2 and 10.1.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    18 pages
    English language
    sale 15% off
  • Standard
    18 pages
    English language
    sale 15% off
ASTM
ASTM D6416/D6416M-16(2024)(Test Method)
Standard Test Method for Two-Dimensional Flexural Properties of Simply Supported Sandwich Composite Plates Subjected to a Distributed Load

SIGNIFICANCE AND USE
5.1 This test method simulates the hydrostatic loading conditions which are often present in actual sandwich structures, such as marine hulls. This test method can be used to compare the two-dimensional flexural stiffness of a sandwich composite made with different combinations of materials or with different fabrication processes. Since it is based on distributed loading rather than concentrated loading, it may also provide more realistic information on the failure mechanisms of sandwich structures loaded in a similar manner. Test data should be useful for design and engineering, material specification, quality assurance, and process development. In addition, data from this test method would be useful in refining predictive mathematical models or computer code for use as structural design tools. Properties that may be obtained from this test method include:
5.1.1 Panel surface deflection at load,
5.1.2 Panel face-sheet strain at load,
5.1.3 Panel bending stiffness,
5.1.4 Panel shear stiffness,
5.1.5 Panel strength, and
5.1.6 Panel failure modes.
SCOPE
1.1 This test method determines the two-dimensional flexural properties of sandwich composite plates subjected to a distributed load. The test fixture uses a relatively large square panel sample which is simply supported all around and has the distributed load provided by a water-filled bladder. This type of loading differs from the procedure of Test Method C393, where concentrated loads induce one-dimensional, simple bending in beam specimens.
1.2 This test method is applicable to composite structures of the sandwich type which involve a relatively thick layer of core material bonded on both faces with an adhesive to thin-face sheets composed of a denser, higher-modulus material, typically, a polymer matrix reinforced with high-modulus fibers.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text the inch-pound units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    12 pages
    English language
    sale 15% off
ASTM
ASTM D3019/D3019M-17(2024)(Specification)
Standard Specification for Lap Cement Used with Asphalt Roll Roofing, Non-Fibered, and Fibered

ABSTRACT
This specification covers the physical requirements and testing of three types of lap cement for use with asphalt roll roofing. Type I is a brushing consistency lap cement intended for use in the exposed-nailing method of roll roofing application, and contains no mineral or other stabilizers. This type is further divided into two grades, as follows: Grade 1, which is made with an air-blown asphalt; and Grade 2, which is made with a vacuum-reduced or steam-refined asphalt. Both Types II and III, on the other hand, are heavy brushing or light troweling consistency lap cement intended for use in the concealed-nailing method of roll roofing application, only that Type II cement contains a quantity of short-fibered asbestos, while Type III cement contains a quantity of mineral or other stabilizers, or both, but contains no asbestos. The lap cements shall be sampled for testing, and shall adhere to specified values of the following properties: water content; distillation (total distillate at given temperatures); softening point of residue; solubility in trichloroethylene; and strength at indicated age.
SCOPE
1.1 This specification covers lap cement consisting of asphalt dissolved in a volatile petroleum solvent with or without mineral or other stabilizers, or both, for use with roll roofing. The fibered version of these cements excludes the use of asbestos fibers.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 The following precautionary caveat applies only to the test method portion, Section 6, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    2 pages
    English language
    sale 15% off
ASTM
ASTM D4586/D4586M-07(2024)(Specification)
Standard Specification for Asphalt Roof Cement, Asbestos-Free

ABSTRACT
This specification covers the testing and requirements for two types and two classes of asbestos-free asphalt roof cement consisting of an asphalt base, volatile petroleum solvents, and mineral and/or other stabilizers, mixed to a smooth, uniform consistency suitable for trowel application to roofing and flashing. Type I is made from asphalts characterized as self-healing, adhesive, and ductile, while Type II is made from asphalt characterized by high softening point and relatively low ductility. Class I is used for application to essentially dry surfaces, while Class II is used for application to damp, wet, or underwater surfaces. The roof cements shall comply with composition limits for water, nonvolatile matter, mineral and/or other stabilizers, and bitumen (asphalt). They shall also meet physical requirements such as uniformity, workability, and pliability and behavior at given temperatures.
SCOPE
1.1 This specification covers asbestos-free asphalt roof cement suitable for trowel application to roofings and flashings.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 The following precautionary caveat pertains only to the test method portion, Section 8 of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    2 pages
    English language
    sale 15% off
ASTM
ASTM C1178/C1178M-24(Specification)
Standard Specification for Coated Glass Mat Water-Resistant Gypsum Backing Panel

ABSTRACT
This specification covers coated glass mat water-resistant gypsum backing panel designed for use on ceilings and walls in bath and shower areas as a base for the application of ceramic or plastic tile. Coated glass mat water-resistant gypsum backing panel shall consist of a noncombustible water-resistant gypsum core, surfaced with glass mat, partially or completely embedded in the core, and with a water-resistant coating on one surface. The specimens shall be tested for flexural strength, humidified deflection, core hardness, end hardness, edge hardness, nail pull resistance, water resistance, and surface water absorption. Coated glass mat water-resistant gypsum backing panel shall have surfaces true and free of imperfections that render the panel unfit for its designed use.
SCOPE
1.1 This specification covers coated glass mat water-resistant gypsum backing panel designed for use on ceilings and walls in bath and shower areas as a base for the application of ceramic or plastic tile.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Within the text, the SI units are shown in brackets.
1.3 The text of this standard references notes and footnotes that provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    3 pages
    English language
    sale 15% off
  • Technical specification
    3 pages
    English language
    sale 15% off
