EN 16942:2016/FprA1

Fuels - Identification of vehicle compatibility - Graphical expression for consumer information

This European Standard lays down harmonized identifiers for marketed liquid and gaseous fuels. The requirements in this standard are set to complement information needs of users regarding the fuel- and vehicle-compatibility that are placed on the market. The development of this standard focused on vehicles placed on the market for the first time, which does not preclude the application of this standard also to vehicles already in circulation. The identifier is intended to be visualized at dispensers and refuelling points, on vehicles, in motor vehicle dealerships and in consumer manuals as described in this document.
Marketed fuels include for example petroleum-derived fuels, synthetic fuels, biofuels, natural gas, liquefied petroleum gas, hydrogen and biogas and blends of the aforementioned delivered to non-stationary applications.

Kraftstoffe - Identifizierung der Fahrzeug-Kompatibilität - Graphische Darstellung zur Verbraucherinformation

Carburants - Identification de la compatibilité des véhicules - Expression graphique pour l'information des consommateurs

Goriva - Identifikacija združljivosti z vozili - Grafični prikaz informacij za potrošnika

General Information

• Status: Not Published
• Publication Date: 16-May-2021
• Withdrawal Date: 15-Aug-2021
• ICS: 75.160.20 - Liquid fuels
• Technical Committee: CEN/TC 441 - Project Committee - Fuel labelling
• Drafting Committee: CEN/TC 441 - Project Committee - Fuel labelling
• Current Stage: 5060 - Closure of Vote - Formal Approval
• Start Date: 12-Nov-2020
• Due Date: 24-Jun-2021
• Completion Date: 12-Nov-2020
• Directive: 2014/94/EU - Directive 2014/94/EU of The European Parliament and of The Council of 22 October 2014 on the deployment of alternative fuels infrastructure
• Ref Project: SIST EN 16942:2016/kprA1:2019 - Fuels - Identification of vehicle compatibility - Graphical expression for consumer information

Relations

• Merged Into: EN 16942:2016+A1:2021 - Fuels - Identification of vehicle compatibility - Graphical expression for consumer information
• Effective Date: 19-Jan-2023
• Amends: EN 16942:2016 - Fuels - Identification of vehicle compatibility - Graphical expression for consumer information
• Effective Date: 10-Apr-2019

Overview

EN 16942:2016/FprA1 (CEN) specifies harmonized, graphical identifiers to communicate vehicle–fuel compatibility to consumers. The standard defines visual pump and vehicle labels for marketed liquid and gaseous fuels (petroleum-derived fuels, synthetic fuels, biofuels, natural gas, LPG, hydrogen, biogas and blends) so users can quickly determine which fuels are compatible with a given vehicle. Labels are intended for dispensers, refuelling points, vehicles, dealers and owner manuals.

Key topics and requirements

• Graphical identifiers: A simple symbol system to indicate fuel types and limits (for example E X for unleaded petrol where X = maximum ethanol % (V/V), B X for diesel where X = maximum FAME % (V/V), and XTL for paraffinic diesel).
• Unleaded petrol labelling: Clarified in the amendment-symbols (E5, E10 etc.) refer to maximum ethanol content; examples show oxygen and oxygenate thresholds (e.g., E5: up to 5 % (V/V) ethanol and 2.7 % (m/m) oxygen; E10: up to 10 % (V/V) ethanol and 3.7 % (m/m) oxygen) as delivered at the nozzle.
• Diesel labelling: Uses “BX” to indicate maximum FAME (biodiesel) content. “XTL” denotes paraffinic diesel (hydrotreated vegetable oil, gas-to-liquids), with notes on potential FAME content.
• Gaseous fuels and alternative fuels: Symbols for LPG, CNG, LNG and hydrogen are included; fuel references updated to relevant product standards.
• Annexes and examples: Amendment adds informative Annex C with labelling examples and Annex B updates listing fuels and specifications.
• Clarifications: The amendment refines definitions (e.g., “unleaded petrol”), normative references, and notes that the symbol does not indicate actual biofuel content.

Applications and who uses it

• Fuel suppliers and refiners: Standardize pump labels and consumer information at forecourts.
• Vehicle manufacturers and dealerships: Match vehicle fuel compatibility with required pump symbols and include identifiers in owner manuals and sales material.
• Fuel station operators: Display correct graphical identifiers at nozzles and dispensers to prevent misfuelling.
• Regulators and standards bodies: Harmonize fuel/vehicle communication across EU markets to support enforcement and consumer protection.
• Fleet managers and consumers: Use labels to select proper fuel, reduce misfuelling risk and manage compatibility with blended fuels and bio-components.

Related standards

• EN 228 (unleaded petrol), EN 590 (diesel), EN 14214 (FAME), EN 16723‑2 (gaseous fuels), ISO 14687‑2 / EN 17124 (hydrogen), CEN/TR 16435 (oxygenates guidance).

Keywords: EN 16942, fuel labelling, vehicle compatibility, E10, B7, XTL, LPG, CNG, hydrogen, FAME, ethanol, CEN.

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 16942:2016/oprA1:2019
01-december-2019
Goriva - Identifikacija združljivosti vozil - Grafični prikaz informacij za potrošnika
Fuels - Identification of vehicle compatibility - Graphical expression for consumer
information
Kraftstoffe - Identifizierung der Fahrzeug-Kompatibilität - Graphische Darstellung zur
Verbraucherinformation
Carburants - Identification de la compatibilité des véhicules - Expression graphique pour
l'information des consommateurs
Ta slovenski standard je istoveten z: EN 16942:2016/prA1:2019
ICS:
01.080.10 Simboli za javno obveščanje. Public information symbols.
Znaki. Table. Označbe Signs. Plates. Labels
75.160.20 Tekoča goriva Liquid fuels
SIST EN 16942:2016/oprA1:2019 de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

SIST EN 16942:2016/oprA1:2019
SIST EN 16942:2016/oprA1:2019
DRAFT
EUROPEAN STANDARD
EN 16942:2016
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
November 2019
ICS 75.160.20
English Version
Fuels - Identification of vehicle compatibility - Graphical
expression for consumer information
Carburants - Identification de la compatibilité des Kraftstoffe - Identifizierung der Fahrzeug-
véhicules - Expression graphique pour l'information Kompatibilität - Graphische Darstellung zur
des consommateurs Verbraucherinformation
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 441.

This draft amendment A1, if approved, will modify the European Standard EN 16942:2016. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16942:2016/prA1:2019:2019 E
worldwide for CEN national Members.

SIST EN 16942:2016/oprA1:2019
EN 16942:2016/prA1:2019 (E)

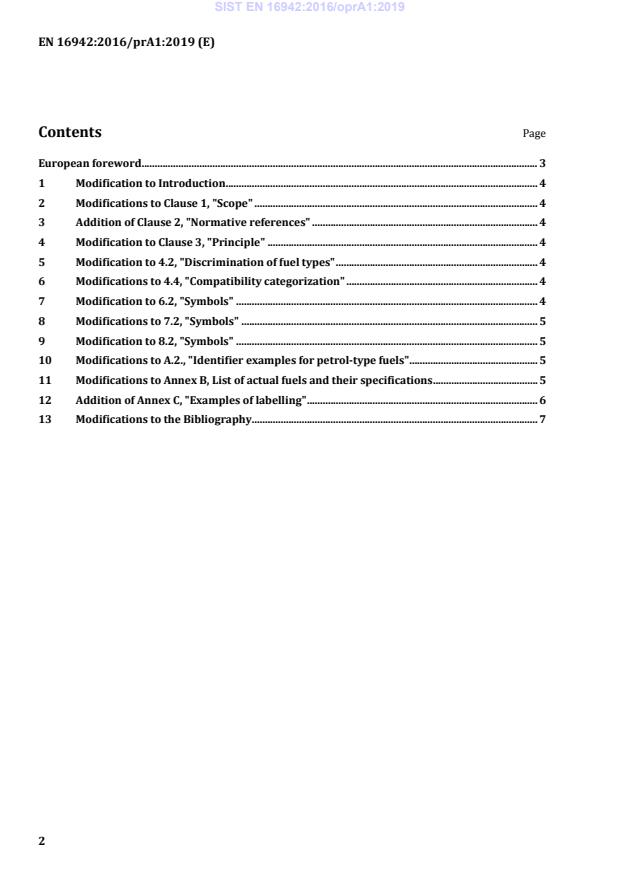

Contents Page
