Standards Content (Sample)


SLOVENSKI STANDARD
01-maj-2021
Goriva - Identifikacija združljivosti z vozili - Grafični prikaz informacij za potrošnika
Fuels - Identification of vehicle compatibility - Graphical expression for consumer
information
Kraftstoffe - Identifizierung der Fahrzeug-Kompatibilität - Graphische Darstellung zur
Verbraucherinformation
Carburants - Identification de la compatibilité des véhicules - Expression graphique pour
l'information des consommateurs
Ta slovenski standard je istoveten z: EN 16942:2016+A1:2021
ICS:
75.160.20 Tekoča goriva Liquid fuels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 16942:2016+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2021
EUROPÄISCHE NORM
ICS 75.160.20 Supersedes EN 16942:2016
English Version
Fuels - Identification of vehicle compatibility - Graphical
expression for consumer information
Carburants - Identification de la compatibilité des Kraftstoffe - Identifizierung der Fahrzeug-
véhicules - Expression graphique pour l'information Kompatibilität - Graphische Darstellung zur
des consommateurs Verbraucherinformation
This European Standard was approved by CEN on 26 August 2016 and includes Amendment 1 approved by CEN on 13 December
2020.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16942:2016+A1:2021 E
worldwide for CEN national Members.

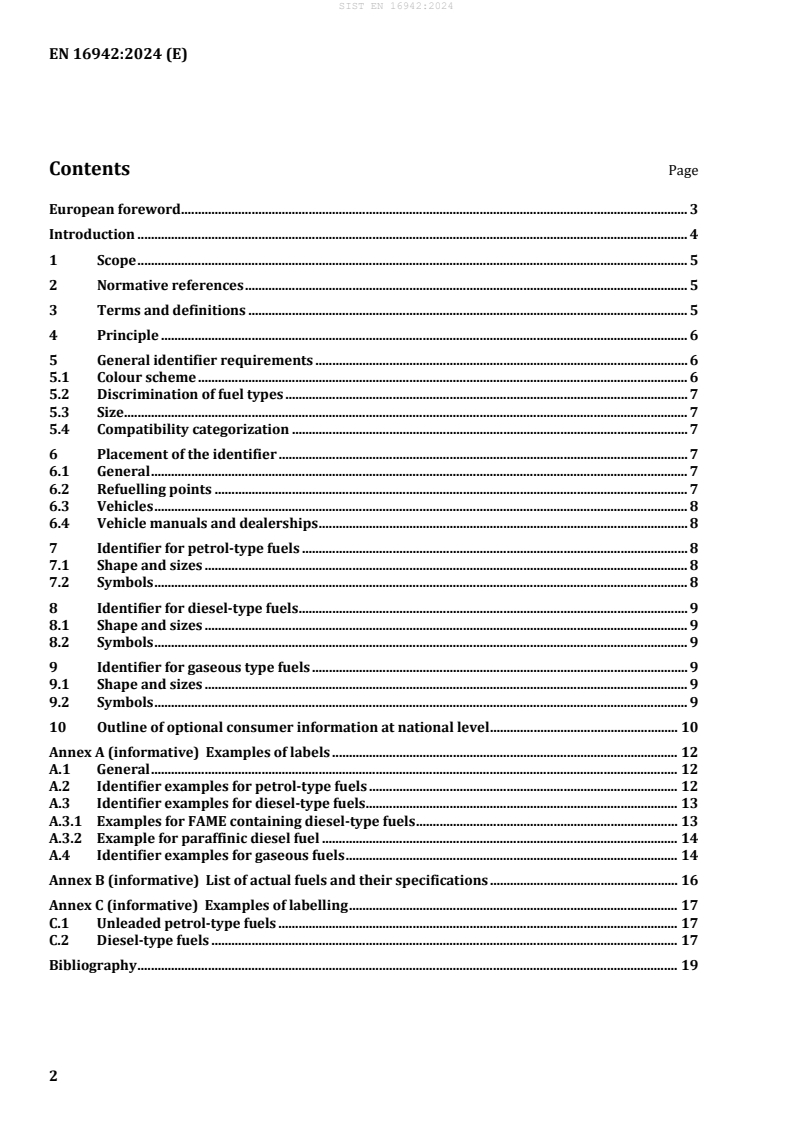

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 !Normative references . 5
3 Terms and definitions . 5
4 Principle . 6
5 General identifier requirements . 6
5.1 Colour scheme . 6
5.2 Discrimination of fuel types . 6
5.3 Size . 7
5.4 Compatibility categorization . 7
6 Placement of the identifier . 7
6.1 General . 7
6.2 Refuelling points . 7
6.3 Vehicles . 7
6.4 Vehicle manuals and dealerships . 8
7 Identifier for petrol-type fuels . 8
7.1 Shape and sizes . 8
7.2 Symbols . 8
8 Identifier for diesel-type fuels . 8
8.1 Shape and sizes . 8
8.2 Symbols . 9
9 Identifier for gaseous type fuels . 9
9.1 Shape and sizes . 9
9.2 Symbols . 9
10 Outline of optional consumer information at national level . 9
Annex A (informative) Examples of labels . 12
A.1 General . 12
A.2 Identifier examples for petrol-type fuels . 12
A.3 Identifier examples for diesel-type fuels . 13
A.3.1 Examples for FAME containing diesel-type fuels . 13
A.3.2 Example for paraffinic diesel fuel . 14
A.4 Identifier examples for gaseous fuels . 14
Annex B (informative) List of actual fuels and their specifications . 16
Annex C (informative) Examples of labelling . 17
C.1 Unleaded petrol-type fuels . 17
Bibliography . 19

European foreword
This document (EN 16942:2016+A1:2021) has been prepared by Technical Committee CEN/TC 441
“Fuel labelling”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2021, and conflicting national standards
shall be withdrawn at the latest by September 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1 approved by CEN on 13 December 2020.
This document supersedes !EN 16942:2016".
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This document supports the implementation of European Directive 2014/94/EU [1]. This document has
been developed on the basis of instructions of the European Commission via letters to CEN and
CENELEC.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
In accordance with Article 7, of the Directive 2014/94/EU [1] the EU Member States have to bring into
force by 18 November 2016 the laws, regulations and administrative provisions necessary in order to
ensure that user information on the compatibility of their vehicles with the fuels or electricity
recharging points is provided in motor vehicle manuals, at refuelling and recharging points, as well as
on motor vehicles and in motor vehicle dealerships in their territory.
1)
As specified in the Article, this information has to be based on labelling provisions of ESO standards
setting technical specifications of fuels. However, none of the labelling provisions of the existing
European Standards for fuel quality !(such as EN 228 [2] for unleaded petrol-type fuels" and
EN 590 [3] for diesel fuel) includes a graphical expression that meets the requirements of the Directive.
In a letter to CEN of 26 August 2015, the European Commission requested the work of CEN/TC 441 to
aim at development and adoption of appropriate European Standard(-s) setting harmonized
compatibility labelling specifications for individual fuels placed on the market. These provisions should
include a graphical expression, including a colour coding scheme. The graphical expression should also
be in line with the following requirements of Article 7 of Directive 2014/94/EU:
a) to provide relevant, consistent and clear information as regards to those motor vehicles which can
be regularly fuelled with compatible fuels placed on the market,
b) to be simple and easy to understand;
c) to be able to be placed in a clearly visible manner:
1) on corresponding fuel pumps and their nozzles at refuelling points,
2) on or in the immediate proximity of fuel tanks’ filler caps for vehicles, recommended and
compatible with that fuel and in motor vehicle manuals.
CEN decided that it would develop a single standard laying down the systematics of the graphical
expression for the identification of fuel-vehicle compatibility that would cover a multitude of (existing
and future) market fuels. This would allow industry and governments to use this document as basis for
implementation of Directive 2014/94/EU. Also existing and future European Standards that need to set
requirements regarding labelling can refer to this Standard.
The development of this standard focused on vehicles placed on the market for the first time, which
does not preclude the application of this standard also to vehicles already in circulation.
This document is not intended to replace any existing quality, safety or performance recommendations,
marketing or branding communication currently featured in similar locations at re-fuelling points,
vehicle fuel caps or vehicle manuals.
!Additional requirements for labelling of refuelling points in Europe can be found in the specific
standards concerning these fuels. For instance, for hydrogen, see EN 17127 [22]."

1) European Standardization Organization.
1 Scope
This European Standard lays down harmonized identifiers for marketed liquid and gaseous fuels. The
requirements in this standard are to complement the informational needs of users regarding the
compatibility between the fuels and the vehicles that are placed on the market. The identifier is
intended to be visualized at dispensers and refuelling points, on vehicles, in motor vehicle dealerships
and in consumer manuals as described in this document.
Marketed fuels include for example petroleum-derived fuels, synthetic fuels, biofuels, natural gas,
!LPG", hydrogen and biogas and blends of the aforementioned delivered to mobile applications.
!NOTE For the purposes of this document, the terms “% (m/m)” and “% (V/V)” are used to represent
respectively the mass fraction, µ, and the volume fraction, φ."
2 !Normative references
There are no normative references in this document. "
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
compatibility
fuel/vehic
...


S L O V E N S K I SIST EN 16942:2016+A1

S T A N D A R D  maj 2021
Goriva – Identifikacija združljivosti z vozili – Grafični prikaz informacij za
potrošnika
Fuels – Identification of vehicle compatibility – Graphical expression for consumer
information
Carburants – Identification de la compatibilité des véhicules – Expression
graphique pour l'information des consommateurs

Kraftstoffe – Identifizierung der Fahrzeug-Kompatibilität – Graphische Darstellung
zur Verbraucherinformation
Referenčna oznaka
ICS 75.160.20 SIST EN 16942:2016+A1:2021 (sl)

Nadaljevanje na straneh II do III in od 1 do 20

© 2022-02. Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno.

SIST EN 16942:2016+A1 : 2021
NACIONALNI UVOD
Standard SIST EN 16942:2016+A1 (sl), Goriva – Identifikacija združljivosti vozil – Grafični prikaz
informacij za potrošnika, 2021, ima status slovenskega standarda in je istoveten evropskemu standardu
consumer information, 2021.
Ta standard nadomešča SIST EN 16942:2016.

NACIONALNI PREDGOVOR
Evropski standard EN 16942:2016+A1:2021 je pripravil tehnični odbor Evropskega komiteja za
standardizacijo CEN/TC 441 Označevanje goriv, katerega sekretariat vodi NEN.

Slovenski standard SIST EN 16942:2016+A1:2021 je prevod evropskega standarda EN
16942:2016+A1:2021. V primeru spora glede besedila slovenskega prevoda v tem standardu je
odločilen izvirni evropski standard v angleškem jeziku. Slovensko izdajo standarda je pripravil tehnični
odbor SIST/TC NAD Naftni proizvodi, maziva in sorodni proizvodi.

Odločitev za izdajo tega dokumenta je 2. aprila 2021 sprejel SIST/TC NAD Naftni proizvodi, maziva in
sorodni proizvodi.
ZVEZA S STANDARDI
S privzemom tega evropskega standarda veljajo za omejeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen standardov, ki so že sprejeti v nacionalno standardizacijo:

SIST EN 228:2012+A1:2017 Goriva za motorna vozila – Neosvinčeni motorni bencini – Zahteve in
preskusne metode
SIST EN 590:2013+A1:2017 Goriva za motorna vozila – Dizelsko gorivo – Zahteve in preskusne
metode
SIST EN 14678-3:2013 Oprema in pribor za utekočinjeni naftni plin (UNP) – Izdelava in lastnosti
opreme za UNP za bencinske servise – 3. del: Rezervoarji za zasebne
in industrijske bencinske servise

SIST EN 15293:2018 Goriva za motorna vozila – Gorivo etanol (E85) za motorna vozila –
Zahteve in preskusne metode
SIST EN 16734:2016+A1:2019 Goriva za motorna vozila – Dizelsko gorivo za motorna vozila B10 –
Zahteve in preskusne metode
SIST EN 16709:2015+A1:2019 Goriva za motorna vozila – Dizelsko gorivo z visoko vsebnostjo FAME
(B20 in B30) – Zahteve in preskusne metode

SIST EN 14214:2012+A2:2019 Tekoči naftni proizvodi – Metilni estri maščobnih kislin (FAME) za
dizelske motorje in ogrevanje - Zahteve in preskusne metode

SIST EN 15940:2016+A1:2018+AC:2019 Goriva za motorna vozila – Parafinsko dizelsko gorivo iz
sinteze ali postopka s hidrogeniranjem – Zahteve in preskusne metode

SIST EN 589:2019 Goriva za motorna vozila – Utekočinjeni naftni plin (UNP) – Zahteve in
preskusne metode
SIST EN 16723-2:2017 Zemeljski plin in biometan za uporabo v prometu in biometan za
dodajanje v omrežje zemeljskega plina – 2. del: Specifikacije goriv za
motorna vozila
II
SIST EN 16942:2016+A1 : 2021
OSNOVA ZA IZDAJO STANDARDA
– privzem standarda EN 16942:2016+A1:2021

PREDHODNA IZDAJA
– EN 16942:2016, Goriva – Identifikacija združljivosti z vozili – Grafični prikaz informacij za potrošnika

OPOMBE
– Povsod, kjer se v besedilu standarda uporablja izraz "evropski standard", v SIST EN
16942:2016+A1:2021 to pomeni "slovenski standard".

– Nacionalni uvod in nacionalni predgovor nista sestavni del standarda.

– Ta nacionalni dokument je istoveten EN 16942:2016+A1:2021 in je objavljen z dovoljenjem

CEN-CENELEC
Upravni center
Rue de la Science 23
B-1040 Bruselj
This national document is identical with EN 16942:2016+A1:2021 and is published with the
permission of
CEN-CENELEC
Management Centre
Rue de la Science 23
B-1040 Brussel
III
SIST EN 16942:2016+A1 : 2021
(prazna stran)
IV
EVROPSKI STANDARD       EN 16942:2016+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
marec 2021
EUROPÄISCHE NORM
ICS 75.160.20 Nadomešča EN 16942:2016

Slovenska izdaja
Goriva – Identifikacija združljivosti z vozili –
Grafični prikaz informacij za potrošnika

Fuels – Identification of vehicle Carburants – Identification de la Kraftstoffe – Identifizierung der
compatibility – Graphical compatibilité des véhicules – Fahrzeug-Kompatibilität –
expression for consumer Expression graphique pour Graphische Darstellung zur
information l'information des Verbraucherinformation
consommateurs
Ta evropski standard je CEN sprejel 26. avgusta 2016 in vključuje dopolnilo 1, ki ga je CEN sprejel
13. decembra 2020.
Člani CEN morajo izpolnjevati določila poslovnika CEN/CENELEC, s katerim je predpisano, da mora
biti ta standard brez kakršnihkoli sprememb sprejet kot nacionalni standard. Seznami najnovejših izdaj
teh nacionalnih standardov in njihovi bibliografski podatki so na voljo pri Upravnem centru CEN-
CENELEC ali članih CEN.
Evropski standardi obstajajo v treh uradnih izdajah (angleški, francoski in nemški). Izdaje v drugih
jezikih, ki jih člani CEN na lastno odgovornost prevedejo in izdajo ter prijavijo pri Upravnem centru CEN-
CENELEC, veljajo kot uradne izdaje.

Člani CEN so nacionalni organi za standarde Avstrije, Belgije, Bolgarije, Cipra, Češke republike,
Danske, Estonije, Finske, Francije, Grčije, Hrvaške, Irske, Islandije, Italije, Latvije, Litve, Luksemburga,
Madžarske, Malte, Nemčije, Nizozemske, Norveške, Poljske, Portugalske, Republike Severna
Makedonija, Romunije, Slovaške, Slovenije, Srbije, Španije, Švedske, Švice, Turčije in Združenega
kraljestva.
CEN
Evropski komite za standardizacijo
European committee for standardization
Comité européen de normalisation
Europäisches komitee für normung

Upravni center CEN-CENELEC: Rue de la Science 23, B-1040 Bruselj

© 2021 CEN Lastnice avtorskih pravic so vse države članice CEN. Ref. oznaka EN 16942:2016+A1:2021 E

SIST EN 16942:2016+A1 : 2021
VSEBINA Stran
Evropski predgovor . 3
Uvod . 4
1 Področje uporabe . 5
2  Zveze s standardi . 5
3 Izrazi in definicije . 5
4 Načela . 6
5 Splošne zahteve za identifikacijske oznake . 6
5.1 Barvna shema . 6
5.2 Razlikovanje vrst goriva . 6
5.3 Velikost . 7
5.4 Kategorizacija združljivosti . 7
6 Mesto identifikacijske oznake . 7
6.1 Splošno . 7
6.2 Oskrbovalna mesta . 7
6.3 Vozila . 7
6.4 Priročniki za uporabo vozila in prodajalne vozil . 8
7 Identifikacijska oznaka za bencinska goriva . 8
7.1 Oblika in velikosti . 8
7.2 Simboli . 8
8 Identifikacijska oznaka za dizelska goriva . 8
8.1 Oblika in velikosti . 8
8.2 Simboli . 9
9 Identifikacijska oznaka za plinasta goriva . 9
9.1 Oblika in velikosti . 9
9.2 Simboli . 9
10 Okvir za izbirne informacije za potrošnika na nacionalni ravni . 9
Dodatek A (informativni): Primeri nalepk . 12
A.1 Splošno . 12
A.2 Primeri identifikacijskih oznak za bencinska goriva . 12
A.3 Primeri identifikacijskih oznak za dizelska goriva . 13
A.3.1 Primeri za dizelska goriva, ki vsebujejo metilne estre maščobnih kislin . 13
A.3.2 Primer za parafinska dizelska goriva . 14
A.4 Primeri identifikacijskih oznak za plinasta goriva . 14
Dodatek B (informativni): Seznam trenutnih goriv in njihove specifikacije . 16
Dodatek C (informativni): Primeri označevanja . 17
C.1 Neosvinčena bencinska goriva . 17
Literatura.19

SIST EN 16942:2016+A1 : 2021
Evropski predgovor
Ta dokument (EN 16942:2016+A1:2021) je pripravil tehnični odbor CEN/TC 441 "Označevanje goriv",
katerega sekretariat je v pristojnosti NEN.

Ta evropski standard mora dobiti status nacionalnega standarda bodisi z objavo istovetnega besedila
ali z razglasitvijo najpozneje septembra 2021, nasprotujoče nacionalne standarde pa je treba razveljaviti
najpozneje septembra 2021.
Opozoriti je treba na možnost, da je lahko nekaj elementov tega dokumenta predmet patentnih pravic.
CEN ne prevzema odgovornosti za identifikacijo katerihkoli ali vseh takih patentnih pravic.

Ta dokument vključuje dopolnilo 1, ki ga je CEN odobril 13. decembra 2020.

Ta dokument nadomešča EN 16942:2016 .

Začetek in konec besedila, dodanega ali spremenjenega z dopolnilom, sta označena z oznakama .

Ta dokument podpira izvajanje evropske Direktive 2014/94/EU [1]. Ta dokument je bil pripravljen na
podlagi pisnih navodil, ki jih je Evropska komisija poslala CEN in CENELEC.

Skladno z notranjimi predpisi CEN-CENELEC morajo ta evropski standard prevzeti nacionalne
organizacije za standarde naslednjih držav: Avstrije, Belgije, Bolgarije, Cipra, Češke republike, Danske,
Estonije, Finske, Francije, Grčije, Hrvaške, Irske, Islandije, Italije, Latvije, Litve, Luksemburga,
Madžarske, Malte, Nemčije, Nizozemske, Norveške, Poljske, Portugalske, Republike Severna
Makedonija, Romunije, Slovaške, Slovenije, Srbije, Španije, Švedske, Švice, Turčije in Združenega
kraljestva.
SIST EN 16942:2016+A1 : 2021
Uvod
V skladu s 7. členom Direktive 2014/94/EU [1] morajo države članice EU do 18. novembra 2016 sprejeti
zakone, predpise in upravne ukrepe, potrebne za zagotovitev, da se informacije za uporabnike o
združljivosti njihovih vozil z gorivom ali polnilnimi mesti za polnjenje z električno energijo navedejo v
navodilih za uporabo motornih vozil, na oskrbovalnih in polnilnih mestih, na motornih vozilih in v
prodajalnah motornih vozil na njihovem ozemlju.

1)
Kot je določeno v tem členu, morajo te informacije temeljiti na določilih o označevanju standardov ESO ,
ki določajo tehnične specifikacije za goriva. Vendar pa nobeno določilo o označevanju obstoječih
evropskih standardov za kakovost goriva (kot sta EN 228 [2] za neosvinčena bencinska goriva in
EN 590 [3] za dizelsko gorivo) ne vključuje grafičnega prikaza, ki izpolnjuje zahteve d
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
