Laboratory measurement of noise from waste water installations

This document:
-   specifies methods for the measurement of airborne and structure-borne sound produced in waste water and rain water installations under laboratory conditions;
-   defines the expression of the results.
It is applicable to waste water piping systems and parts thereof, but not to the actual sources of the wastewater, e.g. lavatories, toilets and bathtubs or any active units. It applies to pipes with natural ventilation and made of any common material in commonly used diameters (up to 150 mm).
The results obtained can be used for the comparison of products and materials. It may serve in estimating the behaviour of waste water systems in a building under certain conditions. Nevertheless, this standard does not provide a normalized procedure for calculating the acoustical properties of such installations in a building.

Messung der Geräusche von Abwasserinstallationen im Prüfstand

Dieses Dokument
—   legt Verfahren zur Messung von in Abwasser  und Regenwasserinstallationen entstandenem Luft  und Körperschall unter Laborbedingungen fest;
—   legt die Angabe der Ergebnisse fest.
Es gilt für Abwasser Rohrleitungssysteme und deren Teile, jedoch nicht für die eigentlichen Abwasser-quellen, z. B. Waschräume, Toiletten und Badewannen oder alle aktiven Elemente. Es gilt für Rohre mit natürlicher Lüftung aus jedem üblichen Material und mit üblichen Durchmessern (bis 150 mm).
!Die Prüfergebnisse können für den Vergleich von Produkten und Werkstoffen verwendet werden, können aber nicht als Werte verwendet werden, die vor Ort in Gebäuden erhalten wurden; Vor Ort Werte können mithilfe der in EN 12354 5:2009, 5.5, beschriebenen Verfahrensweise prognostiziert werden, die Labordaten in Felddaten umwandelt, indem angenommen wird, dass die Vor Ort Installation genau der im Prüfbericht beschriebenen entspricht."

Mesurage en laboratoire du bruit émis par les installations d'évacuation des eaux usées

Le présent projet de Norme européenne :
¾   spécifie des méthodes permettant de mesurer le bruit aérien et le bruit structural générés par des installations d'évacuation des eaux usées et des eaux de pluie dans des conditions de laboratoire ;
¾   définit l'expression des résultats.
Il s'applique aux systèmes de canalisations d'évacuation des eaux usées et aux éléments associés, à l'exclusion des véritables sources des eaux usées, par exemple les cuvettes de WC, les toilettes et les baignoires ou tout équipement actif. Il s'applique aux canalisations avec aération naturelle, réalisées en un matériau courant quelconque dans des diamètres couramment utilisés (jusqu'à 150 mm).
Les résultats obtenus peuvent être utilisés pour comparer les produits et les matériaux. Cela peut servir à apprécier le comportement des systèmes d'évacuation des eaux usées dans un bâtiment dans certaines conditions. Néanmoins, la présente norme ne fournit pas de mode opératoire normalisé pour le calcul des propriétés acoustiques de telles installations dans un bâtiment.

Laboratorijsko merjenje hrupa pri napeljavah za odpadno vodo

Ta dokument:
– določa metode za merjenje strukturnega zvoka in zvoka v zraku, ki nastaja v napeljavah za odpadno vodo in deževnico pri laboratorijskih pogojih;
– določa izražanje rezultatov.
Uporablja se za cevne sisteme za odpadno vodo in njihove dele, vendar ne za dejanske vire odpadne vode, npr. umivalnike, stranišča in kopalne kadi ali katere koli dejavne enote. Uporablja se za cevi z naravnim prezračevanjem, ki so izdelane iz običajnih materialov in imajo najpogosteje uporabljene premere (do 150 mm).
Pridobljene rezultate je mogoče uporabiti za primerjavo izdelkov in materialov. Uporablja se lahko pri ocenjevanju obnašanja sistemov za odpadno vodo v stavbi pod določenimi pogoji. Kljub temu ta standard ne podaja normiranega postopka za izračun akustičnih lastnosti takšnih napeljav v stavbi.

General Information

Status
Published
Publication Date
29-Oct-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
30-Oct-2019
Completion Date
30-Oct-2019

RELATIONS

Buy Standard

Standard
EN 14366:2005+A1:2019
English language
20 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 14366:2005+A1:2019
01-december-2019
Laboratorijsko merjenje hrupa pri napeljavah za odpadno vodo
Laboratory measurement of noise from waste water installations
Messung der Geräusche von Abwasserinstallationen im Prüfstand

Mesurage en laboratoire du bruit émis par les installations d'évacuation des eaux usées

Ta slovenski standard je istoveten z: EN 14366:2004+A1:2019
ICS:
17.140.20 Emisija hrupa naprav in Noise emitted by machines
opreme and equipment
91.140.80 Drenažni sistemi Drainage systems
SIST EN 14366:2005+A1:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 14366:2005+A1:2019
---------------------- Page: 2 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2019
EUROPÄISCHE NORM
ICS 17.140.20; 91.140.80 Supersedes EN 14366:2004
English Version
Laboratory measurement of noise from waste water
installations

Mesurage en laboratoire du bruit émis par les Messung der Geräusche von Abwasserinstallationen im

installations d'évacuation des eaux usées Prüfstand

This European Standard was approved by CEN on 23 September 2004 and includes Amendment 1 approved by CEN on 28 July

2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14366:2004+A1:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1:2019 (E)

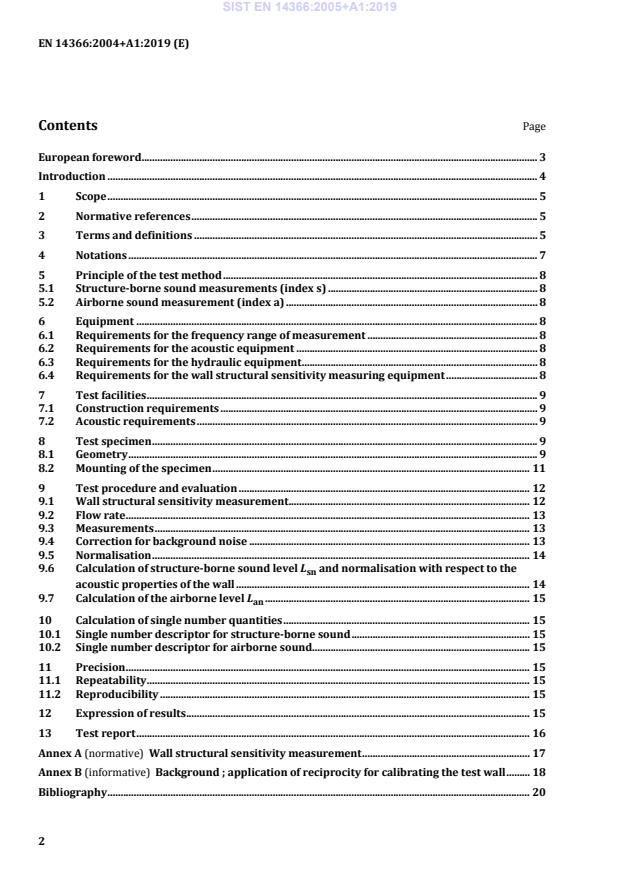

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Notations ............................................................................................................................................................ 7

5 Principle of the test method ........................................................................................................................ 8

5.1 Structure-borne sound measurements (index s) ................................................................................ 8

5.2 Airborne sound measurement (index a) ................................................................................................ 8

6 Equipment ......................................................................................................................................................... 8

6.1 Requirements for the frequency range of measurement ................................................................. 8

6.2 Requirements for the acoustic equipment ............................................................................................ 8

6.3 Requirements for the hydraulic equipment .......................................................................................... 8

6.4 Requirements for the wall structural sensitivity measuring equipment ................................... 8

7 Test facilities ..................................................................................................................................................... 9

7.1 Construction requirements ......................................................................................................................... 9

7.2 Acoustic requirements .................................................................................................................................. 9

8 Test specimen ................................................................................................................................................... 9

8.1 Geometry ............................................................................................................................................................ 9

8.2 Mounting of the specimen ......................................................................................................................... 11

9 Test procedure and evaluation ............................................................................................................... 12

9.1 Wall structural sensitivity measurement ............................................................................................ 12

9.2 Flow rate .......................................................................................................................................................... 13

9.3 Measurements ............................................................................................................................................... 13

9.4 Correction for background noise ........................................................................................................... 13

9.5 Normalisation ................................................................................................................................................ 14

9.6 Calculation of structure-borne sound level L and normalisation with respect to the

acoustic properties of the wall ................................................................................................................ 14

9.7 Calculation of the airborne level L ..................................................................................................... 15

10 Calculation of single number quantities .............................................................................................. 15

10.1 Single number descriptor for structure-borne sound .................................................................... 15

10.2 Single number descriptor for airborne sound................................................................................... 15

11 Precision .......................................................................................................................................................... 15

11.1 Repeatability .................................................................................................................................................. 15

11.2 Reproducibility ............................................................................................................................................. 15

12 Expression of results ................................................................................................................................... 15

13 Test report ...................................................................................................................................................... 16

Annex A (normative) Wall structural sensitivity measurement ................................................................ 17

Annex B (informative) Background ; application of reciprocity for calibrating the test wall ......... 18

Bibliography ................................................................................................................................................................. 20

---------------------- Page: 4 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1:2019 (E)
European foreword

This document (EN 14366:2004+A1:2019) has been prepared by Technical Committee CEN/TC 126

“Acoustic properties of building elements and of buildings”, the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by April 2020 and conflicting national standards shall be

withdrawn at the latest by April 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document includes Amendment 1 approved by CEN on 28 July 2019.
This document supersedes EN 14366:2004.

The start and finish of text introduced or altered by amendment is indicated in the text by tags !".

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1:2019 (E)
Introduction

Noise from wastewater installations is generated by the flow and fall of water in the piping system.

There are many different ways to install such systems in buildings, depending on national building

codes. They may be firmly cemented into walls and floors, fixed by clips in walls and covered slabs, or

hung exposed in the plenum above a suspended ceiling. It seems advisable, therefore, to define

measuring methods for both structure-borne and airborne sound.

Important noise sources are bends after vertical sections, but also discontinuities, e.g. inlets, couplings

and sleeves. Apart from that the noise impact on the inhabitants of a building strongly depends on the

material properties of the pipes, on the methods used in joining and fastening them and on the local

building practice.
---------------------- Page: 6 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1:2019 (E)
1 Scope
This document:

— specifies methods for the measurement of airborne and structure-borne sound produced in waste

water and rain water installations under laboratory conditions;
— defines the expression of the results.

It is applicable to waste water piping systems and parts thereof, but not to the actual sources of the

wastewater, e.g. lavatories, toilets and bathtubs or any active units. It applies to pipes with natural

ventilation and made of any common material in commonly used diameters (up to 150 mm).

!The test results can be used for the comparison of products and materials, but cannot be used as

values obtained in buildings in situ; in situ values can be predicted using the procedure described in

EN 12354-5:2009, 5.5, which transfers laboratory data to field data, assuming the in-situ installation is

exactly the same as the one described in the test report."
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 61672-1, Electroacoustics - Sound level meters - Part 1: Specifications (IEC 61672-1:2002)

EN ISO 140-3:1995, Acoustics – Measurement of sound insulation in buildings and of building elements –

Part 3: Laboratory measurements of airborne sound insulation of building elements (ISO 140-3:1995)

EN ISO 354, Acoustics – Measurement of sound absorption in a reverberation room (ISO 354:2003)

EN ISO 6926, Acoustics – Requirements for the performance and calibration of reference sound sources

used for the determination of sound power levels (ISO 6926:2000)
ISO 5348, Mechanical vibration and shock – Mechanical mounting of accelerometers

ISO 16063-21, Methods for the calibration of vibration and shock transducers – Part 21: Vibration

calibration by comparison to a reference transducer
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
waste water

any type of water including rainwater evacuated from buildings into the sewer system

3.2
waste water installation

the total of pipes and all fixing components, used to evacuate waste water, but excluding the actual

sources of the waste water, e.g. sinks, toilets, bathtubs, gutter or any active units (pumps…)

---------------------- Page: 7 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1:2019 (E)
3.3
specimen

object of tests according to this standard. Specimens are simple wastewater installation systems with a

single path of water flow. Any combination of commercial elements may be assembled to form a

specimen
3.4
source room

test room used for airborne sound measurement; the specimen is mounted inside the test room

3.5
receiving room

test room used for structure-borne sound measurement; the specimen is mounted outside the test

room
3.6
standard configuration
a mandatory form of specimen used for comparison
3.7
standard mounting
mandatory mounting conditions for the standard configuration
3.8
standard test wall
mandatory test wall used for comparison
3.9
wall structural sensitivity

normalised ratio between a point force exciting the test wall and the sound power radiated by the test

wall. The wall structural sensitivity is measured according to a reciprocity method described in Annex A

3.10
reference wall

standardized wall of 250 kg/m used for normalisation of the measurement results and described by a

reference structural sensitivity spectrum (given in clause 9)
3.11
frequency range of measurement
range in 1/3 octave bands over which measurements are carried out
---------------------- Page: 8 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1:2019 (E)
4 Notations
f frequency in Hz

T reverberation time measured in the source (emission) room, in seconds (according to

EN ISO 354)
T reverberation time measured in the receiving room, in seconds
V volume in the source room in cubic metres
V volume in the receiving room in cubic metres

L’ average sound pressure level due to structure-borne sound measured in the receiving room

(according to EN ISO 140-3) before correction for background noise, in decibels
L’ average total sound pressure level measured in the source room (according to

EN ISO 140-3) including airborne and structure-borne sound, before correction for background

noise, in decibels
L measured background sound pressure level, in decibels

L structure-borne sound pressure level after correction for background noise, in decibels

L total sound pressure level after correction for background noise, in decibels

structure-borne sound pressure level normalized to an equivalent absorption area of 10 m , in

decibels

total sound pressure level normalized to an equivalent absorption area of 10 m , in decibels

airborne sound pressure level normalized to an equivalent absorption area of 10 m , in decibels

L A-weighted structure-borne pressure level, in decibels
s,A
L A-weighted airborne sound pressure level, in decibels
a,A
D attenuation values of the A-weighted filter, in decibels
T measuring time, in seconds
L wall structural sensitivity level, in decibels
L structural sensitivity level of the reference wall, in decibels
SSR
ΔL structural sensitivity correction in decibels : ΔL = L – L
SS SS SS SSR
L structure-borne sound characteristic level, in decibels : L = L – ΔL
sc sc sn SS
-12
sound power level (ref 10 watts) of the sound reference source, in decibels

vibration velocity level (ref 10 m/s) at the clamp fixing, in decibels, before correction for

background vibration

vibration velocity level (ref 10 m/s) at the clamp fixing, in decibels, after correction for

background vibration
---------------------- Page: 9 ----------------------
SIST EN 14366:2005+A1:2019
EN 14366:2004+A1:2019 (E)
5 Principle of the test method
5.1 Structure-borne sound measurements (index s)

The specimen is mounted outside the test room (receiving room), connected as in practice to the test

wall using the fixing material specified by the manufacturer of the system. A steady flow of tap water is

applied and the total sound transmitted into the test room is measured (L’ ). The specimen is then

disconnected from the test wall and the water system operated in order to measure the background

noise. The values L’ are then corrected for background noise giving the values L . These values are then

s s

normalized (see 9.5) to an equivalent absorption area of 10 m using the measured reverberation time

T of the receiving room giving the values L .
r sn
After the
...
