EN ISO 6224:2024
(Main)Thermoplastics hoses, textile-reinforced, for general-purpose water applications - Specification (ISO 6224:2024)
Thermoplastics hoses, textile-reinforced, for general-purpose water applications - Specification (ISO 6224:2024)
This document specifies the requirements for general-purpose textile-reinforced thermoplastics water-discharge hoses.
Thermoplastische Schläuche mit Textileinlage für allgemeine Anwendungen mit Wasser - Anforderungen (ISO 6224:2024)
Dieses Dokument legt die Anforderungen an thermoplastische Schläuche mit Textileinlage für allgemeine Anwendungen mit Wasser fest.
WARNUNG — Personen, die das vorliegende Dokument anwenden, sollten mit üblichen Laborverfahren vertraut sein. Dieses Dokument erhebt keinen Anspruch auf Vollständigkeit bei der Angabe von Sicherheitsrisiken, die ihre Anwendung möglicherweise beinhaltet. Es liegt in der Verantwortung des Anwenders, angemessene Arbeitsschutzmaßnahmen zu ergreifen und anwendbare bestehende nationale gesetzliche Vorschriften festzulegen.
Tuyaux en matières thermoplastiques à armature textile d'usage général pour l'eau - Spécifications (ISO 6224:2024)
Le présent document spécifie les exigences relatives aux tuyaux d'usage général, en matières thermoplastiques à armature textile pour refoulement d'eau.
S tekstilom ojačene plastomerne cevi za splošno uporabo vode - Specifikacija (ISO 6224:2024)
Ta mednarodni standard določa zahteve za s tekstilom ojačene plastomerne cevi za odtok vode, namenjene za splošno uporabo.
Tri vrste cevi so določene v skladu z zahtevami za njihovo delovanje, tj. z njihovimi razponi temperature okolja in vode:
– temperatura okolja: od –10 °C do +60 °C;
– temperatura vode med delovanjem: od 0 °C do +60 °C.
OPOMBA: Pri temperaturi vode nad 23 °C in zlasti nad 40 °C se najvišji delovni tlak zniža.
Te cevi niso namenjene za prenos pitne vode, za dovode pralnih strojev, za gasilske cevi, za cevi za posebne kmetijske stroje ali kot vrtnarske cevi za potrošnike.
General Information
Relations
Standards Content (Sample)

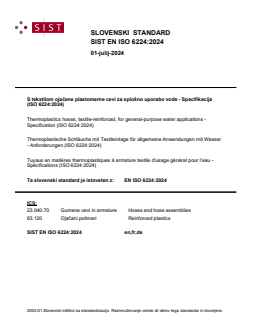

SLOVENSKI STANDARD
01-julij-2024
S tekstilom ojačene plastomerne cevi za splošno uporabo vode - Specifikacija
(ISO 6224:2024)
Thermoplastics hoses, textile-reinforced, for general-purpose water applications -
Specification (ISO 6224:2024)
Thermoplastische Schläuche mit Textileinlage für allgemeine Anwendungen mit Wasser
- Anforderungen (ISO 6224:2024)
Tuyaux en matières thermoplastiques à armature textile d'usage général pour l'eau -
Spécifications (ISO 6224:2024)
Ta slovenski standard je istoveten z: EN ISO 6224:2024
ICS:
23.040.70 Gumene cevi in armature Hoses and hose assemblies
83.120 Ojačani polimeri Reinforced plastics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

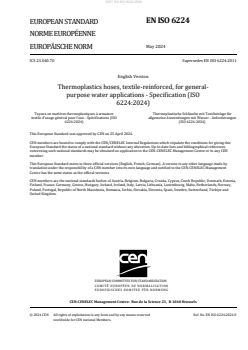

EN ISO 6224
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2024
EUROPÄISCHE NORM
ICS 23.040.70 Supersedes EN ISO 6224:2011
English Version
Thermoplastics hoses, textile-reinforced, for general-
purpose water applications - Specification (ISO
6224:2024)
Tuyaux en matières thermoplastiques à armature Thermoplastische Schläuche mit Textileinlage für
textile d'usage général pour l'eau - Spécifications (ISO allgemeine Anwendungen mit Wasser - Anforderungen
6224:2024) (ISO 6224:2024)
This European Standard was approved by CEN on 25 April 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 6224:2024 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
European foreword
This document (EN ISO 6224:2024) has been prepared by Technical Committee ISO/TC 45 "Rubber and
rubber products" in collaboration with Technical Committee CEN/TC 218 “Rubber and plastics hoses
and hose assemblies” the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by November 2024, and conflicting national standards
shall be withdrawn at the latest by November 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 6224:2011.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 6224:2024 has been approved by CEN as EN ISO 6224:2024 without any modification.
International
Standard
ISO 6224
Fifth edition
Thermoplastics hoses, textile-
2024-04
reinforced, for general-purpose
water applications — Specification
Tuyaux en matières thermoplastiques à armatures textile d'usage
général pour l'eau — Spécifications
Reference number
ISO 6224:2024(en) © ISO 2024
ISO 6224:2024(en)
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 6224:2024(en)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification . 2
5 Materials and construction . 2
6 Dimensions . 2
6.1 Inside diameters and tolerances on inside diameter .2
6.2 Concentricity .3
6.3 Tolerance on length .3
6.4 Minimum wall thickness .3
7 Physical properties . 3
7.1 Thermoplastic materials .3
7.2 Finished hoses .4
8 Type, routine and production testing . 4
9 Test certificate/report . 4
10 Marking . . 5
11 Packaging and storage . 5
Annex A (normative) Type testing and routine testing . 6
Annex B (informative) Recommended tests for production testing . 7
Bibliography . 8
iii
ISO 6224:2024(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products, Subcommittee
SC 1, Rubber and plastics hoses and hose assemblies, in collaboration with the European Committee for
Standardization (CEN) Technical Committee CEN/TC 218, Rubber and plastics hoses and hose assemblies, in
accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This fifth edition cancels and replaces the fourth edition (ISO 6224:2011), which has been technically
revised. The main changes are as follows:
— the normative references have been updated;
— Table 3 has been moved to Clause 7;
— the explanation of type, routine and production tests have been updated in Clause 8;
— marking in Clause 10 has been updated.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
International Standard ISO 6224:2024(en)
Thermoplastics hoses, textile-reinforced, for general-purpose
water applications — Specification
WARNING — Persons using this document should be familiar with normal laboratory practice. This
document does not purport to address all the safety problems, if any, associated with its use. It is the
responsibility of the user to establish appropriate health and safety practices and to determine any
national regulatory conditions applicable.
1 Scope
This document specifies the requirements for general-purpose textile-reinforced thermoplastics water-
discharge hoses.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated re
...
