Glass in building - Structural sealant glazing - Part 2: Assembly rules

This European Standard deals with the assembling and bonding of glass elements in a frame, window, door or curtain walling construction, or directly into the building by means of structural bonding of the glass element into or onto framework or directly into the building.
It gives information to the assembler to enable him to organize his work and comply with requirements regarding quality control.
Structural sealant glazing can be incorporated into the façades (curtain walls, doors and windows) or roofs as follows:
-   either vertically; or
-   up to 7° from the horizontal, i.e. 83° from the vertical.
This European Standard only deals with the bonding to glass surfaces, i.e. coated or uncoated or enamelled, and metallic surfaces, i.e. aluminium (anodised or coated), stainless steel, as considered in G.2 of EN 15434:2006+A1:2010.

Glas im Bauwesen - Geklebte Verglasungen - Teil 2: Verglasungsvorschriften für Structural-Sealant-Glazing (SSG-) Glaskonstruktionen

Diese Europäische Norm gilt für die Montage und die Verklebung von Verglasungselementen in Rahmen, Fenstern, Türen oder Vorhangfassadenkonstruktionen und die Montage von Verglasungselementen durch lastübertragendes Verkleben in oder auf eine Unterkonstruktion oder direkt in oder auf das Gebäude.
Sie enthält Angaben für den Monteur zur Unterstützung bei der Einteilung seiner Arbeit und zum Erreichen der Übereinstimmung mit den Anforderungen an die Qualitätskontrolle.
Geklebte lastabtragende Verglasungen können wie folgt in Fassaden (Vorhangfassaden, Türen und Fenster) oder Dächer eingefügt werden:
-   entweder vertikal oder
-   bis 7° von der Horizontalen, d. h. 83° von der Vertikalen.
Diese Europäische Norm behandelt nur die Verklebung an Glasoberflächen, d. h. beschichtete, unbeschichtete oder emaillierte sowie an metallischen Oberflächen, d. h. Aluminium (anodisiert oder beschichtet), Edelstahl, nach EN 15434:2006A1:2010, G.2.

Verre dans la construction - Système de vitrage extérieur collé (VEC) - Partie 2: Règles d'assemblage

La présente Norme européenne traite de l’assemblage des éléments de verre sur une fenêtre, une porte ou une façade rideau, ou directement sur le bâtiment par le biais du collage structurel de l'élément de verre sur ou dans l’ossature, voire directement sur le bâtiment.
La présente norme donne des informations à l’assembleur lui permettant d'organiser son travail et de satisfaire aux exigences relatives au contrôle qualité.
Le vitrage extérieur collé peut être intégré aux façades (façades rideaux, portes et fenêtres) ou aux toits comme suit :
-   verticalement ; ou
-   incliné jusqu’à 7° par rapport à l’horizontale, soit 83° par rapport à la verticale.
La présente Norme européenne ne couvre que le collage sur supports verriers, par exemple à couches, sans couche ou émaillé, et surfaces métalliques, par exemple, aluminium (anodisé ou thermolaqué), acier inoxydable, comme prévu en G.2 de l’EN 15434:2006+A1:2010.

Steklo v gradbeništvu - Strukturna zasteklitev - 2. del: Pravila za zastekljevanje

Standard EN 13022-2 obravnava zastekljevanje in vezanje steklenih elementov v konstrukcijo okvira, okna, vrat ali zidov za zavese ali neposredno v stavbo s strukturnim vezanjem steklenega elementa v ali na okvir ali neposredno v stavbo. Zastekljevalcu podaja informacije, ki mu omogočajo organiziranje dela in skladnost z zahtevami v zvezi z nadzorom kakovosti. Strukturno zasteklitev je mogoče vgraditi v fasade (zidove za zavese, vrata in okna) ali strehe, kot sledi: – navpično ali – do 7 ° od vodoravne, tj. 83 ° od navpične. Ta evropski standard obravnava samo vezanje na steklene površine, tj. prevlečene ali neprevlečene ali emajlirane, in na kovinske površine, tj. aluminij (anodiziran ali prevlečen), nerjavno jeklo, kot je obravnavano v oddelku G.2 standarda EN 15434:2006+A1:2010.

General Information

Status
Published
Publication Date
03-Jun-2014
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Due Date
02-Dec-2019
Completion Date
02-Dec-2019

RELATIONS

Buy Standard

Standard
EN 13022-2:2014 - BARVE na PDF-strani 27
English language
39 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Draft
FprEN 13022-2:2013
English language
40 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

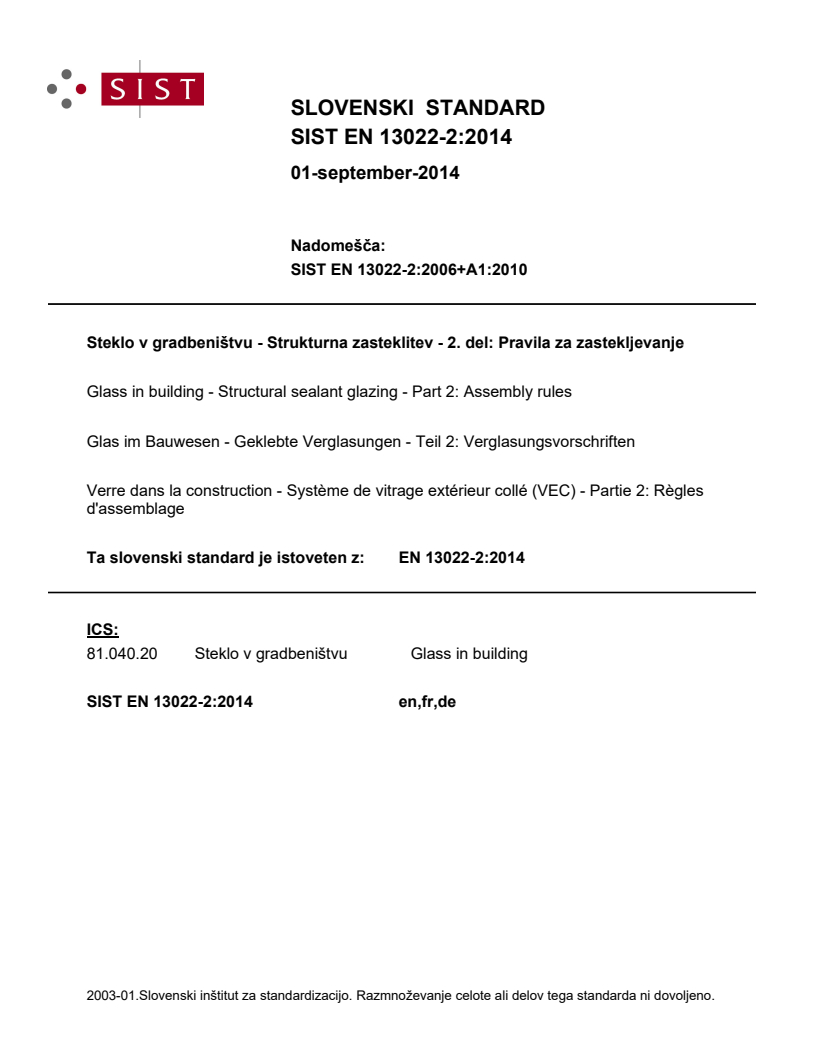

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steklo v gradbeništvu - Strukturna zasteklitev - 2. del: Pravila za zastekljevanjeGlas im Bauwesen - Geklebte Verglasungen - Teil 2: VerglasungsvorschriftenVerre dans la construction - Système de vitrage extérieur collé (VEC) - Partie 2: Règles d'assemblageGlass in building - Structural sealant glazing - Part 2: Assembly rules81.040.20Steklo v gradbeništvuGlass in buildingICS:Ta slovenski standard je istoveten z:EN 13022-2:2014SIST EN 13022-2:2014en,fr,de01-september-2014SIST EN 13022-2:2014SLOVENSKI

STANDARDSIST EN 13022-2:2006+A1:20101DGRPHãþD
SIST EN 13022-2:2014

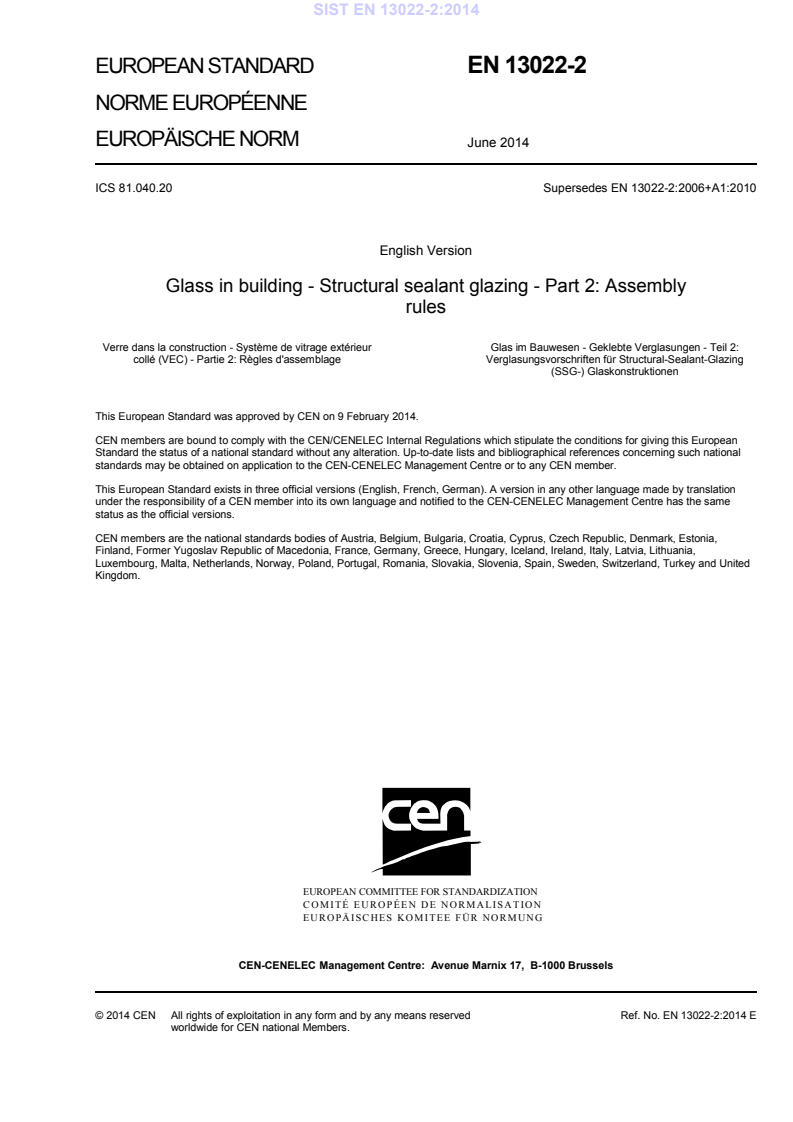

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13022-2
June 2014 ICS 81.040.20 Supersedes EN 13022-2:2006+A1:2010English Version
Glass in building - Structural sealant glazing - Part 2: Assembly rules

Verre dans la construction - Système de vitrage extérieur collé (VEC) - Partie 2: Règles d'assemblage

Glas im Bauwesen - Geklebte Verglasungen - Teil 2: Verglasungsvorschriften für Structural-Sealant-Glazing (SSG-) Glaskonstruktionen This European Standard was approved by CEN on 9 February 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13022-2:2014 ESIST EN 13022-2:2014

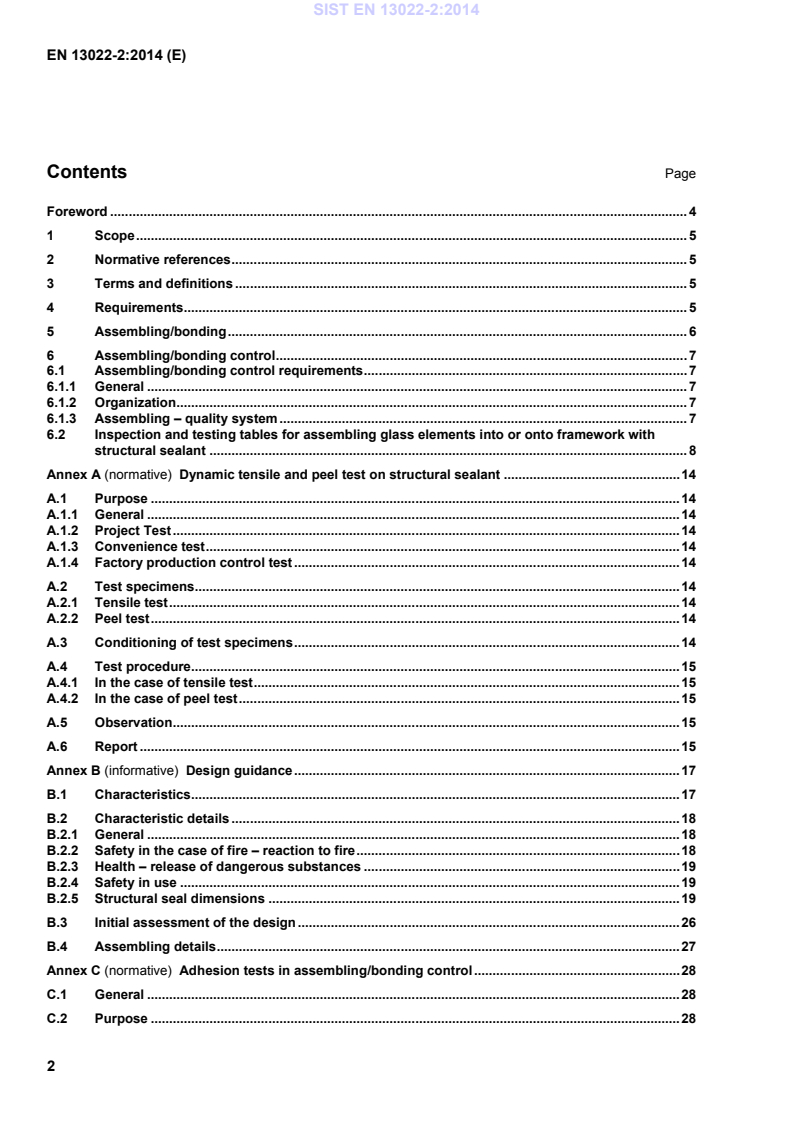

EN 13022-2:2014 (E) 2 Contents Page

Foreword ............................................................................................................................................................. 4 1 Scope ...................................................................................................................................................... 5 2 Normative references ............................................................................................................................ 5 3 Terms and definitions ........................................................................................................................... 5 4 Requirements......................................................................................................................................... 5 5 Assembling/bonding ............................................................................................................................. 6 6 Assembling/bonding control ................................................................................................................ 7 6.1 Assembling/bonding control requirements ........................................................................................ 7 6.1.1 General ................................................................................................................................................... 7 6.1.2 Organization ........................................................................................................................................... 7 6.1.3 Assembling – quality system ............................................................................................................... 7 6.2 Inspection and testing tables for assembling glass elements into or onto framework with structural sealant .................................................................................................................................. 8 Annex A (normative)

Dynamic tensile and peel test on structural sealant ................................................ 14 A.1 Purpose ................................................................................................................................................ 14 A.1.1 General ................................................................................................................................................. 14 A.1.2 Project Test .......................................................................................................................................... 14 A.1.3 Convenience test ................................................................................................................................. 14 A.1.4 Factory production control test ......................................................................................................... 14 A.2 Test specimens.................................................................................................................................... 14 A.2.1 Tensile test ........................................................................................................................................... 14 A.2.2 Peel test ................................................................................................................................................ 14 A.3 Conditioning of test specimens ......................................................................................................... 14 A.4 Test procedure..................................................................................................................................... 15 A.4.1 In the case of tensile test .................................................................................................................... 15 A.4.2 In the case of peel test ........................................................................................................................ 15 A.5 Observation .......................................................................................................................................... 15 A.6 Report ................................................................................................................................................... 15 Annex B (informative)

Design guidance ......................................................................................................... 17 B.1 Characteristics..................................................................................................................................... 17 B.2 Characteristic details .......................................................................................................................... 18 B.2.1 General ................................................................................................................................................. 18 B.2.2 Safety in the case of fire – reaction to fire ........................................................................................ 18 B.2.3 Health – release of dangerous substances ...................................................................................... 19 B.2.4 Safety in use ........................................................................................................................................ 19 B.2.5 Structural seal dimensions ................................................................................................................ 19 B.3 Initial assessment of the design ........................................................................................................ 26 B.4 Assembling details .............................................................................................................................. 27 Annex C (normative)

Adhesion tests in assembling/bonding control ........................................................ 28 C.1 General ................................................................................................................................................. 28 C.2 Purpose ................................................................................................................................................ 28 SIST EN 13022-2:2014

EN 13022-2:2014 (E) 3 C.3 Peel test – Method 1 ............................................................................................................................ 28 C.3.1 Test specimens .................................................................................................................................... 28 C.3.2 Curing time ........................................................................................................................................... 29 C.3.3 Test procedure ..................................................................................................................................... 29 C.3.4 Observation .......................................................................................................................................... 29 C.4 Static tensile test – Method 2 ............................................................................................................. 29 C.4.1 Test specimens .................................................................................................................................... 29 C.4.2 Curing time ........................................................................................................................................... 29 C.4.3 Test procedure ..................................................................................................................................... 30 C.4.4 Observation .......................................................................................................................................... 30 C.5 Dynamic tensile test ............................................................................................................................ 30 C.5.1 Test specimens .................................................................................................................................... 30 C.5.2 Curing time ........................................................................................................................................... 30 C.5.3 Test procedure ..................................................................................................................................... 30 C.5.4 Observation .......................................................................................................................................... 30 C.6 Report ................................................................................................................................................... 30 Annex D (informative)

Two-component sealant: Check on the thoroughness of mixing and air inclusions ............................................................................................................................................. 32 D.1 General ................................................................................................................................................. 32 D.2 Purpose ................................................................................................................................................ 32 D.3 Test specimen ...................................................................................................................................... 32 D.4 Test procedure ..................................................................................................................................... 32 D.5 Report ................................................................................................................................................... 32 Annex E (informative)

Sealants, hardness measurements ........................................................................... 34 E.1 General ................................................................................................................................................. 34 E.2 Purpose ................................................................................................................................................ 34 E.3 Definitions ............................................................................................................................................ 34 E.3.1 Curing time ........................................................................................................................................... 34 E.3.2 Free surface ......................................................................................................................................... 34 E.4 Instruments .......................................................................................................................................... 34 E.5 Calibration ............................................................................................................................................ 34 E.6 Test specimens .................................................................................................................................... 35 E.7 Test procedure ..................................................................................................................................... 35 E.8 Report ................................................................................................................................................... 35 Annex F (informative)

Provisions for voluntary involvement of third party(ies) ........................................ 37 F.1 General ................................................................................................................................................. 37 F.2 Voluntary tasks for third parties ........................................................................................................ 37 F.3 Marking and labelling .......................................................................................................................... 37 Bibliography ...................................................................................................................................................... 38

SIST EN 13022-2:2014

EN 13022-2:2014 (E) 4 Foreword This document (EN 13022-2:2014) has been prepared by Technical Committee CEN/TC 129 “Glass in building”, the secretariat of which is held by NBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by December 2014 and conflicting national standards shall be withdrawn at the latest by December 2014. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13022-2:2006+A1:2010. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. This part of EN 13022 is one of a series of interrelated standard parts dealing with: — glass products for structural sealant glazing systems; — installation of glass products in a structural manner on building façades; — UV-resistant and structural sealant for use in structural sealant glazing. The interrelated parts are: — EN 13022-1: Glass in building — Structural sealant glazing — Part 1: Glass products for structural sealant glazing systems for supported and unsupported monolithic and multiple glazing — EN 13022-2: Glass in building — Structural sealant glazing — Part 2: Assembly rules — EN 15434: Glass in building — Product standard for structural and/or ultra-violet resistant sealant (for use with structural sealant glazing and/or insulating glass units with exposed seals) According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13022-2:2014

EN 13022-2:2014 (E) 5 1 Scope This European Standard deals with the assembling and bonding of glass elements in a frame, window, door or curtain walling construction, or directly into the building by means of structural bonding of the glass element into or onto framework or directly into the building. It gives information to the assembler to enable him to organize his work and comply with requirements regarding quality control. Structural sealant glazing can be incorporated into the façades (curtain walls, doors and windows) or roofs as follows: — either vertically; or — up to 7° from the horizontal, i.e. 83° from the vertical. This European Standard only deals with the bonding to glass surfaces, i.e. coated or uncoated or enamelled, and metallic surfaces, i.e. aluminium (anodised or coated), stainless steel, as considered in G.2 of EN 15434:2006+A1:2010. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 13022-1:2014, Glass in building — Structural sealant glazing — Part 1: Glass products for structural sealant glazing systems for supported and unsupported monolithic and multiple glazing EN 15434:2006+A1:2010, Glass in building — Product standard for structural and/or ultra-violet resistant sealant (for use with structural sealant glazing and/or insulating glass units with exposed seals) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 13022-1:2014,

EN 15434:2006+A1:2010 and the following apply. 3.1 structural bonding assembling of glass elements into or onto window, door or curtain walling framework by means of a structural seal 3.2 structural sealant elastic sealant used for making a structural seal 4 Requirements The assembling of the glass elements into or onto the window, door or curtain-walling framework or directly in the building or construction shall take place under the following controlled environmental conditions: — temperature of the surface of the frame and of the glass and of the near environment shall be not less than 10 °C and not more than 35 °C; — for a given temperature, the RH value shall be at least 5 % below the value corresponding to the dew point of the support to which the seal is being applied; SIST EN 13022-2:2014

EN 13022-2:2014 (E) 6 — environment in the vicinity of the assembling shall be dust free; — glass elements are securely fixed until the full curing of the sealant has taken place. It shall be ensured that the work is executed as foreseen by the design, so that in particular: — curing of the various seals proceeds as foreseen by the design; — after curing, the characteristic performances including durability are deemed to satisfy the design requirements. NOTE For design guidance, refer to Annex B. 5 Assembling/bonding The assembling manual shall be used for instruction of both the assembling and control and will be a part of the assembling control documentation. The assembling manual shall make reference to the design of the work and detail the assembling procedures, in particular what is related to: — list of characteristics claimed by the designer; — component materials and products, and when appropriate trade name, generic type, marking and labelling; — cleaning and preparation materials, trade name, generic type, marking and labelling; — installations, equipment and tools for transport, storage, cleaning, use of primers, other preparation work of bonding surfaces, mixing sealant components, extrusion of sealant; — cleaning process of the seal bonding surfaces; — where applicable, process for use of primers; — positioning of glass and framework before extrusion of sealant, inclusive the application of glazing blocks (see EN 13022-1), anti-adhesive film and backer rod; — extrusion of sealant; — waiting time to obtain initial cure and transport and storage conditions just after initial cure; — waiting time to obtain further curing and final installation in the work; — finishing processes such as removing temporarily fixing means and application of weather seals; — information concerning the compatibility of various materials and components. The assembling manual shall also contain control and testing requirements and conditions, which may be by full description or by reference to this European Standard. The designer should specify that: — sealant conforms to EN 15434 or has an ETA1) with the type of substrate used;

1) ETA: European Technical Agreement. SIST EN 13022-2:2014

EN 13022-2:2014 (E) 7 — glass products conform to the relevant product standard taking into account EN 13022-1. For more details, refer to Annex A. 6 Assembling/bonding control 6.1 Assembling/bonding control requirements 6.1.1 General An assembler operating under a (when required third party surveillance) Quality Assurance System according to EN ISO 9001:2008, in which the quality procedures refer to 6.2 of this European Standard, has the benefit of presumption to comply with this European Standard. If not, the following sub-clauses shall be applied. 6.1.2 Organization 6.1.2.1 Responsibility and authority The responsibility, authority and the interrelation of all personnel who manage, perform and verify work-affecting conformity shall be defined, particularly for personnel who need the organisational freedom and authority to: a) initiate action to prevent the occurrence of non-conformity assembling; b) identify and record any assembling conformity problems. 6.1.2.2 Management representative for assembling control The manufacturer shall appoint a management representative who, irrespective of other responsibilities, shall have defined authority and responsibility for ensuring that the requirements of this European Standard are implemented and maintained. 6.1.2.3 Management review The assembling control system shall be reviewed at appropriate intervals by the manufacturer's management to ensure its continuing suitability and effectiveness. Records of such reviews shall be maintained. 6.1.3 Assembling – quality system 6.1.3.1 General The manufacturer shall establish and maintain a documented system as a means of ensuring that the assembling conforms to this European Standard. The following requirements hereafter shall be fulfilled. 6.1.3.2 Personnel The manufacturer shall appoint personnel for the inspections and assembling control tests that will be carried out before (e.g. incoming materials), during and after assembling. 6.1.3.3 Documentation The manufacturer's documentation and procedures shall be relevant to the assembling and assembling control, and shall adequately describe in a manual: a) aims and organizational structure, responsibilities and authorities of the management with regard to assembling/bonding conformity; SIST EN 13022-2:2014

EN 13022-2:2014 (E) 8 b) procedures for specifying and verifying the incoming materials (see also the assembling manual); c) manufacturing (see the assembling manual), production control and other techniques, processes and systematic actions that will be used; d) inspections that will be carried out before production, the inspection tests during and after production, and the frequency of which they will be carried out. 6.1.3.4 Test equipment Calibration of test equipment necessary for assembling control shall be documented. 6.1.3.5 Inspection and testing 6.2 designates the inspections and tests by means of tables. The requirements and records are normative. The test methods are recommended and therefore only given as information. The frequencies are also recommended and therefore given as information, except when otherwise designated. If another testing scheme is used, or if no testing scheme as described in the annexes is applicable, the testing scheme shall be described in detail in the quality manual. Annexes A, C, D and E and 5.2 and 5.3 of EN 15434:2006+A1:2010 describe the tests referred to in 6.2 as recommendations. 6.1.3.6 Quality contracts Inspections and tests on incoming materials (the material control section of the tables in 6.2) can be reduced on the basis of quality contracts between the supplier and the designer, on condition that the contract refers to the appropriate tables in 6.2. Quality contracts shall include the possibility of an audit of the supplier. Where contractually requested, quality records shall be made available by suppliers for evaluation by the customer's representative for an agreed period. 6.2 Inspection and testing tables for assembling glass elements into or onto framework with structural sealant The tables consist of three sections: — Section 1: Material control; — Section 2: Assembling control; — Section 3: Final control. The tables do not pretend to be exhaustive. The designer or the assembler can complete them. The tables can require something that is inexistent in some design. In such a case, the inspection or test row shall be ignored. When an assembling process is such that one or more of the listed inspections or tests are not applicable or physically not possible, the concerned inspection or test shall be ignored and an alternative shall be determined. The inspections and/or tests on incoming materials and component products shall be carried as soon as possible. In case of non-conforming materials, action shall be taken that non-conforming assembling will not be performed. SIST EN 13022-2:2014

EN 13022-2:2014 (E) 9 The required records in the tables hereafter can be any document such as order documents, production documents, logbook, etc. as described in the quality procedures and associated documentation. However, records shall not indicate delivery or batch identification. When no record required, it is only valid if there is no negative result. In the case of a negative result, record shall always be made. Adjustments of machinery and equipment used for assembling are periodically checked against defined parameters for optimal result. The assembler shall fulfil the requirements of the Clause 4 of this European Standard. SIST EN 13022-2:2014

EN 13022-2:2014 (E) 10 Table 1 — Inspection and test table for structural assembling in accordance with this European Standard Ref. Material, inspection or test Recommended method (decision to be made by assembler) Normative requirement Recommended frequency (decision to be made by designer or assembler) Record normative Section 1: Material control 1.1 Framework

1.1.1 packaging and label Visual See purchase specification Each delivery No 1.1.2 Identification Visual See purchase specification Each delivery Yes 1.2 Glass products

1.2.1 packaging and label Visual See purchase specification Each delivery No 1.2.2 identification (according to relevant standards) Visual See purchase specification Each delivery Yes 1.2.3 Dimensions Measurement See purchase specification Each package and thickness No 1.3 Structural sealant

1.3.1 Packaging, label and quality control report of the sealant supplier Visual See purchase specification Each delivery No 1.3.2 shelf life Visual Suppliers’ specification Each delivery Yes 1.3.3

Convenience test adhesion test when no delivery information a on the sealant from the sealant supplier available shall be carried out together) Annex A and Annex C Peel test only accepted Annex A Rupture 100 % cohesive failure Each delivery of sealant, glass or framework b Yes 1.4 Bond breaker material

1.4.1 packaging and labelling Visual See purchase specification Each delivery No 1.4.2 Identification Visual See purchase specification Each delivery Yes 1.5 Spacer material

1.5.1 packaging and labelling Visual See purchase specification Each delivery No 1.5.2 Identification Visual See purchase specification Each delivery Yes SIST EN 13022-2:2014

EN 13022-2:2014 (E) 11 Ref. Material, inspection or test Recommended method (decision to be made by assembler) Normative requirement Recommended frequency (decision to be made by designer or assembler) Record normative 1.6 Weather sealant

1.6.1 packaging and labelling Visual See purchase specification Each delivery No 1.6.2 Identification Visual See purchase specification Each delivery Yes 1.7 Finishing material

1.7.1 packaging and labelling Visual See purchase specification Each delivery No 1.7.2 Identification Visual See purchase specification Each delivery Yes 1.8 Retaining devices

1.8.1 packaging and labelling Visual See purchase specification Each delivery No 1.8.2 Identification Visual See purchase specification Each delivery Yes 1.9 Retaining clips

1.9.1 packaging and labelling Visual See purchase specification Each delivery No 1.9.2 Identification Visual See purchase specification Each delivery Yes 1.10 Cleaning products

1.10.1 packaging and labelling Visu
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steklo v gradbeništvu - Strukturna zasteklitev - 2. del: Pravila za zastekljevanjeGlas im Bauwesen - Geklebte Verglasungen - Teil 2: VerglasungsvorschriftenVerre dans la construction - Système de vitrage extérieur collé (VEC) - Partie 2: Règles d'assemblageGlass in building - Structural sealant glazing - Part 2: Assembly rules81.040.20Steklo v gradbeništvuGlass in buildingICS:Ta slovenski standard je istoveten z:FprEN 13022-2kSIST FprEN 13022-2:2013en,fr,de01-oktober-2013kSIST FprEN 13022-2:2013SLOVENSKI

STANDARD
kSIST FprEN 13022-2:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
FINAL DRAFT
FprEN 13022-2
August 2013 ICS 81.040.20 Will supersede EN 13022-2:2006+A1:2010English Version
Glass in building - Structural sealant glazing - Part 2: Assembly rules

Verre dans la construction - Système de vitrage extérieur collé (VEC) - Partie 2: Règles d'assemblage

Glas im Bauwesen - Geklebte Verglasungen - Teil 2: Verglasungsvorschriften This draft European Standard is submitted to CEN members for unique acceptance procedure. It has been drawn up by the Technical Committee CEN/TC 129.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. FprEN 13022-2:2013: EkSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 2 Contents Page Foreword ............................................................................................................................................................. 4 1 Scope ...................................................................................................................................................... 5 2 Normative references ............................................................................................................................ 5 3 Terms and definitions ........................................................................................................................... 5 4 Requirements......................................................................................................................................... 5 5 Assembling/bonding ............................................................................................................................. 6 6 Assembling/bonding control ................................................................................................................ 7 6.1 Assembling/bonding control requirements ........................................................................................ 7 6.1.1 General ................................................................................................................................................... 7 6.1.2 Organisation .......................................................................................................................................... 7 6.1.3 Assembling – quality system ............................................................................................................... 7 6.2 Inspection and testing tables for assembling glass elements into or onto framework with structural sealant .................................................................................................................................. 8 Annex A (normative)

Dynamic tensile and peel test on structural sealant ................................................ 15 A.1 Purpose ................................................................................................................................................ 15 A.1.1 General ................................................................................................................................................. 15 A.1.2 Project Test .......................................................................................................................................... 15 A.1.3 Convenience test ................................................................................................................................. 15 A.1.4 Factory production control test ......................................................................................................... 15 A.2 Test specimens.................................................................................................................................... 15 A.2.1 Tensile test ........................................................................................................................................... 15 A.2.2 Peel test ................................................................................................................................................ 15 A.3 Conditioning of test specimens ......................................................................................................... 16 A.4 Test procedure..................................................................................................................................... 16 A.4.1 In the case of tensile test .................................................................................................................... 16 A.4.2 In the case of peel test ........................................................................................................................ 16 A.5 Observation .......................................................................................................................................... 16 A.6 Report ................................................................................................................................................... 17 Annex B (informative)

Design guidance ......................................................................................................... 18 B.1 Characteristics..................................................................................................................................... 18 B.2 Characteristic details .......................................................................................................................... 19 B.2.1 General ................................................................................................................................................. 19 B.2.2 Safety in the case of fire – reaction to fire ........................................................................................ 19 B.2.3 Health – release of dangerous substances ...................................................................................... 20 B.2.4 Safety in use ........................................................................................................................................ 20 B.2.5 Structural seal dimensions ................................................................................................................ 20 B.3 Initial assessment of the design ........................................................................................................ 27 B.4 Assembling details .............................................................................................................................. 28 Annex C (normative)

Adhesion tests in assembling/bonding control ........................................................ 29 C.1 General ................................................................................................................................................. 29 C.2 Purpose ................................................................................................................................................ 29 C.3 Peel test – Method 1 ............................................................................................................................ 29 C.3.1 Test specimens.................................................................................................................................... 29 C.3.2 Curing time ........................................................................................................................................... 30 C.3.3 Test procedure..................................................................................................................................... 30 C.3.4 Observation .......................................................................................................................................... 30 C.4 Static tensile test – Method 2 ............................................................................................................. 30 C.4.1 Test specimens.................................................................................................................................... 30 C.4.2 Curing time ........................................................................................................................................... 31 kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 3 C.4.3 Test procedure ..................................................................................................................................... 31 C.4.4 Observation .......................................................................................................................................... 31 C.5 Dynamic tensile test ............................................................................................................................ 31 C.5.1 Test specimens .................................................................................................................................... 31 C.5.2 Curing time ........................................................................................................................................... 31 C.5.3 Test procedure ..................................................................................................................................... 31 C.5.4 Observation .......................................................................................................................................... 32 C.6 Report ................................................................................................................................................... 32 Annex D (informative)

Two-component sealant: Check on the thoroughness of mixing and air inclusions ............................................................................................................................................. 33 D.1 General ................................................................................................................................................. 33 D.2 Purpose ................................................................................................................................................ 33 D.3 Test specimen ...................................................................................................................................... 33 D.4 Test procedure ..................................................................................................................................... 33 D.5 Report ................................................................................................................................................... 34 Annex E (informative)

Sealants, hardness measurements ........................................................................... 35 E.1 General ................................................................................................................................................. 35 E.2 Purpose ................................................................................................................................................ 35 E.3 Definitions ............................................................................................................................................ 35 E.3.1 Curing time ........................................................................................................................................... 35 E.3.2 Free surface ......................................................................................................................................... 35 E.4 Instruments .......................................................................................................................................... 35 E.5 Calibration ............................................................................................................................................ 36 E.6 Test specimens .................................................................................................................................... 36 E.7 Test procedure ..................................................................................................................................... 36 E.8 Report ................................................................................................................................................... 37 Annex F (informative)

Provisions for voluntary involvement of third party(ies) ........................................ 38 F.1 General ................................................................................................................................................. 38 F.2 Voluntary tasks for third parties ........................................................................................................ 38 F.3 Marking and labelling .......................................................................................................................... 38 Bibliography ...................................................................................................................................................... 39

kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 4 Foreword This document (FprEN 13022-2:2013) has been prepared by Technical Committee CEN/TC 129 “Glass in building”, the secretariat of which is held by NBN. This document is currently submitted to the Unique Acceptance Procedure. This document will supersede EN 13022-2:2006+A1:2010. This part of the standard is one of a series of interrelated standard parts dealing with:  glass products for structural sealant glazing systems,

 installation of glass products in a structural manner on building façades;  UV-resistant and structural sealant for use in structural sealant glazing. The interrelated parts are:  EN 13022-1: Glass in building — Structural sealant glazing — Part 1: Glass products for structural sealant glazing systems for supported and unsupported monolithic and multiple glazing  EN 13022-2: Glass in building — Structural sealant glazing — Part 2: Assembly rules  EN 15434: Glass in building — Product standard for structural and/or ultra-violet resistant sealant (for use with structural sealant glazing and/or insulating glass units with exposed seals) kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 5

1 Scope This European Standard deals with the assembling and bonding of glass elements in a frame, window, door or curtain walling construction, or directly into the building by means of structural bonding of the glass element into or onto framework or directly into the building. It gives information to the assembler to enable him to organise his work and comply with requirements regarding quality control. Structural sealant glazing can be incorporated into the façades (curtain walls, doors and windows) or roofs as follows:  either vertically; or  up to 7° from the horizontal, i.e. 83o from the vertical. This European Standard only deals with the bonding to glass surfaces, i.e. coated or uncoated or enamelled, and metallic surfaces, i.e. aluminium (anodised or coated), stainless steel, as considered in G.2 of EN 15434:2006+A1:2010.

2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. FprEN 13022-1:2013, Glass in building — Structural sealant glazing — Part 1: Glass products for structural sealant glazing systems for supported and unsupported monolithic and multiple glazing EN 15434:2006+A1:2010, Glass in building — Product standard for structural and/or ultra-violet resistant sealant (for use with structural sealant glazing and/or insulating glass units with exposed seals) 3 Terms and definitions For the purposes of this document, the terms and definitions given in FprEN 13022-1:2013,

EN 15434:2006+A1:2010 and the following apply. 3.1 structural bonding assembling of glass elements into or onto window, door or curtain walling framework by means of a structural seal 3.2. structural sealant elastic sealant used for making a structural seal 4 Requirements The assembling of the glass elements into or onto the window, door or curtain-walling framework or directly in the building or construction shall take place under the following controlled environmental conditions: kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 6  temperature of the surface of the frame and of the glass and of the near environment shall be not less than 10 °C and not more than 35 °C;  for a given temperature, the RH value shall be at least 5 % below the value corresponding to the dew point of the support to which the seal is being applied;  environment in the vicinity of the assembling has to be dust free;  glass elements are securely fixed until the full curing of the sealant has taken place. It shall be ensured that the work is executed as foreseen by the design, so that in particular:  curing of the various seals proceeds as foreseen by the design;  after curing, the characteristic performances including durability are deemed to satisfy the design requirements. NOTE For design guidance, refer to Annex B. 5 Assembling/bonding The assembling manual shall be used for instruction of both the assembling and control and will be a part of the assembling control documentation. The assembling manual shall make reference to the design of the work and detail the assembling procedures, in particular what is related to:  list of characteristics claimed by the designer;  component materials and products, and when appropriate trade name, generic type, marking and labelling;  cleaning and preparation materials, trade name, generic type, marking and labelling;  installations, equipment and tools for transport, storage, cleaning, use of primers, other preparation work of bonding surfaces, mixing sealant components, extrusion of sealant;  cleaning process of the seal bonding surfaces;  where applicable, process for use of primers;  positioning of glass and framework before extrusion of sealant, inclusive the application of glazing blocks (see FprEN 13022-1), anti-adhesive film and backer rod;  extrusion of sealant;  waiting time to obtain initial cure and transport and storage conditions just after initial cure;  waiting time to obtain further curing and final installation in the work;  finishing processes such as removing temporarily fixing means and application of weather seals;  information concerning the compatibility of various materials and components. The assembling manual shall also contain control and testing requirements and conditions, which may be by full description or by reference to this European Standard. kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 7 The designer should specify that:  sealant conforms to EN 15434 or has an ETA1) with the type of substrate used;  glass products conform to the relevant product standard taking into account FprEN 13022-1. For more details, refer to Annex A. 6 Assembling/bonding control 6.1 Assembling/bonding control requirements 6.1.1 General An assembler operating under a (when required third party surveillance) Quality Assurance System according to EN ISO 9001:2008, in which the quality procedures refer to 6.2 of this European Standard, has the benefit of presumption to comply with this European Standard. If not, the following sub-clauses shall be applied. 6.1.2 Organisation 6.1.2.1 Responsibility and authority The responsibility, authority and the interrelation of all personnel who manage, perform and verify work-affecting conformity shall be defined, particularly for personnel who need the organisational freedom and authority to: a) initiate action to prevent the occurrence of non-conformity assembling; b) identify and record any assembling conformity problems. 6.1.2.2 Management representative for assembling control The manufacturer shall appoint a management representative who, irrespective of other responsibilities, shall have defined authority and responsibility for ensuring that the requirements of this European Standard are implemented and maintained. 6.1.2.3 Management review The assembling control system shall be reviewed at appropriate intervals by the manufacturer's management to ensure its continuing suitability and effectiveness. Records of such reviews shall be maintained. 6.1.3 Assembling – quality system 6.1.3.1 General The manufacturer shall establish and maintain a documented system as a means of ensuring that the assembling conforms to this European Standard. The following requirements hereafter shall be fulfilled. 6.1.3.2 Personnel The manufacturer shall appoint personnel for the inspections and assembling control tests that will be carried out before (e.g. incoming materials), during and after assembling.

1) ETA: European Technical Agreement kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 8 6.1.3.3 Documentation The manufacturer's documentation and procedures shall be relevant to the assembling and assembling control, and shall adequately describe in a manual: a) aims and organisational structure, responsibilities and authorities of the management with regard to assembling/bonding conformity; b) procedures for specifying and verifying the incoming materials (see also the assembling manual); c) manufacturing (see the assembling manual), production control and other techniques, processes and systematic actions that will be used; d) inspections that will be carried out before production, the inspection tests during and after production, and the frequency of which they will be carried out. 6.1.3.4 Test equipment Calibration of test equipment necessary for assembling control shall be documented. 6.1.3.5 Inspection and testing Sub-clause 6.2 designates the inspections and tests by means of tables. The requirements and records are normative. The test methods are recommended and therefore only given as information. The frequencies are also recommended and therefore given as information, except when otherwise designated. If another testing scheme is used, or if no testing scheme as described in the annexes is applicable, the testing scheme shall be described in detail in the quality manual. Annexes A, C, D and E and 5.2 and 5.3 of EN 15434:2006+A1:2010 describe the tests referred to in 6.2 as recommendations. 6.1.3.6 Quality contracts Inspections and tests on incoming materials (the material control section of the tables in 6.2) can be reduced on the basis of quality contracts between the supplier and the designer, on condition that the contract refers to the appropriate tables in 6.2. Quality contracts shall include the possibility of an audit of the supplier. Where contractually requested, quality records shall be made available by suppliers for evaluation by the customer's representative for an agreed period. 6.2 Inspection and testing tables for assembling glass elements into or onto framework with structural sealant The tables consist of three sections:  section 1: material control;  section 2: assembling control;  section 3: final control. The tables do not pretend to be exhaustive. The designer or the assembler can complete them. The tables can require something that is inexistent in some design. In such a case, the inspection or test row shall be ignored. kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 9 When an assembling process is such that one or more of the listed inspections or tests are not applicable or physically not possible, the concerned inspection or test shall be ignored and an alternative shall be determined. The inspections and/or tests on incoming materials and component products shall be carried as soon as possible. In case of non-conforming materials, action shall be taken that non conforming assembling will not be performed. The required records in the tables hereafter can be any document such as order documents, production documents, logbook, etc. as described in the quality procedures and associated documentation. However, records shall not indicate delivery or batch identification. When no record required, it is only valid if there is no negative result. In the case of a negative result, record shall always be made. Adjustments of machinery and equipment used for assembling are periodically checked against defined parameters for optimal result. The assembler has to fulfil the requirements of the Clause 4 of this European Standard. kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 10 Table 1 — Inspection and test table for structural assembling in accordance with this European Standard (continued) Section 1: Material control Ref. Material, inspection or test Recommended method (decision to be made by assembler) Normative requirement Recommended frequency (decision to be made by designer or assembler) Record normative 1.1 Framework

1.1.1 packaging and label Visual See purchase specification Each delivery No 1.1.2 Identification Visual See purchase specification Each delivery Yes 1.2 Glass products

1.2.1 packaging and label Visual See purchase specification Each delivery No 1.2.2 identification (according to relevant standards) Visual See purchase specification Each delivery Yes 1.2.3 Dimensions Measurement See purchase specification Each package and thickness No 1.3 Structural sealant

1.3.1 Packaging, label and quality control report of the sealant supplier Visual See purchase specification Each delivery No 1.3.2 shelf life Visual Suppliers’ specification Each delivery Yes 1.3.3

Convenience test adhesion test when no delivery information(1) on the sealant from the sealant supplier available shall be carried out together) Annex A and Annex C Peel test only accepted Annex A

Rupture 100 % cohesive failure
Each delivery of sealant, glass or framework (2)
Yes 1.4 Bond breaker material

1.4.1 packaging and labelling Visual See purchase specification Each delivery No 1.4.2 Identification Visual See purchase specification Each delivery Yes 1.5 Spacer material

1.5.1 packaging and labelling Visual See purchase specification Each delivery No kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 11 Table 1 — Inspection and test table for structural assembling in accordance with this European Standard (continued) Section 1: Material control Ref. Material, inspection or test Recommended method (decision to be made by assembler) Normative requirement Recommended frequency (decision to be made by designer or assembler) Record normative 1.5.2 Identification Visual See purchase specification Each delivery Yes 1.6 Weather sealant

1.6.1 packaging and labelling Visual See purchase specification Each delivery No 1.6.2 Identification Visual See purchase specification Each delivery Yes 1.7 Finishing material

1.7.1 packaging and labelling Visual See purchase specification Each delivery No 1.7.2 Identification Visual See purchase specification Each delivery Yes 1.8 Retaining devices

1.8.1 packaging and labelling Visual See purchase specification Each delivery No 1.8.2 Identification Visual See purchase specification Each delivery Yes 1.9 Retaining clips

1.9.1 packaging and labelling Visual See purchase specification Each delivery No 1.9.2 Identification Visual See purchase specification Each delivery Yes 1.10 Cleaning products

1.10.1 packaging and labelling Visual See purchase specification Each delivery No 1.10.2 Identification Visual See purchase specification Each delivery Yes 1.11 Primer

kSIST FprEN 13022-2:2013

FprEN 13022-2:2013 (E) 12 Table 1 — Inspection and test table for structural assembling in accordance with this European Standard (continued) Section 1: Material control Ref. Material, inspection or test Recommended method (decision to be made by assembler) Normative requirement Recommended frequency (decision to be made by designer or assembl

...
