EN 16906
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2023
EUROPÄISCHE NORM
ICS 75.160.20 Supersedes EN 16906:2017
English Version
Liquid petroleum products - Determination of the ignition
quality of diesel fuels - Fixed compression ratio engine
method
Produits pétroliers liquides - Détermination de la Flüssige Mineralölerzeugnisse - Bestimmung der
qualité d'allumage des combustibles Diesel - Méthode Zündwilligkeit von Dieselkraftstoffen - Verfahren mit
avec moteur à taux de compression fixe einem Prüfmotor mit konstantem
Verdichtungsverhältnis
This European Standard was approved by CEN on 4 September 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16906:2023 E
worldwide for CEN national Members.

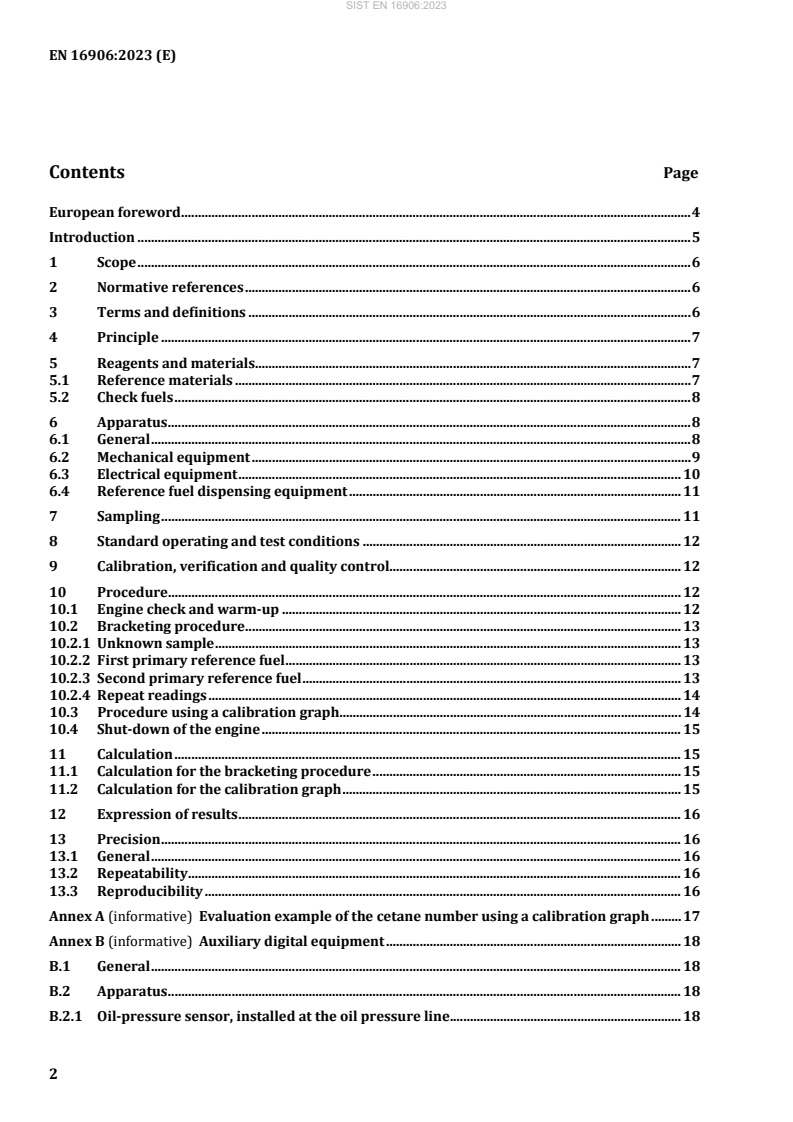

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Principle . 7
5 Reagents and materials . 7
5.1 Reference materials . 7
5.2 Check fuels . 8
6 Apparatus . 8
6.1 General . 8
6.2 Mechanical equipment . 9
6.3 Electrical equipment . 10
6.4 Reference fuel dispensing equipment . 11
7 Sampling . 11
8 Standard operating and test conditions . 12
9 Calibration, verification and quality control. 12
10 Procedure. 12
10.1 Engine check and warm-up . 12
10.2 Bracketing procedure . 13
10.2.1 Unknown sample . 13
10.2.2 First primary reference fuel . 13
10.2.3 Second primary reference fuel . 13
10.2.4 Repeat readings . 14
10.3 Procedure using a calibration graph. 14
10.4 Shut-down of the engine . 15
11 Calculation . 15
11.1 Calculation for the bracketing procedure . 15
11.2 Calculation for the calibration graph . 15
12 Expression of results . 16
13 Precision . 16
13.1 General . 16
13.2 Repeatability . 16
13.3 Reproducibility . 16
Annex A (informative) Evaluation example of the cetane number using a calibration graph . 17
Annex B (informative) Auxiliary digital equipment . 18
B.1 General . 18
B.2 Apparatus . 18
B.2.1 Oil-pressure sensor, installed at the oil pressure line. 18
B.2.2 Oil temperature sensor, combined with the additionally supplied oil dip-stick to be placed
into the designated borehole. .18
B.2.3 Exhaust gas temperature sensor, placed to the exhaust-pipe. .18
B.2.4 Cooling-water temperature sensor, installed at the water elbow joint. .18
B.2.5 Injection Pick-up, placed on the injection nozzle. .18
B.2.6 Dead-Top Centre (DTC) Pick-up, installed at the fastener opposite to the flywheel. .18
B.2.7 Combustion Pick-up, inductive pressure difference sensor or absolute pressure sensor. 18
B.2.8 Vacuum sensor, installed at the entrance of the surge tank. .18
B.2.9 Ambient sensor, for absolute air pressure, temperature and humidity. .18
B.2.10 Intake air temperature sensor (optional), for monitoring the steady-state conditions for
operating the engine. .18
B.2.11 Diesel flow meter (optional), for measuring the diesel flow rate. .18
B.3 Set-up .18
B.4 Calibration.19
Bibliography .20
European foreword
This document (EN 16906:2023) has been prepared by Technical Committee CEN/TC 19 “Gaseous and
liquid fuels, lubricants and related products of petroleum, synthetic and biological origin”, the secretariat
of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2024, and conflicting national standards shall be
withdrawn at the latest by April 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16906:2017.
The main changes compared to the previous edition EN 16906:2017 are listed below:
— new title;
— new scope and precision based on proficiency testing scheme data within DIN-FAM;
— introduction of a new low cetane primary reference fuel, pentamethylheptane (PMH);
— introduction of a statistical observable bias with EN ISO 5165 in the expression of results section.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
The test method described in this document is based on DIN 51773 [1], which had been developed in the
German group, DIN NA 062-06-43 AA “Combustion characteristic of fuels”, and which has been used very
successfully since more than 40 years. It was originally known as the 'BASF engine'.
The described method is an alternative quantitative determination of the cetane number of middle
distillate fuels intended for use in compression ignition engines.
A correlation study between this method and EN ISO 5165 has been done and the results of this are
incorporated in the precision report issued in 2019 [2] and in this document.
The testing of pure FAME (which is in the scope of EN ISO 5165) has been excluded from the scope for
the time being as there seems to be sample specific biases for such product. CEN will initiate appropriate
causal studies.
1 Scope
This document specifies a test method for the determination of cetane numbers (“CN”) of diesel fuels,
using a standard single cylinder, four-stroke cycle, indirect injection engine. The cetane number provides
a measure of the ignition characteristics of diesel fuels in compression ignition engines. The cetane
number is determined at constant spe
...
