EN 709:1997+A4:2009
(Main)Agricultural and forestry machinery - Pedestrian controlled tractors with mounted rotary cultivators, motor hoes, motor hoes with drive wheel(s) - Safety
Agricultural and forestry machinery - Pedestrian controlled tractors with mounted rotary cultivators, motor hoes, motor hoes with drive wheel(s) - Safety
This European Standard specifies safety requirements and testing for design and construction of, pedestrian controlled tractors with mounted rotary cultivators with the cultivator rotating axis horizontal and perpendicular to the direction of motion of the machine, motor hoes and motor hoes with drive wheel(s), all as used in agriculture, forestry, landscaping and gardening (including amenity use).
It describes methods for the elimination or reduction of risks arising from their use. In addition, it specifies the type of information to be provided by the manufacturer on safe working practices.
This European Standard does not cover the requirements to fulfil national road traffic regulations such as lights, steering and braking.
Environmental aspects have not been considered in this standard.
This European Standard applies primarily to machines which are manufactured after the date of issue of the standard.
Maschinen für die Land- und Forstwirtschaft - Einachstraktoren mit angebauter Fräse, Motorhacken, Triebradhacken - Sicherheit
Diese Europäische Norm legt sicherheitstechnische Anforderungen und Prüfungen für die Gestaltung und Konstruktion von Einachstraktoren mit angebauter Fräse fest, deren Drehachse horizontal oder vertikal zur Bewegungsrichtung der Maschine angeordnet ist, sowie von Motorhacken und Triebradhacken, die in der Land- und Forstwirtschaft sowie der Landschafts- und Gartenpflege (einschließlich Freizeitbereich) eingesetzt werden. Sie beschreibt Maßnahmen zur Vermeidung oder Verminderung der sich aus dem Gebrauch ergebenden Gefährdungen. Außerdem gibt sie Informationen über sicheres Arbeiten, die vom Hersteller zur Verfügung zu stellen sind. Diese Europäische Norm enthält keine Anforderungen zur Erfüllung nationaler Straßenverkehrsvorschriften wie beispielsweise an Beleuchtung, Lenkung und Bremsen. Umweltaspekte wurden in dieser Norm nicht in Betracht gezogen. Diese Europäische Norm gilt in erster Linie für Maschinen, die nach dem Ausgabedatum der Norm hergestellt worden sind.
Matériel agricole et forestier - Motoculteurs avec fraises portées, motobineuses et fraises à roue(s) motrice(s) - Sécurité
La présente norme européenne détermine les prescriptions de sécurité et les vérifications pour la conception et la construction des motoculteurs équipés de fraises dont l'axe de rotation est horizontal et perpendiculaire au sens d'avancement de la machine, des motobineuses et des fraises à roue(s) motrice(s), utilisés en agriculture, en foresterie, pour l'entretien des espaces verts et pour le jardinage (y compris à usage de loisir).
Elle décrit les méthodes pour éliminer ou réduire les risques inhérents à leur utilisation. En outre, elle spécifie le type d'informations que le fabricant doit donner sur les pratiques d'utilisation sûre.
La présente norme ne couvre pas les prescriptions permettant de satisfaire aux réglementations routières nationales telles que l'éclairage, le système de direction et le freinage.
Les aspects liés à l'environnement n'ont pas été pris en compte dans cette norme.
La présente norme européenne s'applique avant tout aux machines fabriquées après la date de publication de la norme.
Kmetijski in gozdarski stroji - Enoosni traktorji s priključenim prekopalnikom, motorni prekopalniki in motorni prekopalniki s pogonskim(a) kolesom(a) - Varnost
Ta evropski standard opredeljuje varnostne zahteve in preskušanje za načrtovanje in konstrukcijo enoosnih traktorjev s priključenim prekopalnikom, z vodoravno rotirajočo osjo prekopalnika in navpično glede na smer gibanja stroja, motorne prekopalnike in motorne prekopalnike s pogonskim(a) kolesom(a), vsi navedeni stroji kot se uporabljajo v kmetijstvu, gozdarstvu, krajinskem oblikovanju in vrtnarstvu (vključno z uporabo v javne namene). Opisuje metode za preprečevanje ali zmanjševanje tveganj, ki izvirajo iz njihove uporabe. Poleg tega opredeljuje vrste podatkov, ki jih mora zagotoviti proizvajalec glede varnih delovnih postopkov. Ta evropski standard ne zajema zahtev za izpolnjevanje predpisov posameznih držav v cestnem prometu, kot so luči, krmiljenje in zaviranje. Okoljski vidiki v tem standardu niso obravnavani. Ta evropski standard velja predvsem za stroje, ki so bili izdelani po datumu izdaje tega standarda.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2010
.PHWLMVNLLQJR]GDUVNLVWURML(QRRVQLWUDNWRUMLVSULNOMXþHQLPSUHNRSDOQLNRP
PRWRUQLSUHNRSDOQLNLLQPRWRUQLSUHNRSDOQLNLVSRJRQVNLP D NROHVRP D 9DUQRVW
Agricultural and forestry machinery - Pedestrian controlled tractors with mounted rotary
cultivators, motor hoes, motor hoes with drive wheel(s) - Safety
Maschinen für die Land- und Forstwirtschaft - Einachstraktoren mit angebauter Fräse,
Motorhacken, Triebradhacken - Sicherheit
Matériel agricole et forestier - Motoculteurs avec fraises portées, motobineuses et fraises
à roue(s) motrice(s) - Sécurité
Ta slovenski standard je istoveten z: EN 709:1997+A4:2009
ICS:
65.060.10 Kmetijski traktorji in prikolice Agricultural tractors and
trailed vehicles
65.060.20 Oprema za obdelovanje tal Soil-working equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 709:1997+A4
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2009
ICS 65.060.10; 65.060.20 Supersedes EN 709:1997+A2:2009
English Version
Agricultural and forestry machinery - Pedestrian controlled
tractors with mounted rotary cultivators, motor hoes, motor hoes
with drive wheel(s) - Safety
Matériel agricole et forestier - Motoculteurs avec fraises Maschinen für die Land- und Forstwirtschaft -
portées, motobineuses et fraises à roue(s) motrice(s) - Einachstraktoren mit angebauter Fräse, Motorhacken,
Sécurité Triebradhacken - Sicherheit
This European Standard was approved by CEN on 4 March 1997 and includes Amendment 1 approved by CEN on 1 July 1999,
Amendment 2 approved by CEN on 29 December 2008 and Amendment 4 approved by CEN on 24 October 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 709:1997+A4:2009: E
worldwide for CEN national Members.

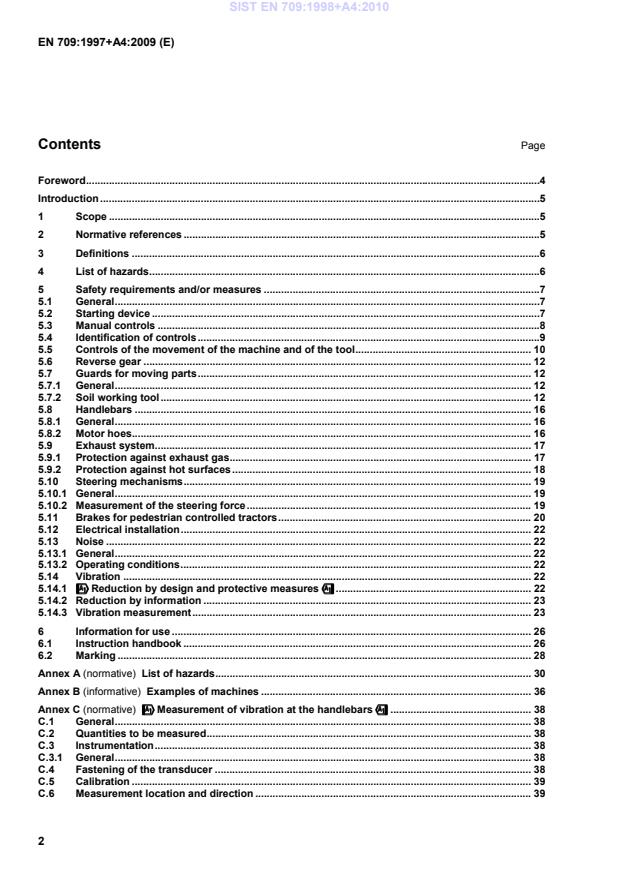

Contents Page
Foreword .4
Introduction .5
1 Scope .5
2 Normative references .5
3 Definitions .6
4 List of hazards .6
5 Safety requirements and/or measures .7
5.1 General .7
5.2 Starting device .7
5.3 Manual controls .8
5.4 Identification of controls .9
5.5 Controls of the movement of the machine and of the tool . 10
5.6 Reverse gear . 12
5.7 Guards for moving parts . 12
5.7.1 General . 12
5.7.2 Soil working tool . 12
5.8 Handlebars . 16
5.8.1 General . 16
5.8.2 Motor hoes . 16
5.9 Exhaust system. 17
5.9.1 Protection against exhaust gas . 17
5.9.2 Protection against hot surfaces . 18
5.10 Steering mechanisms . 19
5.10.1 General . 19
5.10.2 Measurement of the steering force . 19
5.11 Brakes for pedestrian controlled tractors . 20
5.12 Electrical installation . 22
5.13 Noise . 22
5.13.1 General . 22
5.13.2 Operating conditions . 22
5.14 Vibration . 22
5.14.1 !!Reduction by design and protective measures"" . 22
!! ""
5.14.2 Reduction by information . 23
5.14.3 Vibration measurement . 23
6 Information for use . 26
6.1 Instruction handbook . 26
6.2 Marking . 28
Annex A (normative) List of hazards . 30
Annex B (informative) Examples of machines . 36
Annex C (normative) !!Measurement of vibration at the handlebars"" . 38
!! ""
C.1 General . 38
C.2 Quantities to be measured . 38
C.3 Instrumentation . 38
C.3.1 General . 38
C.4 Fastening of the transducer . 38
C.5 Calibration . 39
C.6 Measurement location and direction . 39
C.7 Pre - test . 39
C.8 Test conditions . 39
C.8.1 Machine set-up . 39
C.8.2 Operating conditions . 39
C.8.3 Operator. 40
C.9 Measurement procedure . 40
C.10 Test report . 40
Annex ZA (informative) ''Relationship between this European Standard and the Essential
''
Requirements of EU Directive 98/37/EC, amended by Directive 98/79/EC(((( . 42
Annex ZB (informative) ''''Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC(((( . 43
Bibliography . 44
Foreword
This document (EN 709:1997+A4:2009) has been prepared by Technical Committee CEN/TC 144 “Tractors
and machinery for agriculture and forestry”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2010, and conflicting national standards shall be withdrawn at
the latest by December 2010.
This document includes Amendment 1, approved by CEN on 1999-07-01, Amendment 2, approved by CEN
on 2008-12-29 and Amendment 4, approved by CEN on 2009-10-24.
This document supersedes EN 709:1997+A2:2009.
The start and finish of text introduced or altered by amendment is indicated in the text by tags
!", # $ and '(.
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
#For relationship with EU directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document.$
The Annex A is normative and contains the "List of hazards".
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and United Kingdom.
Introduction
The extent to which hazards are covered is indicated in the scope of this standard.
In addition, machines shall comply – as appropriate – with EN 292 for hazards which are not dealt with and
especially with Annex A of EN 292-2:1991/A1:1995 when EN 292 does not give precise requirements.
1 Scope
This European Standard specifies safety requirements and testing for design and construction of, pedestrian
controlled tractors with mounted rotary cultivators with the cultivator rotating axis horizontal and perpendicular
to the direction of motion of the machine, motor hoes and motor hoes with drive wheel(s), all as used in
agriculture, forestry, landscaping and gardening (including amenity use).
It describ
...
