EN 12561-1:2011
(Main)Railway applications - Tank wagons - Part 1: Identification plates for tank wagons for the carriage of dangerous goods
Railway applications - Tank wagons - Part 1: Identification plates for tank wagons for the carriage of dangerous goods
This European Standard lays down the identification plates for tank wagons used for the carriage of:
- liquefied gases of class 2 of RID,
- substances of classes 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 6.2, 8 and 9 of RID.
Compressed gases have not been considered in this European Standard.
This European Standard also defines the dimensions and the fixing of identification plates and various particulars to be marked on them.
The requirements of RID shall override conflicting requirements of this European Standard.
This European Standard applies to new tank wagons built after the 1st January 2010.
Bahnanwendungen - Kesselwagen - Teil 1: Kennzeichnungsschilder von Kesselwagen für die Beförderung von gefährlichen Gütern
Diese Europäische Norm gilt für Kennzeichnungsschilder von Kesselwagen zum Transport von:
- verflüssigten Gasen der Klasse 2 des RID,
- Stoffen der Klassen 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 6.2, 8 und 9 des RID.
Komprimierte Gase sind in dieser Europäischen Norm nicht berücksichtigt worden.
Diese Europäische Norm legt auch die Abmessungen und Befestigungen der Tankschilder und die verschiedenen Einzelheiten, die darauf eingetragen werden, fest.
Die Anforderungen der RID müssen sich über widersprüchliche Anforderungen dieser Europäischen Norm hinwegsetzen.
Diese Europäische Norm gilt für neue Kesselwagen, die nach dem 1. Januar 2010 gebaut werden.
Applications ferroviaires - Wagons citernes - Partie 1 : Plaques d'identité des wagons citernes destinés au transport des matières dangereuses
Cette Norme européenne présente les plaques d'identité pour les wagons citernes destinés au transport des :
- gaz liquéfiés de la classe 2 du RID ;
- matières des classes 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 6.2, 8 et 9 du RID.
Les gaz comprimés n'ont pas été pris en considération dans cette Norme européenne.
Cette Norme européenne définit également les dimensions et le mode de fixation des plaques d'identité et les diverses mentions à y marquer.
Les exigences du RID ont la priorité sur les exigences conflictuelles de la présente Norme européenne.
La présente Norme européenne s’applique aux nouveaux wagons citernes fabriqués après le 1er janvier 2010.
Železniške naprave - Vagoni-cisterne - 1. del: Označevalne tablice za vagone-cisterne za prevoz nevarnih snovi
Ta evropski standard določa označevalne tablice za vagone-cisterne, ki se uporabljajo za prevoz: utekočinjenih plinov razreda 2 RID, snovi razredov 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 6.2, 8 in 9 RID. Stisnjeni plini v tem evropskem standardu niso obravnavani. Ta evropski standard opredeljuje tudi mere in pritrjanje označevalnih ploščic ter različne informacije, ki morajo biti navedene na njih. Zahteve RID razveljavljajo nasprotujoče zahteve tega evropskega standarda. Ta evropski standard velja za nove vagone-cisterne, narejene po 1. januarju 2010.
General Information
Relations
Overview - EN 12561-1:2011 (CEN)
EN 12561-1:2011 is a European standard from CEN that specifies identification plates for tank wagons used in the rail carriage of dangerous goods. It applies to new tank wagons built after 1 January 2010 and covers liquids, solids and liquefied gases defined in RID (notably liquefied gases of class 2 and substances of classes 3, 4.1–4.3, 5.1–5.2, 6.1–6.2, 8 and 9). Compressed gases are excluded. Where requirements conflict, RID takes precedence.
Key topics and technical requirements
- Types of identification plates:
- Liquefied gases (under pressure) and refrigerated liquefied gases - specific plate layouts and particulars.
- General-purpose plates for substances where names/concentrations are not required.
- Specific-substance plates where the substance name, approved concentration and/or permitted load mass must be shown.
- Mandatory plate data fields (examples):
- Manufacturer’s name/mark, approval number (includes notified body code), serial number, year of manufacture.
- Test pressure, external design pressure, capacity (L), design temperature, material and lining/coating.
- Insulation statement (e.g., “thermally insulated”), maximum permissible working pressure, RID calculation pressure.
- Full names of approved substances and corresponding mass or approved concentration, and fields for test dates and expert stamps.
- Construction and marking:
- Plates made of stainless steel per EN 10088-2, minimum thickness 3 mm.
- Character height 4 mm; titles and field borders must be durable (e.g., engraving/etching).
- Fixing and location:
- Plate fixed to a welded spacing piece, readily accessible for inspection and stamping.
- Fixing methods: brass screws (one sealable), rivets compatible with base material, or welding. One screw/rivet must be sealed by the expert.
- Language: plate text in an official language of registration or in English/French/German; numbered fields reduce language ambiguity.
- Notes: TPED marking is referenced for gas plates; the standard cross-references RID and EN 14564.
Applications - who uses this standard
- Wagon manufacturers and fabricators specifying compliant identification plates.
- Rail operators and fleet owners for fitment and replacement of plates.
- Safety inspectors, notified bodies and expert testers conducting periodic and initial tests.
- Regulators, shippers of dangerous goods and emergency responders needing reliable tank identification and substance data.
- Maintenance workshops ensuring plates remain legible and properly sealed.
Related standards and references
- RID (Regulations concerning the International Carriage of Dangerous Goods by Rail) - overriding authority.
- EN 10088-2 - stainless steel delivery conditions for plates.
- EN 14564 - tank terminology.
- TPED (99/36/EC) - transportable pressure equipment marking where referenced.
- Other parts of EN 12561 (Parts 2–8) for associated tank-wagon devices.
Keywords: EN 12561-1:2011, identification plates, tank wagons, dangerous goods, RID, CEN, railway applications, stainless steel, plate marking, tank wagon compliance.

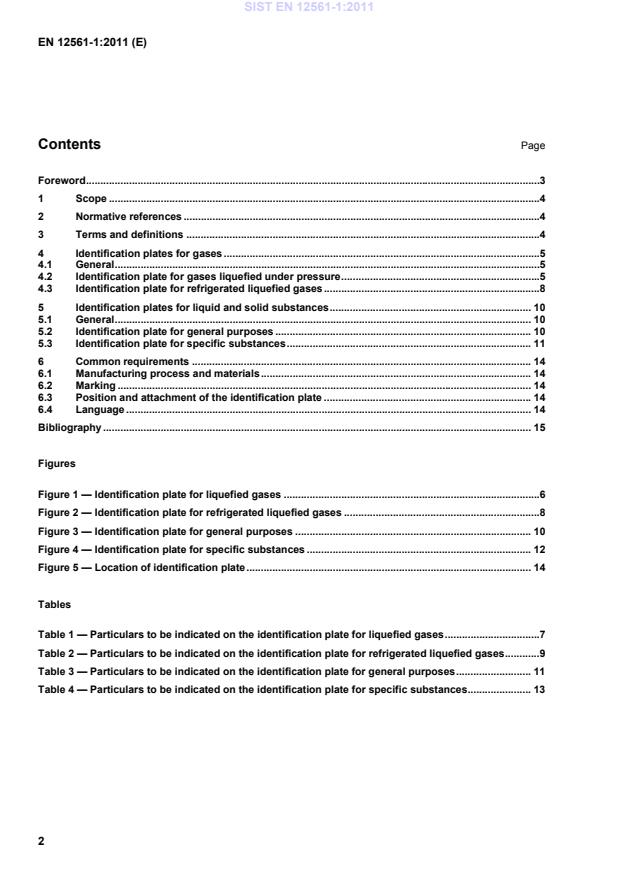

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Kesselwagen - Teil 1: Kennzeichnungsschilder von Kesselwagen für die Beförderung von gefährlichen GüternApplications ferroviaires - Wagons citernes - Partie 1 : Plaques d'identité des wagons citernes destinés au transport des matières dangereusesRailway applications - Tank wagons - Part 1: Identification plates for tank wagons for the carriage of dangerous goods45.060.20Železniški vagoniTrailing stock13.300Varstvo pred nevarnimi izdelkiProtection against dangerous goodsICS:Ta slovenski standard je istoveten z:EN 12561-1:2011SIST EN 12561-1:2011en,fr,de01-oktober-2011SIST EN 12561-1:2011SLOVENSKI
STANDARDSIST EN 12561-1:20011DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12561-1
June 2011 ICS 13.300; 45.060.20 Supersedes EN 12561-1:1998English Version
Railway applications - Tank wagons -Part 1: Identification plates for tank wagons for the carriage of dangerous goods
Applications ferroviaires - Wagons citernes - Partie 1 : Plaques d'identité des wagons citernes destinés au transport des matières dangereuses
Bahnanwendungen - Kesselwagen - Teil 1: Kennzeichnungsschilder von Kesselwagen für die Beförderung von gefährlichen Gütern This European Standard was approved by CEN on 3 June 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12561-1:2011: ESIST EN 12561-1:2011
3.1 capacity capacity of shell or shell compartment for tanks, i.e. the total
...
Frequently Asked Questions
EN 12561-1:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Railway applications - Tank wagons - Part 1: Identification plates for tank wagons for the carriage of dangerous goods". This standard covers: This European Standard lays down the identification plates for tank wagons used for the carriage of: - liquefied gases of class 2 of RID, - substances of classes 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 6.2, 8 and 9 of RID. Compressed gases have not been considered in this European Standard. This European Standard also defines the dimensions and the fixing of identification plates and various particulars to be marked on them. The requirements of RID shall override conflicting requirements of this European Standard. This European Standard applies to new tank wagons built after the 1st January 2010.
This European Standard lays down the identification plates for tank wagons used for the carriage of: - liquefied gases of class 2 of RID, - substances of classes 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 6.2, 8 and 9 of RID. Compressed gases have not been considered in this European Standard. This European Standard also defines the dimensions and the fixing of identification plates and various particulars to be marked on them. The requirements of RID shall override conflicting requirements of this European Standard. This European Standard applies to new tank wagons built after the 1st January 2010.
EN 12561-1:2011 is classified under the following ICS (International Classification for Standards) categories: 13.300 - Protection against dangerous goods; 45.060.20 - Trailing stock. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12561-1:2011 has the following relationships with other standards: It is inter standard links to EN 12561-1:1998. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
