EN IEC 61340-4-3:2018

Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear

IEC 61340-4-3:2017 describes a test method for determining the electrical resistance of footwear (shoes, slippers or booties) used in the control of electrostatic potential on people. This document is suitable for use by the manufacturer of footwear as well as the end user. A method for measuring the electrical resistance of footwear alone is described and serves as a qualification test or an acceptance test for new footwear, or as a periodic test of in-use footwear. Although this document does not include requirements for personal safety, footwear used within the scope of this document in all places of work is regulated by the relevant local statutory requirements regarding the health and safety of all persons. Insulating footwear is not included within the scope of this document although the electrical resistance measurement techniques can be applicable. This edition includes the following significant technical changes with respect to the previous edition: a) classification of footwear as electrostatic conductive or electrostatic dissipative has been removed – classification is not specified; b) environmental classes for laboratory testing have been removed – one set of conditions for pre-conditioning, conditioning and testing is specified; c) reference to IEC 61340-2-3 for measuring the resistance of the counter electrode inserted inside footwear has been removed.

Elektrostatik - Teil 4-3: Standard-Prüfverfahren für spezielle Anwendungen - Schuhwerk

Electrostatique - Partie 4-3: Méthodes d'essai normalisées pour des applications spécifiques - Chaussures

L'IEC 61340-4-3:2017 décrit une méthode d'essai employée pour déterminer la résistance électrique des articles chaussants (chaussures, chaussons ou bottillons) utilisés pour la maîtrise du potentiel électrostatique du personnel. Le présent document est utilisable aussi bien par les fabricants de chaussures que par les utilisateurs finaux. Une méthode de mesure de la résistance électrique de la chaussure seule est décrite et sert d'essai de qualification ou d'acceptation pour de nouvelles chaussures, ou d'essai périodique des chaussures en cours d'utilisation. Bien que le présent document ne comporte aucune exigence relative à la sécurité des personnes, l'attention est attirée sur le fait que toutes les parties concernées sont tenues de se conformer aux exigences légales locales relatives à la santé et à la sécurité des personnes à tous les postes de travail où sont utilisées des chaussures relevant du domaine d'application du présent document. Les chaussures isolantes ne sont pas incluses dans le domaine d'application du présent document, bien que les techniques de mesure de la résistance électrique puissent leur être appliquées. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) la classification des chaussures comme électrostatiquement conductrices ou dissipatrices a été supprimée; elle n'est pas spécifiée; b) les classes d'environnement pour les essais en laboratoire ont été supprimées; un seul ensemble de conditions pour le préconditionnement, le conditionnement et les essais est spécifié; c) la référence à l'IEC 61340-2-3 pour mesurer la résistance de la contre-électrode insérée à l'intérieur de la chaussure a été supprimée.

Elektrostatika - 4-3. del: Standardne preskusne metode za posebno uporabo - Obutev (IEC 61340-4-3:2017)

Ta del standarda IEC 61340 vsebuje opis preskusne metode za ugotavljanje električne upornosti obutve (čevljev, copat ali škornjev), ki se uporabljajo pri kontroli elektrostatičnega potenciala na ljudeh. Ta dokument lahko uporabljata proizvajalec obutve in končni uporabnik. Opisan je način merjenja električne upornosti same obutve in se uporablja kot preskus kakovosti ali preskus sprejemljivosti za novo obutev ali kot redni preskus uporabljane obutve.
Čeprav ta dokument ne vključuje zahtev za osebno varnost, urejajo obutev, uporabljano v okviru obsega tega dokumenta na vseh delovnih mestih, relevantne lokalne zahteve iz zakonov v zvezi z varnostjo in zdravjem vseh oseb.
Izolacijska obutev ni vključena v obseg tega dokumenta, čeprav je mogoče uporabiti tehnike merjenja električne upornosti.

General Information

• Status: Published
• Publication Date: 15-Mar-2018
• Withdrawal Date: 16-Jan-2021
• ICS: 17.220.99 - Other standards related to electricity and magnetism
• ICS: 29.020 - Electrical engineering in general
• ICS: 61.060 - Footwear
• Technical Committee: CLC/SR 101 - Electrostatics
• Drafting Committee: IEC/TC 101 - IEC_TC_101
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 16-Mar-2018
• Completion Date: 16-Mar-2018
• Ref Project: SIST EN IEC 61340-4-3:2018 - Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear (IEC 61340-4-3:2017)

Relations

• Replaces: EN 61340-4-3:2001 - Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear
• Effective Date: 20-Mar-2018

Overview

EN IEC 61340-4-3:2018 (Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear) defines a standardized method for measuring the electrical resistance of footwear (shoes, slippers, booties) used to control electrostatic potential on people. The standard is intended for both manufacturers and end users to perform qualification, acceptance and periodic testing of footwear used in electrostatic control programs. Insulating footwear is excluded from the scope, although the measurement techniques may be applicable.

Key topics and requirements

• Purpose: Measure electrical resistance of footwear alone as a basis for qualification, acceptance or in-use periodic testing.
• Test specimens: Minimum sample size for qualification tests is three pairs; cleaning as per manufacturer’s recommendations.
• Controlled conditioning and testing: The standard specifies a single set of environmental conditions for pre‑conditioning, conditioning and measurement (temperature and relative humidity are controlled), recognizing that electrostatic behaviour depends strongly on relative humidity.
  • Document gives specific controlled conditions for conditioning and measurement (temperature and % RH).
• Test equipment & setup: Defines required components such as the applied load, conductive electrode, counter electrode, insulative support plate, resistance measurement apparatus and environmental test chamber. Distinguishes between laboratory (qualification) measurements and on‑site acceptance testing.
• Test procedure and reporting: Describes the measurement method, repeatability/reproducibility considerations and required information for test reports.
• Exclusions/updates from previous edition: Classification of footwear as “electrostatic conductive” or “electrostatic dissipative” is removed; multiple environmental classes were removed in favor of one set of conditions; reference to IEC 61340-2-3 for counter electrode insertion was removed.

Applications and who uses this standard

• Footwear manufacturers - to qualify product electrical resistance during development and production.
• Quality control and testing laboratories - to perform accredited or in‑house qualification/acceptance testing.
• Electrostatic discharge (ESD) program managers & ESD engineers - to validate footwear performance in electronics manufacturing, cleanrooms, semiconductor or pharmaceutical environments.
• End users (manufacturers and facilities) - to perform acceptance testing of supplied footwear and periodic checks of in‑use footwear where wrist straps or tethers are impractical.

Use cases include verifying ESD footwear for personnel grounding on specified ESD flooring, ensuring consistent ESD protection in sensitive assembly areas, and documenting footwear electrical properties for ESD control programs.

Related standards

• IEC 61340 series (general electrostatics guidance)
• IEC 62631-3-x series (dielectric and resistive properties - volume/surface resistivity)
• IEC/EN 61340-2-3 (related ESD protection requirements - bibliographic reference)

Keywords: EN IEC 61340-4-3:2018, electrostatics, footwear testing, electrical resistance, ESD footwear test method, qualification testing, acceptance testing, controlled conditioning.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektrostatika - 4-3. del: Standardne preskusne metode za posebno uporabo - Obutev (IEC 61340-4-3:2017)Elektrostatik - Teil 4-3: Standard-Prüfverfahren für spezielle Anwendungen - Schuhwerk (IEC 61340-4-3:2017)Electrostatique - Partie 4-3: Méthodes d'essai normalisées pour des applications spécifiques - Chaussures (IEC 61340-4-3:2017)Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear (IEC 61340-4-3:2017)61.060ObuvalaFootwear17.220.99Drugi standardi v zvezi z elektriko in magnetizmomOther standards related to electricity and magnetismICS:Ta slovenski standard je istoveten z:EN IEC 61340-4-3:2018SIST EN IEC 61340-4-3:2018en01-maj-2018SIST EN IEC 61340-4-3:2018SLOVENSKI
STANDARDSIST EN 61340-4-3:20021DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN IEC 61340-4-3
March 2018 ICS 17.220.99; 29.020; 61.060
Supersedes
EN 61340-4-3:2001
English Version
Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear (IEC 61340-4-3:2017)
Electrostatique - Partie 4-3: Méthodes d'essai normalisées pour des applications spécifiques - Chaussures (IEC 61340-4-3:2017)
Elektrostatik - Teil 4-3: Standard-Prüfverfahren für spezielle Anwendungen - Schuhwerk (IEC 61340-4-3:2017) This European Standard was approved by CENELEC on 2018-01-17. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Rue de la Science 23,
B-1040 Brussels © 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61340-4-3:2018 E SIST EN IEC 61340-4-3:2018

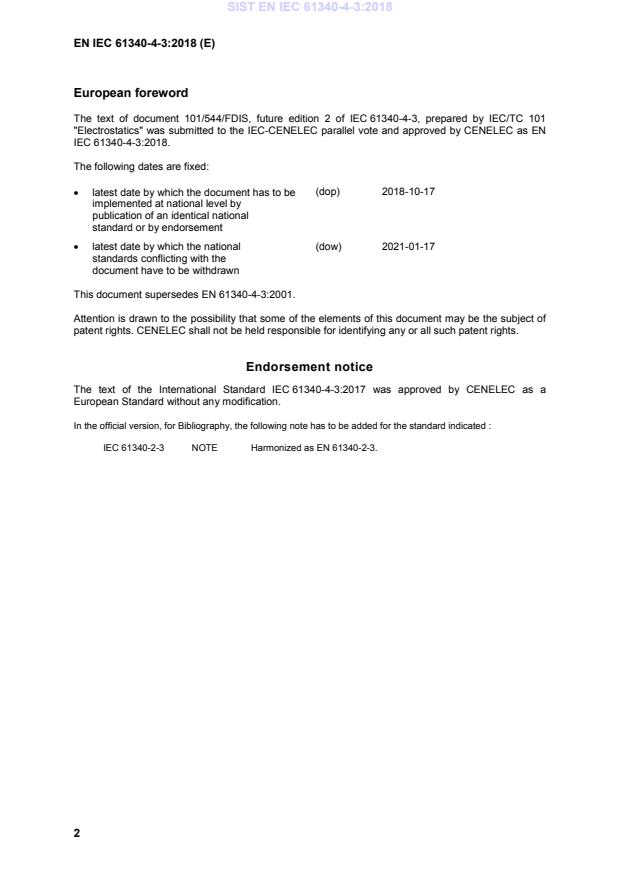

European foreword The text of document 101/544/FDIS, future edition 2 of IEC 61340-4-3, prepared by IEC/TC 101 "Electrostatics" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61340-4-3:2018.
