Overview

EN 61249-2-10:2003 (CLC adoption of IEC 61249-2-10:2003) specifies requirements for reinforced base materials used in printed boards and other interconnecting structures. It covers cyanate ester and brominated epoxide (modified or unmodified) resin systems reinforced with woven E-glass, supplied as copper-clad laminated sheets. The standard applies to clad thicknesses from 0.05 mm to 3.2 mm and defines a flammability rating achieved by brominated fire retardants integrated into the epoxide polymeric structure (vertical burning test).

Keywords: EN 61249-2-10:2003, cyanate ester, brominated epoxide, E-glass, copper-clad laminate, printed circuit boards, flammability, vertical burning test.

Key Topics

  • Material construction: Resin systems (cyanate ester, brominated epoxide), woven E-glass reinforcement, and copper foil specifications.
  • Flammability: Defined vertical burning test criteria and requirement that brominated retardants be integral to the polymer.
  • Electrical properties: Specified dielectric and electrical test methods for laminates (referenced tables detail electrical performance).
  • Mechanical and physical requirements: Thickness tolerances, bow & twist, dimensional stability, flexural strength, water absorption, measling and glass transition temperature (Tg) / cure factor.
  • Copper bond and processing: Pull-off and peel strength, punching and machining characteristics for copper-clad laminates.
  • Quality & conformity: Requirements for inspection, qualification, certificates of conformance, and safety data sheets.
  • Documentation & handling: Packaging, marking, sheet sizes and cut panel tolerances.

Applications

  • Specification for PCB laminate manufacturers producing copper-clad cyanate ester and brominated epoxide laminates.
  • Guidance for electronic manufacturing services (EMS) and PCB fabricators selecting base materials for controlled flammability and performance.
  • Used by design engineers and materials engineers specifying substrates for multilayer and single-sided boards where flame performance and E-glass reinforcement are required.
  • Relevant to procurement and compliance teams ensuring materials meet IEC/CENELEC requirements for safety and manufacturability.

Who Would Use This Standard

  • PCB laminate producers and raw material suppliers
  • PCB designers and manufacturing engineers
  • Quality assurance and regulatory compliance professionals
  • Procurement specialists sourcing copper-clad base materials

Related Standards

  • IEC 61189-2 (test methods for materials for interconnection structures)
  • IEC 61249-5-1 (copper foil specifications)
  • ISO 9000 / ISO 14001 (quality and environmental management references)
  • Other parts of IEC/EN 61249 family covering alternative resin systems and constructions

EN 61249-2-10:2003 is a technical reference for ensuring consistent material performance, flammability control, and manufacturability of cyanate ester / brominated epoxide E-glass copper-clad laminates used in printed circuit board production.

Frequently Asked Questions

EN 61249-2-10:2003 is a standard published by CLC. Its full title is "Materials for printed boards and other interconnecting structures - Part 2-10: Reinforced base materials, clad and unclad - Cyanate ester, brominated epoxide, modified or unmodified, woven E-glass reinforced laminated sheets of defined flammability (vertical burning test), copper-clad". This standard covers: Gives requirements for properties of cyanate ester, brominated epoxide modified or unmodified woven E-glass laminate sheets of defined flammability, copper-clad, in thicknesses of 0,05 mm to 3,2 mm. The flammability rating is achieved through the use of brominated fire retardants contained as an integral part of the epoxide polymeric structure.

Gives requirements for properties of cyanate ester, brominated epoxide modified or unmodified woven E-glass laminate sheets of defined flammability, copper-clad, in thicknesses of 0,05 mm to 3,2 mm. The flammability rating is achieved through the use of brominated fire retardants contained as an integral part of the epoxide polymeric structure.

EN 61249-2-10:2003 is classified under the following ICS (International Classification for Standards) categories: 31.180 - Printed circuits and boards. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase EN 61249-2-10:2003 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.

Standards Content (Sample)


SLOVENSKI SIST EN 61249-2-10:2003

STANDARD
november 2003
Materials for printed boards and other interconnecting structures - Part 2-10:
Reinforced base materials clad and unclad - Cyanate ester, brominated epoxide,
modified or unmodified, woven E-glass reinforced laminated sheets of defined
flammability (vertical burning test), copper-clad (IEC 61249-2-10:2003)
ICS 31.180 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 61249-2-10
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2003
ICS 31.180
English version
Materials for printed boards and other interconnecting structures
Part 2-10: Reinforced base materials clad and unclad –
Cyanate ester, brominated epoxide, modified or unmodified,
woven E-glass reinforced laminated sheets of defined flammability
(vertical burning test), copper-clad
(IEC 61249-2-10:2003)
Materiaux pour circuits imprimés  Materialien für Leiterplatten
et autres structures d'interconnexion und andere Verbindungsstrukturen
Partie 2-10: Matériaux de base renforcés, Teil 2-10: Kaschierte und unkaschierte
plaqués et non plaqués – verstärkte Basismaterialien -
Feuilles stratifiées renforcées Kupferkaschierte mit E-Glasgewebe
en tissu de verre de type E ester verstärkte Laminattafeln auf der Basis
de cyanate, époxyde bromé, von Cyanatester mit bromhaltigem
modifié ou non, d'inflammabilité définie modifiziertem oder nicht-modifiziertem
(essai de combustion verticale), Epoxidharz definierter Brennbarkeit
plaquées cuivre (Brennprüfung mit vertikaler Prüflingslage)
(CEI 61249-2-10:2003) (IEC 61249-2-10:2003)

This European Standard was approved by CENELEC on 2003-04-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2003 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61249-2-10:2003 E

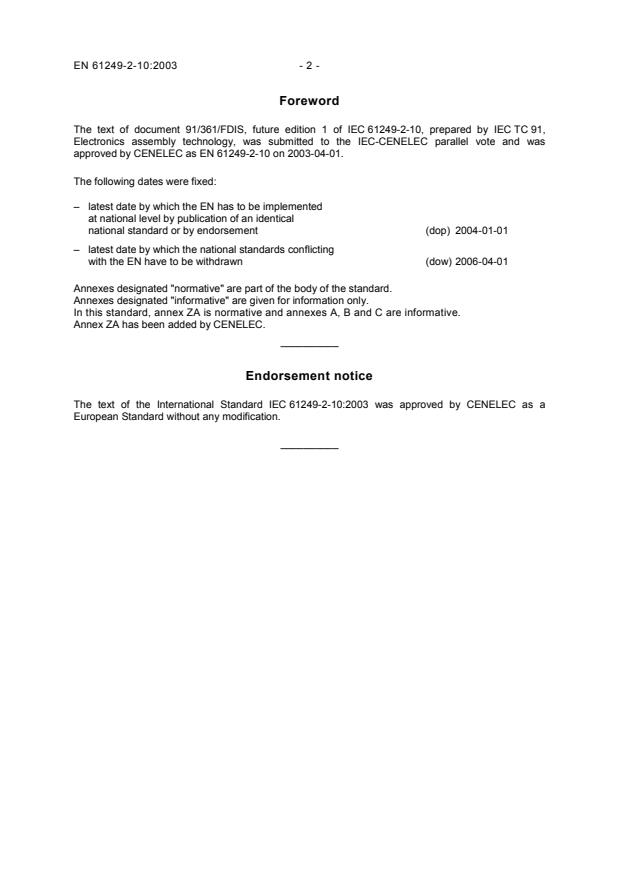

Foreword
The text of document 91/361/FDIS, future edition 1 of IEC 61249-2-10, prepared by IEC TC 91,
Electronics assembly technology, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as EN 61249-2-10 on 2003-04-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2004-01-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2006-04-01

Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, annex ZA is normative and annexes A, B and C are informative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61249-2-10:2003 was approved by CENELEC as a
European Standard without any modification.
__________
- 3 - EN 61249-2-10:2003
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 61189-2 1997 Test methods for electrical materials, EN 61189-2 1997
printed boards and other + corr. August 1997
interconnection structures and
assemblies
Part 2: Test methods for materials for
interconnection structures
IEC 61249-5-1 1995 Materials for interconnection structures EN 61249-5-1 1996
Part 5: Sectional specification set for
conductive foils and films with or without
coatings –
Section 1: Copper foils (for the
manufacture of copper-clad base
materials)
ISO 9000 2000 Quality management systems EN ISO 9000 2000
Fundamentals and vocabulary
ISO 11014-1 1994 Safety data sheet for chemical products- -
Part 1: Content and order of sections

ISO 14001 1996 Environmental management systems EN ISO 14001 1996
Specification with guidance for use

NORME
CEI
INTERNATIONALE IEC
61249-2-10
INTERNATIONAL
Première édition
STANDARD
First edition
2003-02
Matériaux pour circuits imprimés
et autres structures d'interconnexion –
Partie 2-10:
Matériaux de base renforcés, plaqués et non
plaqués – Feuilles stratifiées renforcées en tissu
de verre de type E ester de cyanate, époxyde
bromé, modifié ou non, d'inflammabilité définie
(essai de combustion verticale), plaquées cuivre
Materials for printed boards and other
interconnecting structures –
Part 2-10:
Reinforced base materials clad and unclad –
Cyanate ester, brominated epoxide, modified or
unmodified, woven E-glass reinforced laminated
sheets of defined flammability (vertical burning
test), copper-clad
© IEC 2003 Droits de reproduction réservés ⎯ Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
CODE PRIX
S
Commission Electrotechnique Internationale PRICE CODE
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61249-2-10 © IEC:2003 – 3 –
CONTENTS
FOREWORD . 7
1 Scope .11
2 Normative references.11
3 Materials and construction.11
3.1 Resin system .13
3.2 Reinforcement .13
3.3 Metal foil.13
4 Internal marking .13
5 Electrical properties .13
6 Non-electrical properties of the copper-clad laminate.15
6.1 Appearance of the copper-clad sheet .15
6.2 Appearance of the unclad face .17
6.3 Laminate thickness .17
6.4 Bow and twist.19
6.5 Properties related to the copper foil bond .21
6.6 Punching and machining .21
6.7 Dimensional stability .23
6.8 Sheet sizes .23
6.9 Cut panels .23
7 Non-electrical properties of the base material after complete removal of the copper foil .25
7.1 Appearance of the dielectric base material .25
7.2 Flexural strength.27
7.3 Flammability .27
7.4 Water absorption .29
7.5 Measling .29
7.6 Glass transition temperature and cure factor .29
8 Quality assurance .31
8.1 Quality system .31
8.2 Responsibility for inspection.31
8.3 Qualification inspection .31
8.4 Quality conformance inspection.31
8.5 Certificate of conformance .31
8.6 Safety data sheet .31
9 Packaging and marking.33
10 Ordering information .33
Annex A (informative) Engineering information.35
Annex B (informative) Common laminate constructions.39
Annex C (informative) Guideline for qualification and conformance inspection.43
Bibliography .45

61249-2-10 © IEC:2003 – 5 –
Table 1 – Electrical properties .13
Table 2 – Nominal thickness and tolerance of metal-clad laminate .19
Table 3 – Bow and twist.19
Table 4 – Pull-off and peel strength .21
Table 5 – Dimensional stability .23
Table 6 – Size tolerance for cut panels .25
Table 7 – Rectangularity of cut panels .25
Table 8 – Flexural strength .27
Table 9 – Flammability .27
Table 10 – Water absorption.29
Table 11 – Measling .29
Table 12 – Glass transition temperature and cure factor .29

61249-2-10 © IEC:2003 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MATERIALS FOR PRINTED BOARDS
AND OTHER INTERCONNECTING STRUCTURES –
Part 2-10: Reinforced base materials clad and unclad –
Cyanate ester, brominated epoxide, modified or unmodified, woven
E-glass reinforced laminated sheets of defined flammability
(vertical burning test), copper-clad
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization
for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61249-2-10 has been prepared by IEC technical committee 91:
Electronics assembly technology.
The text of this standard is based on the following documents:
FDIS Report on voting
91/361/FDIS 91/374/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 61249-2 consists of the following parts, under the general title Materials for printed boards
and other interconnecting structures – Part 2: Reinforced base materials, clad and unclad:
Part 2-1: Phenolic cellulose paper laminate, economic grade
Part 2-2: Phenolic cellulose paper reinforced laminated sheets, high electrical grade,
copper-clad
61249-2-10 © IEC:2003 – 9 –
Part 2-4: Polyester non-woven/woven fibreglass laminated sheet of defined flammability
(vertical burning test), copper-clad
Part 2-5: Brominated epoxide cellulose paper reinforced core/woven E-glass reinforced
surfaces laminate sheets of defined flammability (vertical burning test), copper-clad)
Part 2-6: Brominated epoxide non-woven/woven E-glass reinforced laminated sheets of
defined flammability (vertical burning test), copper-clad
Part 2-7: Epoxide woven E-glass laminated sheet of defined flammability (vertical burning
test), copper-clad
Part 2-8: Modified brominated epoxide woven fibreglass reinforced laminated sheets of
defined flammability (vertical burning test),copper-clad
Part 2-9: Bismaleimide/triazine, modified epoxide or unmodified, woven E-glass reinforced
laminated sheets of defined flammability (vertical burning test), copper-clad
Part 2-10: Cyanate ester, brominated epoxide modified or unmodified, woven E-glass
reinforced laminated sheets of defined flammability (vertical burning test), copper-
clad
Part 2-11: Polyimide, brominated epoxide modified or unmodified, woven E-glass reinforced
laminated sheets of defined flammability (vertical burning test), copper-clad
Part 2-12: Epoxide non-woven aramid laminate of defined flammability, copper-clad
Part 2-13: Cyanate ester non-woven aramid laminate of defined flammability, copper-clad
Part 2-18: Polyester non-woven fibreglass reinforced laminated sheet of defined flammability
(vertical burning test), copper-clad
Part 2-19: Epoxide cross-plied linear fibreglass-reinforced laminated sheets of defined flam-
mability (vertical burning test), copper-clad
Part 2-21: Non-halogenated epoxide woven E-glass reinforced laminated sheets of defined
flammability (vertical burning test), copper-clad
Part 2-22: Modified non-halogenated epoxide woven E-glass laminated sheet of defined
flammability (vertical burning test), copper-clad
Part 2-23: Non-brominated phenolic, cellulose paper sheet of defined flammability, economic
grade, copper clad
Part 2-26: Non-brominated epoxide, nonwoven/woven glass fabric sheet of defined flam-
mability, copper-clad
The committee has decided that the contents of this publication will remain unchanged until 2004.
At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
___________
Under consideration.
61249-2-10 © IEC:2003 – 11 –
MATERIALS FOR PRINTED BOARDS
AND OTHER INTERCONNECTING STRUCTURES –
Part 2-10: Reinforced base materials clad and unclad –
Cyanate ester, brominated epoxide, modified or unmodified, woven
E-glass reinforced laminated sheets of defined flammability
(vertical burning test), copper-clad
1 Scope
This part of IEC 61249 gives requirements for properties of cyanate ester, brominated epoxide
modified or unmodified woven E-glass laminate sheets of defined flammability (vertical burning
test), copper-clad, in thicknesses of 0,05 mm to 3,2 mm. The flammability rating is achieved
through the use of brominated fire retardants contained as an integral part of the epoxide
polymeric structure. The glass transition temperature is defined to be 160 °C minimum.
Some property requirements may have several classes of performance. The class desired
needs to be specified on the purchase order otherwise the default class of material may be
supplied.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 61189-2:1997, Test methods for electrical materials, interconnection structures and
assemblies – Part 2: Test methods for materials for interconnection structures
IEC 61249-5-1:1995, Materials for interconnection structures – Part 5: Sectional specification
set for conductive foils and films with and without coatings – Section 1: Copper foils (for the
manufacture of copper-clad base materials)
ISO 9000:2000, Quality management systems – Fundamentals and vocabulary
ISO 11014-1:1994, Safety data sheet for chemical products – Part 1: Content and order
of sections
ISO 14001:1996, Environmental management systems – Specification with guidance for use
3 Materials and construction
The sheet consists of an insulating base with metal-foil bonded to one side or both.

61249-2-10 © IEC:2003 – 13 –
3.1 Resin system
Cyanate ester, brominated epoxide, modified or unmodified, resulting in a laminate with a glass
transition temperature of 160°C minimum.
Contrast agents may be added to enhance processing such as automated optical inspection (AOI).
Its flame resistance is defined in terms of the flammability requirements of 7.3.
3.2 Reinforcement
Woven E-glass as specified in IEC 61249-6-3, woven E-glass fabric (for the manufacture
of prepreg and copper clad materials).
3.3 Metal foil
Copper as specified in IEC 61249-5-1, copper foil (for the manufacture of copper-clad
materials). The preferred foils are electro-deposited of defined ductility.
4 Internal marking
Not specified.
5 Electrical properties
The requirements for the electrical properties are shown in Table 1.
Table 1 – Electrical properties
Test method
Property Requirement
(IEC 61189-2)
Resistance of foil As specified in
2E12
IEC 61249-5-1
Surface resistance after damp heat while in the humidity
2E03 ≥10 000 MΩ
chamber (optional)
Surface resistance after damp heat and recovery 2E03
≥50 000 MΩ
Volume resistivity after damp heat while in the humidity
2E04
≥10 000 MΩm
chamber (optional)
Volume resistivity after damp heat and recovery 2E04
≥50 000 MΩm
Relative permittivity after damp heat and recovery
2E10 ≤4,7
at 1 MHz
Dissipation factor after damp heat and recovery at 1MHz 2E10 ≤0,015
Electric strength (only for material thicknesses < 0,5 mm)
2E11 ≥30 kV/mm
Arc resistance (only for material thicknesses ≥ 0,5 mm) 2E14 ≥120 s
Dielectric breakdown (only for material thicknesses
2E15
≥40 kV
≥0,5 mm thickness)
2E07
Surface resistance at 170 °C ≥5 000 MΩ
Volume resistivity at 170 °C 2E07 ≥500 MΩm

61249-2-10 © IEC:2003 – 15 –
6 Non-electrical propertie
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

Loading comments...

La norme EN 61249-2-10:2003 spécifie les exigences liées aux matériaux pour cartes imprimées et autres structures interconnectées, en se concentrant sur les matériaux de base renforcés. Cette norme traite en particulier des feuilles stratifiées à base de cyanate d'esters et d'époxydes bromés, modifiés ou non, renforcées de verre E t revêtues de cuivre, avec des épaisseurs variant de 0,05 mm à 3,2 mm. L'un des principaux atouts de cette norme réside dans son approche rigoureuse concernant la résistance au feu des matériaux. En intégrant des retardateurs de flamme bromés dans la structure polymère époxydique, la norme garantit une performance de flammabilité bien définie, conforme aux exigences des tests de combustion verticale. Cela offre une sécurité accrue, particulièrement essentielle pour les applications électroniques et industrielles où la protection contre les incendies est primordiale. Le champ d'application de la norme EN 61249-2-10:2003 est particulièrement pertinent dans un contexte où les exigences en matière de sécurité incendie deviennent de plus en plus strictes. En fournissant des spécifications techniques précises, la norme aide les fabricants et les concepteurs à s'assurer que les matériaux qu'ils utilisent répondent aux normes de sécurité élevées attendues sur le marché. En résumé, la norme EN 61249-2-10:2003 joue un rôle indispensable dans l'harmonisation des critères de qualité et de sécurité pour les matériaux renforcés utilisés dans les cartes imprimées. Ses exigences rigoureuses en matière de flammabilité et sa couverture des différents types de matériaux en font un document de référence incontournable pour les acteurs de l'industrie.

Die Norm EN 61249-2-10:2003 definiert die Anforderungen an die Eigenschaften von cyanatharz- und bromierten Epoxid-Glasfaserverbundwerkstoffen, die für gedruckte Schaltungen und andere verbindende Strukturen verwendet werden. Besonders hervorzuheben ist der Einsatz von verstärkten Laminatplatten mit definierten Flammbarkeitswerten, die sowohl mit als auch ohne Kupferbeschichtung erhältlich sind. Die Norm umfasst Materialien in Dicken von 0,05 mm bis 3,2 mm und ist ein wichtiger Bezugspunkt für Hersteller und Ingenieure, die sicherstellen möchten, dass ihre Produkte den neuesten Sicherheits- und Leistungsstandards entsprechen. Die Bedeutung der Flammbarkeitsbewertung wird durch den integrierten Einsatz von bromierten Flammschutzmitteln in der epoxidischen Polymerstruktur unterstrichen. Dies gewährleistet nicht nur eine hohe Sicherheit gegenüber Feuergefährdungen, sondern auch die Einhaltung strenger Vorschriften in der industriellen Anwendung. Ein wesentliches Merkmal der Norm EN 61249-2-10:2003 ist ihre umfassende Abdeckung der Eigenschaften von glasfaserverstärkten Laminaten. Durch die Definition von Prüfmethoden und Leistungsanforderungen ermöglicht sie eine konsistente Bewertung und Qualitätssicherung dieser Materialien. Dies ist besonders relevant in der Elektronikindustrie, wo die Funktionalität und Sicherheit von gedruckten Schaltungen von entscheidender Bedeutung sind. Zusammengefasst bietet die Norm EN 61249-2-10:2003 wesentliche Vorgaben, die die Entwicklung und den Einsatz von sichereren, leistungsfähigen Materialien in der Elektronikbranche unterstützen. Ihre Relevanz ergibt sich aus der Kombination von technischer Präzision und Sicherheitsaspekten, die den Anforderungen der modernen Industrie gerecht werden.

The standard EN 61249-2-10:2003 delineates comprehensive requirements for materials utilized in printed boards and interconnecting structures, specifically focusing on reinforced base materials. This document emphasizes the properties of cyanate ester and brominated epoxide laminated sheets, which are modified or unmodified and reinforced with woven E-glass. The specification includes a critical evaluation of the materials' flammability, distinguished through a defined vertical burning test, which is crucial for ensuring safety and compliance in various applications. One of the primary strengths of this standard is its detailed approach to defining the scope of materials, which ranges in thickness from 0.05 mm to 3.2 mm. This range ensures compatibility with diverse manufacturing processes and applications, thereby enhancing the versatility of the laminated sheets. Furthermore, the inclusion of brominated fire retardants within the epoxide polymeric structure reinforces its relevance in industries where material safety is paramount. Another notable aspect is the robustness of the testing criteria that accompany the specifications. The emphasis on achievable flammability ratings not only supports manufacturers in producing safer products but also aids in compliance with international safety regulations. This is especially relevant in sectors such as electronics, where fire safety is a significant concern. By establishing clear guidelines for the characteristics and performance of copper-clad laminated sheets, the EN 61249-2-10:2003 standard serves as a crucial reference for manufacturers, engineers, and quality assurance professionals. Its alignment with industry needs for reliability and safety further solidifies its importance in the supply chain of printed circuit board materials. Overall, this standard plays a vital role in promoting high-quality, safe materials in the production of printed boards and interconnecting structures.

EN 61249-2-10:2003 표준은 인쇄 회로 기판 및 기타 상호 연결 구조물에 사용되는 재료에 대한 요구 사항을 제시하고 있습니다. 이 문서는 강화된 기초 재료인 사이안산 에스터 및 브로민화 에폭시 수지로 제작된 레미네이트 시트의 특성을 정의하며, 특히 수직 연소 테스트를 통해 정해진 인화성을 가지고 있는 제품에 초점을 맞추고 있습니다. 이 표준은 0.05 mm에서 3.2 mm까지의 두께로 제공되며 브로민화 난연제를 사용하여 내화성을 확보합니다. 이 표준의 강점 중 하나는 사이안산 에스터가 브로민화된 에폭시 수지와 결합하여 제공하는 높은 내화성과 강력한 물리적 특성을 통해 다양한 응용 분야에서의 신뢰성을 높인다는 것입니다. 이러한 특성은 전자 기기의 안정성과 내구성을 보장하는 데 매우 중요한 요소입니다. 특히, 이 표준은 특정한 화학적 구조를 통해 요구되는 불연성 등급을 충족시키므로, 산업계에서의 안전 기준을 준수하는 데 있어 필수적입니다. EN 61249-2-10:2003 표준은 인쇄 회로 기판 산업에서의 혁신과 안전성을 동시에 추구하는 데 매우 중요한 역할을 하며, 지금 이 시점에서도 그 유효성과 관련성을 잃지 않고 있습니다. 이 문서는 특히 제조업체들에게 제품의 품질을 유지하고, 효과적인 불연성 솔루션을 제공하는 한편, 다양한 환경 규정과도 일치할 수 있도록 도와줍니다.

EN 61249-2-10:2003は、印刷回路基板やその他の相互接続構造用材料に関する標準で、強化基材、銅めっきと未めっき、シアネートエステルやブロミネートエポキシに基づく、織りE-ガラス強化ラミネートシートに関する要求事項を定めています。この標準は、火災安全性における重要な側面を考慮し、当該材料のフラマビリティ（可燃性）を評価するための基準を提供します。 この標準の範囲は、厚さが0.05 mmから3.2 mmまでの銅めっきされたシアネートエステルおよびブロミネートエポキシのラミネートシートに適用されます。特筆すべきは、ブロミネート難燃剤がエポキシポリマーの構造に統合されているため、結果として高い難燃性を持つという点です。この要件は、電子機器の安全性や信頼性を高める上で非常に重要です。 EN 61249-2-10:2003は、電子機器業界におけるフラマビリティの明確な基準を設定しており、特に高温環境下でのパフォーマンスを考慮した設計や製造において広範な応用が可能です。また、この標準は、材料選定プロセスにおいて、難燃性の特性を重視する製造業者や設計者にとって必須のリソースとなります。 全体的に、EN 61249-2-10:2003は、関連する業界における品質管理と安全基準の向上に寄与し、製品の競争力を強化するための重要な標準です。
