SLOVENSKI STANDARD
01-april-2015
1DGRPHãþD
SIST EN 60335-2-95:2005
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVW GHO 3RVHEQH]DKWHYH
]DSRJRQVNHVNORSHGYLåQLKJDUDåQLKYUDW]DVWDQRYDQMVNRUDER
Household and similar electrical appliances - Safety -- Part 2-95: Particular requirements
for drives for vertically moving garage doors for residential use
Appareils électrodomestiques et analogues - Sécurité -- Partie 2-95: Règles particulières
pour les motorisations de portes de garage à ouverture verticale, pour usage résidentiel
Ta slovenski standard je istoveten z: EN 60335-2-95:2015
ICS:
13.120 Varnost na domu Domestic safety
91.060.50 Vrata in okna Doors and windows
91.090 Konstrukcije zunaj stavb External structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 60335-2-95
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2015
ICS 13.120; 29.120.01; 91.090 Supersedes EN 60335-2-95:2004
English Version
Household and similar electrical appliances - Safety - Part 2-95:
Particular requirements for drives for vertically moving garage
doors for residential use
(IEC 60335-2-95:2011 , modified)
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Partie 2-95: Règles particulières pour les motorisations de ähnliche Zwecke - Teil 2-95: Besondere Anforderungen für
portes de garage à ouverture verticale, pour usage Antriebe von Garagentoren mit Senkrechtbewegung zur
résidentiel Verwendung im Wohnbereich
(CEI 60335-2-95:2011 , modifiée) (IEC 60335-2-95:2011 , modifiziert)
This European Standard was approved by CENELEC on 2014-09-29. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60335-2-95:2015 E

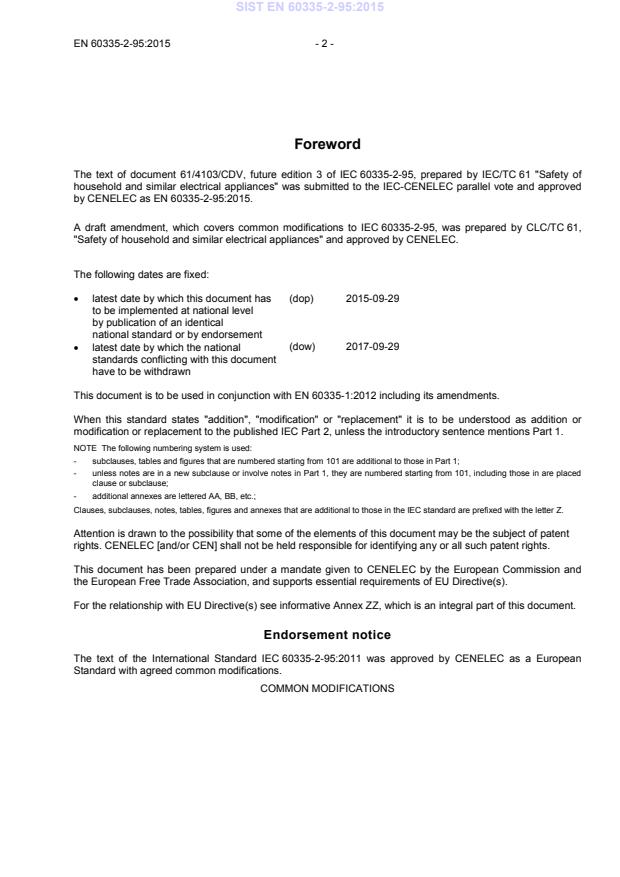

Foreword
The text of document 61/4103/CDV, future edition 3 of IEC 60335-2-95, prepared by IEC/TC 61 "Safety of
household and similar electrical appliances" was submitted to the IEC-CENELEC parallel vote and approved
by CENELEC as EN 60335-2-95:2015.
A draft amendment, which covers common modifications to IEC 60335-2-95, was prepared by CLC/TC 61,
"Safety of household and similar electrical appliances" and approved by CENELEC.
The following dates are fixed:
(dop) 2015-09-29
• latest date by which this document has
to be implemented at national level
by publication of an identical
national standard or by endorsement
• latest date by which the national (dow) 2017-09-29
standards conflicting with this document
have to be withdrawn
This document is to be used in conjunction with EN 60335-1:2012 including its amendments.
When this standard states "addition", "modification" or "replacement" it is to be understood as addition or
modification or replacement to the published IEC Part 2, unless the introductory sentence mentions Part 1.
NOTE The following numbering system is used:
- subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
- unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in are placed
clause or subclause;
- additional annexes are lettered AA, BB, etc.;
Clauses, subclauses, notes, tables, figures and annexes that are additional to those in the IEC standard are prefixed with the letter Z.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this document.
Endorsement notice
The text of the International Standard IEC 60335-2-95:2011 was approved by CENELEC as a European
Standard with agreed common modifications.
COMMON MODIFICATIONS
- 3 - EN 60335-2-95:2015
Introduction
Add:
This European Standard has been prepared to provide a means of conforming to essential safety
requirements of the Machinery Directive 2006/42/EC. Other requirements and other EU Directives may be
applicable to the drives falling within the scope of this standard.
The relevant requirements of Annex ZE of Part 1 have been incorporated in the text of this part 2.
Therefore, compliance with the requirements of EN 60335-1 and of this Part 2 gives presumption of conformity
of the product with the Essential Health and Safety Requirements (EHSR) of Directive 2006/42/EC as stated
in Annex ZZ.
Drives put on the market as machines may be installed by the final user. The requirements of this standard
also cover the foreseeable misuse of the power operated garage door.
Drives put on the market as partly completed machines should not be installed by the final user. In case of
partly completed machines, reference should be made to the specific procedures of the Machinery Directive
2006/42/EC; this standard can, anyhow, be used as guidance.
1 Scope
Replacement:
This clause of part 1 is replaced by the following.
This European Standard deals with the safety of electric drives for garage doors for residential use that open
and close in a vertical direction, the rated voltage of the drives being not more than 250 V for single-phase
appliances and 480 V for other appliances. It also covers the hazards associated with the movement of these
electrically driven garage doors.
NOTE Z101 Examples of garage doors are shown in Figure 101.
NOTE Z102 The drive may be supplied with a garage door.
NOTE Z103 This standard also applies to entrapment protection devices for use with drives.
NOTE Z104 Within the standard the terms drive and appliance are interchangeable.
This standard deals with the reasonably foreseeable hazards presented by drives that are encountered by all
persons in and around the installation place. However, in general, it does not take into account:
• children playing with the appliance;
• the use of the appliance by very young children;
• the use of the appliance by young children without supervision.
It is recognized that very vulnerable people may have needs beyond the level addressed in this standard.
NOTE Z105 Attention is drawn to the fact that in many countries additional requirements are specified by the national authorities
responsible for the protection of labour and similar authorities.
This standard also covers automatic drives.
NOTE Z106 This standard does not apply to drives
– for rolling shutters, awnings, blinds and similar equipment (EN 60335-2-97);
– for garage doors for use by more than one household (EN 60335-2-103);
– for commercial and industrial purposes;
– intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust,
vapour or gas).
This European Standard does not deal with any specific requirements on noise emitted from these drives as
the generated noise is not considered to be a relevant hazard. Thus the emission sound pressure level L is
pA
considered to be L ≤70 dB(A).
pA
2 Normative references
Add the following reference:
EN 12978, Industrial, commercial and garage doors and gates - Safety devices for power operated doors and
gates - Requirements and test methods
- 5 - EN 60335-2-95:2015
3 Terms and definitions
3.101 Modification:
Replace the text of the note by the following:
Examples of components are gears, controls, brakes, components for power transmission from the drive to
the driven part (e.g. trolleys, rails, levers, etc.) and entrapment protection systems.
3.102 Modification:
entrapment protection system
system that provides protection against crushing
3.104 Replacement:
biased-off switch
control device which initiates and maintains the drive movement only as long as the manual control (actuator)
is actuated
Note Z1 to entry: A biased-off switch is also called a hold to run control.
Add the following new definitions:
3.Z101
rated operating time
duration of continuous operation assigned to the drive by the manufacturer
Note 1 to entry: During continuous operation, the drive may reverse its direction.
3.Z102
rated number of operating cycles
number of uninterrupted operating cycles assigned to the drive by the manufacturer
Note 1 to entry: An operating cycle consists of an opening and closing movement of the door.
3.Z103
mode of operation
way the movement of the driven part is initiated
3.Z104
cycle
a complete opening and closing movement of the door
4 General requirement
Replacement:
This clause of Part 1 is applicable except as follows.
Add to the first paragraph:
Drives shall be constructed in such a way that they ensure transportation, installation, adjusting, maintenance
are carried out safely.
5 General conditions for the tests
5.3 Addition:
When a drive incorporates a sub-assembly or a part which has already been tested against relevant clause(s)
of this standard, those tests need not be repeated, if the incorporation of the sub-assembly or part into the
drive does not change the performance of the sub-assembly or part.
5.5 In the addition, replace the text by the following:
When a test has to be carried out with a door with a wicket door, this is kept in the safe position during the
tests.
Safe position of a wicket door is the closed position when it travels together with the door or the open position
when it does not travel with the door.
5.7 Addition:
If drives are intended to operate beyond the ambient temperature range of +5 °C to +40 °C, the tests of
Clause 20 are carried out at the most unfavourable marked temperature.
Add one new sub-clause:
5.Z101 Drives shall be tested for compliance with this standard for any of the following modes of operation
as intended by the manufacturer.
Modes of operation are:
– automatic operation (only one activation needed for at least one cycle);
– impulse operation (one activation needed for a movement);
– biased off (hold to run) operation.
Whenever required by the instructions, components shall be added or changed to perform the tests.
6 Classification
6.2 Modification
In the addition add “or part of drives” after “Drives”.
7 Marking and instructions
7.1 Replacement
7.1 Replace the third, fourth and fifth dashed items in part 1 as follows:
- rated power input in Watts;
- trade mark or identification mark. Business name and postal address or code of the manufacturer and,
where applicable, his authorized representative;
- model or type reference, serial number, if any, and production year;
- 7 - EN 60335-2-95:2015
NOTE Z101 Production year is the year when the production process is completed. The production year can be part of the serial
number.
Add a new dashed item:
- designation of the drive. The designation enables the identification of the drive as specified in the
instructions and may be the generic denomination and function of the product (e.g. the terms used in the title
of this standard – drive for garage door - may be used) or a combination of letters and/or numbers.
Add the following text before the compliance clause in part 1:
Drives shall be marked with the rated number of operating cycles or the cycles per hour, unless the drive
is intended for continuous operation.
Drives intended to operate beyond the ambient temperature range of +5 °C to +40 °C shall be marked with
the minimum and maximum ambient temperatures in which they are intended to operate.
Devices used in the entrapment protection system to be installed separately shall be marked at least with
the manufacturer name and type or model identification.
Drives supplied without a door shall be marked with the rated load in N or in Nm.
7.6 Addition
Upper limit of temperature (ISO 7000/0533)
Lower limit of temperature (ISO 7000/0534)
7.12 Add the following text after the first paragraph in part 1:
The instructions shall contain at least the following information:
- the business name and full address of the manufacturer, if relevant explanation of the code and, where
applicable, his authorized representative;
- model or type reference of the drive as marked on the drive itself, except for the serial number;
- designation of the drive together with its explanation if it is composed by a combination of letters and/or
numbers.
Add after the warning the following new warning:
WARNING: the drive shall be disconnected from its power source during cleaning, maintenance and
when replacing parts.
Replace the first dashed item
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
