(Main)High-voltage switchgear and controlgear - Part 215: Phase comparator used with VDIS
High-voltage switchgear and controlgear - Part 215: Phase comparator used with VDIS
IEC 62271-215:2021 is applicable to phase comparators designed to be plugged into the testing points of a voltage detecting and indicating system (VDIS) according to IEC 62271-213, to give an indication of the result of a phase comparison. The main usage is to provide a clear evidence of the phase relationship between two energized parts of a high-voltage network, at the same nominal voltage and frequency before coupling them. This first edition cancels and replaces the first edition of IEC 61243-5 published in 1997 and the first edition of IEC 62271-206 published in 2011. This edition constitutes a merging of the content of IEC 61243-5 and IEC 62271-206. This edition includes the following significant technical changes with respect to the previous editions of IEC 61243-5 and IEC 62271-206:
the document does not include the specific phase comparators (SPCs) as defined in IEC 61243-5, which was specific to manufacturers, and takes back the technical principles of the universal phase comparator (UPC) for VDIS of all manufacturers;
the phase comparator for sequential connected operation is introduced to facilitate the operation of phase comparation of large MV panels.
Hochspannungs-Schaltgeräte und -Schaltanlagen – Teil 215: Phasenvergleicher in Kombination mit einem Spannungsprüf- und -anzeigegerät
Appareillage à haute tension - Partie 215: Comparateur de phase utilisé avec un VDIS
L’IEC 62271-215:2021 s’applique aux comparateurs de phase conçus pour être enfichés dans les points de contrôle d’un système détecteur et indicateur de tension (VDIS), conformément à l’IEC 62271-213, pour donner une indication du résultat d’une comparaison de phase. La principale utilisation est de fournir une preuve indiscutable de la concordance de phase entre deux parties actives d’un réseau à haute tension, qui sont à la même tension nominale et la même fréquence nominale, avant de les coupler. Cette première édition annule et remplace la première édition de l’IEC 61243-5 parue en 1997 et la première édition de l’IEC 62271-206 parue en 2011. Cette édition est issue de la fusion de l’IEC 61243-5 et de l’IEC 62271-206. Cette édition inclut les modifications techniques majeures suivantes par rapport aux éditions précédentes de l’IEC 61243-5 et l’IEC 62271-206:
le document n’inclut pas les comparateurs de phase spécifiques (SPC- specific phase comparator) définis dans l’IEC 61243-5, qui étaient spécifiques aux constructeurs, et reprend les principes techniques du comparateur de phase universel (UPC – universal phase comparator) pour les VIDS de tous les constructeurs;
le comparateur de phase pour un fonctionnement à raccordement séquentiel est instauré afin de faciliter la mise en œuvre de la comparaison de phase des grands panneaux MT.
Visokonapetostne stikalne in krmilne naprave - 215. del: Fazni primerjalnik, uporabljen z VDIS (IEC 62271-215:2021)
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 62271-215:2021
01-november-2021
Visokonapetostne stikalne in krmilne naprave - 215. del: Fazni primerjalnik,
uporabljen z VDIS (IEC 62271-215:2021)
High-voltage switchgear and controlgear - Part 215: Phase comparator used with VDIS
(IEC 62271-215:2021)
Hochspannungs-Schaltgeräte und -Schaltanlagen – Teil 215: Phasenvergleicher (IEC
62271-215:2021)
Appareillage à haute tension - Partie 215: Comparateur de phase utilisé avec un VDIS
(IEC 62271-215:2021)
Ta slovenski standard je istoveten z: EN IEC 62271-215:2021
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
SIST EN IEC 62271-215:2021 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 62271-215:2021
---------------------- Page: 2 ----------------------
SIST EN IEC 62271-215:2021
EUROPEAN STANDARD EN IEC 62271-215
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2021
ICS 13.260; 29.130.10; 29.240.20
English Version
High-voltage switchgear and controlgear - Part 215: Phase
comparator used with VDIS
(IEC 62271-215:2021)
Appareillage à haute tension - Partie 215: Comparateur de Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil
phase utilisé avec un VDIS 215: Phasenvergleicher in Kombination mit einem
(IEC 62271-215:2021) Spannungsprüf- und -anzeigegerät
(IEC 62271-215:2021)
This European Standard was approved by CENELEC on 2021-08-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62271-215:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 62271-215:2021
EN IEC 62271-215:2021 (E)

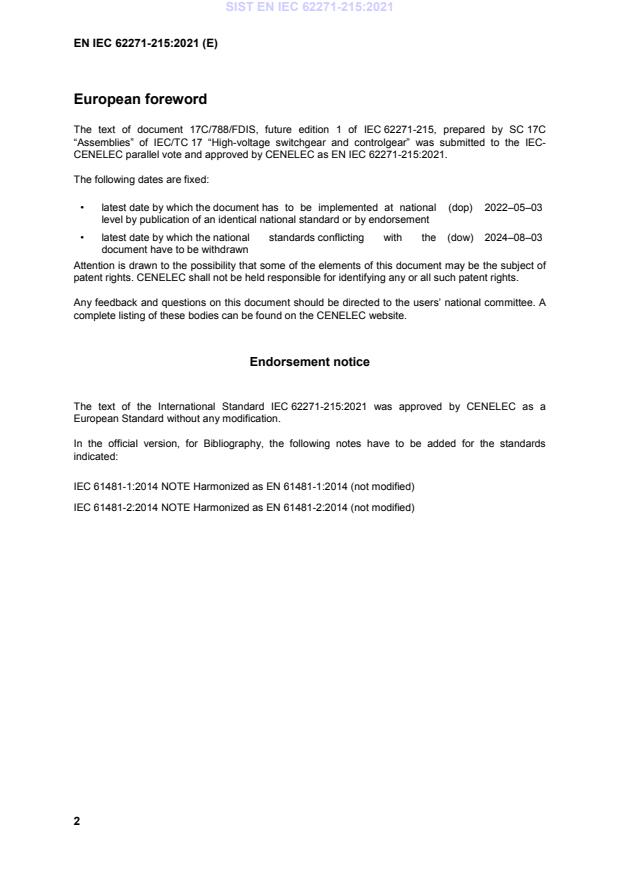

European foreword
