EUROPEAN STANDARD
EN 60212
NORME EUROPÉENNE
July 2011
EUROPÄISCHE NORM
ICS 17.220.99; 29.035.01 Supersedes HD 437 S1:1984
English version
Standard conditions for use prior to and during the testing of solid
electrical insulating materials
(IEC 60212:2010)
Conditions normales à observer avant et Standardbedingungen für die Anwendung
pendant les essais de matériaux isolants vor und während der Prüfung von festen
électriques solides Elektroisolierstoffen
(CEI 60212:2010) (IEC 60212:2010)
This European Standard was approved by CENELEC on 2011-01-19. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60212:2011 E

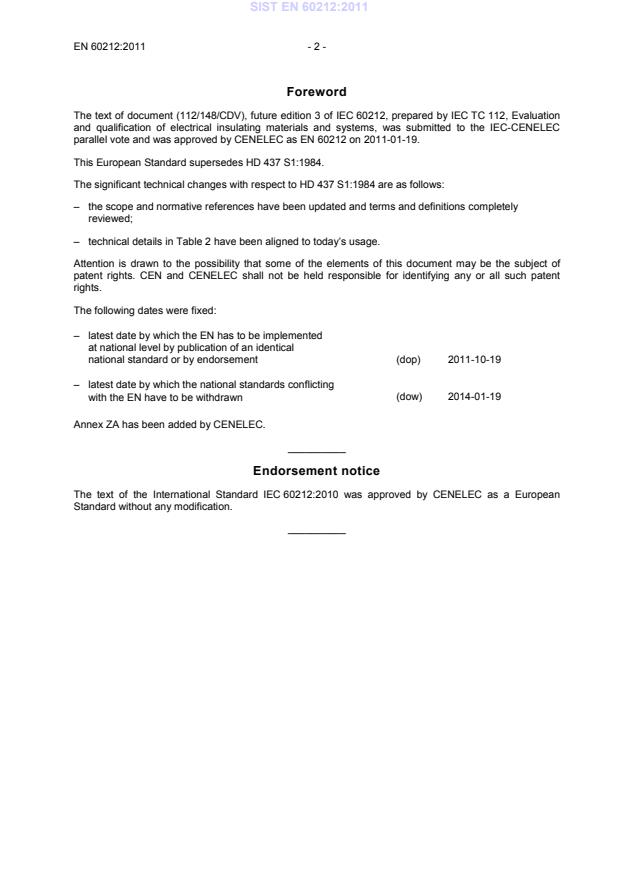

Foreword
The text of document (112/148/CDV), future edition 3 of IEC 60212, prepared by IEC TC 112, Evaluation
and qualification of electrical insulating materials and systems, was submitted to the IEC-CENELEC
parallel vote and was approved by CENELEC as EN 60212 on 2011-01-19.
This European Standard supersedes HD 437 S1:1984.
The significant technical changes with respect to HD 437 S1:1984 are as follows:
– the scope and normative references have been updated and terms and definitions completely
reviewed;
– technical details in Table 2 have been aligned to today’s usage.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2011-10-19
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-01-19
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60212:2010 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60212:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
1)
IEC 60068-1 1988 Environmental testing - EN 60068-1 1994
+ corr. October 1988 Part 1: General and guidance
+ A1 1992
IEC 60216-4-1 - Electrical insulating materials - Thermal EN 60216-4-1 -
endurance properties -
Part 4-1: Ageing ovens - Single-chamber
ovens
ISO 62 2008 Plastics - Determination of water absorption EN ISO 62 2008
1)
EN 60068-1 includes A1 to IEC 60068-1 + corr. October .
IEC 60212 ®
Edition 3.0 2010-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Standard conditions for use prior to and during the testing of solid electrical
insulating materials
Conditions normales à observer avant et pendant les essais de matériaux
isolants électriques solides
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
M
CODE PRIX
ICS 17.220.99; 29.035.01 ISBN 978-2-88912-292-9
– 2 – 60212 Ó IEC:2010
CONTENTS
FOREW ORD . 3
INTRODUCTION . 5
1 Sc o pe . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Temperature and humidity (or liquid immersion) recommended for preconditioning,
conditioning and testing . 8
5 Period of conditioning . 8
6 Procedures for atmospheric preconditioning, conditioning, and testing . 9
7 Liquid immersion, conditioning and testing . 9
8 Standard reference atmosphere . 10
9 Code for specifying preconditioning, conditioning and testing . 10
10 Report . 10
Table 1 – Codes for preconditioning, conditioning and testing . 10
Table 2 – Standard atmospheric conditions for testing and conditioning . 11
Table 3 – Standard liquid immersion conditions for testing and conditioning . 12
Table 4 – List of preferred periods for preconditioning and conditioning . 12
60212 Ó IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
STANDARD CONDITIONS FOR USE PRIOR TO AND DURING
THE TESTING OF SOLID ELECTRICAL INSULATING MATERIALS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60212 has been prepared by IEC technical committee 112:
Evaluation and qualification of electrical insulating materials and systems.
This third edition cancels and replaces the second edition published in 1971 and constitutes a
technical revision.
The significant technical changes with respect to the previous edition are as follows:
· the scope and normative references have been updated and terms and definitions
completely reviewed;
· technical details in Table 2 have been aligned to today’s usage.
– 4 – 60212 Ó IEC:2010
The text of this standard is based on the following documents:
CDV Report on voting
112/148/CDV 112/162/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60212 Ó IEC:2010 – 5 –
INTRODUCTION
Many electrical insulating materials have properties which are affected by the temperature or
humidity, or both, of the atmospheres to which they are subjected. It is usually necessary,
therefore, when testing these materials, to control both temperature and humidity prior to
testing, as well as the conditions in which the specimens are actually tested. The selection of
appropriate conditions and tests should be decided according to the materials specification
and the intended application. Unless otherwise specified, specimens should be conditioned
and measured in the same climate as that in which they are to be tested.
When giving results of tests on electrical insulating materials likely to be affected by those
factors, it is important that the relevant conditions to which the test specimens were exposed
are reported. Specifications for such materials should, therefore, identify the atmospheres to
which the test specimens should be exposed before testing and the conditions under which
the tests are to be made.
– 6 – 60212 Ó IEC:2010
STANDARD CONDITIONS FOR USE PRIOR TO AND DURING
THE TESTING OF SOLID ELECTRICAL INSULATING MATERIALS
1 Scope
This International Standard gives the accepted conditions of exposure time, temperature,
atmospheric humidity and liquid immersion for use in testing solid electrical insulating
materials. The range is sufficiently wide to enable suitable conditions to be selected so that
either of the primary objects, set out below as a) and b), of conditioning can be achieved.
These objectives aim to obtain greater reproducibility of test results by:
a) partly counteracting the variations of the pro
...
