Amendment 1 - Connectors for electronic equipment - Product requirements - Part 1: Generic specification

Amendement 1 - Connecteurs pour équipements électroniques - Exigences de produit - Partie 1 : Spécification générique

General Information

Status
Published
Publication Date
10-Jan-2019
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
11-Jan-2019
Ref Project

Buy Standard

Standard
IEC 61076-1:2006/AMD1:2019 - Amendment 1 - Connectors for electronic equipment - Product requirements - Part 1: Generic specification
English and French language
14 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 61076-1
Edition 2.0 2019-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Connectors for electronic equipment – Product requirements –
Part 1: Generic specification
Connecteurs pour équipements électroniques – Exigences de produit –
Partie 1: Spécification générique
IEC 61076-1:2006-04/AMD1:2019-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61076-1
Edition 2.0 2019-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Connectors for electronic equipment – Product requirements –
Part 1: Generic specification
Connecteurs pour équipements électroniques – Exigences de produit –
Partie 1: Spécification générique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-6252-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

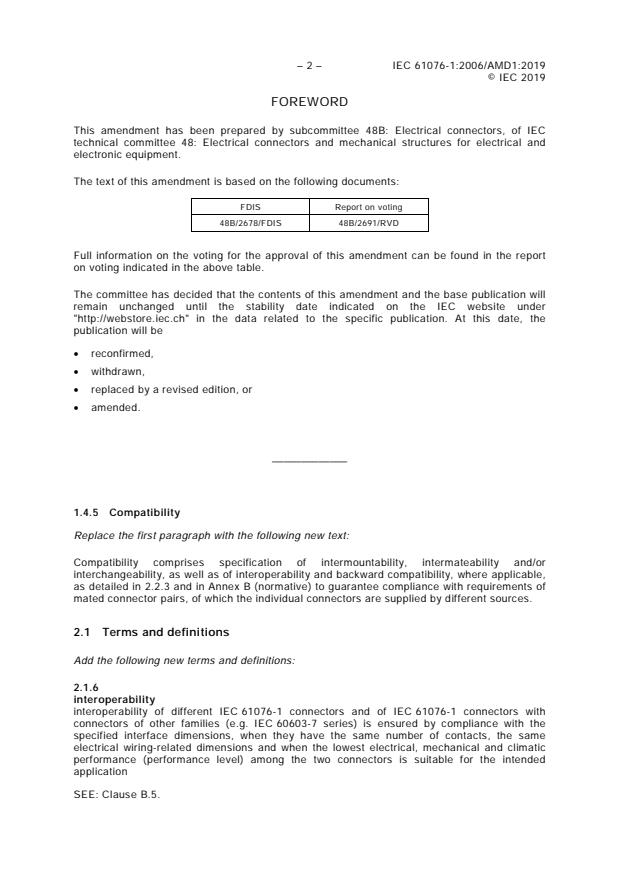

– 2 – IEC 61076-1:2006/AMD1:2019
© IEC 2019
FOREWORD

This amendment has been prepared by subcommittee 48B: Electrical connectors, of IEC

technical committee 48: Electrical connectors and mechanical structures for electrical and

electronic equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
48B/2678/FDIS 48B/2691/RVD

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
1.4.5 Compatibility
Replace the first paragraph with the following new text:

Compatibility comprises specification of intermountability, intermateability and/or

interchangeability, as well as of interoperability and backward compatibility, where applicable,

as detailed in 2.2.3 and in Annex B (normative) to guarantee compliance with requirements of

mated connector pairs, of which the individual connectors are supplied by different sources.

2.1 Terms and definitions
Add the following new terms and definitions:
2.1.6
interoperability

interoperability of different IEC 61076-1 connectors and of IEC 61076-1 connectors with

connectors of other families (e.g. IEC 60603-7 series) is ensured by compliance with the

specified interface dimensions, when they have the same number of contacts, the same

electrical wiring-related dimensions and when the lowest electrical, mechanical and climatic

performance (performance level) among the two connectors is suitable for the intended

application
SEE: Clause B.5.
---------------------- Page: 4 ----------------------
IEC 61076-1:2006/AMD1:2019 – 3 –
© IEC 2019
2.1.7
number of contacts

number of contacts (or ways) that a connector owns, including the protective and/or functional

earth contact(s), if any

Note 1 to entry: A connector for removable contacts is characterized by its number of contact positions (seats): its

number of contacts (ways) may be lower than the number of contact positions (seats).

Note 2 to entry: The same number of contacts does not grants the same electrical interface: the geometry of said

contacts may be different while their number is the same.
2.1.8
overall dimensions
dimensions providing the overall space occupied by a connector

Note 1 to entry: Two connectors of the same gender may have the same overall dimensions but different

mounting dimensions and/or different interface dimensions
2.1.9
interface dimensions

set of dimensions required to fully describe the connector’s mating interface, belonging to

both the connector insert and to the relevant electric contacts

Note 1 to entry: Interface dimensions enable the proper functioning of a mated set of connectors according to the

relevant product detail specification or manufacturer’s detail specification.

Note 2 to entry: Two connectors with same interface dimensions have the same number of contact seats (or

positions), whereas they may not show the same number of contacts (ways).
2.1.10
mounting dimensions
dimensions enabling the mounting of a connector

Note 1 to entry: Examples of mounting dimensions are panel cutout size, size and interaxes of fixing holes or

threads.

Note 2 to entry: The geometry of the mounting interface of Printed Circuit Board connectors to the PCB belongs

to the mounting dimensions: two Printed Circuit Board connectors of the same gender with the same mounting

dimensions share the same pattern and pitch of their contacts.

Note 3 to entry: Two connectors not of the Printed Circuit Board type of the same gender with the same mounting

dimensions may have different interface dimensions.

Note 4 to entry: Two connectors of the same gender with the same mounting dimensions may have different

overall dimensions.
2.1.11
electrical wiring-related dimensions

dimensions related to the wiring of the connector, i.e. to its number and type of contacts

(ways)

Note 1 to entry: Two connectors of the same gender with the same electrical wiring-related dimensions have the

same number of contacts (ways) or contact positions (seats), the same dimensions of these contacts or contact

positions, the same overall dimensions, the same interface dimensions, and if they are Printed Circuit Board

connectors, the same mounting dimensions.
2.1.12
electrical, mechanical and climatic performances

levels of electrical, mechanical and climatic performance assigned to a connector in the

relevant product detail specification or manufacturer’s detail specification, therein verified

through dedicated groups of tests
Note 1 to entry: The electrical performance includes signal integrity.
---------------------- Page: 5 ----------------------
– 4 – IEC 61076-1:2006/AMD1:2019
© IEC 2019
Add the following new Annex B:
Annex B
(normative)
Levels of compatibility
B.1 General

In applications where products according an IEC 61076-1 and any of the related IEC 61076-3-

1xx product detail specifications are used, a mixture of connectors from different sources may

be available. No problems should occur if all of these products fully comply with the same

standard (product detail specification) and have the same ratings. In cases where these

products were given a different rating by the manufacturer, and also when dimensional details

are deviating, it is important to know and consider the right level of compatibility.

The levels of compatibility are intended to compare connectors of the same gender on their

capability to be mated with a complementary connector of the different gender. The levels

indicate the functional differences (if any) between connector products of the same gender but

from different sources.

A product detail specification under this standard may declare a certain level of compatibility –

e.g. in terms of backward compatibility – with other product detail specification(s) within the

same family of standards (e.g. this IEC 61076-1 and the related IEC 61076-3-1xx family) or

with a cross reference to a connector covered by a product detail specification belonging to a

different IEC family.

In fact, for historical reasons some recent additions have been assigned to the IEC 61076-3

family of standards, while other new connectors have been assigned to the IEC 60603-7

family of rectangular connectors. For this reason a similar Annex has been included in the

generic specification IEC 60603-7 in order to align the terminology used in both families in

regard to levels of compatibility.

The levels of compatibility between connectors from different sources are characterized – as

a function of the standardization degree – by 4 levels. These levels are already defined in

2.2.3.2 to 2.2.3.5 of this document and shall, when appropriate, be indicated in the relevant

detail product specification of connectors.

In Table B.1, for each level of compatibility the required parameters are indicated by “x“ in a

graphical way.
_____________________________________________________________________________
This space intentionally left blank
---------------------- Page: 6 ----------------------
IEC 61076-1:2006/AMD1:2019 – 5 –
© IEC 2019
b) c) b)
Table B.1 – Levels of compatibility and required parameters
Level of Number of Overall Interface Mounting Electrical Electrical,
compatibility contacts dimensions dimensions dimensions wiring- mechanical
of IEC 61076-1 related and climatic
dimensions performance
Intermountable Level 1 x x
Intermateable Level 2 x x
Intermountable and
Level 3 x x x x
intermateable
a) d)
Interoperable x x x x
Interchangeable Level 4 x x x x x x
Backward
e)
x x x x
compatible

The prefix “inter” in the terms “intermountable”, “intermateable”, “interoperable”, and “interchangeable” has the meaning of

“interchangeably” (adv), i.e. intermountable = interchangeably mountable, and so on. Thus the prefix “inter” has not the

meaning “among them”, i.e. intermountable does not mean “mountable among them”, intermateable does not mean “mateable

among them”. In other words, two intermateable connectors are not a male and a female connector mateable among them.

Levels of compatibility and relevant required parameters include also the influence of features for latching, locking and

keying.

Special attention is required for safety: all levels of compatibility may pose a certain risk for safety, especially when voltages

higher than SELV levels (50 V AC / 120 V DC) and/or high currents are applied.

Two interoperable connectors shall grant electrical, mechanical and climatic performance suitable for the application. In other

words their performance level is not necessarily the same, but none of them owns a performance level unsuitable for the

application.

IEC 60050-581:2008, 581-24-08: “feature of connectors which ensures at least the lower requirements in case of mating

connectors with higher and lower requirements”. The backward compatibility requirement ensures that a free or fixed

connector in compliance with this standard, when mated with a fixed or free connector in compliance with any lower

frequency IEC 61076-3 series connector standard or IEC 60603-7 series connector standard, fully complies with the

requirements of the lower frequency IEC 61076-3 series connector standard or IEC 60603-7 series connector standard.

B.2 Intermountability

The term intermountable (adj) and consequently intermountability (noun) is defined in

IEC 60050-581:2008, 581-24-04: “pertaining to each of two connectors when their overall

dimensions, dimensions on printed board or panel cut-out, and cable termination are

identical”.

This level is defined as level 1 – Intermountable in 2.2.3.2 of this document. This levels

standardizes only overall dimensions and mounting dimensions on printed board or panel cut-

out and cable termination assembly; mating face dimensions are not relevant to standardize

intermountability.

This means that each of two intermountable connectors will fit in a given location (e.g. a

position/footprint on a PCB, and/or in a panel cut-out, and/or at the end of a cable). The

electrical (e.g. different current rating) or mechanical performance (one connector may be a

free or fixed connector with male contacts, the other one with female contacts) may be

different. This IEC 60050-581 description even allows two connectors with two completely

different types of interface.

Intermountability – once declared for a connector by its manufacturer with respect to certain

dimensions common to other products or product families – shall be declared by referencing

an unambiguous set of dimensions. This may also be achieved by reference to a set of

dimensions as given by a published standard.
---------------------- Page: 7 ----------------------
– 6 – IEC 61076-1:2006/AMD1:2019
© IEC 2019
B.3 Intermateability

The term intermateable (adj) and consequently intermateability (noun) is defined in IEC 60050-

581:2008, 581-24-07: “pertaining to each of two connectors when they feature identical

dimensions for electrical and dimensional interfaces”.

This level is defined as level 2 – Intermateable in 2.2.3.3 of this document. This levels

standardizes only dimensions of electrical and mechanical interfaces. The electrical and

mechanical performances and the functionality of connectors from different sources, when

mated, are not fully guaranteed.

In other words: here, each of two connectors will fit in one counterpart connector, but the

electrical, mechanical and environmental performances and the functionality may be different.

For instance, the two connectors from different sources may contain a different number of

contacts, different conductive materials, differently rated insulating materials – if the relevant

product detail specification allows such choice, different – although compatible – contact

plating, different sizing of wire terminations or conductive paths, thus differently sized allowed

wiring).

Intermateability shall be proven by testing the mechanical performance and verification of the

electrical conductivity of the mated electrical contacts according the relevant requirements of

the Product Detail Specification.

NOTE 1 Intermateable connectors can have different numbers of contacts (ways), i.e. a different electrical

interface, within the same mechanical interface. It is allowed that the missing contacts of one of them do not mate

with the contacts of the corresponding mating connector, as well as the opposite, i.e. the contacts in excess in one

of them do not find contacts in the corresponding mating connector.

A connector can have less female contacts but due to the lack of holes to accept the male contacts may not be

intermateable with a connector having a full set of male contacts.

As the mechanical interface does not include overall dimensions and mounting dimensions covered by

intermountability (Clause B.2), two connectors can be intermateable but not intermountable.

NOTE 2 In general, product detail specifications for connectors should include dimensions to provide that two

connectors in compliance with said detail specification are both intermountable and intermateable, see further B.4.

B.4 Intermountability and intermateability

The terms intermountable (adj) and intermateable (adj) and consequently the relevant nouns

“intermountability” and “intermateability” are already defined in the IEC 60050-581 as

described in Clause B.2 and Clause B.3.

There is a further level of compatibility defined as level 3 – Intermountable and intermateable

in 2.2.3.4 of this document. This level standardizes mounting dimensions, electrical and

mechanical interface and overall dimensions.

This means that each of two intermountable and intermateable connectors will fit in a given

location (e.g. a position/footprint on a PCB, and/or in a panel cut-out, and/or at the end of a

cable) and each of two connectors will fit in one counterpart connector, but the electrical,

mechanical and environmental performances and the functionality may be different. For

instance, the two connectors from different sources may contain a different number of

contacts within a compatible mating face geometry, different conductive materials, differently

rated insulating materials (if the relevant product detail specification allows such choice),

different – although compatible – contact plating, different sizing of wire terminations or

conductive paths, thus differently sized allowed wiring.

Intermateability shall be demonstrated as described in Clause B.3., intermountability as

described in Clause B.2.
---------------------- Page: 8 ----------------------
IEC 61076-1:2006/AMD1:2019 – 7 –
© IEC 2019

NOTE Intermateable connectors can have different numbers of contacts (ways), i.e. a different electrical

interface, within the same mechanical interface. It is allowed that the missing contacts of one of them do not mate

with the contacts of the corresponding mating connector, as well as the opposite, i.e. the contacts in excess of one

of them do not find correspondence in the corresponding mating connector.
B.5 Interoperability

In the case of interoperability, the performance level of this interoperability is always that of

the less performing connector, but the performance level shall be suitable for the application.

In other words one of the two interoperable connectors of the same gender may be provided

with a performance level in excess of the requirements for the application, none can be

provided with performance level unfit for the application.
B.6 Interchangeability

The term interchangeable (adj.) and consequently interchangeability (noun) is defined in

IEC 60050-581:2008, 581-24-03: “pertaining to a connector when all elements guaranteeing

compliance of electrical, mechanical and climatic performance of mated connectors when

individual connector halves from different sources are identical."

This level of compatibility is defined as level 4 – Interchangeable in 2.2.3.5 of this document.

This level standardizes all the elements guaranteeing compliance of the electrical, mechanical

and environmental performances of mated connector pairs when individual connectors are

from different sources.

To be interchangeable, the form, fit, function and performance of connectors from different

sources are identical, so that a connector from one source can be replaced by a similar

connector from another source without loss of functionality or performance of the connector

pair.

NOTE The term “identical” when addressing dimensions and ratings is used herein with the meaning “within the

tolerances provided either by a published product detail specification (standard sheet) or as a result of a

comparison of the different manufacturer product detail specifications and/or drawings”.

Interchangeability shall be proven by comparison of the drawings and completion of the full

test schedule of the Detail Product Specification on all possible combinations of the

interchangeable connectors.
B.7 Backward compatibility

Backward compatibility is defined in IEC 60050-581:2008, 581-24-08: “feature of connectors

which ensures at least the lower requirements in case of mating connectors with higher and

lower requirements”.

Backward compatibility is a subset of Intermateability. Backward compatibility between two

connectors from different sources or different type or product family is only possible when

these connectors are intermateable as per Clause B.3. In cases where connectors are

intermateable they may have different performance levels. For backward compatible

connectors, as a minimum the lower of these two levels is guaranteed.

Backward compatibility shall be proven by testing all possible combinations of the backward

compatible connectors against the full test schedule of the Detail Product Specification with

the lower requirement.
___________
---------------------- Page: 9 ----------------------
– 8 – IEC 61076-1:2006/AMD1:2019
© IEC 2019
AVANT-PROPOS

Le présent amendement a été établi par le sous-comité 48B: Connecteurs électriques, du

comité d’études 48 de l'IEC: Connecteurs électriques et structures mécaniques pour les

équipements électriques et électroniques.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
48B/2678/FDIS 48B/2691/RVD

Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant

abouti à l'approbation de cet amendement.

Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera

pas modifié avant la date de stabilité indiquée sur le site web de l'IEC sous

"http://webstore.iec.ch" dans les données relatives à la publication recherchée. A cette date,

la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
_____________
1.4.5 Compatibilité
Remplacer le premier alinéa par le texte suivant:
La compatibilité comprend la spécification de la compatibilité de montage, la

compatibilité d’accouplement et/ou l'interchangeabilité, ainsi que l’interopérabilité et la

compatibilité ascendante, le cas échéant, comme cela est décrit en détail en 2.2.3 et

à l'Annexe B (normative) pour garantir la conformité aux exigences de paires de
connecteurs accouplés dont les connecteurs proviennent de sources différentes.
2.1 Termes et définitions
Ajouter les nouveaux termes et définitions suivants:
2.1.6
interopérabilité

interopérabilité de différents connecteurs de l'IEC 61076-1 et de connecteurs de l'IEC 61076-

1 avec des connecteurs d'autres familles (par exemple des connecteurs de la série

IEC 60603-7) assurée par la conformité avec les dimensions d'interface spécifiées, lorsque

les connecteurs ont le même nombre de contacts, les mêmes dimensions relatives au câblage

électrique et lorsque les plus faibles performances (niveau de performance) électriques,

mécaniques et climatiques des deux connecteurs conviennent à l'application prévue

VOIR: Article B.5.
---------------------- Page: 10 ----------------------
IEC 61076-1:2006/AMD1:2019 – 9 –
© IEC 2019
2.1.7
nombre de contacts

nombre de contacts (ou de voies) qu'un connecteur possède, y compris les contacts de la

terre de protection et/ou de la terre fonctionnelle, le cas échéant

Note 1 à l'article: Un connecteur pour contacts amovibles est caractérisé par son nombre de positions de contacts

(sièges): son nombre de contacts (voies) peut être inférieur au nombre de positions de contacts (sièges).

Note 2 à l'article: Un même nombre de contacts ne donne pas forcément la même interface électrique: différentes

géométries peuvent utiliser un même nombre de contacts.
2.1.8
dimensions hors tout
dimensions de l'ensemble de l'espace occupé par un connecteur

Note 1 à l'article: Deux connecteurs du même genre peuvent avoir les mêmes dimensions hors tout, mais des

cotes de montage différentes et/ou des dimensions d'interface différentes.
2.1.9
dimensions d'interface

ensemble des dimensions exigées pour décrire complètement l'interface d'accouplement d'un

connecteur, appartenant à la fois l'insert du connecteur et aux contacts électriques utiles

Note 1 à l'article: Les dimensions d'interface permettent le bon fonctionnement d'un ensemble de connecteurs

accouplés conformément à la spécification particulière de produit applicable ou à la spécification particulière du

fabricant.

Note 2 à l'article: Deux connecteurs avec les mêmes dimensions d'interface ont le même nombre de positions de

contacts (sièges), mais ils peuvent ne pas avoir le même nombre de contacts (voies).

2.1.10
cotes de montage
dimensions permettant le montage d'un connecteur

Note 1 à l'article: Des exemples de cotes de montage sont la taille du perçage du panneau, la taille et les

entraxes des trous de fixations ou des filetages.

Note 2 à l'article: La géométrie de l'interface de montage de connecteurs pour circuit imprimé sur le circuit

imprimé fait partie des cotes de montage: la configuration et le pas des contacts de deux connecteurs pour circuit

imprimé du même genre et avec les mêmes cotes de montage sont les mêmes.

Note 3 à l'article: Deux connecteurs non destinés à des circuits imprimés du même genre et avec les mêmes

cotes de montage peuvent avoir des dimensions d'interface différentes.

Note 4 à l'article: Deux connecteurs du même genre et avec les mêmes cotes de montage peuvent avoir des

dimensions hors tout différentes.
2.1.11
dimensions relatives au câblage électrique

dimensions relatives au câblage du connecteur, c'est-à-dire au nombre et au type de contacts

(voies)

Note 1 à l'article: Deux connecteurs du même genre et avec les mêmes dimensions relatives au câblage

électrique ont le même nombre de contacts (voies) ou de positions de contact (sièges), les mêmes dimensions de

ces contacts ou de ces positions de contacts, les mêmes dimensions hors tout, les mêmes dimensions d'interface

et s'il s'agit de connecteurs pour circuits imprimés, les mêmes cotes de montage.

2.1.12
performances électriques, mécaniques et climatiques

niveaux de performances électriques, mécaniques et climatiques attribués à un connecteur

dans la spécification particulière de produit applicable
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
