Maritime navigation and radiocommunication equipment and systems - Cybersecurity - General requirements, methods of testing and required test results

IEC 63154:2021 specifies requirements, methods of testing and required test results where standards are needed to provide a basic level of protection against cyber incidents (i.e. malicious attempts, which actually or potentially result in adverse consequences to equipment, their networks or the information that they process, store or transmit) for:
a) shipborne radio equipment forming part of the global maritime distress and safety system (GMDSS) mentioned in the International Convention for Safety of Life at Sea (SOLAS) as amended, and by the Torremolinos International Convention for the Safety of Fishing Vessels as amended, and to other shipborne radio equipment, where appropriate;
b) shipborne navigational equipment mentioned in the International Convention for Safety of Life at Sea (SOLAS) as amended, and by the Torremolinos International Convention for the Safety of Fishing Vessels as amended,
c) other shipborne navigational aids, and Aids to Navigation (AtoN), where appropriate.

Matériels et systèmes de navigation et de radiocommunication maritimes - Sécurité informatique - Exigences générales, méthodes d'essai et résultats d'essais exigés

L'IEC 63154:2021 spécifie les exigences, les méthodes d’essai et les résultats d’essai exigés lorsque des normes sont nécessaires pour fournir un niveau de protection de base contre les incidents de sécurité informatique (c’est-à-dire les tentatives malveillantes, qui ont un effet réellement ou potentiellement néfaste sur les matériels, sur leurs réseaux ou sur les informations qu’ils traitent, stockent ou transmettent) pour:
a) le matériel radioélectrique de bord faisant partie du système mondial de détresse et de sécurité en mer (SMDSM) mentionné dans la Convention internationale pour la sauvegarde de la vie humaine en mer (SOLAS), telle que modifiée, et par la Convention internationale de Torremolinos pour la sécurité des bateaux de pêche, telle que modifiée, et d’autres matériels radioélectriques de bord, le cas échéant;
b) le matériel de navigation de bord mentionné dans la Convention Internationale pour la sauvegarde de la vie humaine en mer (SOLAS), telle que modifiée, et par la Convention internationale de Torremolinos pour la sécurité des bateaux de pêche, telle que modifiée,
c) les autres aides à la navigation de bord, le cas échéant (AtoN), le cas échéant.

General Information

Status
Published
Publication Date
08-Mar-2021
Current Stage
PPUB - Publication issued
Completion Date
09-Mar-2021
Ref Project

Buy Standard

Standard
IEC 63154:2021 - Maritime navigation and radiocommunication equipment and systems - Cybersecurity - General requirements, methods of testing and required test results
English and French language
130 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

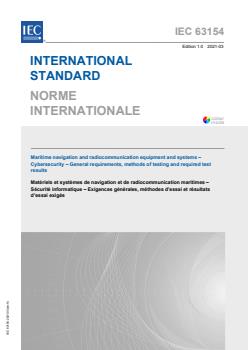

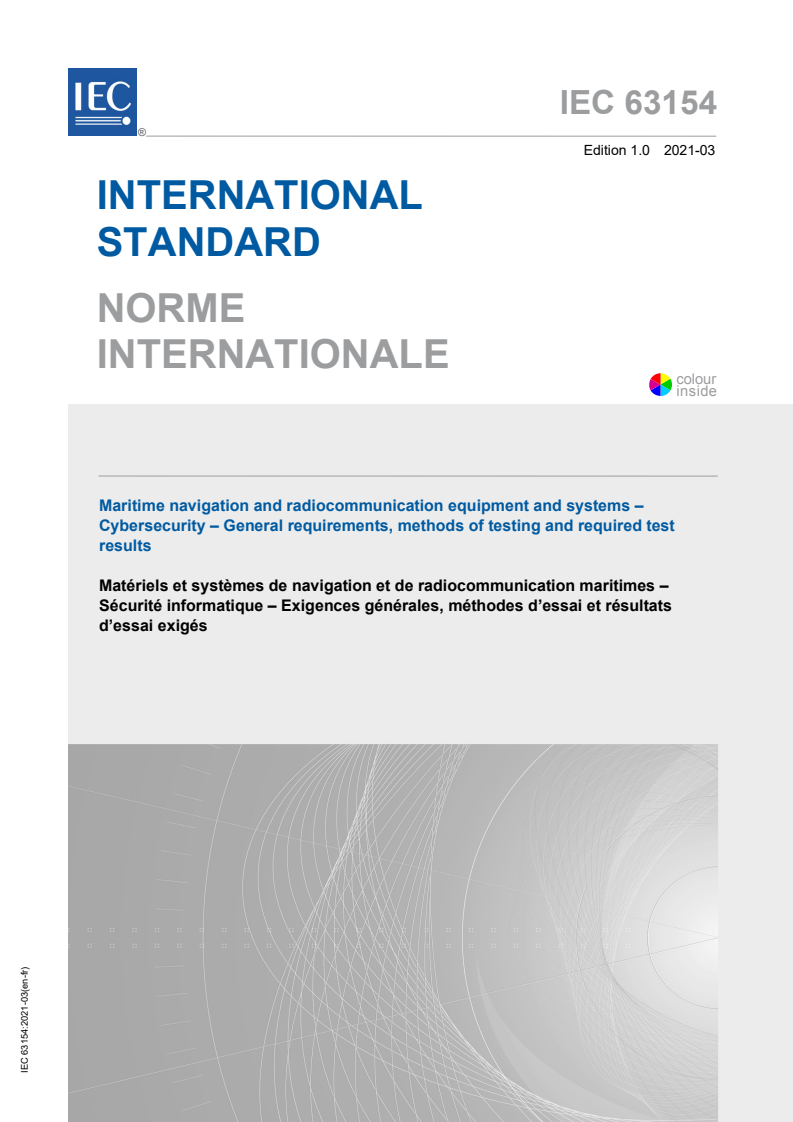

IEC 63154
Edition 1.0 2021-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Maritime navigation and radiocommunication equipment and systems –
Cybersecurity – General requirements, methods of testing and required test
results
Matériels et systèmes de navigation et de radiocommunication maritimes –
Sécurité informatique – Exigences générales, méthodes d’essai et résultats
d’essai exigés
IEC 63154:2021-03(en-fr)
---------------------- Page: 1 ----------------------

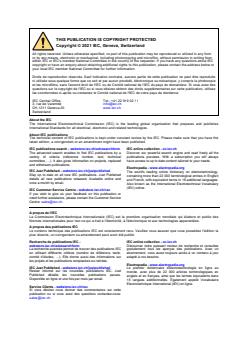

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

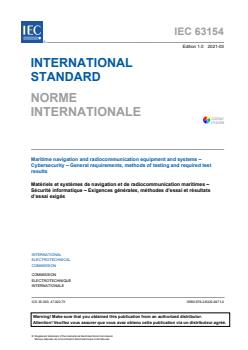

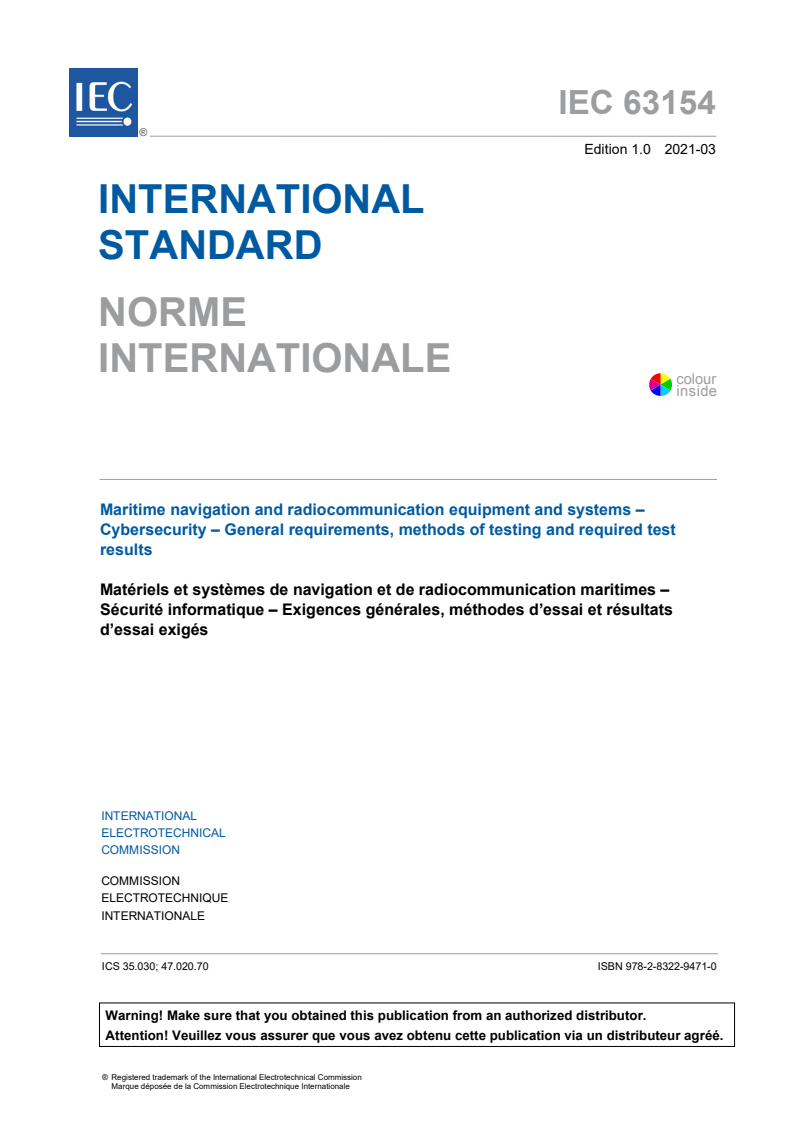

IEC 63154
Edition 1.0 2021-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Maritime navigation and radiocommunication equipment and systems –
Cybersecurity – General requirements, methods of testing and required test
results
Matériels et systèmes de navigation et de radiocommunication maritimes –
Sécurité informatique – Exigences générales, méthodes d’essai et résultats
d’essai exigés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 35.030; 47.020.70 ISBN 978-2-8322-9471-0

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

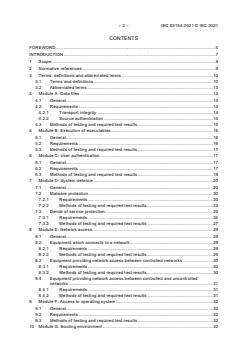

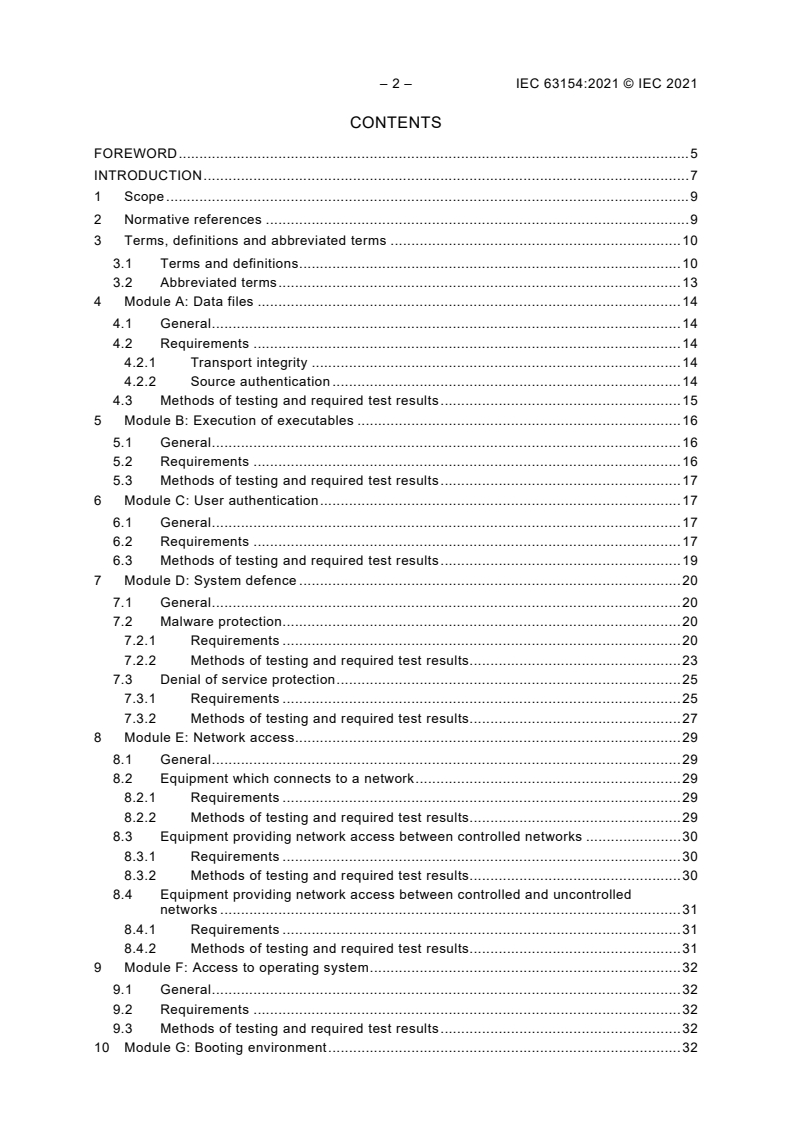

– 2 – IEC 63154:2021 © IEC 2021
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 9

2 Normative references ...................................................................................................... 9

3 Terms, definitions and abbreviated terms ...................................................................... 10

3.1 Terms and definitions ............................................................................................ 10

3.2 Abbreviated terms ................................................................................................. 13

4 Module A: Data files ...................................................................................................... 14

4.1 General ................................................................................................................. 14

4.2 Requirements ....................................................................................................... 14

4.2.1 Transport integrity ......................................................................................... 14

4.2.2 Source authentication .................................................................................... 14

4.3 Methods of testing and required test results .......................................................... 15

5 Module B: Execution of executables .............................................................................. 16

5.1 General ................................................................................................................. 16

5.2 Requirements ....................................................................................................... 16

5.3 Methods of testing and required test results .......................................................... 17

6 Module C: User authentication ....................................................................................... 17

6.1 General ................................................................................................................. 17

6.2 Requirements ....................................................................................................... 17

6.3 Methods of testing and required test results .......................................................... 19

7 Module D: System defence ............................................................................................ 20

7.1 General ................................................................................................................. 20

7.2 Malware protection................................................................................................ 20

7.2.1 Requirements ................................................................................................ 20

7.2.2 Methods of testing and required test results................................................... 23

7.3 Denial of service protection ................................................................................... 25

7.3.1 Requirements ................................................................................................ 25

7.3.2 Methods of testing and required test results................................................... 27

8 Module E: Network access............................................................................................. 29

8.1 General ................................................................................................................. 29

8.2 Equipment which connects to a network ................................................................ 29

8.2.1 Requirements ................................................................................................ 29

8.2.2 Methods of testing and required test results................................................... 29

8.3 Equipment providing network access between controlled networks ....................... 30

8.3.1 Requirements ................................................................................................ 30

8.3.2 Methods of testing and required test results................................................... 30

8.4 Equipment providing network access between controlled and uncontrolled

networks ............................................................................................................... 31

8.4.1 Requirements ................................................................................................ 31

8.4.2 Methods of testing and required test results................................................... 31

9 Module F: Access to operating system ........................................................................... 32

9.1 General ................................................................................................................. 32

9.2 Requirements ....................................................................................................... 32

9.3 Methods of testing and required test results .......................................................... 32

10 Module G: Booting environment ..................................................................................... 32

---------------------- Page: 4 ----------------------
IEC 63154:2021 © IEC 2021 – 3 –

10.1 General ................................................................................................................. 32

10.2 Requirements ....................................................................................................... 32

10.3 Methods of testing and required test results .......................................................... 33

11 Module H: Maintenance mode ....................................................................................... 33

11.1 General ................................................................................................................. 33

11.2 Requirements ....................................................................................................... 33

11.3 Methods of testing and required test results .......................................................... 34

12 Module I: Protection against unintentional crash caused by user input ........................... 35

12.1 General ................................................................................................................. 35

12.2 Requirements ....................................................................................................... 35

12.3 Methods of testing and required test results .......................................................... 36

13 Module J: Interfaces for removable devices including USB ............................................ 36

13.1 General ................................................................................................................. 36

13.2 Requirements ....................................................................................................... 36

13.2.1 Physical protection ........................................................................................ 36

13.2.2 Operational protection ................................................................................... 37

13.3 Methods of testing and required test results .......................................................... 37

13.3.1 Physical protection ........................................................................................ 37

13.3.2 Operational protection ................................................................................... 37

14 Module K: IEC 61162-1 or IEC 61162-2 as interface ...................................................... 38

15 Module L: IEC 61162-450 as interface ........................................................................... 38

15.1 General ................................................................................................................. 38

15.2 IEC 61162-1 sentences ......................................................................................... 38

15.3 IEC 61162-450 used for file transfer...................................................................... 38

16 Module M: Other interfaces ............................................................................................ 39

17 Module N: Software maintenance .................................................................................. 39

17.1 General ................................................................................................................. 39

17.2 Software maintenance in maintenance mode ........................................................ 40

17.2.1 Requirements ................................................................................................ 40

17.2.2 Methods of testing and required test results................................................... 40

17.3 Semi-automatic software maintenance by the crew onboard the vessel ................. 40

17.3.1 General ......................................................................................................... 40

17.3.2 Requirements ................................................................................................ 40

17.3.3 Methods of testing and required test results................................................... 41

18 Module O: Remote maintenance .................................................................................... 42

18.1 General ................................................................................................................. 42

18.2 Requirements ....................................................................................................... 42

18.3 Methods of testing and required test results .......................................................... 42

19 Module P: Documentation .............................................................................................. 43

19.1 Requirements ....................................................................................................... 43

19.2 Methods of testing and required test results .......................................................... 43

Annex A (informative) Guidance on implementing virus and malware protection on

type approved equipment .............................................................................................. 44

Annex B (normative) File authentication ............................................................................... 46

B.1 General ................................................................................................................. 46

B.2 Digital signatures .................................................................................................. 46

B.2.1 Requirements ................................................................................................ 46

B.2.2 Methods of testing and required test results................................................... 47

---------------------- Page: 5 ----------------------
– 4 – IEC 63154:2021 © IEC 2021

B.3 Symmetric means based upon pre-shared secret keys .......................................... 48

B.3.1 Requirements ................................................................................................ 48

B.3.2 Methods of testing and required test results................................................... 49

Annex C (informative) Methods of authentication of data files and executables –

Examples ...................................................................................................................... 51

C.1 General ................................................................................................................. 51

C.2 Explanations of terms ........................................................................................... 51

C.3 Asymmetric cryptography ...................................................................................... 51

C.4 Digital signatures .................................................................................................. 52

C.5 Public key infrastructure ....................................................................................... 53

C.5.1 General theory ............................................................................................... 53

C.5.2 Notes about shipboard use ............................................................................ 55

C.6 Symmetric key authentication based on "pre-shared secret key" ........................... 55

Annex D (normative) USB class codes ................................................................................. 57

Annex E (informative) Cyber security configuration document for equipment ........................ 58

E.1 General for the document ..................................................................................... 58

E.2 Document parts .................................................................................................... 58

E.2.1 Hardening of the operating system ................................................................ 58

E.2.2 Update strategy for cyber security reasons .................................................... 58

E.2.3 Strategies for detecting and reacting to future vulnerabilities ......................... 58

Annex F (informative) Guidance on interconnection between networks ................................ 59

F.1 General ................................................................................................................. 59

F.2 Guidance .............................................................................................................. 59

Bibliography .......................................................................................................................... 61

Figure 1 – Some examples of data transfer ............................................................................. 8

Figure F.1 – Examples for different types of network and associated interconnecting

devices ................................................................................................................................. 60

Table D.1 – USB class codes ................................................................................................ 57

---------------------- Page: 6 ----------------------
IEC 63154:2021 © IEC 2021 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MARITIME NAVIGATION AND RADIOCOMMUNICATION
EQUIPMENT AND SYSTEMS – CYBERSECURITY –
GENERAL REQUIREMENTS, METHODS OF TESTING
AND REQUIRED TEST RESULTS
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 63154 has been prepared by IEC technical committee 80: Maritime navigation and

radiocommunication equipment and systems. It is an International Standard.
The text of this International Standard is based on the following documents:
FDIS Report on voting
80/984/FDIS 80/989/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English
---------------------- Page: 7 ----------------------
– 6 – IEC 63154:2021 © IEC 2021

This document has been drafted in accordance with the ISO/IEC Directives, Part 2, and

developed in accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives,

IEC Supplement, available at www.iec.ch/members_experts/refdocs. The main document types

developed by IEC are described in greater detail at www.iec.ch/standardsdev/publications.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 8 ----------------------
IEC 63154:2021 © IEC 2021 – 7 –
INTRODUCTION

IMO resolution MSC.428(98) on maritime cyber risk management in safety management

systems affirms the need for cyber risk management on vessels subject to the SOLAS

Convention. This document addresses the basic cybersecurity requirements for shipborne

navigation and radiocommunication equipment falling within that need.

Shipborne navigation and radiocommunication equipment are generally installed in restricted

areas, for example at the bridge where access is defined by the IMO International Ship and Port

Facility Security (ISPS) Code or in an electronic locker room or in a closed cabinet. These

restricted areas are referred to as secure areas in this document. This is based on the

importance of navigation and radiocommunication equipment for the safety of navigation. These

restricted areas are considered as areas with implemented security and access measures.

These measures are defined in the ship security plan of the individual vessel derived from ISPS

code, they are not part of this document and not specified or tested in the context of this

document. Accordingly, equipment installed in these physically restricted access areas are

understood to benefit from these security measures. This document provides mitigation against

the remaining cyber vulnerabilities for equipment installed in such areas.

Following from the above, this document includes consideration of cyber threats from

unauthorized users, from removable external data sources (REDS) like USB sticks, from

network segments installed outside of the restricted areas including interfaces to external

networks, for example ship to shore, ship to ship.

The risk of an incident is different for each equipment/system boundary, and the mitigating

security measures required should be appropriate to the identified risk of incident and

proportional to the identified adverse consequences. Boundaries take the form of both physical,

such as direct access to the equipment via its ports (e.g. network, USB, import of digital files,

software installation) and logical (e.g. connections over a network, transfer of data, operator

use). A key tenet of cyber security is authentication of who has provided the data and

verification that what is being provided has not been tampered with.

To reflect the difference in cyber security risk, the needs for authentication and verification

between secure and non-secure areas are illustrated in Figure 1. The methods for achieving

authentication and verification are described in each module of this document.

In Figure 1, the colour red means a source requiring authentication and verification. The colour

green means a source not requiring authentication and verification.
The explanation of the numbers in Figure 1 is:

1) external communication that requires authentication and verification as the source is not a

local secure area and its provenance cannot be trusted;

2) local network message interfacing that does not require authentication and verification as

they are part of normal operation defined by configuration in a local secure area, for example

VDR binary transfer, IEC 61162 interfacing, internal proprietary data exchange;

3) local message and data import between networks that does not require authentication and

verification as they are part of normal operation defined by configuration in local secure

areas;

4) external data import by an operator from an external source via REDS that requires

authentication and verification of data import; this applies to executable or non-executable

data;

5) local serial interface messaging that does not require authentication and verification as it is

part of normal operation defined by configuration in a local secure area;
6) updates applied via external data source or REDS in maintenance mode that
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
