Video recording - 12,65 mm type D-11 format - Part 3: Data mapping over SDTI

IEC 62356-3:2003 specifies the mapping of type D-11 compressed picture data stream into the SDTI payload area (SMPTE 305.2M) together with the mapping of four channels of AES3 data and time-code data into H-ANC packets. Type D-11 compressed picture data-stream mapping is defined for source-coded picture rates of 24/1,001/P, 24/P, 25/P, 50-I, 30/1,001/P and 60/1,001. For the transmission of compressed picture data coded at source picture rates of 25/P and 50/I, the SDTI interface operates at a frame rate of 25 Hz. For the transmission of compressed picture data coded at source picture rates of 30/1,001P and 60/1,001I, the SDTI interface operates at a frame rate of 30/1,001 Hz.

Enregistrement vidéo - Format de type D-11 12,65 mm - Partie 3: Mappage de données à travers l'interface de transport de données série (SDTI)

La CEI 62356-3:2003 spécifie le mappage du flux de données d'images compressées de type D-11 dans la zone de charge utile SDTI (Interface de transport de données série) (SMPTE 305.2M) ainsi que le mappage de quatre canaux de données AES3 et des données de code temporel dans des paquets H-ANC. Le mappage du flux de données d'images compressées de type D-11 est défini pour les vitesses d'images codées à la source de 24/1,001/P, 24/P, 25/P, 50-I, 30/1,001/P et 60/1,001. Pour la transmission de données d'images compressées codées à des vitesses d'image source de 25/P et 50/I, l'interface de transport de données série fonctionne à une vitesse de trame de 25 Hz. Pour la transmission de données d'images compressées codées à des vitesses d'images source de 30/1,001P et 60/1,001I, l'interface de transport de données série fonctionne à une vitesse de trame de 30/1,001 Hz.

General Information

Status
Published
Publication Date
06-Nov-2003
Current Stage
PPUB - Publication issued
Start Date
31-Dec-2003
Completion Date
07-Nov-2003
Ref Project

Buy Standard

Standard
IEC 62356-3:2003 - Video recording - 12,65 mm type D-11 format - Part 3: Data mapping over SDTI Released:11/7/2003 Isbn:2831872316
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
IEC 62356-3:2003 - Video recording - 12,65 mm type D-11 format - Part 3: Data mapping over SDTI
English and French language
31 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

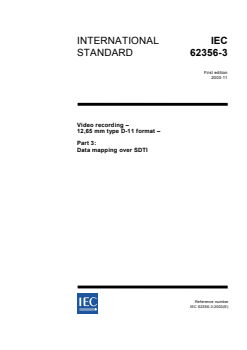

INTERNATIONAL IEC
STANDARD
62356-3
First edition
2003-11
Video recording –
12,65 mm type D-11 format –
Part 3:
Data mapping over SDTI
Reference number

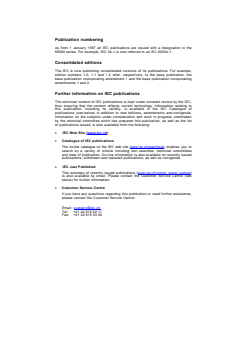

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: custserv@iec.ch
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00

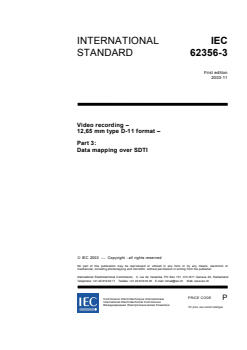

INTERNATIONAL IEC
STANDARD
62356-3
First edition
2003-11
Video recording –
12,65 mm type D-11 format –
Part 3:
Data mapping over SDTI
 IEC 2003  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
P
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

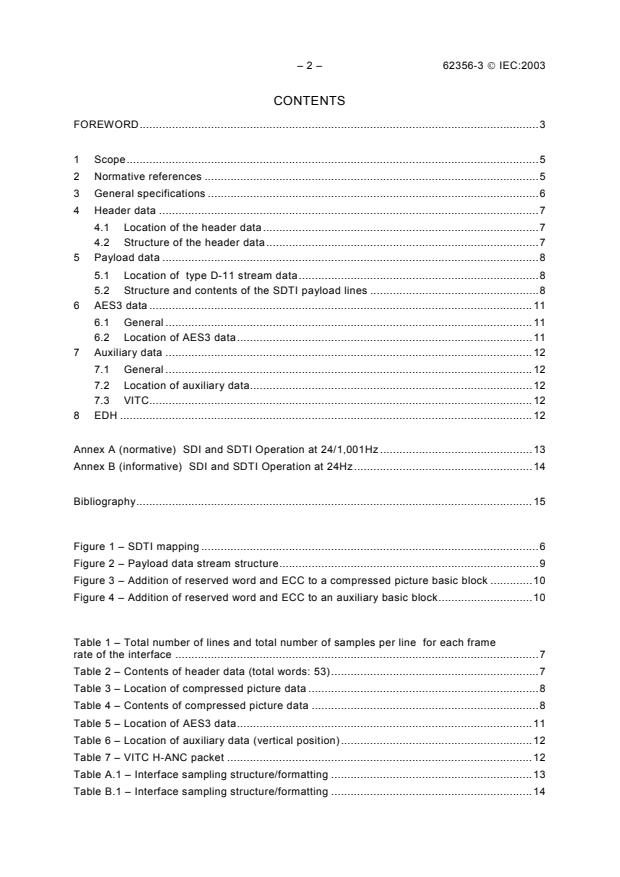

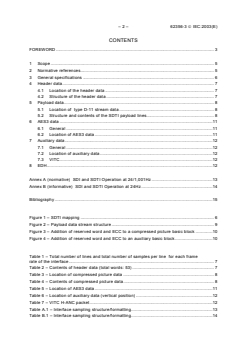

– 2 – 62356-3  IEC:2003(E)
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references. 5
3 General specifications . 6
4 Header data. 7
4.1 Location of the header data . 7
4.2 Structure of the header data . 7
5 Payload data. 8
5.1 Location of type D-11 stream data . 8
5.2 Structure and contents of the SDTI payload lines. 8
6 AES3 data .11
6.1 General .11
6.2 Location of AES3 data .11
7 Auxiliary data.12
7.1 General .12
7.2 Location of auxiliary data.12
7.3 VITC.12
8 EDH.12
Annex A (normative) SDI and SDTI Operation at 24/1,001Hz .13
Annex B (informative) SDI and SDTI Operation at 24Hz .14
Bibliography.15
Figure 1 – SDTI mapping . 6
Figure 2 – Payload data stream structure . 9
Figure 3 – Addition of reserved word and ECC to a compressed picture basic block .10
Figure 4 – Addition of reserved word and ECC to an auxiliary basic block .10
Table 1 – Total number of lines and total number of samples per line for each frame
rate of the interface. 7
Table 2 – Contents of header data (total words: 53) . 7
Table 3 – Location of compressed picture data . 8
Table 4 – Contents of compressed picture data. 8
Table 5 – Location of AES3 data .11
Table 6 – Location of auxiliary data (vertical position) .12
Table 7 – VITC H-ANC packet.12
Table A.1 – Interface sampling structure/formatting.13
Table B.1 – Interface sampling structure/formatting.14

62356-3  IEC:2003(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
VIDEO RECORDING – 12,65 mm TYPE D-11 FORMAT −−−−
Part 3: Data mapping over SDTI
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62356-3 has been prepared by IEC technical committee 100:
Audio, video and multimedia systems and equipment.
It was submitted to the ntional committees for voting under the Fast Track Procedure as the
following documents:
CDV Report on voting
100/631/CDV 100/701/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 62356-3  IEC:2003(E)
The committee has decided that the contents of this publication will remain unchanged until
2008-11. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
62356-3  IEC:2003(E) – 5 –
VIDEO RECORDING – 12,65 mm TYPE D-11 FORMAT −−
−−
Part 3: Data mapping over SDTI
1 Scope
This International Standard specifies the mapping of type D-11 compressed picture data
stream into the SDTI payload area (SMPTE 305.2M) together with the mapping of four
channels of AES3 data and time-code data into H-ANC packets. Type D-11 compressed
picture data-stream mapping is defined for source-coded picture rates of 24/1,001/P,24/P,
25/P, 50-I, 30/1,001/P and 60/1,001. For the transmission of compressed picture data coded
at source picture rates of 25/P and 50/I, the SDTI interface operates at a frame rate of 25 Hz.
For the transmission of compressed picture data coded at source picture rates of 30/1,001P
and 60/1,001I, the SDTI interface operates at a frame rate of 30/1,001 Hz.
The transmission of compressed picture data coded at the source picture rates of 24/1, 001/P
and 24/P require the SDTI interface to operate at frame rates of 24/1, 001Hz and 24 Hz with
the parameters defined in Annexes A and B of this standard.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 62356-2: Video recording – 12,65 mm type D-11 format – Part 2: Picture compression
and data stream
SMPTE 259M:1997, Television – 10-Bit 4:2:2 Component and 4fsc Composite Digital signals
– Serial Digital Interface
SMPTE 272M:1994, Television – Formatting AES/EBU Audio and Auxiliary Data into Digital
Video Ancillary Data Space
SMPTE 291M:1998, Television – Ancillary Data Packet and Space Formatting
SMPTE 305.2M:2000, Television – Serial Data Transport Interface (SDTI)
SMPTE RP165:1994, Error Detection Check words and Status Flags for Use in Bit-Serial
Digital Interfaces for Television
SMPTE RP188:1999, Transmission of Time Code and Control Code in the Ancillary Data
Space of a Digital Television Data Stream
AES3:1992, Serial transmission format for two-channel linearly represented digital audio data
___________
To be published.
– 6 – 62356-3  IEC:2003(E)
3 General specifications
This standard specifies the mapping of type D-11 data stream packets over SMPTE 305.2M
(SDTI). Type D-11 data stream comprises packets of basic blocks containing compressed
picture data and auxiliary picture data as specified in IEC 62356-2.
Four channels of 24-bit AES3 data are optionally mapped into the H-ANC space of the
interface according to SMPTE 272M. In addition, VITC may also be mapped into the H-ANC
space.
Type D-11 data-stream packets are grouped into six equal data segments of which the first
three data segments are mapped onto the first field of the SDTI and the last three data
segments are mapped onto the second field of the SDTI, as shown in Figure 1 and Table 1.
Figure 1 also includes the optional four channels of 24-bit AES3 data mapped into the H-ANC
space. VITC data may also be mapped into the H-ANC space.
Header
EAV data Audio data
1440 1444 SAV
1497-1609 (625)
-1443 -1496 1497-1637 (525)
Switchingpoint area
Auxiliary
First field
data
E
S
Compressed picture data
A
A
V
V
Switchingpoint area
Auxiliary
Second field
data
E S
A A
Compressed picture data
V V
Figure 1 – SDTI mapping
