IEC 61010-2-202:2016

Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-202: Particular requirements for electrically operated valve actuators

IEC 61010-2-202:2016 specifies the safety requirements for electric ACTUATORs and SOLENOIDs, as applied to valves, intended to be installed in an industrial process or discrete control environment.
This publication is to be read in conjunction with IEC 61010-1:2010.

Règles de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 2-202: Exigences particulières pour les actionneurs à vanne à commande électrique

L'IEC 61010-2-202:2016 spécifie les exigences de sécurité relatives aux ACTIONNEURs et SOLENOÏDEs électriques, telles qu'appliquées aux vannes destinées à être installées dans un processus industriel ou dans un environnement de commande discret.
Cette publication doit être lue conjointement avec la IEC 61010-1:2010

General Information

• Status: Published
• Publication Date: 11-Jul-2016
• ICS: 13.110 - Safety of machinery
• ICS: 17.020 - Metrology and measurement in general
• ICS: 19.020 - Test conditions and procedures in general
• Technical Committee: TC 65 - Industrial-process measurement, control and automation
• Drafting Committee: JWG 13 - TC 65/JWG 13
• Current Stage: DELPUB - Deleted Publication
• Start Date: 05-Nov-2020
• Completion Date: 30-Sep-2019

Relations

• Revised: IEC 61010-2-202:2020 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-202: Particular requirements for electrically operated valve actuators
• Effective Date: 05-Sep-2023

Overview

IEC 61010-2-202:2016 defines specific safety requirements for electric actuators and solenoids used with valves in industrial process and discrete control environments. As a part of the IEC 61010 series, this international standard supplements general safety rules laid out in IEC 61010-1:2010, providing additional detail relevant to electrically operated valve actuators. The purpose is to ensure safety in installation, operation, and maintenance, reducing risks such as electric shock, mechanical hazards, fire, and other operational dangers associated with these devices.

Key Topics

• Scope of Standard
  IEC 61010-2-202:2016 applies to electrically operated actuator and solenoid devices used for valve control, rated up to 600 V AC or 840 V DC, within industrial automation and process control systems.

  • Excludes actuators and solenoids for explosive atmospheres (covered by IEC 60079), safety-function devices (IEC 61508), valve positioners, and valve mechanical components.
  • Includes service personnel interfaces for installation and maintenance.

• Fundamental Safety Requirements

  • Electrical safety: protection against electric shock must be robust.
  • Mechanical safety: no accessible moving parts that cause hazard in normal or single-fault conditions.
  • Resistance to mechanical stress, fire propagation, heat, and fluids.
  • Safety measures for radiation, liberated gases, and explosion are expected.
  • Interlock protection and comprehensive risk assessment.

• Product Marking and Documentation

  • Detailed requirements for labels and supplied documentation.
  • Clear indication of power supply characteristics, operational limits, and maintenance instructions, including warnings if multiple disconnect switches are present.
  • Installation guides to ensure correct safety degree (e.g., according to IEC 60529 for protection levels).

• Testing and Verification

  • Specifies test scenarios including fault conditions, for instance, solenoids stopped under full energization.
  • Verification procedures for labeling, materials, and manufacturer instructions.

• Component Material Standards

  • Solenoid parts such as bobbins and insulation must meet flammability classification V-1 or better per IEC 60695-11-10.

Applications

IEC 61010-2-202:2016 is essential for manufacturers and users of electrical valve actuators and solenoids in:

• Chemical and petrochemical processing: Ensuring safe control of flow, pressure, or chemical dosing valves.
• Water treatment plants: Reliable and safe operation of electrically actuated valves in fluid handling systems.
• Pharmaceutical production: Guaranteeing compliance with high safety standards in process automation.
• Industrial automation: Supporting safe integration of actuator-based control systems on the factory floor.
• Control panel manufacturing: Assuring that component selection and system layout meet internationally recognized safety standards.

Adhering to this standard helps reduce workplace incidents, facilitates global trade by ensuring products meet international safety norms, and supports efficient maintenance and service practices.

Related Standards

• IEC 61010-1:2010
  General safety requirements for electrical equipment for measurement, control, and laboratory use.
• IEC 60079 series
  Electrical apparatus for explosive atmospheres (excludes actuators/solenoids covered by this standard).
• IEC 61508 series
  Functional safety of electrical/electronic/programmable electronic safety-related systems.
• IEC 60695-11-10
  Test methods for evaluating the flammability of electrical equipment materials.
• UL 429
  Electrically Operated Valves safety standard (US reference).
• IEC 60529
  Degrees of protection provided by enclosures (IP Code).

Practical Value

Compliance with IEC 61010-2-202:2016 demonstrates a commitment to occupational safety, enhances market access, and ensures reliability and performance in critical process control systems using electrically operated valve actuators and related equipment. Manufacturers, integrators, and end users benefit from reduced liability, standardized product integration, and improved safety for service personnel.

Standards Content (Sample)

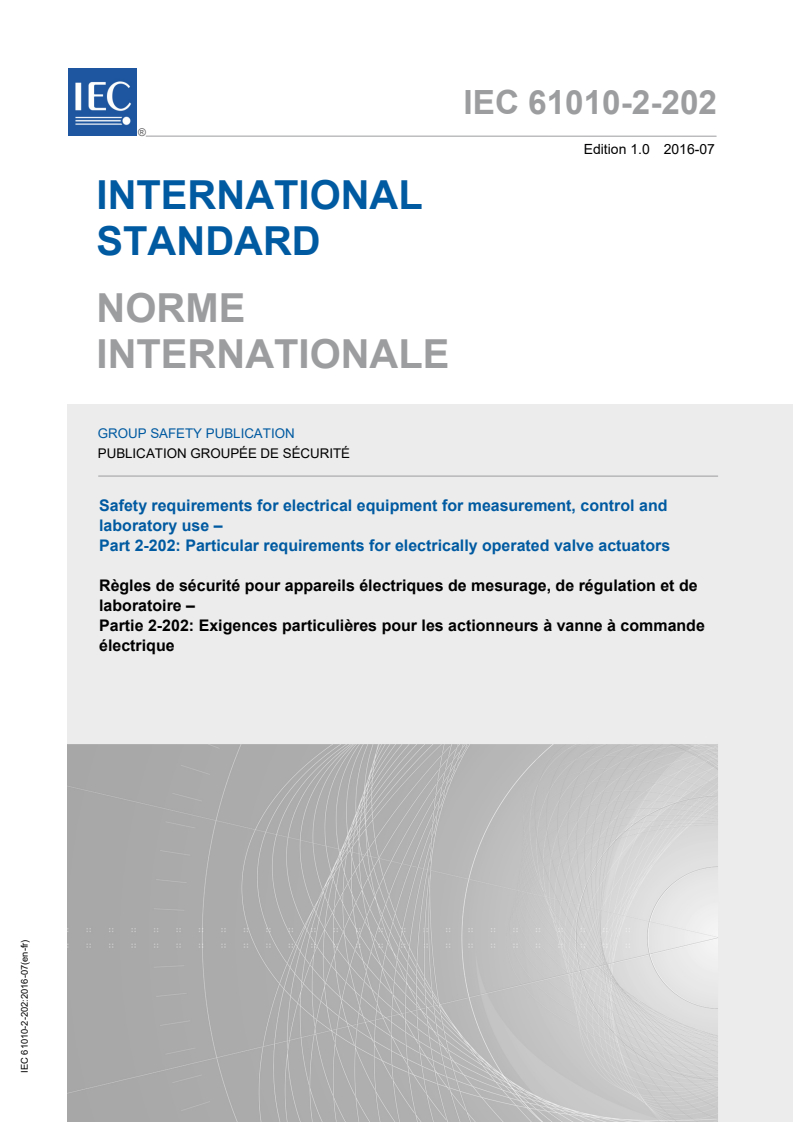

IEC 61010-2-202 ®
Edition 1.0 2016-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control and
laboratory use –
Part 2-202: Particular requirements for electrically operated valve actuators

Règles de sécurité pour appareils électriques de mesurage, de régulation et de
laboratoire –
Partie 2-202: Exigences particulières pour les actionneurs à vanne à commande
électrique
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

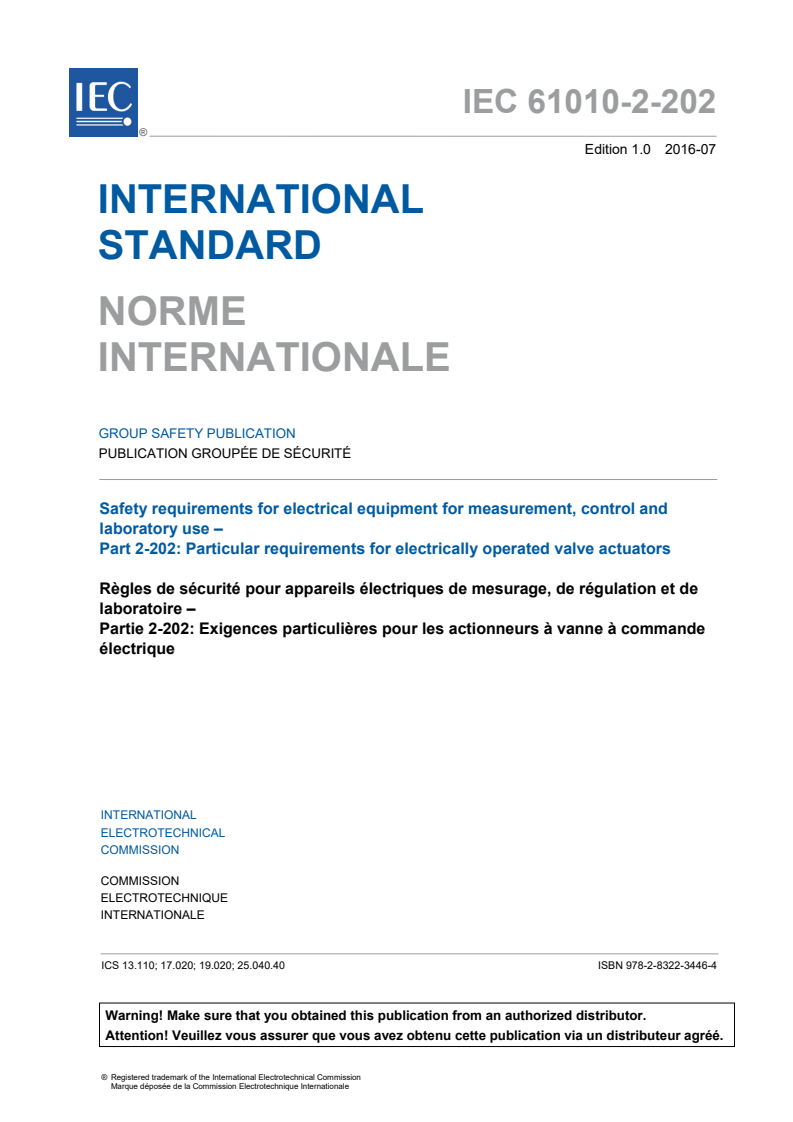

IEC 61010-2-202 ®
Edition 1.0 2016-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ

Safety requirements for electrical equipment for measurement, control and

laboratory use –
Part 2-202: Particular requirements for electrically operated valve actuators

Règles de sécurité pour appareils électriques de mesurage, de régulation et de

laboratoire –
Partie 2-202: Exigences particulières pour les actionneurs à vanne à commande

électrique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.110; 17.020; 19.020; 25.040.40 ISBN 978-2-8322-3446-4

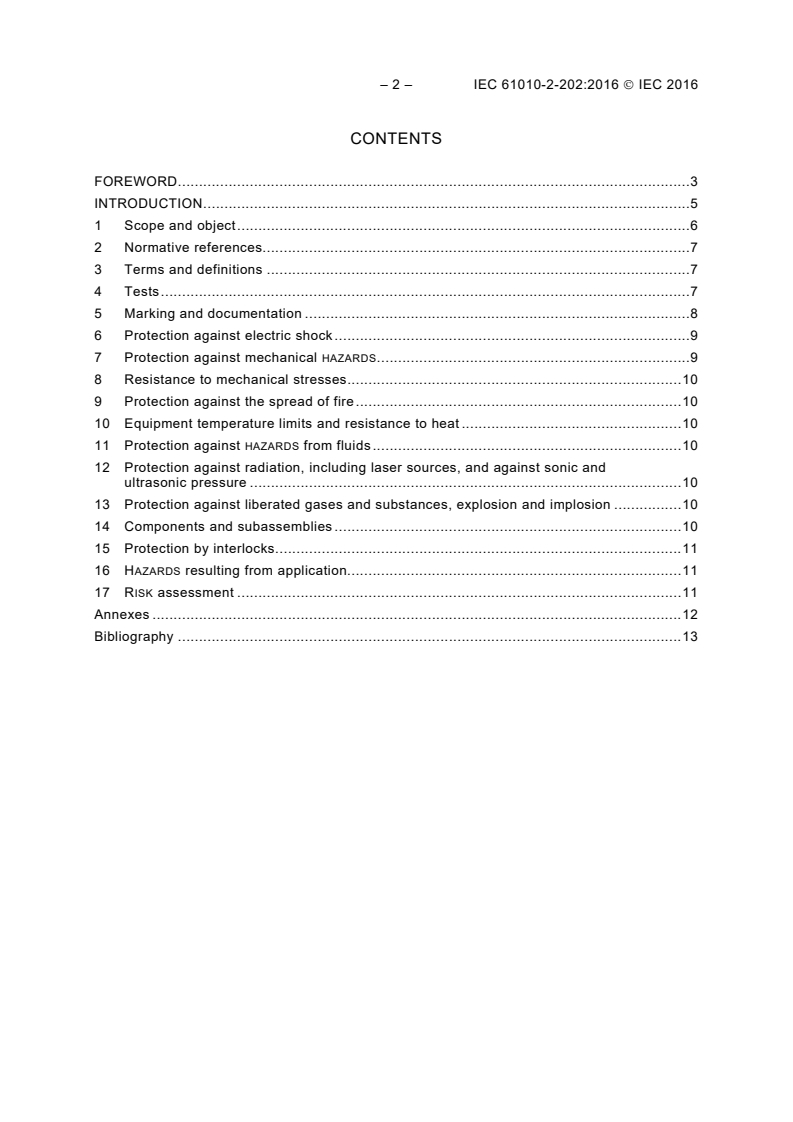

– 2 – IEC 61010-2-202:2016  IEC 2016

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope and object . 6
2 Normative references. 7
3 Terms and definitions . 7
4 Tests . 7
5 Marking and documentation . 8
6 Protection against electric shock . 9
7 Protection against mechanical HAZARDS . 9
8 Resistance to mechanical stresses . 10
9 Protection against the spread of fire . 10
10 Equipment temperature limits and resistance to heat . 10
11 Protection against HAZARDS from fluids . 10
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure . 10
13 Protection against liberated gases and substances, explosion and implosion . 10
14 Components and subassemblies . 10
15 Protection by interlocks . 11
16 HAZARDS resulting from application. 11
17 RISK assessment . 11
Annexes . 12
Bibliography . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT, CONTROL AND LABORATORY USE –

Part 2-202: Particular requirements
for electrically operated valve actuators

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61020-2-202 has been prepared by committee TC 65: Industrial-
process measurement, control and automation.
The text of this standard is based on the following documents:
FDIS Report on voting
65/627/FDIS 65/631/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – IEC 61010-2-202:2016  IEC 2016
This Part 2-202 is intended to be used in conjunction with IEC 61010-1. It was established on
the basis of the third edition (2010). Consideration may be given to future editions of, or
amendments to, IEC 61010-1.
This Part 2-202 supplements or modifies the corresponding clauses in IEC 61010-1 so as to
convert that publication into the IEC standard: Particular requirements for electrically operated
valve actuators.
Where a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. Where this part states “addition”, “modification”, “replacement”, or
“deletion”, the relevant requirement, test specification or note in Part 1 should be adapted
accordingly.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
It has the status of a group safety publication in accordance with IEC Guide 104.
A list of all parts in the IEC 61010 series, published under the general title Safety
requirements for electrical equipment for measurement, control and laboratory use, can be
found on the IEC website.
In this standard:
1) the following print types are used:
– requirements: in roman type;
– NOTES: in smaller roman type;
– conformity and test: in italic type;
– terms used throughout this standard which have been defined in clause 3: SMALL
ROMAN CAPITALS;
2) subclauses, figures, tables and notes which are additional to those in part 1 are numbered
starting from 101. Additional annexes are lettered starting from AA.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
This IEC 61010-2-202 document constitutes Part 2-202 of a planned series of standards on
industrial-process measurement, control and automation equipment.
Safety terms of general use are defined in IEC 61010-1. More specific terms are defined in
each part.
This part incorporates the safety related requirements of electrically operated valve actuators.

– 6 – IEC 61010-2-202:2016  IEC 2016
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT, CONTROL AND LABORATORY USE –

Part 2-202: Particular requirements
for electrically operated valve actuators

1 Scope and object
This clause of Part 1 is applicable, except as follows.
1.1 Scope
1.1.1 Equipment included in scope
Replacement:
Replace the text by the following paragraphs:
This part of IEC 61010 specifies the safety requirements for electric ACTUATORs and
SOLENOIDs, as applied to valves, intended to be installed in an industrial process or discrete
control environment.
This part of IEC 61010 specifies:
– particular safety requirements for general purpose electrically operated valve ACTUATORs
and SOLENOIDs,
– related verification tests.
The general purpose electrically operated valve ACTUATORs and SOLENOIDs, covered by this
part of IEC 61010 are limited to:
– those rated 600 V alternative current/ 840 V direct current or less,
Service personnel interface to equipment included in the scope of this document.
1.1.2 Equipment excluded from scope
Addition at the end of the list:
This standard excludes
– electric ACTUATORs and SOLENOIDs for use in explosive atmospheres, as covered by the
IEC 60079 series of standards;
– mechanical parts/aspects of valves;
– ACTUATORs and SOLENOIDs performing a safety function as covered by the IEC 61508
series of standards;
– POSITIONERs.
NOTE A positioner is defined as a "physical unit delivering an additional, often mechanical, feedback to a
mechanical final controlling element that improves its velocity and precision" in IEC 60050-351:2013, 351-56-
17.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
This clause of Part 1 is applicable, except as follows:
No additional references are needed for this document.
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
Additional terms and definitions:
3.101.1
ACTUATOR
device that controls a valve it is assembled to in response to an external signal
3.101.2
SERVICE PERSONNEL
person, with the appropriate technical training, experience and awareness of HAZARDS and of
measures to minimize danger to themselves, other persons or to the control equipment, in an
industrial environment, changing or repairing the control equipment
Note 1 to entry: SERVICE PERSONNEL are persons having the appropriate technical training and experiences
necessary to be aware of HAZARDS – e.g, electrical HAZARDS, temperature HAZARDS, fire HAZARDS – to which they
are exposed in performing a task and of measures to minimize danger to themselves or to other persons or to the
control equipment, in an industrial environment
Note 2 to entry: SERVICE PERSONNEL change or repair the control equipment e.g. hardware configuration or
installing software updates provided by the manufacturer.
3.101.3
SOLENOID
cylindrical coil, the length of which is much greater than its transverse dimensions and which
is used to produce a magnetic field
3.101.4
SWITCH
contact device actuated by the valve mechanism
4 Tests
This clause of Part 1 is applicable except as follows:
4.4.2.1 General
Replace the first sentence with the following sentence:
Fault conditions shall include those specified in 4.4.2.2 to 4.4.2.14 and in 4.4.2.101.
Addition of a new subclause:
– 8 – IEC 61010-2-202:2016  IEC 2016
4.4.2.101 SOLENOID
SOLENOID shall be stopped while fully energized or prevented from moving, whichever is less
favourable.
A SOLENOID damaged during one test may be repaired or replaced before the next test.
4.4.2.5 Motors
Addition of a new subclause:
4.4.2.5.101 Motor power supply
In actuators where the motor power supply can be wired incorrectly:
Delta-connected motor shall be connected to power supply with star connection.
Star-connected motor shall be connected to power supply with delta connection.
For a three-phase motor, any two phases shall be reverse connected.
5 Marking and documentation
This clause of Part 1 is applicable except as follows:
5.1.3 MAINS supply
Addition after e):
aa)
– number of phase conductors (e.g. 2,3);
– other designated conductors (e.g. N,M,PE).
5.4 Documentation
This clause of IEC 61010-1 is applicable except as follows:
5.4.2 Equipment RATINGS
Addition after f):
ACTUATOR;
aa) the maximum linear travel distance or rotation angle of the
bb) the maximum force available from the ACTUATOR;
cc) the minimum actuation cycles available.
5.4.3 Equipment installation
Addition after g):
aa) instructions of how to install the equipment in order to guarantee the stated degree of
protection according to IEC 60529, shall be provided;
bb) Instructions on the necessary equipment required to complete the installation of the
actuator so that it operates safely. This may include but is not limited to:
– contactors
– stall protection
– overcurrent devices
– connection of thermal trips
– isolators
5.4.4 Equipment operation
Replacement of d):
d) intermittent operation limits, e.g. energize ACTUATOR at least once per hour.
Addition after j):
aa) duty cycle, if the device is designed for intermittent operation;
bb) instructions for safety protection relating to surface temperature.
5.4.5 Equipment maintenance and service
Addition of the following paragraph after the last paragraph before the conformity statement:
If more than one disconnect SWITCH may be required to disconnect all power within an
ACTUATOR, the manufacturer shall provide instructions with the word “warning” and the
following or the equivalent: “risk of electric shock – more than one disconnect SWITCH may be
required to de-energize the device for servicing.”
6 Protection against electric shock
This clause of Part 1 is applicable, except as follows:
6.1.2 Exceptions
Addition of the following paragraph after the conformity statement:
HAZARDOUS LIVE parts, components or subassemblies can be touched by SERVICE PERSONNEL
during service provided that they are marked with symbol 12 of Table 1 to indicate an electric
HAZARD.
shock
7 Protection against mechanical HAZARDS
This clause of Part 1 is applicable except as follows:
Addition of a new subclause:
7.3.101 Independence of operating wheels and transmission gears
If a mechanical operating wheel, etc is supplied or specified by the ACTUATOR manufacturer, it
shall not cause a hazard in normal or single fault conditions, while the ACTUATOR is operated.
No accessible moving parts of the ACTUATOR assembly shall create a hazard when the
ACTUATOR is operated.
If these conditions are not met, a RISK assessment shall be carried out according to 7.3.3 or
Clause 17.
Conformity is checked by inspection.

– 10 – IEC 61010-2-202:2016  IEC 2016
7.5.1 General
Add before conformity statement as follows:
Lifting and carrying through s
...
