IEC 61156-2-1:2010(E) is a blank detail specification. It relates to multicore and symmetrical pair/quad cables for digital communications in horizontal floor wiring. This third edition cancels and replaces the second edition published in 2003. It constitutes a technical revision and takes into account the technical changes made in the IEC 61156-2, Edition 3 (2010).

General Information

• Status: Published
• Publication Date: 27-Jun-2010
• ICS: 33.060.30 - Radio relay and fixed satellite communications systems
• ICS: 33.120.20 - Wires and symmetrical cables
• Technical Committee: SC 46C - Wires and symmetric cables
• Drafting Committee: WG 7 - TC 46/SC 46C/WG 7
• Current Stage: PPUB - Publication issued
• Start Date: 28-Jun-2010
• Completion Date: 31-Jul-2010

Relations

• Revises: IEC 61156-2-1:2003 - Multicore and symmetrical pair/quad cables for digital communications - Part 2-1: Horizontal floor wiring - Blank detail specification
• Effective Date: 05-Sep-2023

Overview

IEC 61156-2-1:2010 is the third edition (2010) blank detail specification for multicore and symmetrical pair/quad cables intended for horizontal floor wiring in premises cabling. It supersedes the 2003 edition and aligns with the technical changes in IEC 61156-2 (2010). Rather than specifying a single cable design, this document provides a template and layout for preparing detailed, nationally or commercially specific cable specifications that meet the sectional requirements for horizontal cabling.

Key topics and requirements

The blank detail specification defines the required structure and the types of technical information that a detail specification must include. Major technical topics covered:

• Cable description and identification
  • Type and number of elements (pairs/quads), nominal impedance, screening, application, category (e.g., Cat 3, Cat 5), trade names.
• Materials and construction
  • Conductor, insulation, element screening, core make-up, sheath material and marking, packaging.
• Electrical characteristics
  • Conductor resistance, resistance unbalance, dielectric strength, insulation resistance, mutual capacitance and capacitance unbalance.
  • Transfer impedance requirements given at multiple frequencies (examples in the standard: 1 MHz, 10 MHz, 30 MHz, 100 MHz).
• Transmission characteristics
  • Attenuation and near‑end crosstalk (NEXT) performance across defined frequencies (1 MHz up to 100 MHz), characteristic impedance, structural return loss (SRL), phase/delay metrics where applicable.
• Mechanical characteristics
  • Dimensional requirements, elongation at break (conductors, insulation, sheath), tensile strength, crush and impact, repeated bending and tensile performance.
• Environmental and safety tests
  • Temperature range performance, ageing, cold-bend, heat-shock, flame propagation (single and bunched cables), smoke, acid gas and toxic gas emissions, plus combined tests for air-handling spaces.
• Guidance for filling out the template
  • Use of NA (not applicable) or NS (not specified) where appropriate; reference to relevant subclauses in IEC 61156-2.

Applications

IEC 61156-2-1 is used to produce precise cable product specifications for:

• Horizontal floor wiring in office, commercial and industrial buildings (customer premises cabling).
• Specifying cables for LAN and structured cabling installers, procurement teams and facility managers.
• Establishing test and acceptance criteria for manufacturing, quality control and certification.

Who should use this standard

• Cable manufacturers preparing product detail specifications.
• National standards bodies and industry groups creating localized detail specs.
• System integrators, installers and consultants specifying horizontal cabling components.
• Test laboratories and conformity assessment bodies verifying compliance with IEC 61156 sectional requirements.

Related standards and keywords

• Related: IEC 61156-1:2002 (generic specification), IEC 61156-2:2010 (sectional specification), ISO/IEC 11801 (generic cabling).
• SEO keywords: IEC 61156-2-1, multicore cables, symmetrical pair/quad cables, horizontal floor wiring, blank detail specification, category 3, category 5, cable transmission characteristics, cable testing, structured cabling.

Standards Content (Sample)

IEC 61156-2-1 ®
Edition 3.0 2010-06
INTERNATIONAL
STANDARD
Multicore and symmetrical pair/quad cables for digital communications
Part 2-1: Horizontal floor wiring – Blank detail specification

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
IEC 61156-2-1 ®
Edition 3.0 2010-06
INTERNATIONAL
STANDARD
Multicore and symmetrical pair/quad cables for digital communications
Part 2-1: Horizontal floor wiring – Blank detail specification

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
M
ICS 33.120.20 ISBN 978-2-88912-039-0

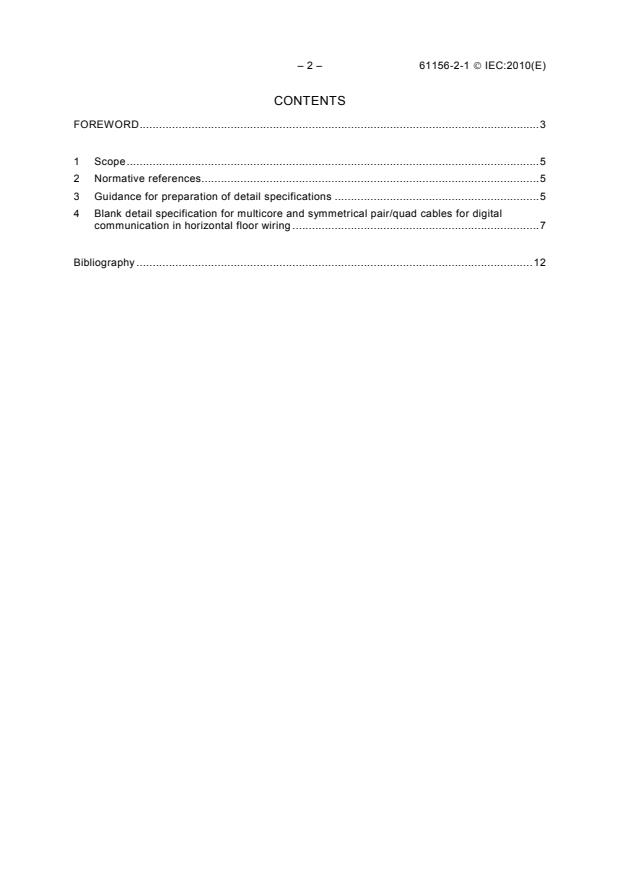

– 2 – 61156-2-1 © IEC:2010(E)
