Safety of machinery - Security aspects related to functional safety of safety-related control systems

IEC TR 63074:2019 gives guidance on the use of IEC 62443 (all parts) related to those aspects of security threats and vulnerabilities that could influence functional safety implemented and realized by safety-related control systems (SCS) and could lead to the loss of the ability to maintain safe operation of a machine.
Considered security aspects of the machine with potential relation to SCS are:
– vulnerabilities of the SCS either directly or indirectly through the other parts of the machine which can be exploited by security threats that can result in security attacks (security breach);
– influence on the safety characteristics and ability of the SCS to properly perform its function(s);
– typical use case definition and application of a corresponding threat model.

General Information

Status
Published
Publication Date
01-May-2019
Current Stage
PPUB - Publication issued
Completion Date
02-May-2019
Ref Project

Buy Standard

Technical report
IEC TR 63074:2019 - Safety of machinery - Security aspects related to functional safety of safety-related control systems
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC TR 63074
Edition 1.0 2019-05
TECHNICAL
REPORT
colour
inside
Safety of machinery – Security aspects related to functional safety of safety-
related control systems
IEC TR 63074:2019-05(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC TR 63074
Edition 1.0 2019-05
TECHNICAL
REPORT
colour
inside
Safety of machinery – Security aspects related to functional safety of safety-
related control systems
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.110; 29.020 ISBN 978-2-8322-6818-6

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TR 63074:2019 © IEC 2019

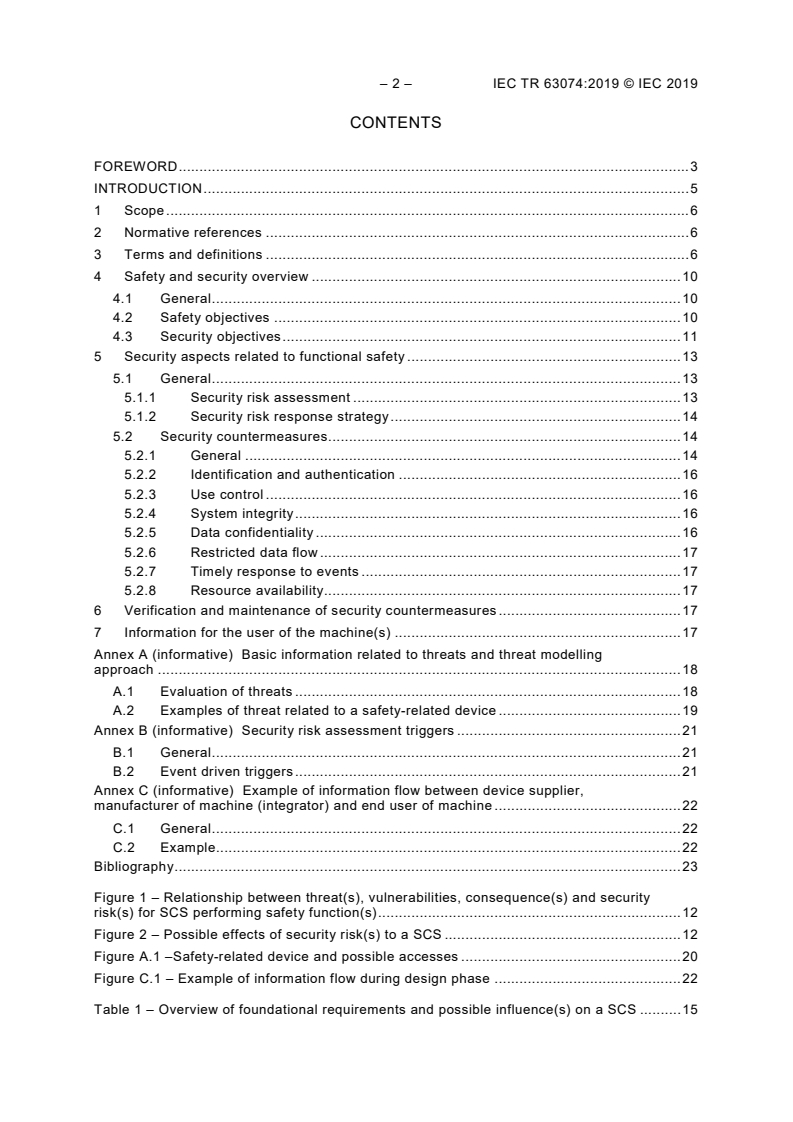

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Safety and security overview ......................................................................................... 10

4.1 General ................................................................................................................. 10

4.2 Safety objectives .................................................................................................. 10

4.3 Security objectives ................................................................................................ 11

5 Security aspects related to functional safety .................................................................. 13

5.1 General ................................................................................................................. 13

5.1.1 Security risk assessment ............................................................................... 13

5.1.2 Security risk response strategy ...................................................................... 14

5.2 Security countermeasures ..................................................................................... 14

5.2.1 General ......................................................................................................... 14

5.2.2 Identification and authentication .................................................................... 16

5.2.3 Use control .................................................................................................... 16

5.2.4 System integrity ............................................................................................. 16

5.2.5 Data confidentiality ........................................................................................ 16

5.2.6 Restricted data flow ....................................................................................... 17

5.2.7 Timely response to events ............................................................................. 17

5.2.8 Resource availability ...................................................................................... 17

6 Verification and maintenance of security countermeasures ............................................ 17

7 Information for the user of the machine(s) ..................................................................... 17

Annex A (informative) Basic information related to threats and threat modelling

approach .............................................................................................................................. 18

A.1 Evaluation of threats ............................................................................................. 18

A.2 Examples of threat related to a safety-related device ............................................ 19

Annex B (informative) Security risk assessment triggers ...................................................... 21

B.1 General ................................................................................................................. 21

B.2 Event driven triggers ............................................................................................. 21

Annex C (informative) Example of information flow between device supplier,

manufacturer of machine (integrator) and end user of machine ............................................. 22

C.1 General ................................................................................................................. 22

C.2 Example................................................................................................................ 22

Bibliography .......................................................................................................................... 23

Figure 1 – Relationship between threat(s), vulnerabilities, consequence(s) and security

risk(s) for SCS performing safety function(s) ......................................................................... 12

Figure 2 – Possible effects of security risk(s) to a SCS ......................................................... 12

Figure A.1 –Safety-related device and possible accesses ..................................................... 20

Figure C.1 – Example of information flow during design phase ............................................. 22

Table 1 – Overview of foundational requirements and possible influence(s) on a SCS .......... 15

---------------------- Page: 4 ----------------------
IEC TR 63074:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY OF MACHINERY –
SECURITY ASPECTS RELATED TO FUNCTIONAL
SAFETY OF SAFETY-RELATED CONTROL SYSTEMS
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. However, a

technical committee may propose the publication of a technical report when it has collected

data of a different kind from that which is normally published as an International Standard, for

example "state of the art".

Technical Report IEC TR 63074 has been prepared by IEC technical committee 44: Safety of

machinery – Electrotechnical aspects.
The text of this Technical Report is based on the following documents:
DTR Report on voting
44/842/DTR 44/843/RVDTR

Full information on the voting for the approval of this Technical Report can be found in the

report on voting indicated in the above table.
---------------------- Page: 5 ----------------------
– 4 – IEC TR 63074:2019 © IEC 2019

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC TR 63074:2019 © IEC 2019 – 5 –
INTRODUCTION

Industrial automation systems can be exposed to security attacks due to the fact that:

– access to the control system is possible, e.g. re-programming of machine functions

(including safety);
– "convergence" between standard IT and industrial systems is increasing;

– operating systems have become present in embedded systems, e.g. IP-based protocols

are replacing proprietary network protocols and data is exchanged directly from the

SCADA network into the office world;
– software is developed by reusing existing third party software components;

– remote access from suppliers has become the standard way of operations / maintenance,

with an increased cyber security risk regarding e.g. unauthorized access, availability and

integrity.

As part of an industrial automation system, safety-related control systems of machines can

also be subject to security attacks that can result in a loss of the ability to maintain safe

operation of a machine.

NOTE 1 The risk potential of attack opportunities is significant seeing the trends and developments of threats and

the amount of known vulnerabilities. Security objectives are mainly described in terms of confidentiality, integrity

and availability, which in general need to be identified and prioritized by using a risk based approach.

Functional safety objectives consider the risk by estimating the severity of harm and the

probability of occurrence of that harm: The effects of any risk (hazardous event) determine

the requirements for safety integrity, (Safety Integrity Level (SIL) according to IEC 62061 or

IEC 61508 or Performance Level (PL) according to ISO 13849-1).

With respect to the safety function, the security threats (internal or external) might influence

the safety integrity and the overall system availability.

NOTE 2 In order to ensure the security objectives, IEC 62443-3-3 defines and recommends security requirements

("foundational requirements") to be fulfilled by the relevant system.

NOTE 3 The overall security strategy is not covered in this standard, further information is provided e.g. in

IEC 62443 (all parts) or ISO/IEC 27001.

Misuse by physical manipulation is covered in some machinery functional safety standards

(e.g. IEC 61496 (all parts) and ISO 14119).

NOTE 4 "Misuse by physical manipulation" is not considered to be the same as physical security in the IEC 62443

(all parts), for example in IEC 62443-2-1:2010, 4.3.3.3. Physical security means for example control (restriction) of

access by means of physical obstruction.
---------------------- Page: 7 ----------------------
– 6 – IEC TR 63074:2019 © IEC 2019
SAFETY OF MACHINERY –
SECURITY ASPECTS RELATED TO FUNCTIONAL
SAFETY OF SAFETY-RELATED CONTROL SYSTEMS
1 Scope

This Technical Report gives guidance on the use of IEC 62443 (all parts) related to those

aspects of security threats and vulnerabilities that could influence functional safety

implemented and realized by safety-related control systems (SCS) and could lead to the loss

of the ability to maintain safe operation of a machine.

NOTE 1 For example, an attack on a machine (safety function) such that it affects the availability of the machine

and can result in a safety function being bypassed.
Considered security aspects of the machine with potential relation to SCS are:

– vulnerabilities of the SCS either directly or indirectly through the other parts of the

machine which can be exploited by security threats that can result in security attacks

(security breach);

– influence on the safety characteristics and ability of the SCS to properly perform its

function(s);
– typical use case definition and application of a corresponding threat model.

NOTE 2 For other aspects of security threats and vulnerabilities, the provisions of the IEC 62443 (all parts) can

apply.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 62061, Safety of machinery - Functional safety of safety-related electrical, electronic and

programmable electronic control systems

ISO 12100:2010, Safety of machinery – General principles for design — Risk assessment and

risk reduction

ISO 13849-1:2015, Safety of machinery – Safety-related parts of control systems – Part 1:

General principles for design
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
---------------------- Page: 8 ----------------------
IEC TR 63074:2019 © IEC 2019 – 7 –
3.1.1
asset

physical or logical object having either a perceived or actual value to a control system

[SOURCE: IEC 62443-3-3:2013, 3.1.1 modified –"the IACS" replaced by "a control system",

removal of Note 1 to entry]
3.1.2
attack
assault on a system that derives from an intelligent threat

[SOURCE: IEC 62443-3-3:2013, 3.1.3, modified – removal of Notes 1 and 2 to entry]

3.1.3
availability

ability of an item to be in a state to perform a required function under given conditions at a

given instant or over a given time interval, assuming that the required external resources are

provided

Note 1 to entry: This ability depends on the combined aspects of the reliability performance, the maintainability

performance and the maintenance support performance.

Note 2 to entry: Required external resources, other than maintenance resources do not affect the availability

performance of the item.

Note 3 to entry: In French the term "disponibilité" is also used in the sense of "instantaneous availability". In

German the term "Verfügbarkeit" is also used in the sense of "instantaneous availability".

[SOURCE: IEC TS 62443-1-1:2009, 3.2.16, modified – addition of information about German

terminology in Note 3]
3.1.4
confidentiality

assurance that information is not disclosed to unauthorized individuals, processes, or devices

[SOURCE: IEC TS 62443-1-1:2009, 3.2.28]
3.1.5
control system

system which responds to an input from, for example, the process, other machine elements,

an operator, external control equipment, and generates an output(s) causing the machine to

behave in the intended manner
3.1.6
dangerous failure

failure of an element and/or subsystem and/or system that plays a part in implementing the

safety function that:

a) prevents a safety function from operating when required (demand mode) or causes a

safety function to fail (continuous mode) such that the machine is put into a hazardous or

potentially hazardous state; or

b) decreases the probability that the safety function operates correctly when required.

[SOURCE: IEC 61508-4:2010, 3.6.7, modified – "EUC" replaced by "machine"]
3.1.7
functional safety

part of the safety of the machine and the machine control system which depends on the

correct functioning of the safety-related control system, other technology safety-related

systems and external risk reduction facilities
---------------------- Page: 9 ----------------------
– 8 – IEC TR 63074:2019 © IEC 2019

[SOURCE: IEC 61508-4:2010, 3.1.12, modified – "EUC" replaced by "machine", "E/E/PE"

deleted]
3.1.8
machinery
machine

assembly, fitted with or intended to be fitted with a drive system consisting of linked parts or

components, at least one of which moves, and which are joined together for a specific

application

Note 1 to entry: The term "machinery" also covers an assembly of machines which, in order to achieve the same

end, are arranged and controlled so that they function as an integral whole.
[SOURCE: ISO 12100-1:2010, 3.1, modified – removal of Note 2]
3.1.9
protective measure
measure intended to achieve risk reduction, implemented

– by the designer (inherently safe design, safeguarding and complementary protective

measures, information for use) and/or

– by the user (organization: safe working procedures, supervision, permit-to-work systems;

provision and use of additional safeguards; use of personal protective equipment; training)

[SOURCE: ISO 12100:2010, 3.19, modified – removal of Note]
3.1.10
risk

combination of the probability of occurrence of harm and the severity of that harm

[SOURCE: ISO 12100:2010, 3.12]
3.1.11
safety
freedom from risk which is not tolerable
[SOURCE: ISO/IEC Guide 51:2014, 3.14]
3.1.12
safety function

function of a machine whose failure can result in an immediate increase of the risk(s)

[SOURCE: ISO 12100, 3.30]
3.1.13
safety integrity

probability of a safety-related control system satisfactorily performing the specified safety

functions under all the stated conditions within a stated period of time

[SOURCE: IEC 61508-4:2010, 3.5.4, modified –"an E/E/PE safety-related system" replaced by

"a safety-related control system", removal of Notes]
3.1.14
SCS
Safety-related Control System
part of the control system of a machine which implements a safety function

Note 1 to entry: This is equivalent to SRECS of IEC 62061:2015 or one or several SRP/CS of ISO 13849-1.

---------------------- Page: 10 ----------------------
IEC TR 63074:2019 © IEC 2019 – 9 –
[SOURCE: MT 62061, 3.2.3, modified – Note 1 removed]
3.1.15
security
a) measures taken to protect a system

b) condition of a system that results from the establishment and maintenance of measures to

protect the system

c) condition of system resources being free from unauthorized access and from unauthorized

or accidental change, destruction, or loss

d) capability of a computer-based system to provide adequate confidence that unauthorized

persons and systems can neither modify the software and its data nor gain access to the

system functions, and yet to ensure that this is not denied to authorized persons and

systems

e) prevention of illegal or unwanted penetration of, or interference with, the proper and

intended operation of an industrial automation and control system

Note 1 to entry: Measures can be controls related to physical security (controlling physical access to computing

assets) or logical security (capability to login to a given system and application).

[SOURCE: IEC TS 62443-1-1:2009, 3.2.99]
3.1.16
countermeasure
security countermeasure

action, device, procedure, or technique that reduces a threat, a vulnerability, or an attack by

eliminating or preventing it, by minimizing the harm it can cause, or by discovering and

reporting it so that corrective action can be taken

[SOURCE: IEC TS 62443-1-1:2009, 3.2.33, modified – addition of second preferred term

"security countermeasure", removal of Note]
3.1.17
Security Level

measure of confidence that the IACS (industrial automation control system) is free from

vulnerabilities and functions in the intended manner

[SOURCE: IEC 62443-3-3:2013, 3.1.38, modified – addition of second preferred term "SL",

removal of Note]
3.1.18
security risk

expectation of loss expressed as the probability that a particular threat will exploit a particular

vulnerability with a particular consequence

[SOURCE: IEC TS 62443-1-1:2009, 3.2.87, modified – "risk" replaced by "security risk"]

3.1.19
security risk assessment

process that systematically identifies potential vulnerabilities to valuable system resources

and threats to those resources, quantifies loss exposures and consequences based on

probability of occurrence, and (optionally) recommends how to allocate resources to

countermeasures to minimize the exposure

[SOURCE: IEC TS 62443-1-1:2009, 3.2.88, modified –"risk assessment" replaced by "security

risk assessment", "total exposure" replaced by "the exposure", removal of Notes]
---------------------- Page: 11 ----------------------
– 10 – IEC TR 63074:2019 © IEC 2019
3.1.20
subsystem

entity of the top-level architectural design of a safety-related system where a dangerous

failure of the subsystem results in dangerous failure of a safety function

[SOURCE: IEC 61508-4:2010, 3.4.4, modified – removal of references to 3.6.7 a) within the

definition]
3.1.21
threat

circumstance or event with the potential to adversely affect operations (including mission,

functions, image or reputation), assets, control systems or individuals via unauthorized

access, destruction, disclosure, modification of data and/or denial of service
[SOURCE: IEC 62443-3-3:2013, 3.1.44]
3.1.22
user of the machine
entity with the overall responsibility for the machine
3.1.23
vulnerability

flaw or weakness in a system's design, implementation, or operation and management that

could be exploited to violate the system's integrity or security policy

Note 1 to entry: Vulnerabilities can be the result of intentional design choices or may be unintentional, resulting

from the failure to understand the operational environment. They can also emerge as equipment ages and

eventually becomes obsolete, which occurs in a shorter time than is typical for the underlying process or equipment

under control. Vulnerabilities are not limited to the electronic or network systems.

Machine that initially has limited vulnerability can become more vulnerable with situations such as changing

environment, changing technology, system component failure, unavailability of component replacements, personnel

turnover, and greater threat intelligence.
[SOURCE: IEC/TS 62443-1-1:2009, 3.2.135, modified – addition of Note]
3.1.24
vulnerability assessment
formal description and evaluation of the vulnerabilities in a system
[SOURCE: IEC 62443-2-1:2010, 3.1.44]
4 Safety and security overview
4.1 General

The relationship between safety and security aspects can be characterized as follows:

– a machine has appropriate protective measures;

– security countermeasures applied for a machine are to be appropriate in order to avoid

degradation of the performance of protective measures that implement safety function(s).

NOTE Persons who are qualified to implement security countermeasures are not necessarily the same people

who are qualified to implement SCS. Therefore it is reasonable to mutually exchange information and support.

4.2 Safety objectives

Safety of machinery is based on (safety) risk assessment according to ISO 12100, or by

following a type-C standard for specific machine types, in combination with the derived risk

reduction measures which can be performed by safety function(s).
---------------------- Page: 12 ----------------------
IEC TR 63074:2019 © IEC 2019 – 11 –

NOTE The risk assessment including the implemented risk reduction measures is applied by the designers during

the development of machinery to enable the design of machines that are safe for their intended use.

Safety function(s) that are performed by a SCS shall achieve a safety integrity level

equivalent to SIL according to IEC 62061 or PL according to ISO 13849-1.
4.3 Security objectives

In general terms security is focused mainly on achieving three objectives: confidentiality,

integrity and availability.
NOTE 1 Security objectives are for example:
– Integrity against manipulations;

– Confidentiality by means of methods commonly accepted by both the security and industrial automation

communities;

– Availability (usually and very generally) of machine(s) (including safety functions).

Security risks will be evaluated by using a security risk assessment in order to identify the

security objectives.

A security risk assessment is based on a product / system in its environment on which threats

and known vulnerabilities are applied. The aim of this activity is to derive relevant security

countermeasures applied for a machine to fulfil the overall security objectives.
NOTE 2 See also 5.5 of IEC TS 62443-1-1:2009.

In the context of safety of machinery, the security countermeasures are intended to protect

the ability to maintain safe operation of a machine and their implementation should not

adversely affect any safety function (see Figure 1).
NOTE 3 Essential functions according to IEC 62443-3-3 i
...
