SIST EN 50632-2-1:2015

Electric motor-operated tools - Dust measurement procedure - Part 2-1: Particular requirements for drills and impact drills

This clause of Part 1 is applicable except as follows:
Addition:
This part of EN 50632 applies to diamond core drills.

Motorbetriebene Elektrowerkzeuge - Staubmessverfahren - Teil 2-1: Besondere Anforderungen für Diamantkernbohrmaschinen

Outils électriques à moteur - Procédure de mesure de la poussière - Partie 2-1: Exigences particulières pour les perceuses et les perceuses à percussion

Elektromotorna orodja - Postopek meritve prahu - 2-1. del: Posebne zahteve za svedre in udarne svedre

Ta evropski standard določa splošne zahteve za meritve prahu elektromotornih orodij, ki se napajajo iz omrežja ali baterij. Ta evropski standard velja za tista orodja, pri katerih se pričakuje nabiranje prahu (na primer mineralnega prahu, ki vsebuje kremenico, ali lesnega prahu), ne glede na to, ali so opremljeni z enoto za izločevanje prahu ali ne.

General Information

• Status: Published
• Public Enquiry End Date: 31-Oct-2014
• Publication Date: 09-Nov-2015
• ICS: 25.100.30 - Drills, countersinks, reamers
• ICS: 25.140.20 - Electric tools
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Sep-2015
• Due Date: 06-Nov-2015
• Completion Date: 10-Nov-2015
• Ref Project: EN 50632-2-1:2015 - Electric motor-operated tools - Dust measurement procedure - Part 2-1: Particular requirements for diamond core drills

Overview

SIST EN 50632-2-1:2015 is a European standard developed by CLC focusing on the dust measurement procedures for electric motor-operated tools, specifically targeting diamond core drills. This standard complements Part 1 of EN 50632 by addressing particular requirements and modifications necessary to accurately assess dust emissions from diamond core drilling operations. It aims to provide consistent and reliable methods to measure the inhalable and respirable dust generated during the drilling process, which is critical for assessing occupational safety and health risks.

This standard applies to diamond core drills designed to operate with or without water supply, capable of drilling with or without percussion, primarily into materials such as concrete and brick. The test methods and conditions outlined ensure accurate dust measurement and facilitate compliance with safety regulations related to dust exposure.

Key Topics

• Scope and Applicability
  EN 50632-2-1 applies specifically to diamond core drills, supplementing the general dust measurement procedures covered in Part 1 of EN 50632. It defines the unique testing conditions needed for these tools.

• Test Procedure and Operating Conditions
  Diamond core drills are tested under load using calcium silicate blocks as the test material.

  • Blocks must have a density between 1800 and 2000 kg/m³, thickness of at least 100 mm, and compressive strength of ≥ 20 N/mm².
  • Blocks are arranged on an A-support inclined at 15°, with specific height and orientation.
  • Drilling involves creating 20 holes of 40 mm depth within a 10-minute cycle.
  • A new drill bit of 82 mm diameter is used for each test, with speed settings adjusted according to manufacturer specifications.
  • Feed force must ensure stable tool operation and optimal drilling performance.

• Instrumentation and Measurement Parameters
  Dust measurement instruments are specified as in Part 1, focusing on inhalable and respirable dust concentration. EN 50632-2-1 requires reporting the mean value of respirable dust concentration, plus any cycle time extension if 20 holes cannot be completed within 10 minutes.

• Reporting Requirements
  Reports must include detailed operational conditions, dust concentration results, and any deviations such as extended drilling cycles. This enhances transparency and facilitates comparison across tests and products.

Applications

The standard is intended for manufacturers, testing laboratories, safety officers, and regulatory bodies involved with:

• Occupational Health and Safety Compliance:
  Ensuring diamond core drills meet dust emission limits to protect workers from harmful particulate exposure.

• Product Development and Quality Control:
  Guiding manufacturers in assessing dust emissions during tool design and production to improve safety features like dust extraction systems.

• Certification and Market Access:
  Supporting conformance assessments needed for CE marking and market entry within the European Union and other territories adopting EN standards.

• Risk Assessment and Workplace Monitoring:
  Providing a benchmark methodology for identifying and mitigating dust exposure risks when using diamond core drilling equipment on construction sites and industrial facilities.

Related Standards

• EN 50632-1:2015 – General requirements and procedures for dust measurement in electric motor-operated tools, serving as the foundational document for Part 2-1.

• ISO and CEN Safety Standards on Respiratory Protection and Dust Exposure – Complementary guidance on workplace dust limits and protective equipment.

• EN 60745 Series – Safety requirements for handheld motor-operated electric tools.

By following SIST EN 50632-2-1:2015, stakeholders can ensure accurate dust measurement tailored to diamond core drills, fostering safer work environments and supporting compliance with European safety directives.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2015
Elektromotorna orodja - Postopek meritve prahu - 2-1. del: Posebne zahteve za
svedre in udarne svedre
Electric motor-operated tools - Dust measurement procedure - Part 2-1: Particular
requirements for drills and impact drills
Ta slovenski standard je istoveten z: EN 50632-2-1:2015
ICS:
25.100.30 Svedri, greznila, posnemalna Drills, countersinks, reamers
orodja
25.140.20 (OHNWULþQDRURGMD Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 50632-2-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2015
ICS 25.140.20
English Version
Electric motor-operated tools - Dust measurement procedure -
Part 2-1: Particular requirements for diamond core drills
Outils électriques à moteur - Mode opératoire pour la Motorbetriebene Elektrowerkzeuge - Staubmessverfahren -
mesure de la poussière - Partie 2-1: Exigences particulières Teil 2-1: Besondere Anforderungen für Diamant-
pour les perceuses et les perceuses à percussion Kernbohrmaschinen
This European Standard was approved by CENELEC on 2015-08-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50632-2-1:2015 E

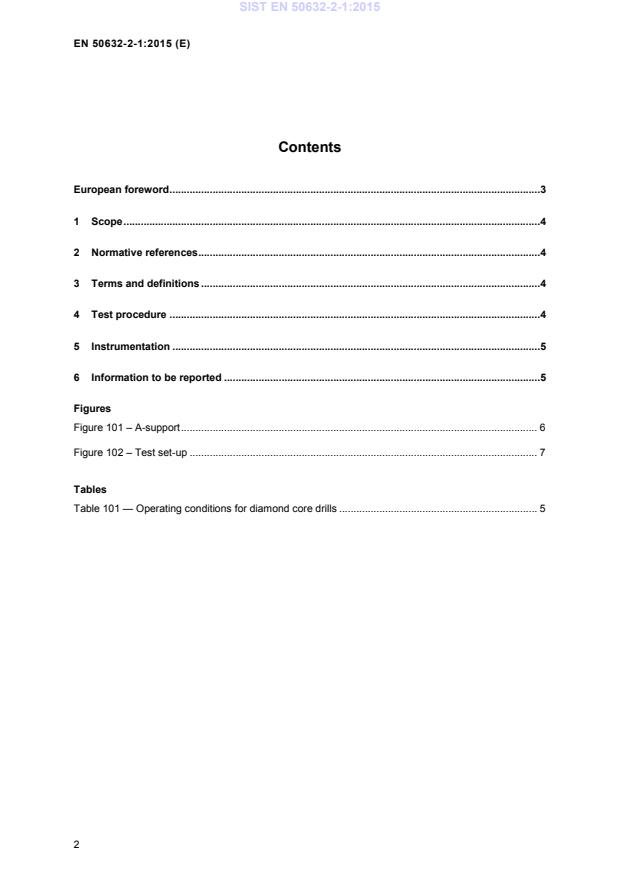

Contents
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Test procedure . 4
5 Instrumentation . 5
6 Information to be reported . 5
Figures
Figure 101 – A-support . 6
Figure 102 – Test set-up . 7
Tables
Table 101 — Operating conditions for diamond core drills . 5

European foreword
This document (EN 50632-2-1:2015) has been prepared by CLC/TC 116 “Safety of motor-operated
electric tools”.
The following dates are fixed:

(dop) 2016-08-03
• latest date by which this document has to be
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2017-08-03
conflicting with this document have to
be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held respon
...
