SIST EN 2573:2022

Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Wires - 0,25 mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa

This document specifies the requirements relating to:
Steel X6CrNiTi18-10 (1.4541)
Air melted
Softened
Wires
0,25 mm ≤ De ≤ 3 mm
Rm ≤ 780 MPa
for aerospace applications.
Material number: 1.4541.
ASD-STAN designation: FE-PA3601.

Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) - Lufterschmolzen - Weichgeglüht - Drähte - 0,25 mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa

No Scope available

Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Élaboré à l'air - Adouci - Fils - 0,25 mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa

Le présent document spécifie les exigences relatives à :
Acier X6CrNiTi18-10 (1.4541)
Élaboré à l’air
Adouci
Fils
0,25 mm ≤ De ≤ 3 mm
Rm ≤ 780 MPa
pour applications aérospatiales.
W.nr : 1.4541.
Désignation ASD-STAN : FE-PA3601.

Aeronavtika - Jeklo X6CrNiTi18-10 (1.4541) - Taljeno na zraku - Popuščano - Žice - 0,25 mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa

General Information

• Status: Published
• Public Enquiry End Date: 30-Nov-2020
• Publication Date: 10-Nov-2022
• ICS: 49.025.10 - Steels
• ICS: 77.140.65 - Steel wire, wire ropes and link chains
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 26-Oct-2022
• Due Date: 31-Dec-2022
• Completion Date: 11-Nov-2022
• Ref Project: EN 2573:2022 - Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Wires - 0,25 mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa

Relations

• Replaces: SIST EN 2573:2007 - Aerospace series - Steel FE-PA3601 (X6CrNiTi18-10) - Softened - Rm <= 780 MPa - Wire - 0,25 mm <= De <= 3 mm
• Effective Date: 26-Oct-2022
• Revised: SIST EN 2573:2007 - Aerospace series - Steel FE-PA3601 (X6CrNiTi18-10) - Softened - Rm <= 780 MPa - Wire - 0,25 mm <= De <= 3 mm
• Effective Date: 11-Dec-2018

Overview - EN 2573:2022 (Steel X6CrNiTi18-10 / 1.4541)

EN 2573:2022 is a CEN / ASD‑STAN aerospace standard that specifies requirements for wires made from Steel X6CrNiTi18‑10 (material number 1.4541). It covers air‑melted, softened, drawn wires with diameters in the range 0.25 mm ≤ D ≤ 3 mm and a maximum tensile strength of Rm ≤ 780 MPa. The ASD‑STAN designation for this product is FE‑PA3601. EN 2573:2022 supersedes EN 2573:2007 and is part of the EN aerospace metallic materials series.

Key topics and technical requirements

• Material designation: X6CrNiTi18‑10 (1.4541) - titanium‑stabilized chromium‑nickel steel (as identified by the standard designation).
• Form and production: Wires produced by drawing; air melted as the melting method.
• Size range: Diameter 0.25 mm to 3 mm (0,25 mm ≤ D ≤ 3 mm).
• Delivery condition: Softened (heat treated within specified range).
• Heat treatment: Typical heat treatment specified in the standard: 1050 °C to 1100 °C, followed by air cooling (AC) or water quench (WQ) as applicable.
• Mechanical properties: Tensile strength Rm ≤ 780 MPa; elongation A ≥ 40% (other mechanical test requirements and sampling follow EN 4700‑004).
• Testing and inspection: Test piece preparation, marking, dimensional inspection and product qualification are carried out according to EN 4700‑004; specific qualification programmes are agreed between manufacturer and purchaser.
• Typical use: The standard identifies locking wire as a typical application.

Practical applications and who uses this standard

• Aerospace manufacturers specifying corrosion‑resistant fastening and locking wire where controlled mechanical properties and traceability are required.
• Suppliers and wire producers who must meet CEN/ASD‑STAN acceptance, inspection and marking requirements for aerospace deliveries.
• Design and quality engineers responsible for material selection, procurement specifications, material certificates and qualification testing in aviation and defence projects.
• Maintenance, repair and overhaul (MRO) organizations using standardized locking wire and small‑diameter stainless steel wire for aircraft assemblies.

Using EN 2573:2022 helps ensure consistent material quality, reproducible mechanical performance, and compatibility with aerospace procurement and certification processes.

Related standards

• EN 4700‑004 - referenced for wire technical specification, test sample and inspection methods.
• EN 4258 - context for the EN aerospace metallic materials series and standard organization.
• EN 4500‑005 - drafting rules followed in preparation of this material standard.

Keywords: EN 2573:2022, X6CrNiTi18‑10, 1.4541, aerospace wires, air melted, softened wire, 0.25–3 mm, Rm ≤ 780 MPa, FE‑PA3601, locking wire.

Standards Content (Sample)

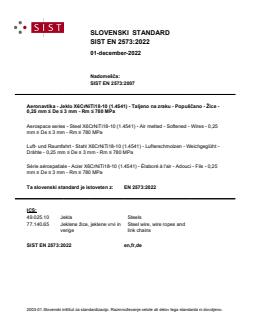

SLOVENSKI STANDARD
01-december-2022
Nadomešča:
SIST EN 2573:2007
Aeronavtika - Jeklo X6CrNiTi18-10 (1.4541) - Taljeno na zraku - Popuščano - Žice -
0,25 mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa
Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Wires - 0,25
mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa
Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) - Lufterschmolzen - Weichgeglüht -
Drähte - 0,25 mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa
Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Élaboré à l'air - Adouci - Fils - 0,25
mm ≤ De ≤ 3 mm - Rm ≤ 780 MPa
Ta slovenski standard je istoveten z: EN 2573:2022
ICS:
49.025.10 Jekla Steels
77.140.65 Jeklene žice, jeklene vrvi in Steel wire, wire ropes and
verige link chains
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

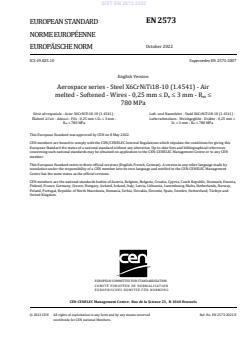

EN 2573
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 2573:2007
English Version
Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air
melted - Softened - Wires - 0,25 mm  D  3 mm - R 
e m
780 MPa
Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) -
Élaboré à l'air - Adouci - Fils - 0,25 mm  D  3 mm - Lufterschmolzen - Weichgeglüht - Drähte - 0,25 mm 
e
R  780 MPa D  3 mm - R  780 MPa
m e m
This European Standard was approved by CEN on 8 May 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
C O M I T É E U R O P É E N D E N O R M A L I S A T I O N

E U R O P Ä I S C H E S K O M I T E E F Ü R N O R M U N G

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2573:2022 E
worldwide for CEN national Members.

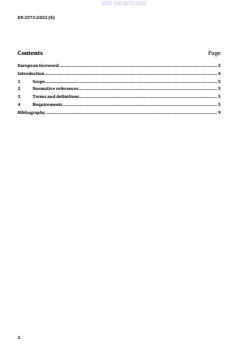

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9

European foreword
This document has been prepared by the Aerospace and Defence Industries Association of Europe —
Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, eith
...
