EUROPEAN STANDARD EN IEC 62275
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2019
ICS 29.120.10; 29.120.99 Supersedes EN 62275:2015 and all of its amendments
and corrigenda (if any)
English Version
Cable management systems - Cable ties for electrical
installations
(IEC 62275:2018)
Systèmes de câblage - Colliers pour installations Kabelführungssysteme - Kabelbinder für elektrische
électriques Installationen
(IEC 62275:2018) (IEC 62275:2018)
This European Standard was approved by CENELEC on 2018-09-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62275:2019 E
---------------------- Page: 3 ----------------------
SIST EN IEC 62275:2020
EN IEC 62275:2019 (E)

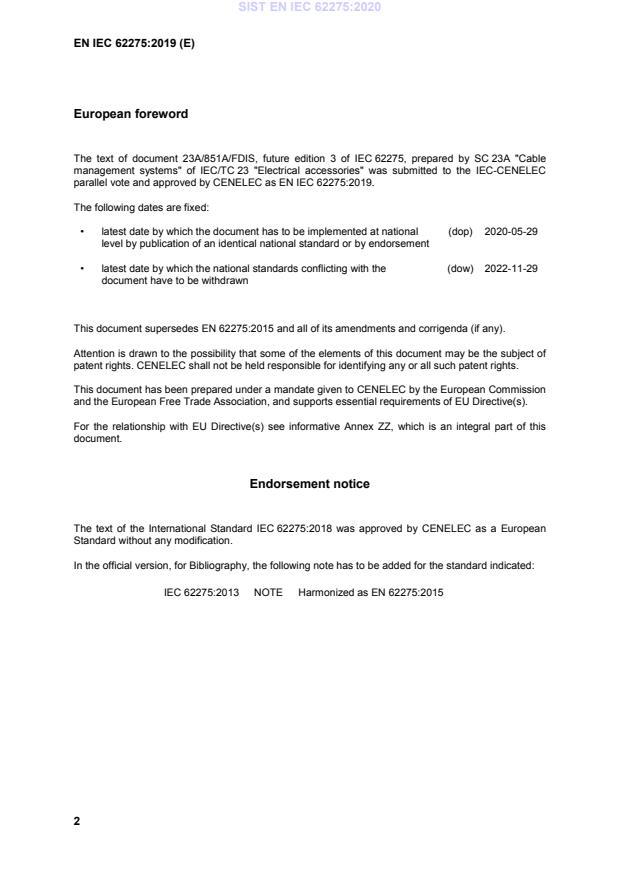

European foreword
The text of document 23A/851A/FDIS, future edition 3 of IEC 62275, prepared by SC 23A "Cable
management systems" of IEC/TC 23 "Electrical accessories" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 62275:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-05-29
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-11-29
document have to be withdrawn
This document supersedes EN 62275:2015 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 62275:2018 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62275:2013 NOTE Harmonized as EN 62275:2015
2
---------------------- Page: 4 ----------------------
SIST EN IEC 62275:2020
EN IEC 62275:2019 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-6 2007 Environmental testing - Part 2-6: Tests - EN 60068-2-6 2008
Test Fc: Vibration (sinusoidal)
IEC 60216-4-1 2006 Electrical insulating materials - Thermal EN 60216-4-1 2006
endurance properties - Part 4-1: Ageing
ovens - Single-chamber ovens
IEC 60695-11-5 2016 Fire hazard testing - Part 11-5: Test flames EN 60695-11-5 2017
- Needle-flame test method - Apparatus,
confirmatory test arrangement and
guidance
ISO 4892-2 2013 Plastics - Methods of exposure to EN ISO 4892-2 2013
laboratory light sources - Part 2: Xenon-arc
lamps
ISO 9227 2017 Corrosion tests in artificial atmospheres - EN ISO 9227 2017
Salt spray tests
3
---------------------- Page: 5 ----------------------
SIST EN IEC 62275:2020
EN IEC 62275:2019 (E)
Annex ZZ
(informative)
Relationship between this European Standard and the safety objectives of
Directive 2014/35/EU [2014 OJ L96] aimed to be covered
This European Standard has been prepared under a Commission’s standardization request relating
to harmonized standards in the field of the Low Voltage Directive, M/511, to provide one voluntary
means of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of
the Council of 26 February 2014 on the harmonization of the laws of the Member States relating to
the making available on the market of electrical equipment designed for use within certain voltage
limits [2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits
of the scope of this standard, a presumption of conformity with the corresponding safety objectives
of that Directive, and associated EFTA regulations.
Table ZZ.1 – Correspondence between this European Standard
and Annex I of Directive 2014/35/EU [2014 OJ L96]
Safety objectives of Clause(s) / sub-clause(s) Remarks / Notes
Directive 2014/35/EU of this EN
(1)(a) Clause 7
(1)(b) Clauses 5 and 7
(1)(c) Clauses 1, 2, 3, 4 and 6
See also 2c), 3a), 3b) and 3c)
below
(2)(a) Not applicable.
Cable ties do not carry any
current, so there is no danger by
direct contact.
Cable ties are not in contact
with live parts, so there is no
danger by indirect contact
(2)(b) Not applicable
Cable ties do not carry any
current and they cannot produce
heat, arcs or radiation.
(2)(c) Clauses 8, 9 and 10 Emissions, production and/or
use of hazardous substances
not covered in this standard (but
covered in other
regulations/standards, e.g.
RoHS)
(2)(d) Not applicable.
Cable ties do not carry any
current, and therefore insulation
is not required
(3)(a) Clause 9
(3)(b) Clauses 9, 10 and 11
(3)(c) Clause 11.1
4
---------------------- Page: 6 ----------------------
SIST EN IEC 62275:2020
EN IEC 62275:2019 (E)
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of
this standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope
of this standard.
5
---------------------- Page: 7 ----------------------
SIST EN IEC 62275:2020
---------------------- Page: 8 ----------------------
SIST EN IEC 62275:2020
IEC 62275
®
Edition 3.0 2018-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Cable management systems – Cable ties for electrical installations
Systèmes de câblage – Colliers pour installations électriques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.10; 29.120.99 ISBN 978-2-8322-5924-5
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 9 ----------------------
SIST EN IEC 62275:2020
– 2 – IEC 62275:2018 © IEC 2018
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 8
5 General notes on tests . 8
6 Classification . 13
6.1 According to material . 13
6.1.1 Metallic component . 13
6.1.2 Non-metallic component . 13
6.1.3 Composite component . 13
6.2 According to loop tensile strength for cable ties and mechanical strength for
fixing devices . 13
6.2.1 Loop tensile strength for cable ties . 13
6.2.2 Type 1 – Retains at least 50 % of declared loop tensile strength for
cable ties and mechanical strength for fixing devices after test
conditions . 13
6.2.3 Type 2 – Retains 100 % declared loop tensile strength for cable ties
and mechanical strength for fixing devices after test conditions . 13
6.2.4 According to loop tensile strength and mechanical strength of integral
assemblies . 13
6.3 According to temperature . 14
6.3.1 According to maximum operating temperature for application given in
Table 4 . 14
6.3.2 According to minimum operating temperature for application given in
Table 5 . 14
6.3.3 According to minimum temperature during installation as declared by
the manufacturer . 14
6.4 According to contribution to fire for non-metallic and composite cable ties
and integral assemblies only . 14
6.4.1 Flame propagating . 14
6.4.2 Non-flame propagating . 14
6.5 According to environmental influences . 15
6.5.1 According to resistance to ultraviolet light for non-metallic and
composite components . 15
6.5.2 According to resistance to corrosion for metallic and composite
components . 15
7 Marking and documentation . 15
8 Construction . 17
9 Mechanical properties. 18
9.1 Requirements . 18
9.2 Installation test . 18
9.3 Minimum installation temperature test for cable ties . 18
9.4 Minimum operating temperature test for cable ties . 19
9.5 Loop tensile strength test for cable ties classified according to 6.2.2 . 21
9.5.1 As-received condition . 21
9.5.2 After heat ageing . 21
9.5.3 After temperature cycling . 22
---------------------- Page: 10 ----------------------
SIST EN IEC 62275:2020
IEC 62275:2018 © IEC 2018 – 3 –
9.6 Loop tensile strength test for cable ties classified according to 6.2.3 . 22
9.6.1 As-received condition . 22
9.6.2 After heat ageing . 22
9.6.3 After temperature cycling . 23
9.6.4 After vibration test for metallic cable ties . 23
9.7 Mechanical strength test for fixing devices and integral assemblies . 25
9.7.1 As-received condition . 25
9.7.2 After heat ageing . 30
9.7.3 After temperature cycling . 31
10 Contribution to fire . 32
11 Environmental influences . 34
11.1 Resistance to ultraviolet light . 34
11.2 Resistance to corrosion . 37
12 Electromagnetic compatibility . 37
Annex A (normative) Compliance checks to be carried out for cable ties and fixing
devices currently complying with IEC 62275:2013 in order to comply with this edition 3 . 38
Bibliography . 40
Figure 1 – Reference thickness for cable ties . 9
Figure 2 – Typical arrangements for cable tie orientation on split mandrel for tensile
test . 12
Figure 3 – Test piston for durability test for marking . 16
Figure 4 – Test apparatus for cable tie impact test . 21
Figure 5 – Typical arrangement for the vibration test . 24
Figure 6 – Typical arrangement of test assembly for fixing devices and for integral
fixing devices . 30
Figure 7 – Arrangement for the needle flame test . 34
Figure 8 – Recommended sample repositioning for ultraviolet light and water exposure . 36
Table 1 – Stabilization time for samples . 8
Table 2 – Test mandrel diameter . 10
Table 3 – Loop tensile strength . 13
Table 4 – Maximum operating temperature for application . 14
Table 5 – Minimum operating temperature for application . 14
Table 6 – Literature information . 17
Table 7 – Energy values of hammer . 21
Table A.1 – Required compliance checks . 38
---------------------- Page: 11 ----------------------
SIST EN IEC 62275:2020
– 4 – IEC 62275:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CABLE MANAGEMENT SYSTEMS –
CABLE TIES FOR ELECTRICAL INSTALLATIONS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62275 has been prepared by subcommittee 23A: Cable
management systems, of IEC technical committee 23: Electrical accessories.
This third edition cancels and replaces the second edition published in 2013. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) consideration of adhesive fixing devices,
b) revised and updated normative references,
c) modified definitions for metallic and composite cable ties,
d) new definitions,
e) improvement of test procedures,
f) new figures for typical arrangement of test assembly for fixing devices and for integral
fixing devices.
---------------------- Page: 12 ----------------------
SIST EN IEC 62275:2020
IEC 62275:2018 © IEC 2018 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
23A/851A/FDIS 23A/868/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The following differing practices of a less permanent nature exist in the countries indicated
below.
– 6.2.2: additional type classifications are applicable when pre-qualified moulding materials
are used (Canada, USA).
– 6.2.3: additional type classifications are applicable when pre-qualified moulding materials
are used (Canada, USA).
– 7.3: some marking information is required to be placed on the packaging (Canada, Russia,
USA).
In this publication, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Notes: in smaller roman type.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 13 ----------------------
SIST EN IEC 62275:2020
– 6 – IEC 62275:2018 © IEC 2018
CABLE MANAGEMENT SYSTEMS –
CABLE TIES FOR ELECTRICAL INSTALLATIONS
1 Scope
This document specifies requirements for metallic, non-metallic and composite cable ties and
their associated fixing devices used for the management and support of wiring systems in
electrical installations.
Cable ties and associated fixing devices can also be suitable for other applications and where
so used, additional requirements can apply.
This document does not contain requirements that evaluate any electrical insulation
properties of the cable tie or mechanical protection of the cables provided by the cable tie.
This document contains requirements for the mechanical interface of an adhesive fixing
device to a solid surface. It does not consider the mechanical behaviour of the solid surface in
itself.
This document does not consider the mechanical interface, for example the mounting screw,
of a fixing device other than adhesive to a solid surface.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60068-2-6:2007, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
IEC 60695-11-5:2016, Fire hazard testing – Part 11-5: Test flames – Needle-flame test
method – Apparatus, confirmatory test arrangement and guidance
IEC 60216-4-1:2006, Electrical insulating materials – Thermal endurance properties –
Part 4-1: Ageing ovens – Single-chamber ovens
ISO 4892-2:2013, Plastics – Methods of exposure to laboratory light sources – Part 2:
Xenon-arc lamps
ISO 9227:2017, Corrosion tests in artificial atmospheres – Salt spray tests
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
---------------------- Page: 14 ----------------------
SIST EN IEC 62275:2020
IEC 62275:2018 © IEC 2018 – 7 –
3.1
cable tie
band or length of material, employing a locking device, used for bundling or tying groups of
cables together, securing and/or supporting the cables
Note 1 to entry: Type 1 and Type 2 cable ties are classified in 6.2.2 and 6.2.3.
Note 2 to entry: In some countries, such as Canada and the United States, additional Type classifications are
applicable when prequalified moulding materials are used. See UL 62275/CSA C22.2 No. 62275.
3.2
fixing device
component (such as a block or bracket) specifically designed to secure the cable tie to a
mounting surface
3.3
metallic component
component that consists of metal only
Note 1 to entry: A metallic cable tie having a thin non-metallic or organic coating, where the coating does not
contribute to the determination of the loop tensile strength, is considered a metallic component
Note 2 to entry: In case of doubt, "as-received condition" tests with and without coating can be carried out.
3.4
non-metallic component
component that consists of non-metallic material only
3.5
composite component
component comprising both metallic and non-metallic materials where both metallic and non-
metallic materials contribute to the determination of the loop tensile strength
3.6
environmental influence
effect of corrosive substances or solar radiation, etc.
3.7
loop tensile strength
reference mechanical characteristic of a cable tie with its locking mechanism engaged
3.8
locking device
feature of a cable tie for fixing it in a closed position
3.9
low hygroscopic polymer
polymer having the characteristic of not enabling attraction or holding water greater than
1,0 % by weight of the material from the surrounding environment at 23 °C and 50 % relative
humidity
Note 1 to entry: Examples of low hygroscopic polymers include: polypropylene, acetal, ethylene
tetrafluoroethylene, ethylene chlorotrifluoroethylene, nylon 12, polyetheretherketone.
3.10
equilibrium moisture content
state at which a polymer neither absorbs or releases moisture when exposed to a surrounding
environment of 23 °C and 50 % relative humidity
---------------------- Page: 15 ----------------------
SIST EN IEC 62275:2020
– 8 – IEC 62275:2018 © IEC 2018
3.11
integral assembly
component which incorporates a cable tie and a fixing device
3.12
adhesive fixing device
fixing device provided with an adhesive tape specifically designed to secure the cable tie to a
mounting surface
4 General requirements
A cable tie and a fixing device shall withstand the stresses likely to occur during recom-
mended installation practice and perform under the conditions of classifications in Clause 6 as
declared by the manufacturer.
Compliance is checke
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
