Rescue systems - Transportation of incubators - Part 1: Interface conditions

This European Standard specifies the requirements for the interface between the ambulance and the incubator and the associated equipment, needed for care and treatment of infants, used in emergency or planned transports to ensure interchangeability and interoperability and to provide uninterrupted care of patients.
This European Standard does not give requirements for the vehicles, crafts, devices or incubators as such; these requirements are found in other standards. However, transport incubators are normally combined with other equipment to form a "transport incubator system".

Rettungssysteme - Inkubatortransport - Teil 1: Anforderungen an Schnittstellen

Diese Europäische Norm legt die Anforderungen an die Schnittstellen zwischen dem Rettungsdienstfahrzeug und dem Inkubator sowie der dazugehörigen Ausrüstung fest, die bei Notfall- oder geplanten Transporten für die Pflege und Behandlung von Säuglingen erforderlich ist, um die Austauschbarkeit und Interfunktionsfähigkeit sicherzustellen und die ununterbrochene Pflege der Patienten zu ermöglichen.
In dieser Europäischen Norm sind keine Anforderungen an die Fahrzeuge, Luftfahrzeuge, Geräte oder Inkubatoren selbst festgelegt, diese Anforderungen finden sich in anderen Normen. Transportinkubatoren sind jedoch üblicherweise mit anderen Geräten verbunden und bilden ein „Inkubatortransportsystem“.

Systèmes de sauvetage - Transport d'incubateurs - Partie 1 : Conditions d'interface

La présente Norme européenne spécifie les exigences relatives à l'interface entre l'ambulance et l'incubateur et les équipements associés, nécessaires pour les soins et le traitement des nourrissons, utilisé en cas de transports d'urgence ou prévus, pour assurer l'interchangeabilité et l'interopérabilité et pour fournir des soins sans interruption aux patients.
La présente Norme européenne ne donne pas d'exigences pour les véhicules, les aéronefs, les dispositifs ou incubateurs en tant que tels; ces exigences se trouvent dans d'autres normes. Cependant, les incubateurs de transport sont normalement combinés avec d'autres équipements pour former un "système de transport d'incubateur ".

Reševalni sistemi - Prevoz inkubatorjev - 1. del: Pogoji za vmesnike

Ta evropski standard določa zahteve za vmesnike med reševalnim vozilom ter inkubatorjem in povezano opremo, potrebno za nego in zdravljenje dojenčkov, ki se uporabljajo pri reševalnih ali načrtovanih prevozih za zagotavljanje zamenljivosti in interoperabilnosti ter nemotene oskrbe bolnikov.
Ta evropski standard ne podaja zahtev za sama vozila, objekte, naprave ali inkubatorje; te zahteve so navedene v drugih standardih. Vendar pa se transportni inkubatorji običajno uporabljajo skupaj z drugo opremo, ki sestavlja »sistem za transport inkubatorja«.

General Information

Status
Published
Public Enquiry End Date
29-Apr-2016
Publication Date
23-Aug-2018
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
16-Jul-2018
Due Date
20-Sep-2018
Completion Date
24-Aug-2018

Relations

Buy Standard

Standard
EN 13976-1:2018
English language
14 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Reševalni sistemi - Prevoz inkubatorjev - 1. del: Pogoji za vmesnikeRettungssysteme - Inkubatortransport - Teil 1: Anforderungen an SchnittstellenSystèmes de sauvetage - Transport d'incubateurs - Partie 1 : Conditions d'interfaceRescue systems - Transportation of incubators - Part 1: Interface conditions11.160First aid11.040.10Anestezijska, respiratorna in reanimacijska opremaAnaesthetic, respiratory and reanimation equipmentICS:Ta slovenski standard je istoveten z:EN 13976-1:2018SIST EN 13976-1:2018en01-september-2018SIST EN 13976-1:2018SLOVENSKI
STANDARD



SIST EN 13976-1:2018



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13976-1
June
t r s z ICS
s sä r v rä s râ
s sä s x r Supersedes EN
s u { y xæ sã t r s sEnglish Version
Rescue systems æ Transportation of incubators æ Part
sã Interface requirements Systèmes de sauvetage æ Transport d 5incubateurs æ Partie
sã Exigences d 5interface
Rettungssysteme æ Inkubatortransport æ Teil
sã Schnittstellenanforderungen This European Standard was approved by CEN on
s r January
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
9
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u { y xæ sã t r s z ESIST EN 13976-1:2018

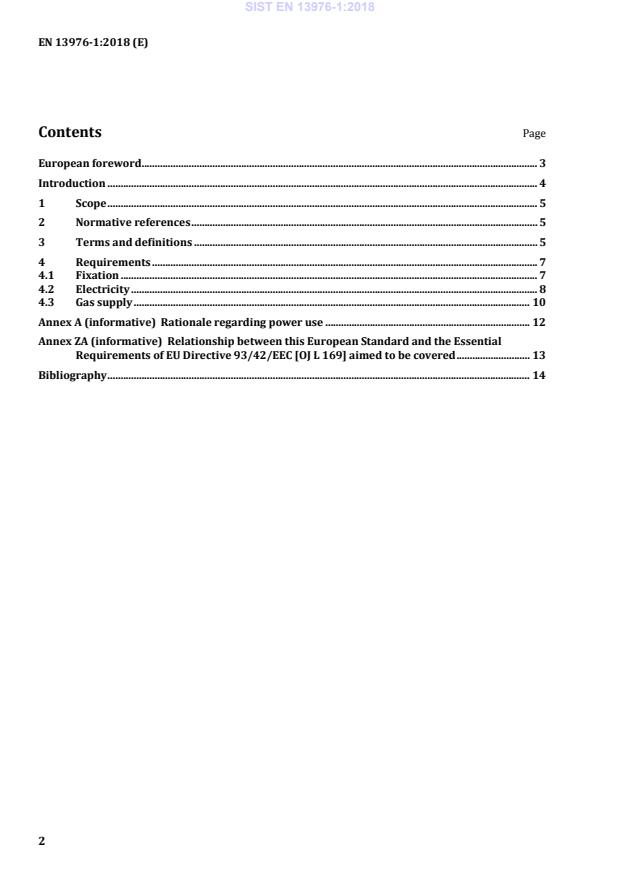

EN 13976-1:2018 (E) 2 Contents Page European foreword . 3 Introduction . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 5 4 Requirements . 7 4.1 Fixation . 7 4.2 Electricity . 8 4.3 Gas supply . 10 Annex A (informative)
Rationale regarding power use . 12 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 93/42/EEC [OJ L 169] aimed to be covered . 13 Bibliography . 14
SIST EN 13976-1:2018



EN 13976-1:2018 (E) 3 European foreword This document (EN 13976-1:2018) has been prepared by Technical Committee CEN/TC 239 “Rescue systems”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by December 2018, and conflicting national standards shall be withdrawn at the latest by December 2019. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA which is an integral part of this document. This document supersedes EN 13976-1:2011. The following point represents the most important technical change in the revision: — clarified ambiguous and unclear issues in order to improve interchangeability and interoperability of the transport incubator system when transported in hospitals and between hospitals using different ambulances and air crafts, by specifying the interface for mechanical fixation, gas connector and electrical connector EN 13976 consists of the following parts, under the general title Rescue systems — Transportation of incubators: — Part 1: Interface requirements — Part 2: System requirements According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13976-1:2018



EN 13976-1:2018 (E) 4 Introduction This European Standard gives the requirements for the interfaces required in the transport of a transport incubator system. The standard includes interfaces between the incubator and the ambulance as well as those between the various items of equipment used to form the transport incubator system. They are essential in order to ensure interchangeability and a safe and effective function in different vehicles, allowing the uninterrupted care of infants. Interface requirements are given in this part 1 (EN 13976-1). Requirements for the system are given in part 2 (EN 13976-2). Fixation, monitoring, supply of gas and electricity are maintained through the use of the same standard interfaces as defined in this document. SIST EN 13976-1:2018



EN 13976-1:2018 (E) 5 1 Scope This European Standard specifies the requirements for the interface between the ambulance and the incubator and the associated equipment, needed for care and treatment of infants, used in emergency or planned transports to ensure interchangeability and interoperability and to provide uninterrupted care of infants. This European Standard does not give requirements for the vehicles, crafts, devices or incubators as such; these requirements are found in other standards. However, transport incubators are normally combined with other equipment to form a “transport incubator system”. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ENV 737-6:2003, Medical gas pipeline systems — Part 6: Dimensions and allocation of probes for terminal units for compressed medical gases and vacuum EN 1789:2007+A2:2014, Medical vehicles and their equipment — Road ambulances EN 13718-1:2014, Medical vehicles and their equipment — Air ambulances — Part 1: Requirements for medical devices used in air ambulances EN 13718-2:2015, Medical vehicles and their equipment — Air ambulances — Part 2: Operational and technical requirements for air ambulances EN 60601-2-20:2009, Medical electrical equipment — Part 2-20: Particular requirements for the basic safety and essential performance of infant transport incubators (IEC 60601-2-20:2009) EN ISO 407:2004, Small medical gas cylinders — Pin-index yoke-type valve connections (ISO 407:2004) EN ISO 7396-1:2016, Medical gas pipeline systems — Part 1: Pipeline systems for compressed medical gases and vacuum (ISO 7396-1:2016) EN ISO 7396-2:2007, Medical gas pipeline systems — Part 2: Anaesthetic gas scavenging disposal systems (ISO 7396-2:2007) EN ISO 9170-1:2008, Terminal units for medical gas pipeline systems — Part 1: Terminal units for use with compressed medical gases and vacuum (ISO 9170-1:2008) ISO 7166:1985, Aircraft — Rail and stud configuration for passenger equipment and cargo restraint MIL-DTL-5015H, Detail Specification: Connectors, Electrical, Circular Threaded, An Type, General Specification for (18 May 2000) (Superseding MIL-C-5015G) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 ambulance vehicle or craft intended to be crewed by a minimum of two appropriately trained staff for the provision of care and transport of at least one stretchered patient SIST EN 13976-1:2018



EN 13976-1:2018 (E) 6 [SOURCE: EN 1789:2007+A2:2014, 3.2] 3.2 interchangeability facility to transfer patients between scenes of emergencies, ambulances and hospitals as well as between hospitals, including transport between countries, providing continuous patient care, treatment and monitoring [SOURCE: EN 13718-2:2015, 3.6] 3.3 interface means or place of interaction between one or more of the medical devices, the ambient conditions, the user, the patient and, when relevant, the ambulance 3.4 interoperability facility to connect various medical devices that are fixed to patients, into relevant connections of associated medical devices including the possibility of connecting powered medical devices to various kinds of ambulances [SOURCE: EN 13718-2:2015, 3.8] 3.5 transport incubator device with an enclosure intended to contain an infant with transparent section/s to allow observation of the infant and provide a safe, secure and temperature controlled environment while being transported for medical care and it needs to be possible to provide care and medical intervention should this be required during the journey 3.6 transport incubator system TIS system produced or arranged to serve as a complete unit for the care of an infant during transport, see Figure 1 SIST EN 13976-1:2018



EN 13976-1:2018 (E) 7
Key 1 Transport incubator system NOTE Example of
components that could be included in a TIS: 1.1
Incubator 1.2
Syringe pump 1.3
Ventilator 1.4
Monitor 2 Track system 2.1 Track studs 2.2 Track rails 3 Interface to be used if track rails cannot be fixed directly to the stretcher system. If the interface is to be attached to undercarriage, or
...
