Mobile Communication On Board Aircraft (MCOBA) systems - Harmonised Standard for access to radio spectrum

The present document specifies technical characteristics and methods of measurements for the following equipment
types (which are parts of a Mobile Communication On Board Aircraft system):
1) The Onboard Base Transceiver Station (OBTS) supporting GSM and/or UMTS, and/or LTE communication
protocols including specific functions for restricting the transmit power of the MSs or UEs, associated with the
OBTS.
2) The Network Control Unit (NCU) preventing direct connection of the onboard mobile terminals with mobile
networks on the ground by raising the noise floor in the cabin.
The OBTSs are capable of operating in all or any part of the frequency bands given in table 1-1.
The present document applies only to radio equipment using a dedicated transmitting antenna that is designed as an
indispensable part of the system for usage on board an aircraft.
It applies to equipment for continuous and discontinuous transmission of data and digital speech.
Within the European Union, the system covered by the present document operates in accordance with the operational
requirements as outlined in the Commission Decision 2016/2317/EU [i.4] based on the former Decision 2013/654 [i.3].
In relation the NCU, some frequency bands are now optional while they were mandatory before. Due to this difference
the present document had to be reviewed.
The present document contains requirements to ensure that such Radio equipment both effectively uses and supports the
efficient use of radio spectrum in order to avoid harmful interference.
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the Radio Equipment Directive [i.1] may apply to equipment within the scope of the
present document.
The present document does not cover equipment compliance with relevant civil aviation regulations. In this respect, a
MCOBA system, for its installation and operation on board an aircraft is subject to additional national or international
civil aviation airworthiness certification requirements, for example to EUROCAE ED-14G [i.7].
NOTE: The relationship between the present document and essential requirements of article 3.2 of Directive
2014/53/EU [i.1] is given in annex A.

Sistemi mobilnih komunikacij v letalih (MCOBA) - Harmonizirani standard za dostop do radijskega spektra

General Information

Status
Published
Public Enquiry End Date
13-Sep-2021
Publication Date
06-Oct-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
27-Sep-2021
Due Date
02-Dec-2021
Completion Date
07-Oct-2021
Mandate

Buy Standard

Standard
SIST EN 302 480 V2.2.1:2021
English language
54 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Standard
ETSI EN 302 480 V2.2.1 (2021-09) - Mobile Communication On Board Aircraft (MCOBA) systems; Harmonised Standard for access to radio spectrum
English language
54 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 302 480 V2.2.0 (2021-06) - Mobile Communication On Board Aircraft (MCOBA) systems; Harmonised Standard for access to radio spectrum
English language
54 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
oSIST prEN 302 480 V2.2.0:2021
English language
54 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 302 480 V2.2.1:2021
01-november-2021
Sistemi mobilnih komunikacij v letalih (MCOBA) - Harmonizirani standard za
dostop do radijskega spektra
Mobile Communication On Board Aircraft (MCOBA) systems - Harmonised Standard for
access to radio spectrum
Ta slovenski standard je istoveten z: ETSI EN 302 480 V2.2.1 (2021-09)
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
33.070.99 Druge mobilne storitve Other mobile services
49.090 Oprema in instrumenti v On-board equipment and
zračnih in vesoljskih plovilih instruments
SIST EN 302 480 V2.2.1:2021 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 302 480 V2.2.1:2021
---------------------- Page: 2 ----------------------
SIST EN 302 480 V2.2.1:2021
ETSI EN 302 480 V2.2.1 (2021-09)
HARMONISED EUROPEAN STANDARD
Mobile Communication On Board Aircraft (MCOBA) systems;
Harmonised Standard for access to radio spectrum
---------------------- Page: 3 ----------------------
SIST EN 302 480 V2.2.1:2021
2 ETSI EN 302 480 V2.2.1 (2021-09)
Reference
REN/MSG-TFES-1126
Keywords
3G, 3GPP, cellular, digital, E-UTRA, GSM, LTE,
MCOBA, mobile, radio, regulation, UMTS, UTRA,
WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability

The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of

experience to understand and interpret its content in accordance with generally accepted engineering or

other professional standard and applicable regulations.

No recommendation as to products and services or vendors is made or should be implied.

In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not

limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property

rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages

for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use

of or inability to use the software.
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and

microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
---------------------- Page: 4 ----------------------
SIST EN 302 480 V2.2.1:2021
3 ETSI EN 302 480 V2.2.1 (2021-09)
Contents

Intellectual Property Rights ................................................................................................................................ 7

Foreword ............................................................................................................................................................. 7

Modal verbs terminology .................................................................................................................................... 8

Introduction ........................................................................................................................................................ 8

1 Scope ........................................................................................................................................................ 9

2 References .............................................................................................................................................. 10

2.1 Normative references ....................................................................................................................................... 10

2.2 Informative references ...................................................................................................................................... 11

3 Definition of terms, symbols and abbreviations ..................................................................................... 12

3.1 Terms ................................................................................................................................................................ 12

3.2 Symbols ............................................................................................................................................................ 12

3.3 Abbreviations ................................................................................................................................................... 12

4 Technical requirements specifications ................................................................................................... 13

4.1 Environmental profile ....................................................................................................................................... 13

4.2 Conformance requirements .............................................................................................................................. 13

4.2.1 Introduction................................................................................................................................................. 13

4.2.2 GSM-OBTS performance ........................................................................................................................... 15

4.2.2.1 GSM-OBTS maximum output power ................................................................................................... 15

4.2.2.1.1 Definition......................................................................................................................................... 15

4.2.2.1.2 Limits .............................................................................................................................................. 15

4.2.2.1.3 Conformance ................................................................................................................................... 15

4.2.2.2 GSM-OBTS output RF spectrum .......................................................................................................... 16

4.2.2.2.1 Spectrum due to modulation and wideband noise ........................................................................... 16

4.2.2.2.2 Spectrum due to switching transients .............................................................................................. 16

4.2.2.3 GSM-OBTS radio frequency tolerance ................................................................................................. 16

4.2.2.3.1 Definition......................................................................................................................................... 16

4.2.2.3.2 Limits .............................................................................................................................................. 16

4.2.2.3.3 Conformance ................................................................................................................................... 16

4.2.2.4 GSM-OBTS controlled MS RF power .................................................................................................. 17

4.2.2.4.1 Definition......................................................................................................................................... 17

4.2.2.4.2 Limits .............................................................................................................................................. 17

4.2.2.4.3 Conformance ................................................................................................................................... 17

4.2.2.5 GSM-OBTS reference sensitivity level ................................................................................................. 17

4.2.2.5.1 Definition......................................................................................................................................... 17

4.2.2.5.2 Limits .............................................................................................................................................. 17

4.2.2.5.3 Conformance ................................................................................................................................... 17

4.2.2.6 GSM-OBTS unwanted emissions in the spurious domain .................................................................... 17

4.2.2.6.1 Definition......................................................................................................................................... 17

4.2.2.6.2 Limits .............................................................................................................................................. 17

4.2.2.6.3 Conformance ................................................................................................................................... 18

4.2.3 UTRA-OBTS performance ......................................................................................................................... 18

4.2.3.1 Conformance compliance ...................................................................................................................... 18

4.2.3.2 UTRA-OBTS Spectrum Mask .............................................................................................................. 18

4.2.3.2.1 Definition......................................................................................................................................... 18

4.2.3.2.2 Limits .............................................................................................................................................. 18

4.2.3.2.3 Conformance ................................................................................................................................... 18

4.2.3.3 UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR).......................................................... 18

4.2.3.3.1 Definition......................................................................................................................................... 18

4.2.3.3.2 Limits .............................................................................................................................................. 19

4.2.3.3.3 Conformance ................................................................................................................................... 19

4.2.3.4 UTRA-OBTS Transmitter spurious emissions ...................................................................................... 19

4.2.3.4.1 Definition......................................................................................................................................... 19

4.2.3.4.2 Limits .............................................................................................................................................. 19

4.2.3.4.3 Conformance ................................................................................................................................... 19

ETSI
---------------------- Page: 5 ----------------------
SIST EN 302 480 V2.2.1:2021
4 ETSI EN 302 480 V2.2.1 (2021-09)

4.2.3.5 UTRA-OBTS maximum output power ................................................................................................. 20

4.2.3.5.1 Definition......................................................................................................................................... 20

4.2.3.5.2 Limits .............................................................................................................................................. 20

4.2.3.5.3 Conformance ................................................................................................................................... 20

4.2.3.6 UTRA-OBTS Transmit intermodulation............................................................................................... 20

4.2.3.6.1 Definition......................................................................................................................................... 20

4.2.3.6.2 Limits .............................................................................................................................................. 20

4.2.3.6.3 Conformance ................................................................................................................................... 21

4.2.3.7 UTRA-OBTS Receiver spurious emissions .......................................................................................... 21

4.2.3.7.1 Definition......................................................................................................................................... 21

4.2.3.7.2 Limits .............................................................................................................................................. 21

4.2.3.7.3 Conformance ................................................................................................................................... 21

4.2.3.8 UTRA-OBTS Blocking characteristics ................................................................................................. 21

4.2.3.8.1 Definition......................................................................................................................................... 21

4.2.3.8.2 Limits .............................................................................................................................................. 21

4.2.3.8.3 Conformance ................................................................................................................................... 22

4.2.3.9 UTRA-OBTS Receiver intermodulation characteristics ....................................................................... 22

4.2.3.9.1 Definition......................................................................................................................................... 22

4.2.3.9.2 Limits .............................................................................................................................................. 22

4.2.3.9.3 Conformance ................................................................................................................................... 22

4.2.3.10 UTRA-OBTS Receiver adjacent channel selectivity ............................................................................ 22

4.2.3.10.1 Definition......................................................................................................................................... 22

4.2.3.10.2 Limits .............................................................................................................................................. 22

4.2.3.10.3 Conformance ................................................................................................................................... 23

4.2.3.11 UTRA-OBTS controlled UE RF power ................................................................................................ 23

4.2.3.11.1 Definition......................................................................................................................................... 23

4.2.3.11.2 Limits .............................................................................................................................................. 23

4.2.3.11.3 Conformance ................................................................................................................................... 23

4.2.3.12 UTRA-OBTS reference sensitivity level .............................................................................................. 23

4.2.3.12.1 Definition......................................................................................................................................... 23

4.2.3.12.2 Limit ................................................................................................................................................ 23

4.2.3.12.3 Conformance ................................................................................................................................... 23

4.2.4 E-UTRA-OBTS performance ..................................................................................................................... 24

4.2.4.1 Conformance compliance ...................................................................................................................... 24

4.2.4.2 E-UTRA-OBTS operating band unwanted emissions ........................................................................... 24

4.2.4.2.1 Definition......................................................................................................................................... 24

4.2.4.2.2 Limits .............................................................................................................................................. 24

4.2.4.2.3 Conformance ................................................................................................................................... 24

4.2.4.3 E-UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR) ...................................................... 24

4.2.4.3.1 Definition......................................................................................................................................... 24

4.2.4.3.2 Limits .............................................................................................................................................. 25

4.2.4.3.3 Conformance ................................................................................................................................... 25

4.2.4.4 E-UTRA-OBTS transmitter spurious emissions ................................................................................... 25

4.2.4.4.1 Definition......................................................................................................................................... 25

4.2.4.4.2 Limits .............................................................................................................................................. 25

4.2.4.4.3 Conformance ................................................................................................................................... 26

4.2.4.5 E-UTRA-OBTS maximum output power ............................................................................................. 26

4.2.4.5.1 Definition......................................................................................................................................... 26

4.2.4.5.2 Limits .............................................................................................................................................. 26

4.2.4.5.3 Conformance ................................................................................................................................... 26

4.2.4.6 E-UTRA-OBTS transmit intermodulation ............................................................................................ 26

4.2.4.6.1 Definition......................................................................................................................................... 26

4.2.4.6.2 Limits .............................................................................................................................................. 26

4.2.4.6.3 Conformance ................................................................................................................................... 26

4.2.4.7 E-UTRA-OBTS receiver spurious emissions ........................................................................................ 26

4.2.4.7.1 Definition......................................................................................................................................... 26

4.2.4.7.2 Limits .............................................................................................................................................. 27

4.2.4.7.3 Conformance ................................................................................................................................... 27

4.2.4.8 E-UTRA-OBTS Blocking characteristics ............................................................................................. 27

4.2.4.8.1 Definition......................................................................................................................................... 27

4.2.4.8.2 Limits .............................................................................................................................................. 27

4.2.4.8.3 Conformance ................................................................................................................................... 27

ETSI
---------------------- Page: 6 ----------------------
SIST EN 302 480 V2.2.1:2021
5 ETSI EN 302 480 V2.2.1 (2021-09)

4.2.4.9 E-UTRA-OBTS receiver intermodulation characteristics ..................................................................... 27

4.2.4.9.1 Definition......................................................................................................................................... 27

4.2.4.9.2 Limits .............................................................................................................................................. 27

4.2.4.9.3 Conformance ................................................................................................................................... 27

4.2.4.10 E-UTRA-OBTS Adjacent Channel Selectivity (ACS) and narrow-band blocking ............................... 28

4.2.4.10.1 Definition......................................................................................................................................... 28

4.2.4.10.2 Limits .............................................................................................................................................. 28

4.2.4.10.3 Conformance ................................................................................................................................... 28

4.2.4.11 E-UTRA-OBTS controlled UE RF power ............................................................................................ 28

4.2.4.11.1 Definition......................................................................................................................................... 28

4.2.4.11.2 Limits .............................................................................................................................................. 28

4.2.4.11.3 Conformance ................................................................................................................................... 28

4.2.4.12 E-UTRA-OBTS reference sensitivity level ........................................................................................... 28

4.2.4.12.1 Definition......................................................................................................................................... 28

4.2.4.12.2 Limits .............................................................................................................................................. 29

4.2.4.12.3 Conformance ................................................................................................................................... 29

4.2.5 NCU Transmitter Performance ................................................................................................................... 29

4.2.5.1 NCU maximum mean power spectral density ....................................................................................... 29

4.2.5.1.1 Definition......................................................................................................................................... 29

4.2.5.1.2 Limits .............................................................................................................................................. 29

4.2.5.1.3 Conformance ................................................................................................................................... 29

4.2.5.2 NCU power flatness .............................................................................................................................. 29

4.2.5.2.1 Definition......................................................................................................................................... 29

4.2.5.2.2 Limits .............................................................................................................................................. 29

4.2.5.2.3 Conformance ................................................................................................................................... 29

4.2.5.3 NCU out-of-band emissions .................................................................................................................. 30

4.2.5.3.1 Definition......................................................................................................................................... 30

4.2.5.3.2 Limits .............................................................................................................................................. 30

4.2.5.3.3 Conformance ................................................................................................................................... 30

4.2.5.4 NCU spurious emissions ....................................................................................................................... 30

4.2.5.4.1 Definition......................................................................................................................................... 30

4.2.5.4.2 Limits .............................................................................................................................................. 31

4.2.5.4.3 Conformance ................................................................................................................................... 31

4.2.6 MCOBA system performance..................................................................................................................... 31

4.2.6.1 MCOBA Unwanted emissions in the out-of-band domain ................................................................... 31

4.2.6.1.1 Definition......................................................................................................................................... 31

4.2.6.1.2 Limits .............................................................................................................................................. 31

4.2.6.2 MCOBA Unwanted emissions in the spurious domain ......................................................................... 32

4.2.6.2.1 Definition......................................................................................................................................... 32

4.2.6.2.2 Limits .............................................................................................................................................. 32

4.2.6.3 MCOBA Cessation of emission ............................................................................................................ 32

4.2.6.3.1 Definition......................................................................................................................................... 32

4.2.6.3.2 Specification .................................................................................................................................... 32

4.2.6.3.3 Conformance ................................................................................................................................... 32

5 Testing for compliance with technical requirements .............................................................................. 32

5.1 Environmental conditions for testing ............................................................................................................... 32

5.2 Essential radio test suites .................................................................................................................................. 33

5.2.0 M
...

ETSI EN 302 480 V2.2.1 (2021-09)
HARMONISED EUROPEAN STANDARD
Mobile Communication On Board Aircraft (MCOBA) systems;
Harmonised Standard for access to radio spectrum
---------------------- Page: 1 ----------------------
2 ETSI EN 302 480 V2.2.1 (2021-09)

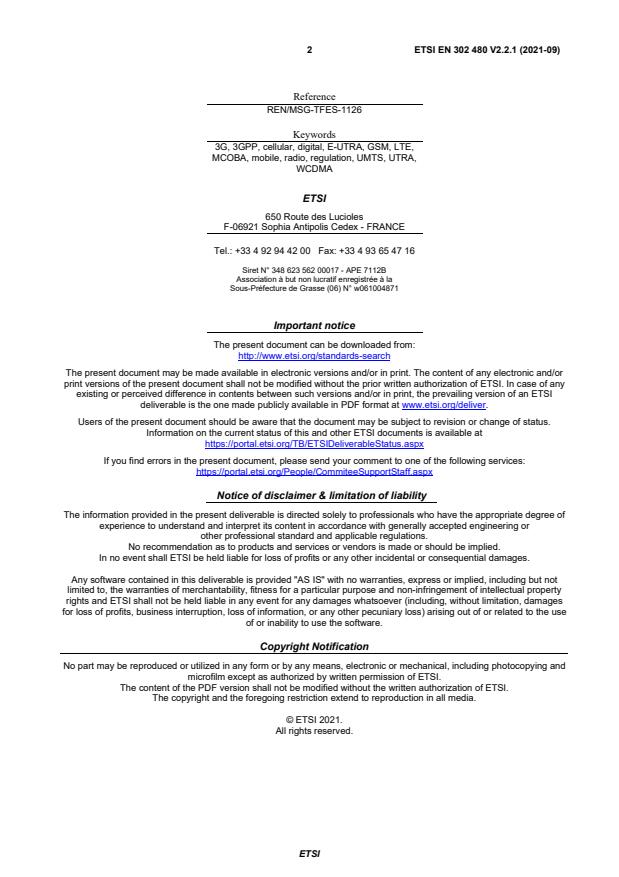

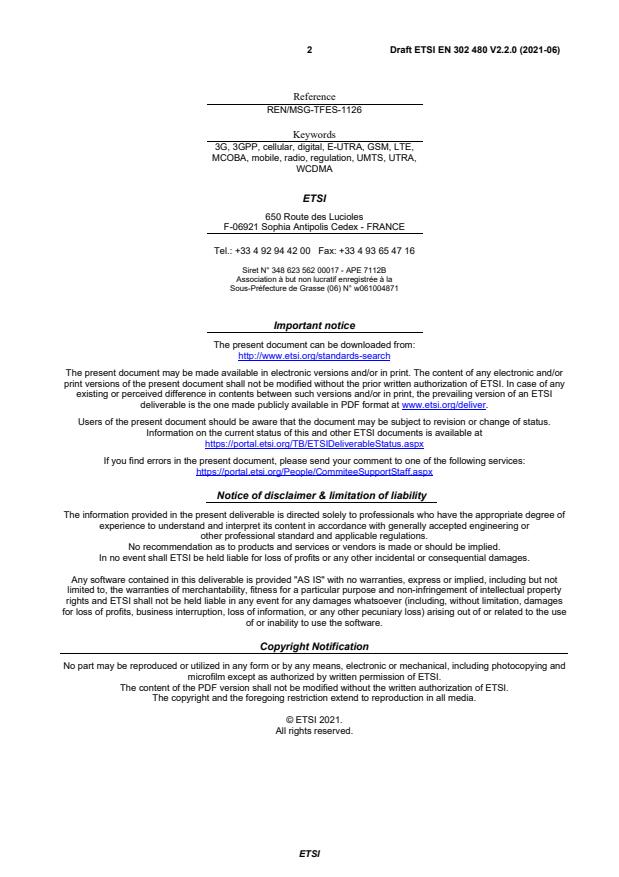

Reference
REN/MSG-TFES-1126
Keywords
3G, 3GPP, cellular, digital, E-UTRA, GSM, LTE,
MCOBA, mobile, radio, regulation, UMTS, UTRA,
WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability

The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of

experience to understand and interpret its content in accordance with generally accepted engineering or

other professional standard and applicable regulations.

No recommendation as to products and services or vendors is made or should be implied.

In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not

limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property

rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages

for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use

of or inability to use the software.
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and

microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 302 480 V2.2.1 (2021-09)
Contents

Intellectual Property Rights ................................................................................................................................ 7

Foreword ............................................................................................................................................................. 7

Modal verbs terminology .................................................................................................................................... 8

Introduction ........................................................................................................................................................ 8

1 Scope ........................................................................................................................................................ 9

2 References .............................................................................................................................................. 10

2.1 Normative references ....................................................................................................................................... 10

2.2 Informative references ...................................................................................................................................... 11

3 Definition of terms, symbols and abbreviations ..................................................................................... 12

3.1 Terms ................................................................................................................................................................ 12

3.2 Symbols ............................................................................................................................................................ 12

3.3 Abbreviations ................................................................................................................................................... 12

4 Technical requirements specifications ................................................................................................... 13

4.1 Environmental profile ....................................................................................................................................... 13

4.2 Conformance requirements .............................................................................................................................. 13

4.2.1 Introduction................................................................................................................................................. 13

4.2.2 GSM-OBTS performance ........................................................................................................................... 15

4.2.2.1 GSM-OBTS maximum output power ................................................................................................... 15

4.2.2.1.1 Definition......................................................................................................................................... 15

4.2.2.1.2 Limits .............................................................................................................................................. 15

4.2.2.1.3 Conformance ................................................................................................................................... 15

4.2.2.2 GSM-OBTS output RF spectrum .......................................................................................................... 16

4.2.2.2.1 Spectrum due to modulation and wideband noise ........................................................................... 16

4.2.2.2.2 Spectrum due to switching transients .............................................................................................. 16

4.2.2.3 GSM-OBTS radio frequency tolerance ................................................................................................. 16

4.2.2.3.1 Definition......................................................................................................................................... 16

4.2.2.3.2 Limits .............................................................................................................................................. 16

4.2.2.3.3 Conformance ................................................................................................................................... 16

4.2.2.4 GSM-OBTS controlled MS RF power .................................................................................................. 17

4.2.2.4.1 Definition......................................................................................................................................... 17

4.2.2.4.2 Limits .............................................................................................................................................. 17

4.2.2.4.3 Conformance ................................................................................................................................... 17

4.2.2.5 GSM-OBTS reference sensitivity level ................................................................................................. 17

4.2.2.5.1 Definition......................................................................................................................................... 17

4.2.2.5.2 Limits .............................................................................................................................................. 17

4.2.2.5.3 Conformance ................................................................................................................................... 17

4.2.2.6 GSM-OBTS unwanted emissions in the spurious domain .................................................................... 17

4.2.2.6.1 Definition......................................................................................................................................... 17

4.2.2.6.2 Limits .............................................................................................................................................. 17

4.2.2.6.3 Conformance ................................................................................................................................... 18

4.2.3 UTRA-OBTS performance ......................................................................................................................... 18

4.2.3.1 Conformance compliance ...................................................................................................................... 18

4.2.3.2 UTRA-OBTS Spectrum Mask .............................................................................................................. 18

4.2.3.2.1 Definition......................................................................................................................................... 18

4.2.3.2.2 Limits .............................................................................................................................................. 18

4.2.3.2.3 Conformance ................................................................................................................................... 18

4.2.3.3 UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR).......................................................... 18

4.2.3.3.1 Definition......................................................................................................................................... 18

4.2.3.3.2 Limits .............................................................................................................................................. 19

4.2.3.3.3 Conformance ................................................................................................................................... 19

4.2.3.4 UTRA-OBTS Transmitter spurious emissions ...................................................................................... 19

4.2.3.4.1 Definition......................................................................................................................................... 19

4.2.3.4.2 Limits .............................................................................................................................................. 19

4.2.3.4.3 Conformance ................................................................................................................................... 19

ETSI
---------------------- Page: 3 ----------------------

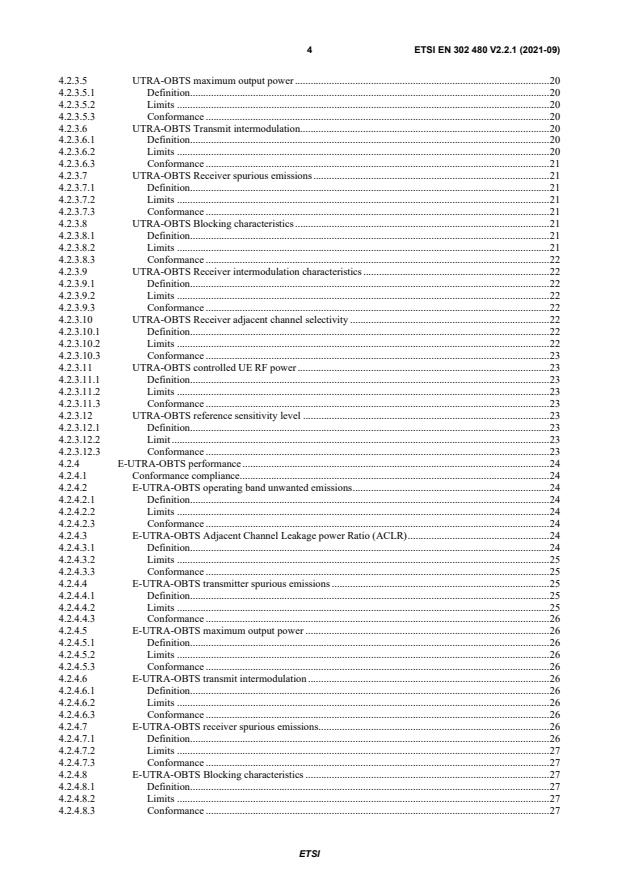

4 ETSI EN 302 480 V2.2.1 (2021-09)

4.2.3.5 UTRA-OBTS maximum output power ................................................................................................. 20

4.2.3.5.1 Definition......................................................................................................................................... 20

4.2.3.5.2 Limits .............................................................................................................................................. 20

4.2.3.5.3 Conformance ................................................................................................................................... 20

4.2.3.6 UTRA-OBTS Transmit intermodulation............................................................................................... 20

4.2.3.6.1 Definition......................................................................................................................................... 20

4.2.3.6.2 Limits .............................................................................................................................................. 20

4.2.3.6.3 Conformance ................................................................................................................................... 21

4.2.3.7 UTRA-OBTS Receiver spurious emissions .......................................................................................... 21

4.2.3.7.1 Definition......................................................................................................................................... 21

4.2.3.7.2 Limits .............................................................................................................................................. 21

4.2.3.7.3 Conformance ................................................................................................................................... 21

4.2.3.8 UTRA-OBTS Blocking characteristics ................................................................................................. 21

4.2.3.8.1 Definition......................................................................................................................................... 21

4.2.3.8.2 Limits .............................................................................................................................................. 21

4.2.3.8.3 Conformance ................................................................................................................................... 22

4.2.3.9 UTRA-OBTS Receiver intermodulation characteristics ....................................................................... 22

4.2.3.9.1 Definition......................................................................................................................................... 22

4.2.3.9.2 Limits .............................................................................................................................................. 22

4.2.3.9.3 Conformance ................................................................................................................................... 22

4.2.3.10 UTRA-OBTS Receiver adjacent channel selectivity ............................................................................ 22

4.2.3.10.1 Definition......................................................................................................................................... 22

4.2.3.10.2 Limits .............................................................................................................................................. 22

4.2.3.10.3 Conformance ................................................................................................................................... 23

4.2.3.11 UTRA-OBTS controlled UE RF power ................................................................................................ 23

4.2.3.11.1 Definition......................................................................................................................................... 23

4.2.3.11.2 Limits .............................................................................................................................................. 23

4.2.3.11.3 Conformance ................................................................................................................................... 23

4.2.3.12 UTRA-OBTS reference sensitivity level .............................................................................................. 23

4.2.3.12.1 Definition......................................................................................................................................... 23

4.2.3.12.2 Limit ................................................................................................................................................ 23

4.2.3.12.3 Conformance ................................................................................................................................... 23

4.2.4 E-UTRA-OBTS performance ..................................................................................................................... 24

4.2.4.1 Conformance compliance ...................................................................................................................... 24

4.2.4.2 E-UTRA-OBTS operating band unwanted emissions ........................................................................... 24

4.2.4.2.1 Definition......................................................................................................................................... 24

4.2.4.2.2 Limits .............................................................................................................................................. 24

4.2.4.2.3 Conformance ................................................................................................................................... 24

4.2.4.3 E-UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR) ...................................................... 24

4.2.4.3.1 Definition......................................................................................................................................... 24

4.2.4.3.2 Limits .............................................................................................................................................. 25

4.2.4.3.3 Conformance ................................................................................................................................... 25

4.2.4.4 E-UTRA-OBTS transmitter spurious emissions ................................................................................... 25

4.2.4.4.1 Definition......................................................................................................................................... 25

4.2.4.4.2 Limits .............................................................................................................................................. 25

4.2.4.4.3 Conformance ................................................................................................................................... 26

4.2.4.5 E-UTRA-OBTS maximum output power ............................................................................................. 26

4.2.4.5.1 Definition......................................................................................................................................... 26

4.2.4.5.2 Limits .............................................................................................................................................. 26

4.2.4.5.3 Conformance ................................................................................................................................... 26

4.2.4.6 E-UTRA-OBTS transmit intermodulation ............................................................................................ 26

4.2.4.6.1 Definition......................................................................................................................................... 26

4.2.4.6.2 Limits .............................................................................................................................................. 26

4.2.4.6.3 Conformance ................................................................................................................................... 26

4.2.4.7 E-UTRA-OBTS receiver spurious emissions ........................................................................................ 26

4.2.4.7.1 Definition......................................................................................................................................... 26

4.2.4.7.2 Limits .............................................................................................................................................. 27

4.2.4.7.3 Conformance ................................................................................................................................... 27

4.2.4.8 E-UTRA-OBTS Blocking characteristics ............................................................................................. 27

4.2.4.8.1 Definition......................................................................................................................................... 27

4.2.4.8.2 Limits .............................................................................................................................................. 27

4.2.4.8.3 Conformance ................................................................................................................................... 27

ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 302 480 V2.2.1 (2021-09)

4.2.4.9 E-UTRA-OBTS receiver intermodulation characteristics ..................................................................... 27

4.2.4.9.1 Definition......................................................................................................................................... 27

4.2.4.9.2 Limits .............................................................................................................................................. 27

4.2.4.9.3 Conformance ................................................................................................................................... 27

4.2.4.10 E-UTRA-OBTS Adjacent Channel Selectivity (ACS) and narrow-band blocking ............................... 28

4.2.4.10.1 Definition......................................................................................................................................... 28

4.2.4.10.2 Limits .............................................................................................................................................. 28

4.2.4.10.3 Conformance ................................................................................................................................... 28

4.2.4.11 E-UTRA-OBTS controlled UE RF power ............................................................................................ 28

4.2.4.11.1 Definition......................................................................................................................................... 28

4.2.4.11.2 Limits .............................................................................................................................................. 28

4.2.4.11.3 Conformance ................................................................................................................................... 28

4.2.4.12 E-UTRA-OBTS reference sensitivity level ........................................................................................... 28

4.2.4.12.1 Definition......................................................................................................................................... 28

4.2.4.12.2 Limits .............................................................................................................................................. 29

4.2.4.12.3 Conformance ................................................................................................................................... 29

4.2.5 NCU Transmitter Performance ................................................................................................................... 29

4.2.5.1 NCU maximum mean power spectral density ....................................................................................... 29

4.2.5.1.1 Definition......................................................................................................................................... 29

4.2.5.1.2 Limits .............................................................................................................................................. 29

4.2.5.1.3 Conformance ................................................................................................................................... 29

4.2.5.2 NCU power flatness .............................................................................................................................. 29

4.2.5.2.1 Definition......................................................................................................................................... 29

4.2.5.2.2 Limits .............................................................................................................................................. 29

4.2.5.2.3 Conformance ................................................................................................................................... 29

4.2.5.3 NCU out-of-band emissions .................................................................................................................. 30

4.2.5.3.1 Definition......................................................................................................................................... 30

4.2.5.3.2 Limits .............................................................................................................................................. 30

4.2.5.3.3 Conformance ................................................................................................................................... 30

4.2.5.4 NCU spurious emissions ....................................................................................................................... 30

4.2.5.4.1 Definition......................................................................................................................................... 30

4.2.5.4.2 Limits .............................................................................................................................................. 31

4.2.5.4.3 Conformance ................................................................................................................................... 31

4.2.6 MCOBA system performance..................................................................................................................... 31

4.2.6.1 MCOBA Unwanted emissions in the out-of-band domain ................................................................... 31

4.2.6.1.1 Definition......................................................................................................................................... 31

4.2.6.1.2 Limits .............................................................................................................................................. 31

4.2.6.2 MCOBA Unwanted emissions in the spurious domain ......................................................................... 32

4.2.6.2.1 Definition......................................................................................................................................... 32

4.2.6.2.2 Limits .............................................................................................................................................. 32

4.2.6.3 MCOBA Cessation of emission ............................................................................................................ 32

4.2.6.3.1 Definition......................................................................................................................................... 32

4.2.6.3.2 Specification .................................................................................................................................... 32

4.2.6.3.3 Conformance ................................................................................................................................... 32

5 Testing for compliance with technical requirements .............................................................................. 32

5.1 Environmental conditions for testing ............................................................................................................... 32

5.2 Essential radio test suites .................................................................................................................................. 33

5.2.0 Measurement options .................................................................................................................................. 33

5.2.1 GSM-OBTS Performance ........................................................................................................................... 33

5.2.1.1 GSM-OBTS controlled UE/MS RF power ........................................................................................... 33

5.2.1.1.1 Test purpose .................................................................................................................................... 33

5.2.1.1.2 Methods of measurement................................................................................................................. 34

5.2.2 UTRA-OBTS Transmitter Performance ..................................................................................................... 35

5.2.2.1 UTRA-OBTS controlled UE RF power .....................................................................................

...

Draft ETSI EN 302 480 V2.2.0 (2021-06)
HARMONISED EUROPEAN STANDARD
Mobile Communication On Board Aircraft (MCOBA) systems;
Harmonised Standard for access to radio spectrum
---------------------- Page: 1 ----------------------

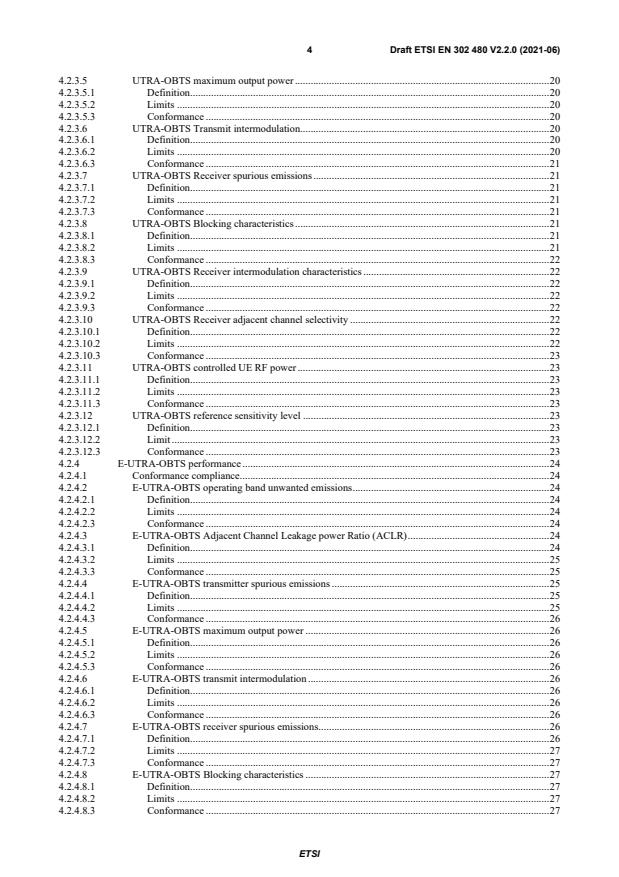

2 Draft ETSI EN 302 480 V2.2.0 (2021-06)
Reference
REN/MSG-TFES-1126
Keywords
3G, 3GPP, cellular, digital, E-UTRA, GSM, LTE,
MCOBA, mobile, radio, regulation, UMTS, UTRA,
WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability

The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of

experience to understand and interpret its content in accordance with generally accepted engineering or

other professional standard and applicable regulations.

No recommendation as to products and services or vendors is made or should be implied.

In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not

limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property

rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages

for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use

of or inability to use the software.
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and

microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 302 480 V2.2.0 (2021-06)
Contents

Intellectual Property Rights ................................................................................................................................ 7

Foreword ............................................................................................................................................................. 7

Modal verbs terminology .................................................................................................................................... 8

Introduction ........................................................................................................................................................ 8

1 Scope ........................................................................................................................................................ 9

2 References .............................................................................................................................................. 10

2.1 Normative references ....................................................................................................................................... 10

2.2 Informative references ...................................................................................................................................... 11

3 Definition of terms, symbols and abbreviations ..................................................................................... 12

3.1 Terms ................................................................................................................................................................ 12

3.2 Symbols ............................................................................................................................................................ 12

3.3 Abbreviations ................................................................................................................................................... 12

4 Technical requirements specifications ................................................................................................... 13

4.1 Environmental profile ....................................................................................................................................... 13

4.2 Conformance requirements .............................................................................................................................. 13

4.2.1 Introduction................................................................................................................................................. 13

4.2.2 GSM-OBTS performance ........................................................................................................................... 15

4.2.2.1 GSM-OBTS maximum output power ................................................................................................... 15

4.2.2.1.1 Definition......................................................................................................................................... 15

4.2.2.1.2 Limits .............................................................................................................................................. 15

4.2.2.1.3 Conformance ................................................................................................................................... 15

4.2.2.2 GSM-OBTS output RF spectrum .......................................................................................................... 16

4.2.2.2.1 Spectrum due to modulation and wideband noise ........................................................................... 16

4.2.2.2.2 Spectrum due to switching transients .............................................................................................. 16

4.2.2.3 GSM-OBTS radio frequency tolerance ................................................................................................. 16

4.2.2.3.1 Definition......................................................................................................................................... 16

4.2.2.3.2 Limits .............................................................................................................................................. 16

4.2.2.3.3 Conformance ................................................................................................................................... 16

4.2.2.4 GSM-OBTS controlled MS RF power .................................................................................................. 17

4.2.2.4.1 Definition......................................................................................................................................... 17

4.2.2.4.2 Limits .............................................................................................................................................. 17

4.2.2.4.3 Conformance ................................................................................................................................... 17

4.2.2.5 GSM-OBTS reference sensitivity level ................................................................................................. 17

4.2.2.5.1 Definition......................................................................................................................................... 17

4.2.2.5.2 Limits .............................................................................................................................................. 17

4.2.2.5.3 Conformance ................................................................................................................................... 17

4.2.2.6 GSM-OBTS unwanted emissions in the spurious domain .................................................................... 17

4.2.2.6.1 Definition......................................................................................................................................... 17

4.2.2.6.2 Limits .............................................................................................................................................. 17

4.2.2.6.3 Conformance ................................................................................................................................... 18

4.2.3 UTRA-OBTS performance ......................................................................................................................... 18

4.2.3.1 Conformance compliance ...................................................................................................................... 18

4.2.3.2 UTRA-OBTS Spectrum Mask .............................................................................................................. 18

4.2.3.2.1 Definition......................................................................................................................................... 18

4.2.3.2.2 Limits .............................................................................................................................................. 18

4.2.3.2.3 Conformance ................................................................................................................................... 18

4.2.3.3 UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR).......................................................... 18

4.2.3.3.1 Definition......................................................................................................................................... 18

4.2.3.3.2 Limits .............................................................................................................................................. 19

4.2.3.3.3 Conformance ................................................................................................................................... 19

4.2.3.4 UTRA-OBTS Transmitter spurious emissions ...................................................................................... 19

4.2.3.4.1 Definition......................................................................................................................................... 19

4.2.3.4.2 Limits .............................................................................................................................................. 19

4.2.3.4.3 Conformance ................................................................................................................................... 19

ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 302 480 V2.2.0 (2021-06)

4.2.3.5 UTRA-OBTS maximum output power ................................................................................................. 20

4.2.3.5.1 Definition......................................................................................................................................... 20

4.2.3.5.2 Limits .............................................................................................................................................. 20

4.2.3.5.3 Conformance ................................................................................................................................... 20

4.2.3.6 UTRA-OBTS Transmit intermodulation............................................................................................... 20

4.2.3.6.1 Definition......................................................................................................................................... 20

4.2.3.6.2 Limits .............................................................................................................................................. 20

4.2.3.6.3 Conformance ................................................................................................................................... 21

4.2.3.7 UTRA-OBTS Receiver spurious emissions .......................................................................................... 21

4.2.3.7.1 Definition......................................................................................................................................... 21

4.2.3.7.2 Limits .............................................................................................................................................. 21

4.2.3.7.3 Conformance ................................................................................................................................... 21

4.2.3.8 UTRA-OBTS Blocking characteristics ................................................................................................. 21

4.2.3.8.1 Definition......................................................................................................................................... 21

4.2.3.8.2 Limits .............................................................................................................................................. 21

4.2.3.8.3 Conformance ................................................................................................................................... 22

4.2.3.9 UTRA-OBTS Receiver intermodulation characteristics ....................................................................... 22

4.2.3.9.1 Definition......................................................................................................................................... 22

4.2.3.9.2 Limits .............................................................................................................................................. 22

4.2.3.9.3 Conformance ................................................................................................................................... 22

4.2.3.10 UTRA-OBTS Receiver adjacent channel selectivity ............................................................................ 22

4.2.3.10.1 Definition......................................................................................................................................... 22

4.2.3.10.2 Limits .............................................................................................................................................. 22

4.2.3.10.3 Conformance ................................................................................................................................... 23

4.2.3.11 UTRA-OBTS controlled UE RF power ................................................................................................ 23

4.2.3.11.1 Definition......................................................................................................................................... 23

4.2.3.11.2 Limits .............................................................................................................................................. 23

4.2.3.11.3 Conformance ................................................................................................................................... 23

4.2.3.12 UTRA-OBTS reference sensitivity level .............................................................................................. 23

4.2.3.12.1 Definition......................................................................................................................................... 23

4.2.3.12.2 Limit ................................................................................................................................................ 23

4.2.3.12.3 Conformance ................................................................................................................................... 23

4.2.4 E-UTRA-OBTS performance ..................................................................................................................... 24

4.2.4.1 Conformance compliance ...................................................................................................................... 24

4.2.4.2 E-UTRA-OBTS operating band unwanted emissions ........................................................................... 24

4.2.4.2.1 Definition......................................................................................................................................... 24

4.2.4.2.2 Limits .............................................................................................................................................. 24

4.2.4.2.3 Conformance ................................................................................................................................... 24

4.2.4.3 E-UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR) ...................................................... 24

4.2.4.3.1 Definition......................................................................................................................................... 24

4.2.4.3.2 Limits .............................................................................................................................................. 25

4.2.4.3.3 Conformance ................................................................................................................................... 25

4.2.4.4 E-UTRA-OBTS transmitter spurious emissions ................................................................................... 25

4.2.4.4.1 Definition......................................................................................................................................... 25

4.2.4.4.2 Limits .............................................................................................................................................. 25

4.2.4.4.3 Conformance ................................................................................................................................... 26

4.2.4.5 E-UTRA-OBTS maximum output power ............................................................................................. 26

4.2.4.5.1 Definition......................................................................................................................................... 26

4.2.4.5.2 Limits .............................................................................................................................................. 26

4.2.4.5.3 Conformance ................................................................................................................................... 26

4.2.4.6 E-UTRA-OBTS transmit intermodulation ............................................................................................ 26

4.2.4.6.1 Definition......................................................................................................................................... 26

4.2.4.6.2 Limits .............................................................................................................................................. 26

4.2.4.6.3 Conformance ................................................................................................................................... 26

4.2.4.7 E-UTRA-OBTS receiver spurious emissions ........................................................................................ 26

4.2.4.7.1 Definition......................................................................................................................................... 26

4.2.4.7.2 Limits .............................................................................................................................................. 27

4.2.4.7.3 Conformance ................................................................................................................................... 27

4.2.4.8 E-UTRA-OBTS Blocking characteristics ............................................................................................. 27

4.2.4.8.1 Definition......................................................................................................................................... 27

4.2.4.8.2 Limits .............................................................................................................................................. 27

4.2.4.8.3 Conformance ................................................................................................................................... 27

ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 302 480 V2.2.0 (2021-06)

4.2.4.9 E-UTRA-OBTS receiver intermodulation characteristics ..................................................................... 27

4.2.4.9.1 Definition......................................................................................................................................... 27

4.2.4.9.2 Limits .............................................................................................................................................. 27

4.2.4.9.3 Conformance ................................................................................................................................... 27

4.2.4.10 E-UTRA-OBTS Adjacent Channel Selectivity (ACS) and narrow-band blocking ............................... 28

4.2.4.10.1 Definition......................................................................................................................................... 28

4.2.4.10.2 Limits .............................................................................................................................................. 28

4.2.4.10.3 Conformance ................................................................................................................................... 28

4.2.4.11 E-UTRA-OBTS controlled UE RF power ............................................................................................ 28

4.2.4.11.1 Definition......................................................................................................................................... 28

4.2.4.11.2 Limits .............................................................................................................................................. 28

4.2.4.11.3 Conformance ................................................................................................................................... 28

4.2.4.12 E-UTRA-OBTS reference sensitivity level ........................................................................................... 28

4.2.4.12.1 Definition......................................................................................................................................... 28

4.2.4.12.2 Limits .............................................................................................................................................. 29

4.2.4.12.3 Conformance ................................................................................................................................... 29

4.2.5 NCU Transmitter Performance ................................................................................................................... 29

4.2.5.1 NCU maximum mean power spectral density ....................................................................................... 29

4.2.5.1.1 Definition......................................................................................................................................... 29

4.2.5.1.2 Limits .............................................................................................................................................. 29

4.2.5.1.3 Conformance ................................................................................................................................... 29

4.2.5.2 NCU power flatness .............................................................................................................................. 29

4.2.5.2.1 Definition......................................................................................................................................... 29

4.2.5.2.2 Limits .............................................................................................................................................. 29

4.2.5.2.3 Conformance ................................................................................................................................... 29

4.2.5.3 NCU out-of-band emissions .................................................................................................................. 30

4.2.5.3.1 Definition......................................................................................................................................... 30

4.2.5.3.2 Limits .............................................................................................................................................. 30

4.2.5.3.3 Conformance ................................................................................................................................... 30

4.2.5.4 NCU spurious emissions ....................................................................................................................... 30

4.2.5.4.1 Definition......................................................................................................................................... 30

4.2.5.4.2 Limits .............................................................................................................................................. 31

4.2.5.4.3 Conformance ................................................................................................................................... 31

4.2.6 MCOBA system performance..................................................................................................................... 31

4.2.6.1 MCOBA Unwanted emissions in the out-of-band domain ................................................................... 31

4.2.6.1.1 Definition......................................................................................................................................... 31

4.2.6.1.2 Limits .............................................................................................................................................. 31

4.2.6.2 MCOBA Unwanted emissions in the spurious domain ......................................................................... 32

4.2.6.2.1 Definition......................................................................................................................................... 32

4.2.6.2.2 Limits .............................................................................................................................................. 32

4.2.6.3 MCOBA Cessation of emission ............................................................................................................ 32

4.2.6.3.1 Definition......................................................................................................................................... 32

4.2.6.3.2 Specification .................................................................................................................................... 32

4.2.6.3.3 Conformance ................................................................................................................................... 32

5 Testing for compliance with technical requirements .............................................................................. 32

5.1 Environmental conditions for testing ............................................................................................................... 32

5.2 Essential radio test suites .................................................................................................................................. 33

5.2.0 Measurement options .................................................................................................................................. 33

5.2.1 GSM-OBTS Performance ........................................................................................................................... 33

5.2.1.1 GSM-OBTS controlled UE/MS RF power ........................................................................................... 33

5.2.1.1.1 Test purpose .................................................................................................................................... 33

5.2.1.1.2 Methods of measurement................................................................................................................. 34

5.2.2 UTRA-OBTS Transmitter Performance ..................................................................................................... 35

5.2.2.1 UTRA-OBTS controlled UE RF power .......................................................

...

SLOVENSKI STANDARD
oSIST prEN 302 480 V2.2.0:2021
01-september-2021
Sistemi mobilnih komunikacij v letalih (MCOBA) - Harmonizirani standard za
dostop do radijskega spektra
Mobile Communication On Board Aircraft (MCOBA) systems - Harmonised Standard for
access to radio spectrum
Ta slovenski standard je istoveten z: ETSI EN 302 480 V2.2.0 (2021-06)
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
33.070.99 Druge mobilne storitve Other mobile services
oSIST prEN 302 480 V2.2.0:2021 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 302 480 V2.2.0:2021
---------------------- Page: 2 ----------------------
oSIST prEN 302 480 V2.2.0:2021
Draft ETSI EN 302 480 V2.2.0 (2021-06)
HARMONISED EUROPEAN STANDARD
Mobile Communication On Board Aircraft (MCOBA) systems;
Harmonised Standard for access to radio spectrum
---------------------- Page: 3 ----------------------
oSIST prEN 302 480 V2.2.0:2021
2 Draft ETSI EN 302 480 V2.2.0 (2021-06)
Reference
REN/MSG-TFES-1126
Keywords
3G, 3GPP, cellular, digital, E-UTRA, GSM, LTE,
MCOBA, mobile, radio, regulation, UMTS, UTRA,
WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability

The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of

experience to understand and interpret its content in accordance with generally accepted engineering or

other professional standard and applicable regulations.

No recommendation as to products and services or vendors is made or should be implied.

In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not

limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property

rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages

for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use

of or inability to use the software.
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and

microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
---------------------- Page: 4 ----------------------
oSIST prEN 302 480 V2.2.0:2021
3 Draft ETSI EN 302 480 V2.2.0 (2021-06)
Contents

Intellectual Property Rights ................................................................................................................................ 7

Foreword ............................................................................................................................................................. 7

Modal verbs terminology .................................................................................................................................... 8

Introduction ........................................................................................................................................................ 8

1 Scope ........................................................................................................................................................ 9

2 References .............................................................................................................................................. 10

2.1 Normative references ....................................................................................................................................... 10

2.2 Informative references ...................................................................................................................................... 11

3 Definition of terms, symbols and abbreviations ..................................................................................... 12

3.1 Terms ................................................................................................................................................................ 12

3.2 Symbols ............................................................................................................................................................ 12

3.3 Abbreviations ................................................................................................................................................... 12

4 Technical requirements specifications ................................................................................................... 13

4.1 Environmental profile ....................................................................................................................................... 13

4.2 Conformance requirements .............................................................................................................................. 13

4.2.1 Introduction................................................................................................................................................. 13

4.2.2 GSM-OBTS performance ........................................................................................................................... 15

4.2.2.1 GSM-OBTS maximum output power ................................................................................................... 15

4.2.2.1.1 Definition......................................................................................................................................... 15

4.2.2.1.2 Limits .............................................................................................................................................. 15

4.2.2.1.3 Conformance ................................................................................................................................... 15

4.2.2.2 GSM-OBTS output RF spectrum .......................................................................................................... 16

4.2.2.2.1 Spectrum due to modulation and wideband noise ........................................................................... 16

4.2.2.2.2 Spectrum due to switching transients .............................................................................................. 16

4.2.2.3 GSM-OBTS radio frequency tolerance ................................................................................................. 16

4.2.2.3.1 Definition......................................................................................................................................... 16

4.2.2.3.2 Limits .............................................................................................................................................. 16

4.2.2.3.3 Conformance ................................................................................................................................... 16

4.2.2.4 GSM-OBTS controlled MS RF power .................................................................................................. 17

4.2.2.4.1 Definition......................................................................................................................................... 17

4.2.2.4.2 Limits .............................................................................................................................................. 17

4.2.2.4.3 Conformance ................................................................................................................................... 17

4.2.2.5 GSM-OBTS reference sensitivity level ................................................................................................. 17

4.2.2.5.1 Definition......................................................................................................................................... 17

4.2.2.5.2 Limits .............................................................................................................................................. 17

4.2.2.5.3 Conformance ................................................................................................................................... 17

4.2.2.6 GSM-OBTS unwanted emissions in the spurious domain .................................................................... 17

4.2.2.6.1 Definition......................................................................................................................................... 17

4.2.2.6.2 Limits .............................................................................................................................................. 17

4.2.2.6.3 Conformance ................................................................................................................................... 18

4.2.3 UTRA-OBTS performance ......................................................................................................................... 18

4.2.3.1 Conformance compliance ...................................................................................................................... 18

4.2.3.2 UTRA-OBTS Spectrum Mask .............................................................................................................. 18

4.2.3.2.1 Definition......................................................................................................................................... 18

4.2.3.2.2 Limits .............................................................................................................................................. 18

4.2.3.2.3 Conformance ................................................................................................................................... 18

4.2.3.3 UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR).......................................................... 18

4.2.3.3.1 Definition......................................................................................................................................... 18

4.2.3.3.2 Limits .............................................................................................................................................. 19

4.2.3.3.3 Conformance ................................................................................................................................... 19

4.2.3.4 UTRA-OBTS Transmitter spurious emissions ...................................................................................... 19

4.2.3.4.1 Definition......................................................................................................................................... 19

4.2.3.4.2 Limits .............................................................................................................................................. 19

4.2.3.4.3 Conformance ................................................................................................................................... 19

ETSI
---------------------- Page: 5 ----------------------
oSIST prEN 302 480 V2.2.0:2021
4 Draft ETSI EN 302 480 V2.2.0 (2021-06)

4.2.3.5 UTRA-OBTS maximum output power ................................................................................................. 20

4.2.3.5.1 Definition......................................................................................................................................... 20

4.2.3.5.2 Limits .............................................................................................................................................. 20

4.2.3.5.3 Conformance ................................................................................................................................... 20

4.2.3.6 UTRA-OBTS Transmit intermodulation............................................................................................... 20

4.2.3.6.1 Definition......................................................................................................................................... 20

4.2.3.6.2 Limits .............................................................................................................................................. 20

4.2.3.6.3 Conformance ................................................................................................................................... 21

4.2.3.7 UTRA-OBTS Receiver spurious emissions .......................................................................................... 21

4.2.3.7.1 Definition......................................................................................................................................... 21

4.2.3.7.2 Limits .............................................................................................................................................. 21

4.2.3.7.3 Conformance ................................................................................................................................... 21

4.2.3.8 UTRA-OBTS Blocking characteristics ................................................................................................. 21

4.2.3.8.1 Definition......................................................................................................................................... 21

4.2.3.8.2 Limits .............................................................................................................................................. 21

4.2.3.8.3 Conformance ................................................................................................................................... 22

4.2.3.9 UTRA-OBTS Receiver intermodulation characteristics ....................................................................... 22

4.2.3.9.1 Definition......................................................................................................................................... 22

4.2.3.9.2 Limits .............................................................................................................................................. 22

4.2.3.9.3 Conformance ................................................................................................................................... 22

4.2.3.10 UTRA-OBTS Receiver adjacent channel selectivity ............................................................................ 22

4.2.3.10.1 Definition......................................................................................................................................... 22

4.2.3.10.2 Limits .............................................................................................................................................. 22

4.2.3.10.3 Conformance ................................................................................................................................... 23

4.2.3.11 UTRA-OBTS controlled UE RF power ................................................................................................ 23

4.2.3.11.1 Definition......................................................................................................................................... 23

4.2.3.11.2 Limits .............................................................................................................................................. 23

4.2.3.11.3 Conformance ................................................................................................................................... 23

4.2.3.12 UTRA-OBTS reference sensitivity level .............................................................................................. 23

4.2.3.12.1 Definition......................................................................................................................................... 23

4.2.3.12.2 Limit ................................................................................................................................................ 23

4.2.3.12.3 Conformance ................................................................................................................................... 23

4.2.4 E-UTRA-OBTS performance ..................................................................................................................... 24

4.2.4.1 Conformance compliance ...................................................................................................................... 24

4.2.4.2 E-UTRA-OBTS operating band unwanted emissions ........................................................................... 24

4.2.4.2.1 Definition......................................................................................................................................... 24

4.2.4.2.2 Limits .............................................................................................................................................. 24

4.2.4.2.3 Conformance ................................................................................................................................... 24

4.2.4.3 E-UTRA-OBTS Adjacent Channel Leakage power Ratio (ACLR) ...................................................... 24

4.2.4.3.1 Definition......................................................................................................................................... 24

4.2.4.3.2 Limits .............................................................................................................................................. 25

4.2.4.3.3 Conformance ................................................................................................................................... 25

4.2.4.4 E-UTRA-OBTS transmitter spurious emissions ................................................................................... 25

4.2.4.4.1 Definition......................................................................................................................................... 25

4.2.4.4.2 Limits .............................................................................................................................................. 25

4.2.4.4.3 Conformance ................................................................................................................................... 26

4.2.4.5 E-UTRA-OBTS maximum output power ............................................................................................. 26

4.2.4.5.1 Definition......................................................................................................................................... 26

4.2.4.5.2 Limits .............................................................................................................................................. 26

4.2.4.5.3 Conformance ................................................................................................................................... 26

4.2.4.6 E-UTRA-OBTS transmit intermodulation ............................................................................................ 26

4.2.4.6.1 Definition......................................................................................................................................... 26

4.2.4.6.2 Limits .............................................................................................................................................. 26

4.2.4.6.3 Conformance ................................................................................................................................... 26

4.2.4.7 E-UTRA-OBTS receiver spurious emissions ........................................................................................ 26

4.2.4.7.1 Definition......................................................................................................................................... 26

4.2.4.7.2 Limits .............................................................................................................................................. 27

4.2.4.7.3 Conformance ................................................................................................................................... 27

4.2.4.8 E-UTRA-OBTS Blocking characteristics ............................................................................................. 27

4.2.4.8.1 Definition......................................................................................................................................... 27

4.2.4.8.2 Limits .............................................................................................................................................. 27

4.2.4.8.3 Conformance ................................................................................................................................... 27

ETSI
---------------------- Page: 6 ----------------------
oSIST prEN 302 480 V2.2.0:2021
5 Draft ETSI EN 302 480 V2.2.0 (2021-06)

4.2.4.9 E-UTRA-OBTS receiver intermodulation characteristics ..................................................................... 27

4.2.4.9.1 Definition......................................................................................................................................... 27

4.2.4.9.2 Limits .............................................................................................................................................. 27

4.2.4.9.3 Conformance ................................................................................................................................... 27

4.2.4.10 E-UTRA-OBTS Adjacent Channel Selectivity (ACS) and narrow-band blocking ............................... 28

4.2.4.10.1 Definition......................................................................................................................................... 28

4.2.4.10.2 Limits .............................................................................................................................................. 28

4.2.4.10.3 Conformance ................................................................................................................................... 28

4.2.4.11 E-UTRA-OBTS controlled UE RF power ............................................................................................ 28

4.2.4.11.1 Definition......................................................................................................................................... 28

4.2.4.11.2 Limits .............................................................................................................................................. 28

4.2.4.11.3 Conformance ................................................................................................................................... 28

4.2.4.12 E-UTRA-OBTS reference sensitivity level ........................................................................................... 28

4.2.4.12.1 Definition......................................................................................................................................... 28

4.2.4.12.2 Limits .............................................................................................................................................. 29

4.2.4.12.3 Conformance ................................................................................................................................... 29

4.2.5 NCU Transmitter Performance ................................................................................................................... 29

4.2.5.1 NCU maximum mean power spectral density ....................................................................................... 29

4.2.5.1.1 Definition......................................................................................................................................... 29

4.2.5.1.2 Limits .............................................................................................................................................. 29

4.2.5.1.3 Conformance ................................................................................................................................... 29

4.2.5.2 NCU power flatness .............................................................................................................................. 29

4.2.5.2.1 Definition......................................................................................................................................... 29

4.2.5.2.2 Limits .............................................................................................................................................. 29

4.2.5.2.3 Conformance ................................................................................................................................... 29

4.2.5.3 NCU out-of-band emissions .................................................................................................................. 30

4.2.5.3.1 Definition......................................................................................................................................... 30

4.2.5.3.2 Limits .............................................................................................................................................. 30

4.2.5.3.3 Conformance ................................................................................................................................... 30

4.2.5.4 NCU spurious emissions ....................................................................................................................... 30

4.2.5.4.1 Definition......................................................................................................................................... 30

4.2.5.4.2 Limits .............................................................................................................................................. 31

4.2.5.4.3 Conformance ................................................................................................................................... 31

4.2.6 MCOBA system performance..................................................................................................................... 31

4.2.6.1 MCOBA Unwanted emissions in the out-of-band domain ................................................................... 31

4.2.6.1.1 Definition......................................................................................................................................... 31

4.2.6.1.2 Limits .............................................................................................................................................. 31

4.2.6.2 MCOBA Unwanted emissions in the spurious domain ......................................................................... 32

4.2.6.2.1 Definition......................................................................................................................................... 32

4.2.6.2.2 Limits .............................................................................................................................................. 32

4.2.6.3 MCOBA Cessation of emission ............................................................................................................ 32

4.2.6.3.1 Definition......................................................................................................................................... 32

4.2.6.3.2 Specification .................................................................................................................................... 32

4.2.6.3.3 Conformance ................................................................................................................................... 32

5 Testing for compliance with technical requirements .............................................................................. 32

5.1 Environmental conditions for testing ............................................................................................................... 32

5.2 Essential radio test suites .................................................................................................................................. 33

5.2.0 Measurement options ........................
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
