SIST EN 61121:2013/A11:2019

Tumble dryers for household use - Methods for measuring the performance

IEC 61121:2012(E) is applicable to household electric tumble dryers of the automatic and non-automatic type, with or without a cold water supply and incorporating a heating device. This excludes tumble dryers which use gas or other fuels as a heating source. The object is to state and define the principal performance characteristics of household electric tumble dryers of interest to users and to describe standard methods for measuring these characteristics. This edition includes significant technical changes with respect to the previous edition.

Wäschetrockner für den Hausgebrauch - Verfahren zur Messung der Gebrauchseigenschaften

Sèche-linge à tambour à usage domestique - Méthodes de mesure de l'aptitude à la fonction

Gospodinjski sušilni stroji - Metode za merjenje funkcionalnosti - Dopolnilo A11

Ta mednarodni standard se uporablja za avtomatske in neavtomatske gospodinjske električne sušilne stroje z ali brez dotoka hladne vode z vgrajeno grelno napravo. Izključeni so sušilni stroji, ki kot vir segrevanja uporabljajo plin ali druga goriva. Cilj standarda je določiti in opredeliti glavne lastnosti funkcionalnosti gospodinjskih električnih sušilnih strojev, ki zanimajo uporabnike, ter opisati standardne metode za merjenje teh lastnosti.

General Information

• Status: Published
• Publication Date: 14-Oct-2019
• ICS: 97.060 - Laundry appliances
• Technical Committee: FGA - Consumer information related to household electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 10-Oct-2019
• Due Date: 15-Dec-2019
• Completion Date: 15-Oct-2019
• Directive: 2010/30/EU - DIRECTIVE 2010/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 19 May 2010 on the indication by labelling and standard product information of the consumption of energy and other resources by energy-related products (recast)
• Directive: 392/2012 - Commission Delegated Regulation (EU) No 392/2012 of 1 March 2012 supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labelling of household tumble driers
• Directive: 932/2012 - Commission Regulation (EU) No 932/2012 of 3 October 2012 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for household tumble driers
• Mandate: M/495 - Standardisation mandate to CEN, CENELEC and ETSI under Directive 2009/125/EC relating to harmonised standards in the field of Ecodesign
• Ref Project: EN 61121:2013/A11:2019 - Tumble dryers for household use - Methods for measuring the performance

Relations

• Amends: SIST EN 61121:2013 - Tumble dryers for household use - Methods for measuring the performance (IEC 61121:2012, modified)
• Effective Date: 01-Nov-2019
• Revised: SIST EN 61121:2013/A12:2025 - Tumble dryers for household use - Methods for measuring the performance
• Effective Date: 01-Apr-2025

Overview

SIST EN 61121:2013/A11:2019 is a European standard developed by the CLC/TC 59X committee, focusing on household electric tumble dryers. This amendment updates the 2013 edition of EN 61121 and introduces significant technical changes related to methods for measuring the performance of tumble dryers used in domestic environments. The standard specifically applies to electric tumble dryers-both automatic and non-automatic-that incorporate an electrical heating device. It excludes dryers using gas or other fuels.

The objective of SIST EN 61121:2013/A11:2019 is to define the principal performance characteristics that are relevant to users and to describe standardized measurement methods. By harmonizing these testing methods, the standard supports reliable evaluations of tumble dryer energy consumption, condensation efficiency, noise emission, and drying performance.

---

Key Topics

• Scope and Applicability
  Covers household electric tumble dryers with or without cold water supply. Gas or non-electric heating sources are excluded.

• Performance Characteristics
  Defines key metrics such as energy consumption, programme duration, condensation efficiency, and sound power level.

• Testing Procedures
  Outlines standardized test sequences for performance measurements to ensure comparability and reliability.

• Verification and Tolerances
  Details a two-step control process involving single and multiple appliance testing with specified tolerances, supporting manufacturers and regulatory compliance.

• Energy Labelling and Ecodesign Compliance
  Harmonizes with EU Delegated Regulation (EU) No 392/2012 for energy labelling and Commission Regulation (EU) No 932/2012 for ecodesign requirements. Compliance with this standard grants a presumption of conformity within its scope.

• Noise Measurement Updates
  Modifies normative references to align noise measurement with EN 60704-2-6.

• Amendments and Annexes
  Includes updated normative references, control procedures annexes, and informative annexes explaining relationships to EU directives.

---

Applications

SIST EN 61121:2013/A11:2019 serves as the foundation for:

• Manufacturers
  Facilitates consistent design validation and reporting for household tumble dryers to meet regulatory and market requirements.

• Testing Laboratories
  Provides standardized methods to accurately measure performance parameters, ensuring reliable product benchmarking.

• Regulators and Certification Bodies
  Assists in verifying manufacturer claims and enforcing compliance with energy labelling and ecodesign legislation within the European Union and EFTA states.

• Consumers and Retailers
  Enables better understanding of product efficiency, energy consumption, noise emissions, and environmental impact, empowering informed purchasing decisions.

• Standardization and Compliance Experts
  Supports alignment of product testing with harmonized European standards, facilitating global trade and market access.

---

Related Standards

• EN 60704-2-6: Measurement of airborne acoustical noise from household appliances, referenced for noise testing updates.

• Commission Delegated Regulation (EU) No 392/2012: Energy labelling requirements for household tumble dryers that rely on performance parameters defined in EN 61121.

• Commission Regulation (EU) No 932/2012: Ecodesign requirements for household tumble dryers, specifying energy efficiency and environmental criteria.

• IEC 61121:2012(E): Underlying International Electrotechnical Commission standard on which EN 61121 is based, providing global measurement methods for tumble dryer performance.

---

Keywords: SIST EN 61121:2013/A11:2019, household tumble dryers, electric tumble dryers, performance measurement, energy consumption, condensation efficiency, noise measurement, energy labelling, ecodesign, European standard, CENELEC, test methods, appliance performance standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2019
Gospodinjski sušilni stroji - Metode za merjenje funkcionalnosti - Dopolnilo A11
Tumble dryers for household use - Methods for measuring the performance
Wäschetrockner für den Hausgebrauch - Verfahren zur Messung der
Gebrauchseigenschaften
Sèche-linge à tambour à usage domestique - Méthodes de mesure de l'aptitude à la
fonction
Ta slovenski standard je istoveten z: EN 61121:2013/A11:2019
ICS:
97.060 Aparati za nego perila Laundry appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61121:2013/A11

NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2019
ICS 97.060
English Version
Tumble dryers for household use - Methods for measuring the
performance
Sèche-linge à tambour à usage domestique - Méthodes de Wäschetrockner für den Hausgebrauch - Verfahren zur
mesure de l'aptitude à la fonction Messung der Gebrauchseigenschaften
This amendment A11 modifies the European Standard EN 61121:2013; it was approved by CENELEC on 2018-08-27. CENELEC members
are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a
national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61121:2013/A11:2019 E

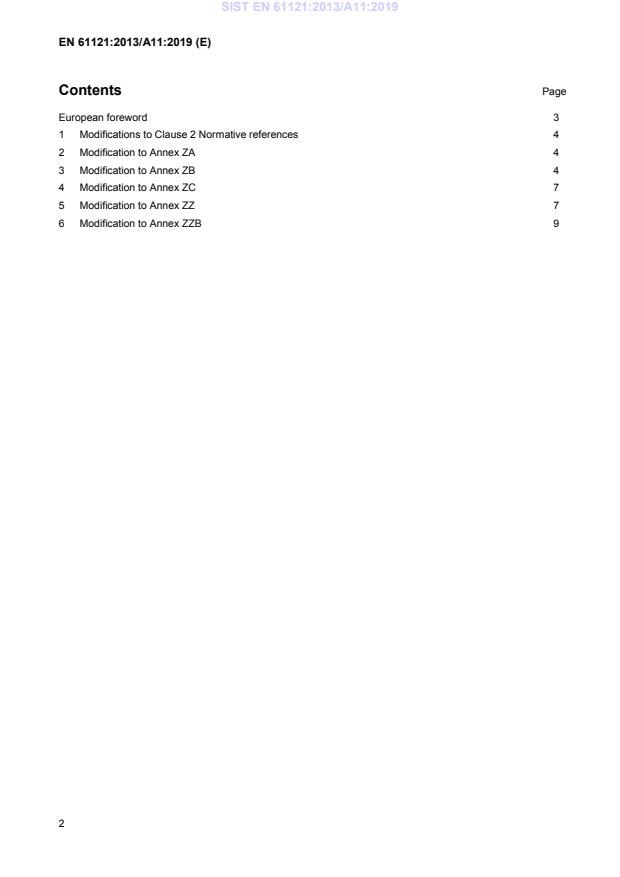

Contents Page
European foreword 3
1 Modifications to Clause 2 Normative references 4
2 Modification to Annex ZA 4
3 Modification to Annex ZB 4
4 Modification to Annex ZC 7
5 Modification to Annex ZZ 7
6 Modification to Annex ZZB 9
European foreword
This document (EN 61121:2013/A11:2019) has been prepared by CLC/TC 59X " Performance of household and
similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be (dop) 2020-02-23
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2022-08-23
conflicting with this document have to
be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annexes ZZA and ZZB, which are integral parts of this
document.
1 Modifications to Clause 2 Normative references
Delete the following references:
"EN 60704-1, Household and similar electrical appliances – Test code for the determination of airborne noise —
Part 1: General requirements (IEC 60704-1)
EN 60704-3, Household and similar electrical appliances – Test code for the determination of airborne
acoustical noise – Part 3: Procedure for determining and verifying declared noise emission values
(IEC 60704-3)"
2 Modification to Annex ZA
ZA.1 General
Replace the last paragraph by:
"The airborne acoustical noise shall be measured according with EN 60704-2-6."
3 Modification to Annex ZB
Replace Annex ZB as follows:
Annex ZB
(normative)
Tolerances and control procedures
The verification tolerances are given in the relevant Annex of the COMMISSION DELEGATED REGULATION
(EU) No 392/2012 of 1 March 2012 supplementing Directive 2010/30/EU of the European Parliament and of the
Council with regard to energy labelling of household tumble dryers and of the COMMISSION REGULATION
(EU) No 932/2012 of 3 October 2012 implementing Directive 2009/125/EC of the European Parliament and of
the Council with regard to ecodesign requirements for household tumble dryers.
The verification of values declared by the manufacturer consists of two steps.
Step 1 requires one test series for one test tumble dryer. All values according to this European Standard are
measured and reported. The relevant tolerances for step 1 shall be applied.
Step 2 requires one test series for each of three additional test tumble dryers. All values are measured and
reported for each of the three test tumble dryers according to this European Standard. The average values of
the three test tumble dryers are calculated as the arithmetic mean of the values reported for each of the three
test tumble dryers. The relevant tolerances for step 2 shall be applied.
A schematic representation of the procedure is set out in Figure ZB.1.
*No rounding applies if not required by regulation.
Figure ZB.1 – Control procedure for each value to be verified
Rounding rules that are given in the regulation supersede standardization.
4 Modification to Annex ZC
Delete the following references:
Publication Year Title EN/HD Year
IEC 60704-1 - Household and similar electrical EN 60704-1 2010
appliances – Test code for the
determination of airborne noise -
Part 1: General requirements
IEC 60704-3 - Household and similar electrical EN 60704-3 2006
appliances – Test code for the
determination of airborne acoustical
noise –
Part 3: Procedure for determining and
verifying declared noise emission
values
5 Modification to Annex ZZ
Replace Annex ZZ by the following Annex ZZA and ZZB:
Annex ZZA
(informative)
Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation EU No 392/2012
aimed to be covered
This European standard has been prepared under a Commission’s standardisation request Standardisation
mandate to CEN, CENELEC and ETSI under Directive 2009/125/EC relat
...
