SIST EN 13277-4:2002/A1:2007

Protective equipment for martial arts - Part 4: Additional requirements and test methods for head protectors

Modification of clause 4.7 and figure 2, table 2, 5.6, 5.7.2, 5.7 of EN 13277-4:2001

Schutzausrüstung für den Kampfsport - Teil 4: Zusätzliche Anforderungen und Prüfverfahren für Kopfschützer

Equipement de protection pour les arts martiaux - Partie 4: Exigences et méthodes d'essai complémentaires relatives aux protecteurs de la tete

Varovalna oprema za borilne športe - 4. del: Dodatne zahteve in preskusne metode za varovala glave

General Information

• Status: Published
• Publication Date: 15-Aug-2007
• ICS: 13.340.20 - Head protective equipment
• ICS: 97.220.30 - Indoor sports equipment
• Technical Committee: OVP - Personal protecting equipment
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 12-Jul-2007
• Due Date: 16-Sep-2007
• Completion Date: 16-Aug-2007
• Directive: 2016/425 - Regulation (EU) 2016/425 of the European Parliament and of the Council of 9 March 2016 on personal protective equipment and repealing Council Directive 89/686/EEC
• Directive: 89/686/EEC - Council Directive 89/686/EEC of 21 December 1989 on the approximation of the laws of the Member States relating to personal protective equipment
• Directive: 93/68/EEC - Council Directive amending Dir. 87/404/EEC (simple pressure vessels), 88/378/EEC (safety of toys), 89/106/EEC (construction products), 89/336/EEC (electromagnetic compatibility), 89/392/EEC (machinery), 89/686/EEC (personal protective equipment), 90/384/EEC (automatic weighing instruments), 90/385/EEC (active implantable medicinal devices), 90/396/EEC (appliances burning gaseous fuels), 91/263/EEC (telecommunications terminal equipment), 92/42/EEC and 73/23/EEC
• Directive: 93/95/EEC - Personal protective equipment (Dir. 89/686/EEC amendment)
• Directive: 96/58/EC - Personal protective equipment (Dir. 89/686/EEC amendment)
• Mandate: M/031 - Standardization mandate to CEN/CENELEC concerning standards for Personal Protective Equipment
• Ref Project: EN 13277-4:2001/A1:2007 - Protective equipment for martial arts - Part 4: Additional requirements and test methods for head protectors

Relations

• Amends: SIST EN 13277-4:2002 - Protective equipment for martial arts - Part 4: Additional requirements and test methods for head protectors
• Effective Date: 01-Sep-2007

Overview

EN 13277-4:2001/A1:2007 is a CEN amendment updating Part 4 of the European standard series for protective equipment for martial arts. It specifies additional requirements and test methods for head protectors, refining the definition and testing of the protective zone, test positioning and manufacturer information. This amendment modifies clauses 4.7, 5.6, 5.7.2 and Clause 7 of the base standard to clarify dimensional and marking requirements for headgear safety and conformity testing.

Key Topics and Requirements

• Zone of protection
  • The amendment defines the protective zone that must cover the head protector including its largest diameter and make contact at the lower forehead edge. The location and dimensions follow Figure 2 and Table 2 (as amended).
  • Dimension guidance by head circumference:
    • Head < 530 mm: forehead width 30 mm, rear width 40 mm
    • Head 530–560 mm: forehead width 35 mm, rear width 45 mm
    • Head > 560–580 mm: forehead width 40 mm, rear width 50 mm
    • Head > 580 mm: forehead width 45 mm, rear width 55 mm
• Marking and preparation for testing (clause 5.6)
  • Points A, B, C and D must be marked in accordance with the manufacturer’s instructions and the amended Figure 2.
  • To mark the zone of protection the head protector may be flattened (and, if necessary, cut) so the protective zone lies flat; it must not be cut into several parts. Lines AC and BD mark zone limits.
• Test positions and methods (clause 5.7.2)
  • Tests must include positions where worst results are likely. At minimum, select one test position each in the forehead, back of head, and side of head regions.
• Manufacturer information (Clause 7)
  • The information supplied shall comply with Clause 7 of EN 13277-1:2000, including correct positioning guidance and identification of the protection zone relative to the outer head protector dimensions.

Applications and Who Uses This Standard

• Head protector manufacturers - to design, mark and document compliance of martial arts headgear.
• Testing laboratories - to perform standardized impact and protection-zone tests using specified headforms and test positions.
• Purchasing and compliance teams - sports equipment buyers, federations and safety officers use the standard to specify acceptable headgear.
• Regulators and certification bodies - to assess conformity for market authorization and national standard adoption.

Related Standards

• EN 13277-1:2000 (referenced for manufacturer information requirements)
• EN 13277 series (other parts cover gloves, body protectors and general requirements)

Keywords: EN 13277-4:2001/A1:2007, head protectors, martial arts protective equipment, test methods, zone of protection, CEN, head circumference, protective headgear compliance.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2007
Varovalna oprema za borilne športe - 4. del: Dodatne zahteve in preskusne metode
za varovala glave
Protective equipment for martial arts - Part 4: Additional requirements and test methods
for head protectors
Schutzausrüstung für den Kampfsport - Teil 4: Zusätzliche Anforderungen und
Prüfverfahren für Kopfschützer
Equipement de protection pour les arts martiaux - Partie 4: Exigences et méthodes
d'essai complémentaires relatives aux protecteurs de la tete
Ta slovenski standard je istoveten z: EN 13277-4:2001/A1:2007
ICS:
13.340.20 Varovalna oprema za glavo Head protective equipment
97.220.30 Oprema za dvoranske športe Indoor sports equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13277-4:2001/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2007
ICS 13.340.20
English Version
Protective equipment for martial arts - Part 4: Additional
requirements and test methods for head protectors
Equipement de protection pour les arts martiaux - Partie 4: Schutzausrüstung für den Kampfsport - Teil 4: Zusätzliche
Exigences et méthodes d'essai complémentaires relatives Anforderungen und Prüfverfahren für Kopfschützer
aux protecteurs de la tête
This amendment A1 modifies the European Standard EN 13277-4:2001; it was approved by CEN on 10 May 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references concerning such
national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13277-4:2001/A1:2007: E
worldwide for CEN national Members.

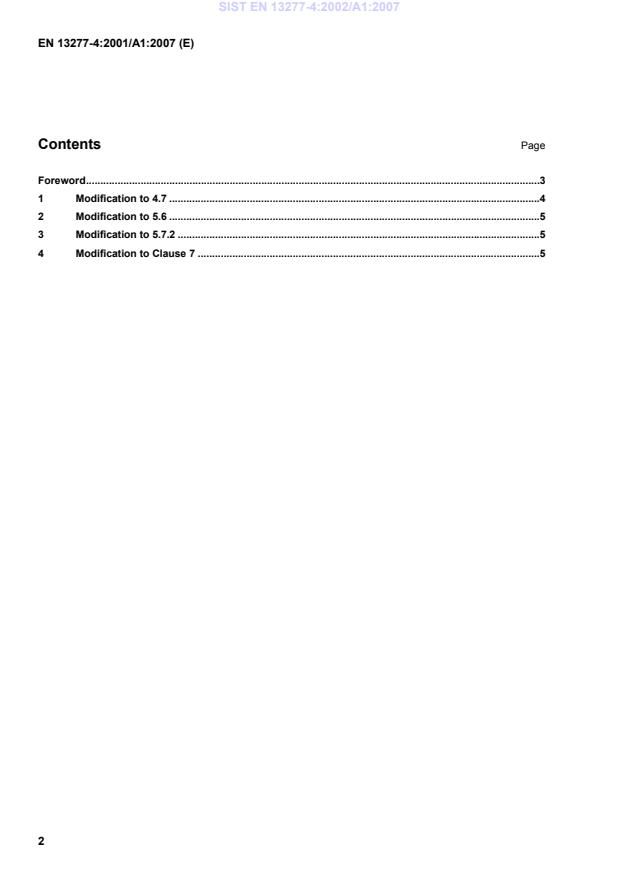

Contents Page
Foreword.3
1 Modification to 4.7 .4
2 Modification to 5.6 .5
3 Modification to 5.7.2 .5
4 Modification to Clause 7 .5

Foreword
This docu
...
