SIST EN ISO 5826:2014

Resistance welding equipment - Transformers - General specifications applicable to all transformers (ISO 5826:2014)

EN-ISO 5826 gives specifications applicable to all transformers for resistance welding equipment with or without connected rectifier. The following types are included: - single-phase transformers for alternating welding current, typically operating at 50 Hz or 60 Hz; - single-phase transformers with connected rectifier typically operating at 50 Hz or 60 Hz; - single-phase inverter welding transformer with connected rectifier typically operating at 400 Hz to 2 kHz; - three-phase transformers with connected rectifier typically operating at 50 Hz or 60 Hz. For the purposes of this International Standard, a transformer can refer to the transformer alone or combined with other components such as a rectifier, as listed above. This International Standard applies to transformers built to protection class I or II according to IEC 61140.

Widerstandsschweißeinrichtungen - Transformatoren - Allgemeine Anforderungen anwendbar für alle Transformatoren (ISO 5826:2014)

Diese Internationale Norm enthält Spezifikationen, die für alle Transformatoren für Widerstandsschweißein-richtungen mit oder ohne angeschlossenen Gleichrichter anwendbar sind.
Diese umfassen folgende Arten:
-   einphasige Transformatoren mit Wechsel-Schweißstrom, üblicherweise bei 50 Hz oder 60 Hz betrieben;
-   einphasige Transformatoren mit angeschlossenem Gleichrichter, üblicherweise bei 50 Hz oder 60 Hz betrieben;
-   einphasiger Inverter-Schweißtransformator mit angeschlossenem Gleichrichter, üblicherweise bei 60 Hz bis 2 kHz betrieben;
-   dreiphasige Transformatoren mit angeschlossenem Gleichrichter, üblicherweise bei 50 Hz oder 60 Hz betrieben;
-   dreiphasiger niederfrequenter Umrichter, üblicherweise bei 5 Hz bis 16 Hz betrieben.
ANMERKUNG 1   Typische Betriebsfrequenzen sind nur zur Information angegeben und gelten nicht ausschließlich.
Für die Anwendung dieser Internationalen Norm kann sich ein Transformator auf einen einzelnen Transformator oder auf einen Transformator zusammen mit anderen Komponenten, z. B. Gleichrichter, wie oben aufgeführt beziehen.
Diese Internationale Norm gilt für Transformatoren, die nach Schutzklasse I oder II entsprechend IEC 61140 gebaut wurden.
ANMERKUNG 2   Diese Internationale Norm liefert grundlegende Anforderungen, die durch andere Normen für Wider¬standsschweiß-Transformatoren ersetzt werden können, z. B. ISO 22829 und ISO 10656.

Matériel de soudage par résistance - Transformateurs - Spécifications générales applicables à tous les transformateurs (ISO 5826:2014)

ISO 5826:2014 donne les spécifications applicables aux types de transformateur suivants utilisés pour le matériel de soudage par résistance avec ou sans redresseur: transformateurs monophasés pour courant alternatif de soudage, fonctionnant généralement à 50 Hz ou 60 Hz; transformateurs monophasés avec redresseur pour courant continu de soudage fonctionnant généralement à 50 Hz ou 60 Hz; transformateurs à onduleur monophasés avec redresseur pour courant continu de soudage fonctionnant généralement de 400 Hz à 2 kHz; transformateurs triphasés avec redresseur pour courant continu de soudage fonctionnant généralement à 50 Hz ou 60 Hz.

Oprema za uporovno varjenje - Transformatorji - Splošne specifikacije, veljavne za vse transformatorje (ISO 5826:2014)

Standard EN-ISO 5826 določa specifikacije, ki se uporabljajo za vse transformatorje za opremo za uporovno varjenje s priključenim usmernikom ali brez. Vključene so naslednje vrste: – enofazni transformatorji za izmenični varilni tok, ki običajno obratujejo pri frekvenci 50 ali 60 Hz; – enofazni transformatorji s priključenim usmernikom, ki običajno obratujejo pri frekvenci 50 ali 60 Hz; – enofazni inverterski varilni transformator s priključenim usmernikom, ki običajno obratuje pri frekvenci 400 Hz do 2 kHz; – trifazni transformatorji s priključenim usmernikom, ki običajno obratujejo pri frekvenci 50 ali 60 Hz. Za namene tega mednarodnega standarda izraz transformator označuje samo transformator ali transformator v kombinaciji z drugimi komponentami, kot je zgoraj omenjeni usmernik. Ta mednarodni standard se v skladu s standardom IEC 61140 uporablja za vse transformatorje zaščitnega razreda I ali II.

General Information

• Status: Published
• Public Enquiry End Date: 31-Dec-2013
• Publication Date: 30-Mar-2014
• ICS: 25.160.30 - Welding equipment
• ICS: 29.180 - Transformers. Reactors
• Technical Committee: VAR - Welding
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 14-Mar-2014
• Due Date: 19-May-2014
• Completion Date: 31-Mar-2014
• Ref Project: EN ISO 5826:2014 - Resistance welding equipment - Transformers - General specifications applicable to all transformers (ISO 5826:2014)

Relations

• Replaces: SIST EN ISO 5826:2003 - Resistance welding equipment - Transformers - General specifications applicable to all transformers (ISO 5826:1999)
• Effective Date: 01-May-2014

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN ISO 5826:2014
01-maj-2014
1DGRPHãþD
SIST EN ISO 5826:2003
Oprema za uporovno varjenje - Transformatorji - Splošne specifikacije, veljavne za
vse transformatorje (ISO 5826:2014)
Resistance welding equipment - Transformers - General specifications applicable to all
transformers (ISO 5826:2014)
Widerstandsschweißeinrichtungen - Transformatoren - Allgemeine Anforderungen
anwendbar für alle Transformatoren (ISO 5826:2014)
Matériel de soudage par résistance - Transformateurs - Spécifications générales
applicables à tous les transformateurs (ISO 5826:2014)
Ta slovenski standard je istoveten z: EN ISO 5826:2014
ICS:
25.160.30 Varilna oprema Welding equipment
29.180 Transformatorji. Dušilke Transformers. Reactors
SIST EN ISO 5826:2014 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN ISO 5826:2014

---------------------- Page: 2 ----------------------

SIST EN ISO 5826:2014

EUROPEAN STANDARD
EN ISO 5826

NORME EUROPÉENNE

EUROPÄISCHE NORM
February 2014
ICS 25.160.30; 29.180 Supersedes EN ISO 5826:2003
English Version
Resistance welding equipment - Transformers - General
specifications applicable to all transformers (ISO 5826:2014)
Matériel de soudage par résistance - Transformateurs - Widerstandsschweißeinrichtungen - Transformatoren -
Spécifications générales applicables à tous les Allgemeine Anforderungen anwendbar für alle
transformateurs (ISO 5826:2014) Transformatoren (ISO 5826:2014)
This European Standard was approved by CEN on 3 February 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 5826:2014 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN ISO 5826:2014
EN ISO 5826:2014 (E)

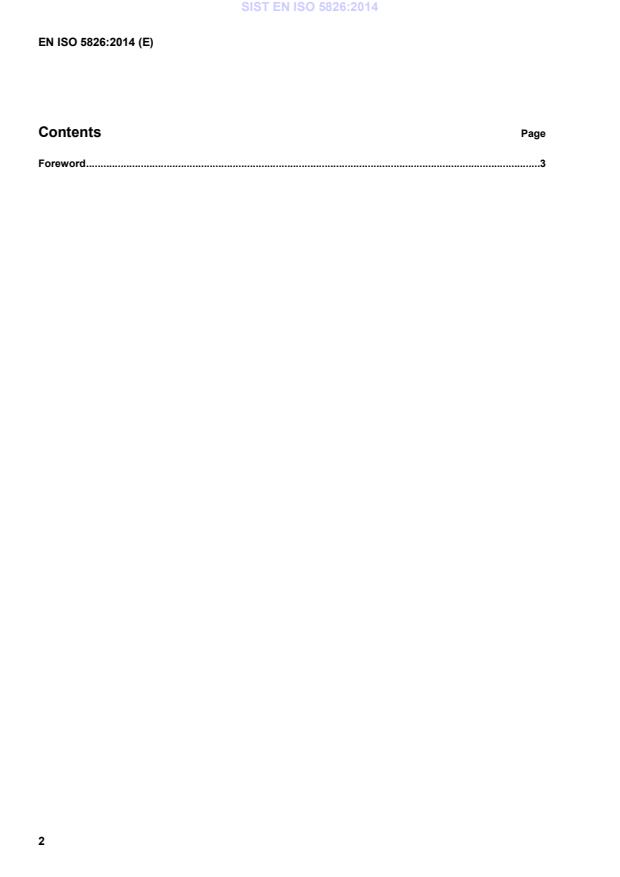

Contents Page
Foreword .3
2

---------------------- Page: 4 ----------------------

SIST EN ISO 5826:2014
EN ISO 5826:2014 (E)
Foreword
This document (EN ISO 5826:2014) has been prepared by Technical Committee ISO/TC 44 “Welding and
allied processes” in collaboration with Technical Committee CEN/TC 121 “Welding and allied processes” the
secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2014, and conflicting national standards shall be withdrawn at
the latest by August 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 5826:2003.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 5826:2014 has been approved by CEN as EN ISO 5826:2014 without any modification.


3

---------------------- Page: 5 ----------------------

SIST EN ISO 5826:2014

---------------------- Page: 6 ----------------------

SIST EN ISO 5826:2014
INTERNATIONAL ISO
STANDARD 5826
Third edition
2014-02-15
Resistance welding equipment —
Transformers — General
specifications applicable to all
transformers
Matériel de soudage par résistance — Transformateurs —
Spécifications générales applicables à tous les transformateurs
Reference number
ISO 5826:2014(E)
©
ISO 2014

---------------------- Page: 7 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

---------------------- Page: 8 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 3
5 Construction, additional equipment. 4
5.1 Thermal protection . 4
5.2 Output current sensing coil . 4
6 Physical environment and operating conditions . 5
6.1 General . 5
6.2 Ambient air temperature . 5
6.3 Humidity . 5
6.4 Altitude . 5
6.5 Transportation and storage . 5
6.6 Provisions for handling . 5
6.7 Cooling liquid temperature . 6
7 Tests . 6
7.1 Test conditions . 6
7.2 Type tests . 6
7.3 Routine tests . 7
8 Protection against electric shock . 7
8.1 Insulation resistance . 7
8.2 Dielectric strength. 7
8.3 Calibration of output current sensing coil . 8
8.4 Protection against electric shock in normal service (direct contact) . 9
8.5 Protection against electric shock in case of fault condition (indirect contact) . 9
8.6 Class II transformer insulation requirements . 9
9 Thermal rating . 9
9.1 General . 9
9.2 Limits of temperature rise .10
9.3 Heating test conditions .11
9.4 Methods of temperature measurements .13
10 Rated output voltage .15
10.1 General .15
10.2 a.c. no-load voltage (U ) .15
20
10.3 d.c. no-load voltage (U ) .15
2d
11 No-load input current (I ) .15
10
11.1 General .15
11.2 Measurement procedure .16
12 Short-circuit voltage (U ) .16
cc
13 Output current under load condition .16
14 Cooling liquid circuit .17
15 Dynamic behaviour .17
16 Rating plate .17
16.1 General .17
16.2 Description .18
17 Instruction manual .20
© ISO 2014 – All rights reserved iii

---------------------- Page: 9 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

Annex A (informative) Example of a rating plate .21
Annex B (normative) Corrections for higher altitudes and cooling medium temperatures .22
Annex C (informative) Notes on physical concepts and comments on some definitions .23
Annex D (informative) Type code for single-phase transformers for alternating welding current 29
Bibliography .30
iv © ISO 2014 – All rights reserved

---------------------- Page: 10 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 44, Welding and allied processes, Subcommittee
SC 6, Resistance welding and allied mechanical joining.
This third edition cancels and replaces the second edition (ISO 5826:1999), which has been technically
revised.
Requests for official interpretations of any aspect of this standard should be directed to the Secretariat
of ISO/TC 44/SC 6 via your national standards body, a complete listing of which can be found at www.
iso.org.
© ISO 2014 – All rights reserved v

---------------------- Page: 11 ----------------------

SIST EN ISO 5826:2014

---------------------- Page: 12 ----------------------

SIST EN ISO 5826:2014
INTERNATIONAL STANDARD ISO 5826:2014(E)
Resistance welding equipment — Transformers — General
specifications applicable to all transformers
1 Scope
This International Standard gives specifications applicable to the following types of transformers for
use in resistance welding equipment:
— single-phase transformers for a.c. welding, typically operating at 50 Hz or 60 Hz;
— single-phase transformers with connected rectifier for d.c. welding, typically operating at 50 Hz or
60 Hz;
— single-phase inverter transformers with connected rectifier for d.c. welding, typically operating at
400 Hz to 2 kHz;
— three-phase transformers with connected rectifier for d.c. welding, typically operating at 50 Hz or
60 Hz.
For the purposes of this International Standard, the term transformer can refer to the transformer alone
or with connected rectifier (transformer-rectifier unit).
This International Standard applies to transformers built to protection class I or II according to IEC 61140.
NOTE The requirements of this International Standard can be supplemented by other resistance welding
transformer standards, e.g. ISO 22829 and ISO 10656.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 669, Resistance welding — Resistance welding equipment — Mechanical and electrical requirements
IEC 60085, Electrical insulation — Thermal evaluation and designation
IEC 60529, Degrees of protection provided by enclosures (IP code)
IEC 61140, Protection against electric shock — Common aspects for installation and equipment
ISO 17657-3, Resistance welding — Welding current measurement for resistance welding — Part 3: Current
sensing coil
ISO 17657-4, Resistance welding — Welding current measurement for resistance welding — Part 4:
Calibration system
ISO 17677-1, Resistance welding — Vocabulary — Part 1: Spot, projection and seam welding
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 17677-1 and ISO 669, and the
following apply.
© ISO 2014 – All rights reserved 1

---------------------- Page: 13 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

3.1
transformer-rectifier unit
transformer with connected rectifier
transformer incorporating a full-wave rectifier in its output circuit
3.2
input voltage
U
1
RMS value of the voltage applied to the primary terminals of the transformer
3.3
rated supply voltage
U
1N
RMS value of the supply voltage (applied to the input terminals) for which the transformer is constructed
Note 1 to entry: This voltage can be different from the mains voltage.
3.4
d.c. no load voltage
U
2d
for transformers, RMS value of the voltage at the output when a load resistance is connected across the
output terminals
3.5
input current
I
1
RMS value of the current at the input terminals of the transformer
3.6
output current
I
2
RMS value of the current at the output terminals of the transformer
3.7
output current at a given duty factor
I
2X
RMS value of the current at the output terminals of the transformer at a duty factor, X
3.8
no-load input current
I
10
RMS value of the current at the input terminals of the transformer with open circuit output terminals
3.9
permanent input current
I , I
1p Lp
maximum rated value of the current at the input terminals corresponding to the permanent output
current
Note 1 to entry: The relationship between input and output currents depends on the type of transformer.
Note 2 to entry: I is used for single-phase transformers; I is used for three-phase transformers.
1p Lp
2 © ISO 2014 – All rights reserved

---------------------- Page: 14 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

3.10
permanent output current
I
2p
highest output current on all settings of the regulator, for continuous operation (100 % duty factor)
[SOURCE: ISO 669]
Note 1 to entry: The permanent output current is a standardized parameter that is used for comparison and
characterization between different transformers. The value of the permanent output current is dependent on the
test conditions as described in this standard.
3.11
output current under load condition
I
2R
instantaneous RMS value of the output current delivered by the transformer with a load resistance, R
3.12
rated permanent apparent input power
S
1p
rated permanent apparent power calculated by U × I
1N 1p
Note 1 to entry: Welding equipment permanent power, S , determined in accordance with ISO 669, may be different
p
from its welding transformer rated permanent apparent input power, S .
1p
4 Symbols and abbreviated terms
The symbols used in this International Standard are listed in Table 1.
Table 1 — Symbols
Symbol Description Used in [section]
I input current 3.5, 9.3
1
I no-load input current 3.8, Clause 11
10
I rated permanent input current (single-phase transformers) 3.9, 9.1, Clause 12
1p
I rated permanent input current (three-phase transformers) 3.9, 9.1
Lp
I output current 3.6, 9.3, Annex C
2
I permanent output current at 100 % duty factor 3.10, 9.1, 9.3, 16.2, Annex C
2p
I output current on load condition 3.11, Clause 13
2R
I output current at a given duty factor 3.7, Annex C
2X
m mass 16.2
S input power at a given duty factor Annex C
X
S rated permanent apparent input power 3.12, 9.1, 16.2, Annex C
1p
Q rated cooling liquid flow Clause 14, 16.2
R initial resistance of a winding 9.3.5, 9.4.3
1
R resistance of a winding at end of heating test 9.4.3
2
T Time Annex C
t on-load time Annex C
1
T cycle time Annex C
U input voltage 3.2, Clause 13
1
U rated short-circuit voltage Clause 12, Annex C
cc
U input short-circuit voltage Clause 12
1cc
© ISO 2014 – All rights reserved 3

---------------------- Page: 15 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

Table 1 (continued)
Symbol Description Used in [section]
U rated supply voltage 3.3, 9.1, 9.3, 10.2, 10.3, Clauses
1N
11, 13, 16.2, Annex C
U a.c. no-load voltage 10.1, 10.2, 16.2
20
U d.c. no-load voltage 3.4, 10.1, 10.3, 16.2
2d
X duty factor 9.3, Annex C
X duty factor of magnetic circuit Annex C
m
Z total impedance referred to output Clauses 12 and 17
2
Δ pressure drop of cooling liquid circuit Clause 14, 16.2
p
Δθ temperature differences Annex C
1, 2
θ temperature Annex C
θ cooling medium temperature 9.4.3, Annex B, Annex C
a
θ equilibrium temperature Annex C
m
θ temperature when transformer starts to cool Annex C
n
θ temperatures for calculation of thermal time constant or 9.3.5, 9.4.3, Annex C
0, 1, 2
winding temperatures during heating test
τ thermal time constant Annex C
τ thermal time constant at given on-load time Annex C
2
τ thermal time constant at permanent output current Annex C
2p
5 Construction, additional equipment
5.1 Thermal protection
If the transformer and/or the rectifier are equipped with thermoswitches, they shall have a normally
closed contact. The insulation shall be suitable for the test conditions prescribed in this standard.
5.2 Output current sensing coil
If the transformer is equipped with an output current sensing coil, the degree of protection of an
externally mounted coil shall be lP 55.
The conversion coefficient shall be:
— 50 Hz mains frequency: 150 mV/kA with a load resistance of 1 000 Ω under full sine wave up to
80 °C;
— 60 Hz mains frequency: 180 mV/kA with a load resistance of 1 000 Ω under full sine wave up to
80 °C
The tolerance of the conversion coefficient after mounting in the transformer shall be ± 3 %.
The current sensing coil shall be a Rogowski type. The internal resistance of the current sensing coil
shall be 5 to 50 Ω. White and brown colour coding shall be used for the wiring.
4 © ISO 2014 – All rights reserved

---------------------- Page: 16 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

6 Physical environment and operating conditions
6.1 General
Transformers shall be suitable for use in the physical environment and operating conditions as specified
below.
When the physical environment and/or operating conditions are outside those specified below, an
agreement may be needed between the supplier and the user, (see, for example, IEC 60204-1:1997,
Annex B).
NOTE Examples of these conditions are: outdoor use, different altitude, different temperature of cooling
medium, high humidity, unusually corrosive fumes, steam, excessive oil vapour, abnormal vibration or shock,
excessive dust, unusual sea coast or shipboard conditions.
6.2 Ambient air temperature
Transformers shall be capable of operating correctly in an ambient air temperature between + 5 °C and
+ 40 °C.
In case of other maximum temperatures of the cooling medium, see Annex B.
6.3 Humidity
Transformers shall be capable of operating correctly with a relative humidity up to 95 %.
Harmful effects of condensation shall be avoided by:
— appropriate design of the transformer (e.g. application of electrical potting or encapsulation);
— appropriate design of the welding equipment (e.g. built in heaters, air conditioners, drain holes);
— additional measures (e.g. cooling liquid temperature regulation).
6.4 Altitude
Transformers shall be capable of operating correctly at altitudes up to 1 000 m above mean sea level.
In case of other altitudes, see Annex B.
NOTE At altitudes over 1 000 m, additional electrical safety considerations can be required: see IEC 60664–
1.
6.5 Transportation and storage
Transformers shall be designed to withstand, or suitable precautions shall be taken to protect against,
transportation and storage temperatures between – 25 °C and + 55 °C and for short periods not exceeding
24 h up to + 70 °C. Suitable means shall be provided to prevent damage from humidity, vibration and
shock.
Consideration should be given to frost or freezing protection and draining of the cooling water before
shipping or storage.
6.6 Provisions for handling
Transformers that weigh over 25 kg shall be provided with suitable means for handling by hoists, cranes
or similar equipment such as threaded holes or lifting lugs as appropriate.
© ISO 2014 – All rights reserved 5

---------------------- Page: 17 ----------------------

SIST EN ISO 5826:2014
ISO 5826:2014(E)

6.7 Cooling liquid temperature
The temperature of the cooling liquid can be up to 30 °C at the inlet of the transformer.
For cooling liquid temperatures above 30 °C, see Annex B.
Condensation caused by high cooling liquid flow or low cooling liquid temperature in relation to the
relative humidity should be prevented.
NOTE For air cooled transformers, see 6.2 and Annex B.
7 Tests
7.1 Test conditions
The tests shall be carried out on a new, dry and completely assembled transformer at an ambient air
temperature between + 10 °C and + 40 °C.
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oprema za uporovno varjenje - Transformatorji - Splošne specifikacije, veljavne za vse transformatorje (ISO/FDIS 5826:2013)Widerstandsschweißeinrichtungen - Transformatoren - Allgemeine Anforderungen anwendbar für alle Transformatoren (ISO/FDIS 5826:2013)Matériel de soudage par résistance - Transformateurs - Spécifications générales applicables à tous les transformateurs (ISO/FDIS 5826:2013)Resistance welding equipment - Transformers - General specifications applicable to all transformers (ISO/FDIS 5826:2013)29.180Transformatorji. DušilkeTransformers. Reactors25.160.30Varilna opremaWelding equipmentICS:Ta slovenski standard je istoveten z:FprEN ISO 5826kSIST FprEN ISO 5826:2013en,fr,de01-december-2013kSIST FprEN ISO 5826:2013SLOVENSKI
