oSIST prEN IEC 60598-2-5:2026

• Status: Not Published
• Public Enquiry End Date: 15-Nov-2026
• ICS: 29.140.40 - Luminaires
• Technical Committee: STV - Steklo, svetloba in razsvetljava v gradbeništvu
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 08-Sep-2026
• Due Date: 26-Jan-2027
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: prEN IEC 60598-2-5:2026 - Luminaires - Part 2-5: Particular requirements - Floodlights

• Revises: SIST EN 60598-2-5:2016 - Luminaires - Part 2-5: Particular requirements - Floodlights (IEC 60598-2-5:2015)
• Effective Date: 23-Apr-2024

oSIST prEN IEC 60598-2-5:2026 is the SIST adoption of the International Electrotechnical Commission (IEC) floodlight standard for luminaires. It specifies particular requirements for floodlights used with electric light sources on supply voltages not exceeding 1 000 V, and it is meant for manufacturers, test laboratories, certifiers and specifiers who need to design, test or assess these products.

What does oSIST prEN IEC 60598-2-5:2026 specify?

oSIST prEN IEC 60598-2-5:2026 gives the particular requirements for floodlights and is used together with IEC 60598-1. It sets the extra rules that apply to floodlights beyond the general luminaire requirements, so readers can check the right construction, marking, mounting and test provisions for this product type.

The document is arranged as clauses 1 to 17, covering scope, references, terms, general requirements, classification, marking, construction, wiring, earthing, protection against electric shock, ingress resistance, insulation and electric strength, creepage distances, endurance and thermal tests, resistance to heat/fire/tracking, and terminal requirements. Annex AAA is an informative schedule of amended clauses that may require retesting when moving from the previous edition.

Annex	What it covers
AAA	Informative schedule of amended clauses with more serious or critical requirements that may trigger retesting

What are the key requirements of oSIST prEN IEC 60598-2-5:2026?

oSIST prEN IEC 60598-2-5:2026 mainly adds floodlight-specific requirements to the general luminaire rules in Part 1. In practice, the document focuses on installation information, outdoor durability, mounting strength, glass cover safety and thermal behaviour.

Relationship with IEC 60598-1

The standard is intended to be used with the latest edition of IEC 60598-1 and its amendments. Where this document says addition, modification or replacement, the corresponding Part 1 text is adapted. For users, that means the floodlight rules cannot be read in isolation.

Instructions, marking and classification

Installation instructions must state the operating position when it is not universal, the mass and overall dimensions, the largest projected area subject to wind force, indoor suitability where relevant, and the maximum mounting height above ground level. This matters because installers and buyers need the data to select supports, mounting height and location correctly.

Construction and mounting

Outdoor floodlights need moisture protection at least equivalent to IPX3. The means of attachment must match the mass of the luminaire and withstand wind loads at the declared mounting height, and the design must prevent parts from becoming dislodged by vibration or if a fixing fails. Practically, this is the part of the standard that governs brackets, fixings and support strength.

Glass covers

For luminaires intended for higher mounting heights, glass covers must either break into small pieces, have high impact resistance, or retain fragments if they break. The document gives separate test routes for these options, including a fragmentation count method and an impact test route using the IK code. In practice, the manufacturer must choose the protection concept and then prove it by the relevant test.

Thermal and endurance testing

For outdoor-use luminaires, the test temperatures used from Part 1 are adjusted to allow for natural air movement in service. For indoor-use luminaires, that adjustment is not applied, and the installation instructions must state indoor suitability. Glass covers also have to remain within declared thermal limits, including their temperature range and maximum temperature difference.

Retesting after revision

For luminaires already assessed to the previous edition, full type testing is not required. The product and previous test results are reviewed against the amended clauses listed in Annex AAA. This helps users focus re-evaluation on the changed high-risk requirements.

What terms does oSIST prEN IEC 60598-2-5:2026 define?

• Floodlight - a luminaire for lighting a scene or object so its illuminance is greatly increased relative to the surroundings.
• Luminaire - in this part, the term luminaire means floodlight(s).
• Part 1 - IEC 60598-1, the general requirements and tests used together with this part.
• IP classification - the protection rating used to describe resistance to ingress of solid objects and moisture.
• IK code - the impact protection code used for the high-impact glass test route.
• Operating position - the mounting position that must be stated when the floodlight is not suitable for all positions.

Who uses oSIST prEN IEC 60598-2-5:2026?

Lighting manufacturers use oSIST prEN IEC 60598-2-5:2026 to design floodlights, choose glass cover protection, define mounting hardware and prepare installation instructions. Test laboratories and certification bodies use it for type testing, impact testing, ingress testing and thermal assessment.

Buyers, specifiers and project engineers use it to check whether a floodlight is suitable for the intended mounting height, outdoor exposure and installation method. Installers and maintenance teams use it to understand support, fixing and instruction requirements before the product is put into service.

What changed in oSIST prEN IEC 60598-2-5:2026 from the previous edition?

oSIST prEN IEC 60598-2-5:2026 cancels and replaces the third edition published in 2015. The standard states these main changes:

• clause numbers and structure aligned with IEC 60598-1
• more detailed glass breakage tests added
• wind force test reviewed and aligned with IEC 60598-2-3
• mounting height information requirement modified
• high impact glass requirements modified, with subclause 7.107.3 listed in Annex AAA as more onerous

Which standards are used with oSIST prEN IEC 60598-2-5:2026?

• IEC 60598-1:2024 - provides the general requirements and tests that Part 2-5 builds on.
• IEC 60068-2-75 - gives the hammer test method used for impact testing.
• IEC 62262:2002 and IEC 62262:2002/AMD1:2021 - provide the IK code used for impact classification.
• IEC/TR 62696 - supports the application of the IK code in the glass impact test.

What does the oSIST prEN IEC 60598-2-5:2026 document contain?

The document contains the floodlight-specific clauses, plus the linked Part 1 clauses that remain applicable. It includes test and inspection methods for mounting strength, glass fragmentation, impact resistance and thermal behaviour.

It also includes Figure 1 for the static wind-force test and Figures 2 and 3 for counting glass fragments after breakage. These figures support the practical test setup and the pass/fail check.

Annex AAA provides a clause-by-clause schedule of changed requirements that may need retesting when updating certification or rechecking an existing design.

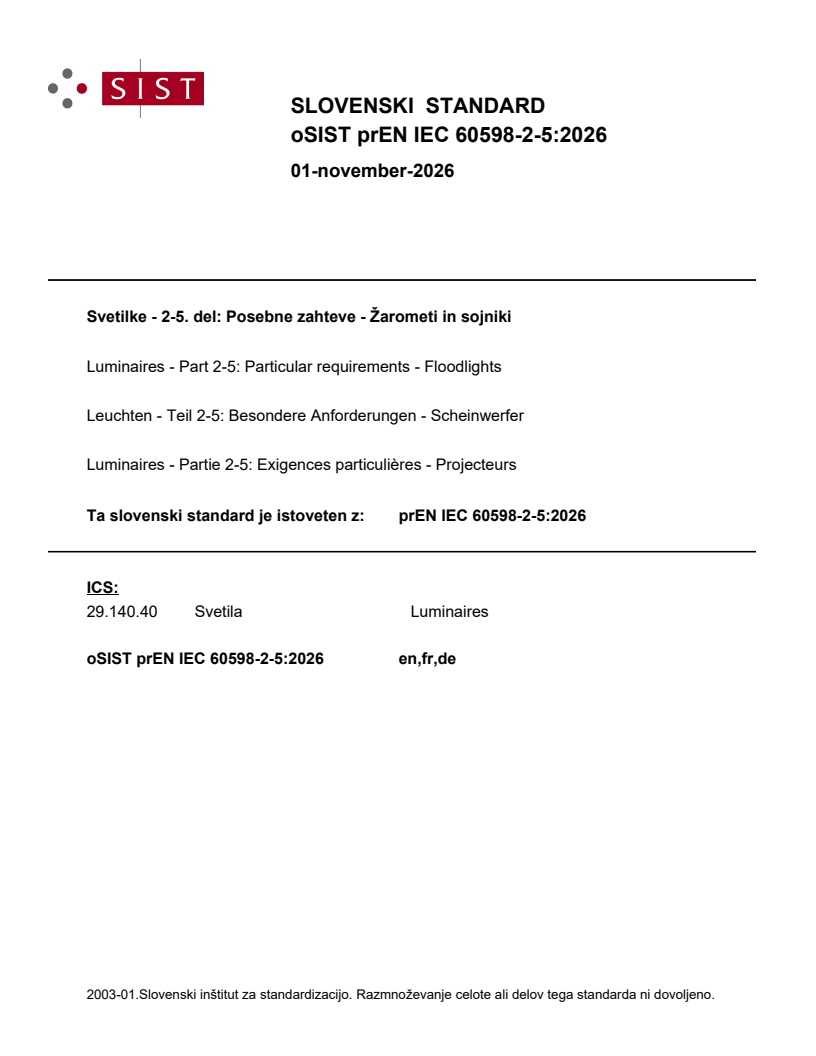

SLOVENSKI STANDARD
01-november-2026
Svetilke - 2-5. del: Posebne zahteve - Žarometi in sojniki
Luminaires - Part 2-5: Particular requirements - Floodlights
Leuchten - Teil 2-5: Besondere Anforderungen - Scheinwerfer
Luminaires - Partie 2-5: Exigences particulières - Projecteurs
Ta slovenski standard je istoveten z: prEN IEC 60598-2-5:2026
ICS:
29.140.40 Svetila Luminaires
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

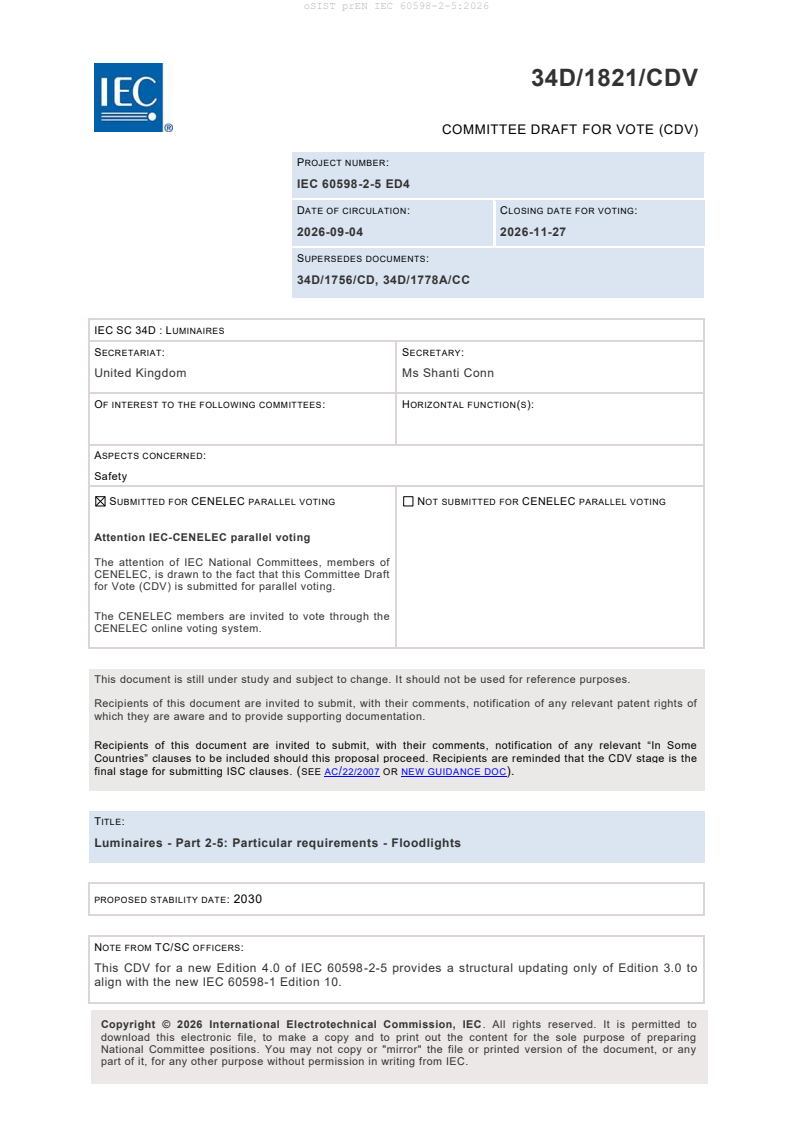

34D/1821/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 60598-2-5 ED4
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2026-09-04 2026-11-27
SUPERSEDES DOCUMENTS:
34D/1756/CD, 34D/1778A/CC
IEC SC 34D : LUMINAIRES
SECRETARIAT: SECRETARY:
United Kingdom Ms Shanti Conn
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):

ASPECTS CONCERNED:
Safety
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is the
final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Luminaires - Part 2-5: Particular requirements - Floodlights

PROPOSED STABILITY DATE: 2030
NOTE FROM TC/SC OFFICERS:
This CDV for a new Edition 4.0 of IEC 60598-2-5 provides a structural updating only of Edition 3.0 to
align with the new IEC 60598-1 Edition 10.
download this electronic file, to make a copy and to print out the content for the sole purpose of preparing
National Committee positions. You may not copy or "mirror" the file or printed version of the document, or any
part of it, for any other purpose without permission in writing from IEC.

IEC CDV 60598-2-5 © IEC 2026

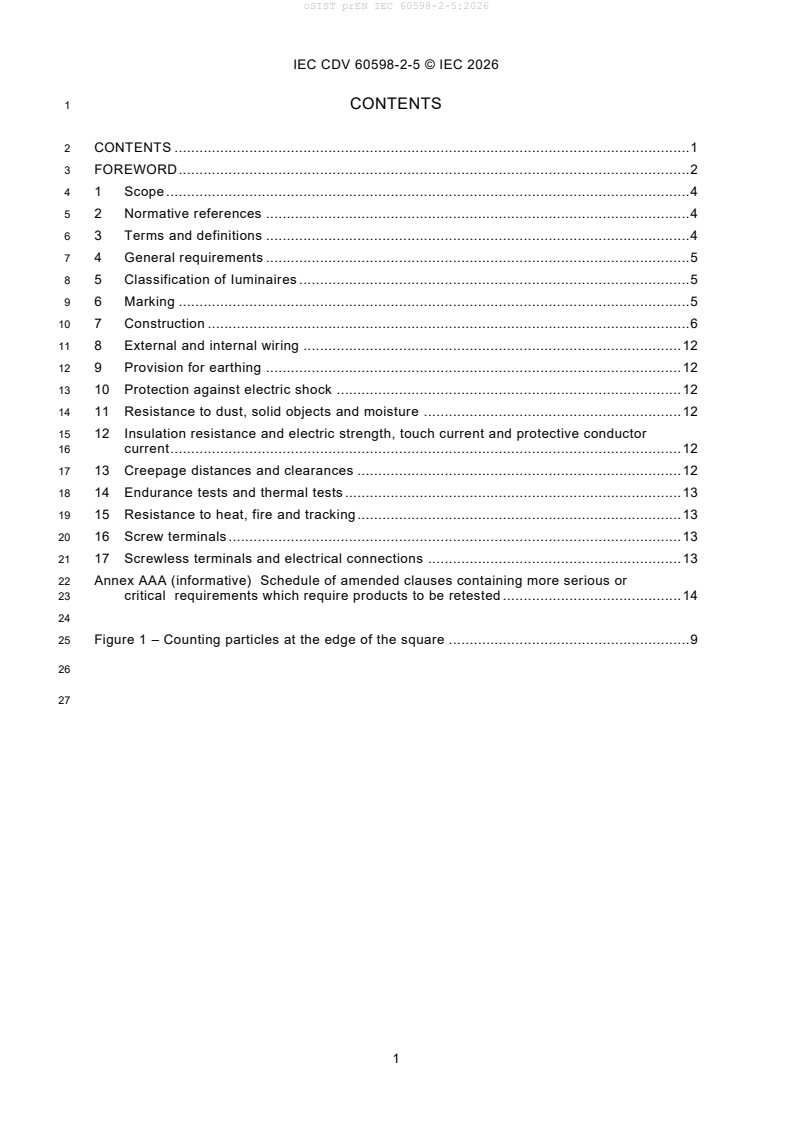

1 CONTENTS
2 CONTENTS . 1
3 FOREWORD . 2
4 1 Scope . 4
5 2 Normative references . 4
6 3 Terms and definitions . 4
7 4 General requirements . 5
8 5 Classification of Iuminaires . 5
9 6 Marking . 5
10 7 Construction . 6
11 8 External and internal wiring . 12
12 9 Provision for earthing . 12
13 10 Protection against electric shock . 12
14 11 Resistance to dust, solid objects and moisture . 12
15 12 Insulation resistance and electric strength, touch current and protective conductor
16 current . 12
17 13 Creepage distances and clearances . 12
18 14 Endurance tests and thermal tests . 13
19 15 Resistance to heat, fire and tracking . 13
20 16 Screw terminals . 13
21 17 Screwless terminals and electrical connections . 13
22 Annex AAA (informative) Schedule of amended clauses containing more serious or
23 critical requirements which require products to be retested . 14
25 Figure 1 – Counting particles at the edge of the square . 9
IEC CDV 60598-2-5 © IEC 2026
28 INTERNATIONAL ELECTROTECHNICAL COMMISSION
29 ____________
31 LUMINAIRES –
33 Part 2-5: Particular requirements – Floodlights
37 FOREWORD
38 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
39 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
40 international co-operation on all questions concerning standardization in the electrical and electronic fields. To
41 this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
42 Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
43 Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
44 in the subject dealt with may participate in this preparatory work. International, governmental and non -
45 governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
46 with the International Organization for Standardization (ISO) in accordance with conditions determined by
47 agreement between the two organizations.
48 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
49 consensus of opinion on the relevant subjects since each technical committee has representation from all
50 interested IEC National Committees.
51 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
52 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
53 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
54 misinterpretation by any end user.
55 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
56 transparently to the maximum extent possible in their national and regional publications. Any divergence
57 between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
58 the latter.
59 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
60 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
61 services carried out by independent certification bodies.
62 6) All users should ensure that they have the latest edition of this publication.
63 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
64 members of its technical committees and IEC National Committees for any personal injury, property damage or
65 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
66 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
67 Publications.
68 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
69 indispensable for the correct application of this publication.
70 9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
71 patent(s). IEC [takes no position concerning the evidence, validity or applicability of any claimed patent rights
72 in respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
73 which may be required to implement this document. However, implementers are cautioned that this may not
74 represent the latest information, which may be obtained from the patent database available at
75 https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
77 IEC 60598-2-5 has been prepared by subcommittee 34D: Luminaires, of IEC technical
78 committee 34: Lighting. It is an International Standard.
79 This fourth edition cancels and replaces the third edition, published in 2015. This edition
80 constitutes a technical revision.
81 This edition includes the following significant technical changes with respect to the previous
82 edition:
83 a) the clause numbers and structure have been aligned with those of IEC 60598-1;
IEC CDV 60598-2-5 © IEC 2026
84 b) more detailed glass breakage tests have been added;
85 c) wind force test has been reviewed and aligned with IEC 60598-2-3;
86 d) requirement for the information about the mounting height has been modified .
87 e) requirements for high impact glass has been modified. Subclause 7.107.3 is now listed in
88 Annex AAA being considered more onerous compared with the last edition.
90 The text of this International Standard is based on the following documents:
Draft Report on voting
XX/XX/FDIS XX/XX/RVD
92 Full information on the voting for its approval can be found in the report on voting indicated in
93 the above table.
94 The language used for the development of this International Standard is English.
95 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
96 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, and the
97 ISO/IEC Directives, JTC 1 Supplement available at www.iec.ch/members_experts/refdocs.
98 The main document types developed by IEC are described in greater detail at
99 www.iec.ch/publications.
100 This Part 2-5 is to be used in conjunction with the latest edition of IEC 60598-1 and its
101 amendment(s). It was established on the basis of the tenth edition (2024) of that standard.
102 NOTE  When “Part 1” is mentioned in this document, it refers to IEC 60598 -1.
103 Where this document states "addition", "modification" or "replacement", the relevant text of
104 Part 1 is to be adapted accordingly.
105 Subclauses additional to those in Part 1 are numbered starting from 101; supplementary
106 annexes are entitled AAA, AAB, etc.
107 A list of all parts in the IEC 60598 series, published under the general title Luminaires can be
108 found on the IEC website.
109 The committee has decided that the contents of this document will remain unchanged until the
110 stability date indicated on the IEC website under webstore.iec.ch in the data related to the
111 specific document. At this date, the document will be
112 • reconfirmed,
113 • withdrawn,
114 • replaced by a revised edition, or
115 • amended.
IEC CDV 60598-2-5 © IEC 2026
119 LUMINAIRES –
121 Part 2-5: Particular requirements – Floodlights
125 1 Scope
126 This part of IEC 60598 specifies requirements for floodlights for use with electric light sources
127 on supply voltages not exceeding 1 000 V.
128 NOTE Where the term “luminaire” is used within this document it means floodlight(s).
130 2 Normative references
131 This clause of Part 1 applies with the following additions:
132 IEC 60068-2-75, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
133 IEC 60598-1: 2024, Luminaires – Part 1: General requirements and tests
134 IEC 62262:2002, Degrees of protection provided by enclosures for electrical equipment
135 against external mechanical impacts (IK code)
136 IEC 62262:2002/AMD1:2021
137 IEC/TR 62696, Luminaires – Application of the IK code IEC62262
138 3 Terms and definitions
139 For the purposes of this document , the terms and definitions given in Part 1, applies with the
140 following additions:
141 ISO and IEC maintain terminology databases for use in standardization at the following
142 addresses:
143 • IEC Electropedia: available at https://www.electropedia.org/
144 • ISO Online browsing platform: available at https://www.iso.org/obp3.101
146 3.101
147 floodlight
148 luminaire for lighting of a scene or an object, in order to increase considerably its illuminance
149 relative to its surroundings.
150 Note 1 to entry: The difference in illumination between the subject and its surroundings may, alternatively, be
151 achieved by colour.
152 Note 2 to entry: A floodlight can be for either exterior or interior use or for both.
153 Note 3 to entry: This definition is derived from IEV definitions: IEC 60050-845:2020, 845-29-021, IEC 60050-
154 845:2020, 845-30-030 and IEC 60050-845:2020, 845-30-033.
IEC CDV 60598-2-5 © IEC 2026
157 4 General requirements
158 This Clause of Part 1 applies with the following additions:
159 4.101 General
160 For assessment of luminaires already assessed in accordance with the previous edition of this
161 document, full type testing is not necessary, and the product and the previous test results are
162 reviewed only against any amended clauses listed in Annex AAA.
163 4.102 Sequence of clauses
164 The clauses according to this document shall be applied in the following order:
165 5 Classification of luminaires
166 6 Marking
167 7 Construction
168 13 Creepage distances and clearances
169 9 Provisions for earthing
170 16 Screw terminals
171 17 Screwless terminals and electrical connections
172 8 External and internal wiring
173 10 Protection against electric shock
174 14 Endurance tests and thermal tests
175 11 Resistance to dust, solid objects and moisture
176 12 Insulation resistance and electric strength, touch current and protective conductor
177 current
178 15 Resistance to heat, fire and tracking
179 For luminaires with
...
