oSIST prEN IEC 60598-2-18:2025

Luminaires - Part 2-18: Particular requirements - Luminaires for swimming pools and similar applications

Leuchten - Teil 2-18: Besondere Anforderungen - Leuchten für Schwimmbecken und ähnliche Anwendungen

Luminaires - Partie 2-18: Exigences particulières - Luminaires pour piscines et usages analogues

Svetilke - 2-18. del: Posebne zahteve - Svetilke za bazene in podobno uporabo

General Information

• Status: Not Published
• Public Enquiry End Date: 29-Nov-2025
• ICS: 29.140.40 - Luminaires
• ICS: 97.220.10 - Sports facilities
• Technical Committee: STV - Steklo, svetloba in razsvetljava v gradbeništvu
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 29-Sep-2025
• Due Date: 16-Feb-2026
• Completion Date: 18-Dec-2025
• Ref Project: prEN IEC 60598-2-18:2025 - Luminaires - Part 2-18: Particular requirements - Luminaires for swimming pools and similar applications

Relations

• Revises: SIST EN IEC 60598-2-18:2022 - Luminaires - Part 2-18: Particular requirements - Luminaires for swimming pools and similar applications (IEC 60598-2-18:2022)
• Effective Date: 29-Jul-2025

Overview

prEN IEC 60598-2-18:2025 (IEC 60598-2-18 Ed.4) is the Part 2-18 particular requirements document for luminaires for swimming pools and similar applications. It complements IEC 60598-1 and specifies safety, construction and testing requirements for fixed luminaires intended to be used in contact with water (e.g., swimming pools, fountains, paddling and garden pools). The document aligns the structure with IEC 60598-1 (Edition 10, 2024) and is intended for parallel CENELEC voting.

Key topics and technical requirements

• Scope: Applies to fixed luminaires used in water or in direct contact with water; excludes luminaires not in contact with water (e.g., behind separate glass) and portable/hand-held luminaires.
• Protection against electric shock: Luminaires shall be Class III, with external and internal circuits operating at ≤ 12 V AC or ≤ 30 V DC ripple free.
• Ingress protection:
  • Parts in contact with water: pressure watertight (IPX8).
  • Parts not in contact with water: at least IP54 (dustproof and splashproof).
• Mounting / service classification:
  • Category A: mounted partly in contact with water; supply and lamp replacement from non-water side.
  • Category B: lamp replacement from water side after partial/complete drainage.
  • Category C: completely removed from water for lamp replacement.
• Marking and documentation:
  • Luminaires intended only for use immersed: “For use only when immersed in water”.
  • Output of controlgear or transformer (W or VA) must be provided on the luminaire or in the installation leaflet.
  • Installation leaflet must include corrosion guidance (e.g., aluminium vs. concrete) and consider IEC 60364-7-702.
• Construction and tests:
  • Mechanical impact: parts in contact with water must withstand an impact energy of 0.7 J (0.7 Nm) in the direction of water pressure.
  • Corrosion: parts in contact with water immersed in artificial sea water at (25 ± 2) °C for 14 days; no significant corrosion or roughening (removable traces ignored).
  • Sequence and type testing aligned with Part 1; Annex AAA lists amended subclauses to check for retesting needs.

Applications

• Design, manufacture and certification of pool and fountain lighting, underwater LED fixtures, recessed in-pool luminaires and similar wet-environment luminaires.
• Ensures safe pool lighting installations, preventing electric shock, ingress, corrosion and mechanical failure.

Who should use this standard

• Luminaire manufacturers and product designers
• Electrical installers and pool facility managers
• Test laboratories and conformity assessment bodies
• Regulatory and safety compliance teams

Related standards

• IEC 60598-1 (general requirements for luminaires)
• IEC 60364-7-702 (electrical installations - swimming pools and fountains)
• EN 50525-2-21 (low-voltage flexible cables)
• IEC 61558 series (safety isolating transformers) and IEC symbol IEC 60417-5222

Keywords: IEC 60598-2-18, luminaires for swimming pools, pool lighting standard, IPX8, Class III luminaires, corrosion test, impact test, pool luminaire certification.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2025
Svetilke - 2-18. del: Posebne zahteve - Svetilke za bazene in podobno uporabo
Luminaires - Part 2-18: Particular requirements - Luminaires for swimming pools and
similar applications
Leuchten - Teil 2-18: Besondere Anforderungen - Leuchten für Schwimmbecken und
ähnliche Anwendungen
Luminaires - Partie 2-18: Exigences particulières - Luminaires pour piscines et usages
analogues
Ta slovenski standard je istoveten z: prEN IEC 60598-2-18:2025
ICS:
29.140.40 Svetila Luminaires
97.220.10 Športni objekti Sports facilities
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

34D/1797/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 60598-2-18 ED4
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-09-19 2025-12-12
SUPERSEDES DOCUMENTS:
34D/1791/RR
IEC SC 34D : LUMINAIRES
SECRETARIAT: SECRETARY:
United Kingdom Ms Shanti Conn
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):

ASPECTS CONCERNED:
Safety
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is
the final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Luminaires - Part 2-18: Particular requirements - Luminaires for swimming pools and similar
applications
PROPOSED STABILITY DATE: 2029
NOTE FROM TC/SC OFFICERS:
Project Leader: Hans-Gerd Kaiser

download this electronic file, to make a copy and to print out the content for the sole purpose of preparing National
Committee positions. You may not copy or "mirror" the file or printed version of the document, or any part of it,
for any other purpose without permission in writing from IEC.

IEC CDV 60598-2-18 ED4 © IEC 2025

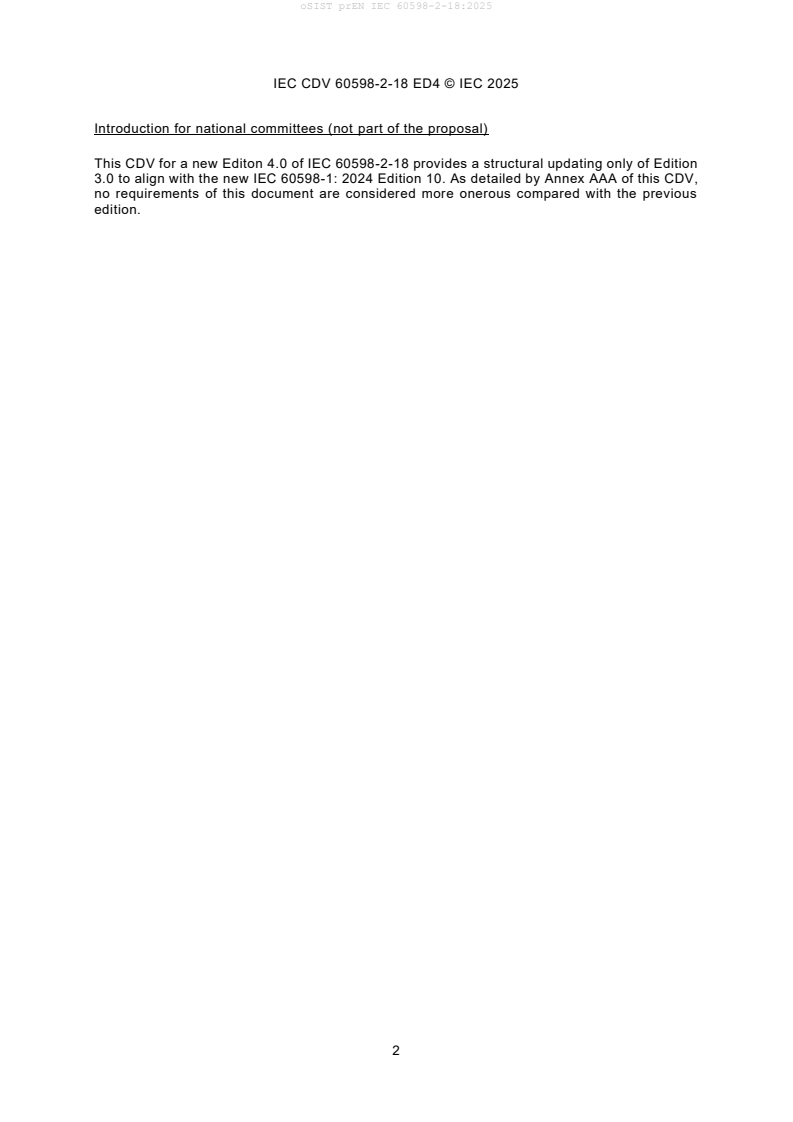

Introduction for national committees (not part of the proposal)
This CDV for a new Editon 4.0 of IEC 60598-2-18 provides a structural updating only of Edition
3.0 to align with the new IEC 60598-1: 2024 Edition 10. As detailed by Annex AAA of this CDV,
no requirements of this document are considered more onerous compared with the previous
edition.
IEC CDV 60598-2-18 ED4 © IEC 2025

1 CONTENTS
3 FOREWORD . 4
4 1 Scope . 6
5 2 Normative references . 6
6 3 Terms and definitions . 6
7 4 General test requirements . 6
8 5 Classification of luminaires . 7
9 6 Marking . 8
10 7 Construction . 8
11 8 External and internal wiring . 9
12 9 Provision for earthing . 9
13 10 Protection against electric shock . 9
14 11 Resistance to dust, solid objects and moisture . 9
15 12 Insulation resistance and electric strength, touch current and protective conductor
16 current . 10
17 13 Creepage distances and clearances . 10
18 14 Endurance tests and thermal tests . 10
19 15 Resistance to heat, fire and tracking . 11
20 16 Screw terminals . 11
21 17 Screwless terminals and electrical connections . 11
22 Annex AAA (informative) Schedule of amended subclauses containing more serious or
23 critical requirements which call for products to be retested . 12
24 Bibliography . 13
IEC CDV 60598-2-18 ED4 © IEC 2025

28 INTERNATIONAL ELECTROTECHNICAL COMMISSION
29 ____________
31 LUMINAIRES –
33 Particular requirements –
34 Luminaires for swimming pools and similar applications
38 FOREWORD
39 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
40 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
41 co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
42 in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
43 Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
44 preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
45 may participate in this preparatory work. International, governmental and non-governmental organizations liaising
46 with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
47 Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
48 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
49 consensus of opinion on the relevant subjects since each technical committee has representation from all
50 interested IEC National Committees.
51 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
52 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
53 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
54 misinterpretation by any end user.
55 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
56 transparently to the maximum extent possible in their national and regional publications. Any divergence between
57 any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
58 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
59 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
60 services carried out by independent certification bodies.
61 6) All users should ensure that they have the latest edition of this publication.
62 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
63 members of its technical committees and IEC National Committees for any personal injury, property damage or
64 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
65 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
66 Publications.
67 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
68 indispensable for the correct application of this publication.
69 9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
70 patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
71 respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
72 may be required to implement this document. However, implementers are cautioned that this may not represent
73 the latest information, which may be obtained from the patent database available at https://patents.iec.ch www.
74 [IEC shall not be held responsible for identifying any or all such patent rights.
75 IEC 60598-2-18 has been prepared by subcommittee 34D: Luminaires, of IEC technical
76 committee 34: Lighting. It is an International Standard.
77 This fourth edition cancels and replaces the third edition, amendment 1 published in 2023. This
78 edition constitutes a technical revision.
79 This edition includes the following significant technical changes with respect to the previous
80 edition:
81 a) The, clause numbers and structure have been aligned with those of IEC 60598-1
IEC CDV 60598-2-18 ED4 © IEC 2025

82 The text of this International Standard is based on the following documents:
Draft Report on voting
XX/XX/FDIS XX/XX/RVD
84 Full information on the voting for its approval can be found in the report on voting indicated in
85 the above table.
86 The language used for the development of this International Standard is English.
87 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
88 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, and the
89 ISO/IEC Directives, JTC 1 Supplement available at www.iec.ch/members_experts/refdocs. The
90 main document types developed by IEC are described in greater detail at
91 www.iec.ch/publications.
92 This Part 2-18 is to be used in conjunction with the latest edition of IEC 60598-1 and its
93 amendment(s). It was established on the basis of the tenth edition 2024 of that standard.
95 NOTE  When “Part 1” is mentioned in this document, it refers to IEC 60598-1.
97 Where this document states "addition", "modification" or "replacement", the relevant text of Part 1 is to
98 be adapted accordingly.
100 Subclauses additional to those in Part 1 are numbered starting from 101; supplementary annexes are
101 entitled AAA, AAB, etc.
103 A list of all parts in the IEC 60598 series, published under the general title Luminaires can be found
104 on the IEC website.
106 The committee has decided that the contents of this document will remain unchanged until the
...
