EUROPEAN STANDARD
EN 490
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2011
ICS 91.100.30 Supersedes EN 490:2004
English Version
Concrete roofing tiles and fittings for roof covering and wall
cladding - Product specifications
Tuiles et accessoires en béton pour couverture et bardage - Dach- und Formsteine aus Beton für Dächer und
Spécifications des produits Wandbekleidungen - Produktanforderungen
This European Standard was approved by CEN on 18 September 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2011 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 490:2011: E
worldwide for CEN national Members.

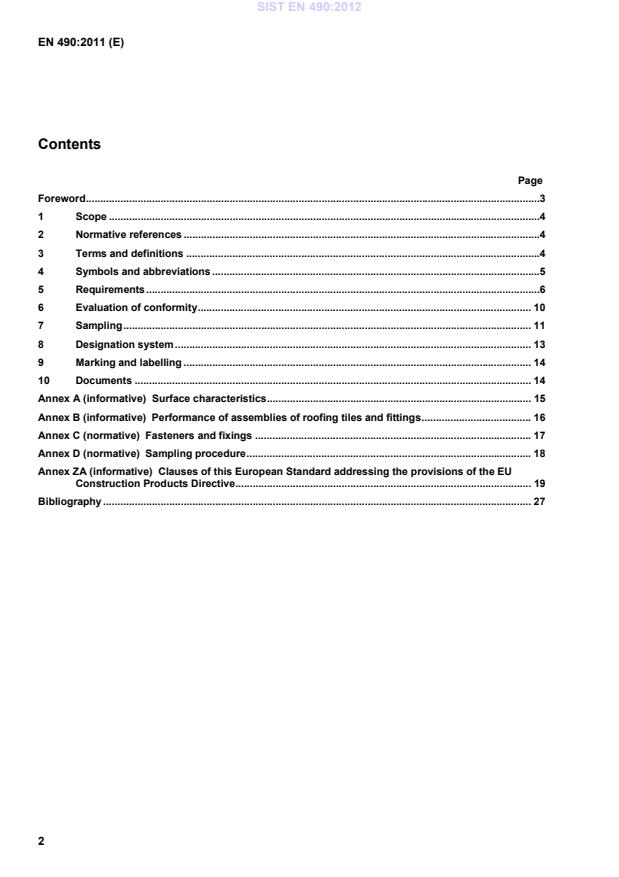

Contents
Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Symbols and abbreviations .5
5 Requirements .6
6 Evaluation of conformity . 10
7 Sampling . 11
8 Designation system . 13
9 Marking and labelling . 14
10 Documents . 14
Annex A (informative) Surface characteristics . 15
Annex B (informative) Performance of assemblies of roofing tiles and fittings . 16
Annex C (normative) Fasteners and fixings . 17
Annex D (normative) Sampling procedure . 18
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Directive . 19
Bibliography . 27
Foreword
This document (EN 490:2011) has been prepared by Technical Committee CEN/TC 128 “Roof covering
products for discontinuous laying and products for wall cladding”, the secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2012, and conflicting national standards shall be withdrawn at the
latest by July 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 490:2004.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
This edition incorporates minor technical changes including reaction to fire requirements.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
1 Scope
This European Standard specifies requirements for concrete roofing tiles and fittings for pitched roof coverings
and wall cladding and lining.
Concrete roofing tiles and fittings may incorporate surface coatings and glued concrete components.
NOTE 1 Information on surface characteristics is given in Annex A.
NOTE 2 Information on the performance of roof and wall assemblies is given in Annex B.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 491:2011, Concrete roofing tiles and fittings for roof covering and wall cladding — Test methods
ENV 1187, Test methods for external fire exposure to roofs
EN 13238, Reaction to fire tests for building products — Conditioning procedures and general rules for
selection of substrates
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the
thermal attack by a single burning item
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using
data from reaction to fire tests
EN 13501-5, Fire classification of construction products and building elements — Part 5: Classification using
data from external fire exposure to roof tests
EN ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific
value) (ISO 1716:2010)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
aggregate
concrete component consisting of uncrushed and/or crushed natural and/or artificial mineral substances with
particle sizes and shapes suitable for the production of concrete
3.2
additive
finely divided material that may be added to concrete in order to improve certain properties or to achieve
special properties
3.3
pigment
additive intended to add colour to the concrete
3.4
admixture
material which is added in small quantities relative to the mass of the cement before or during mixing or during
an additional mixing operation, causing required modifications to the properties
3.5
cement
hydraulic binder, i.e. finely ground inorganic material, which, when mixed with water, forms a paste which sets
by means of hydration reactions and processes and which, after hardening, retains its strength and stability
3.6
fitting
component, of concrete, that is complementary to the tiles and has a special function
NOTE Fittings may contain inserts of other materials.
3.6.1
coordinated fitting
fitting that is intended to align or interlock with the tiles with which it is to be laid (e.g. interlocking verge tile,
interlocking ventilation tile, tile-and-a-half, aligning valley tile, interlocking or aligning angle tiles)
3.7
valley tile
fitting for use at a meeting of two roof pitches forming a re-entrant angle
3.8
interlocking tile
profiled or flat tile which has a side lock, with or without a head lock feature
3.9
non-interlocking tile
profiled or flat tile without interlocks
3.10
tile with a regular front edge
tile (interlocking or non-interlocking) which, by design, has a constant or regularly varying hanging length
across the width
3.11
tile with an irregular front edge
tile (interlocking or non-interlocking), which, by design, has an irregular varying hanging length across the
width
4 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
l hanging length of a tile
l , l hanging edge length of a tile, as defined in EN 491:2011, Clause 4
2 3
c cover width of one tile
w
c cover width closed up value of 10 tiles
wc
c cover width drawn out value of 10 tiles
wd
d profile depth of a tile
F minimum transverse strength of all tiles
min
F transverse strength of an individual tile
i
IL interlocking
NL non-interlocking
RF regular front edge
IF irregular front edge
/ not applicable or not declared characteristic for designation system
5 Requirements
5.1 Materials
The concrete used in the manufacture of tiles and fittings shall be formed by mixing cement, aggregate and
water and produced by the hardening of the cement paste (cement and water).
NOTE In addition to the basic components, the concrete may also contain pigments, admixtures and/or additives.
5.2 Dimensions
5.2.1 Hanging length and squareness
The tile hanging length shall be declared in the manufacturer’s technical specification. For tiles with a regular
front edge, the values of l shall be ± 4 mm of the manufacturer’s declared value when tested in accordance
with EN 491:2011, 5.2.
The squareness for tiles with nominally constant hanging length, when tested in accordance with EN 491:2011,
5.2.2.1, shall be calculated as the difference between values l and l and shall be not greater than 4 mm.
2 3
This sub-clause does not apply for tiles that are designed, for example for aesthetic reasons, with an irregular
front edge.
5.2.2 Cover width
5.2.2.1 General
The tile cover width c shall be declared in the manufacturer’s technical specification.
w
NOTE The cover width shunts may also be declared in the manufacturer’s technical specification.
This sub-clause does not apply for tiles that are designed, for example for aesthetic reasons, with a randomly
varying cover width.
5.2.2.2 Interlocking tiles
When tiles with cover width shunts declared by the manufacturer are tested in accordance with EN 491:2011,
5.3.3.1, the cover width shall conform to the following:
c /10 ≥ c + declared “plus cover width shunt”;
wd w
c /10 ≤ c - declared “minus cover width shunt”.
wc w
When tiles without cover width shunts, and tiles with cover width shunt but not declared by the manufacturer,
are tested in accordance with EN 491:2011, 5.3.3.1, the mean cover width shall be ± 5 mm of the
manufacturer’s declared cover width.
5.2.2.3 Non-interlocking tiles
When non-interlocking tiles are tested in accordance with EN 491:2011, 5.3.3.2, the mean cover width shall
be ± 3 mm of the manufacturer’s declared value.
5.2.3 Flatness
When tiles are tested in accordance with EN 491:2011, 5.4, the gap between any designed contact point and
the flat surface shall not exceed 3 mm or c /100 mm to the nearest millimetre, whichever is the greater.
w
This sub-clause does not apply where the manufacturer declares that:
tiles are designed to have less than four contact points to a flat surface, and/or
tiles are designed to be irregular in flatness.
5.2.4 Fittings
The manufacturer shall identify and declare the dimensions and tolerances and method of measurement of
the fitting relevant to its use. Where relevant, the tile element of a coordinated fitting shall conform to 5.2.1,
5.2.2 and 5.2.3.
5.3 Mass
The mass of tiles and fittings shall be declared in the manufacturer’s technical specification.
When tiles are tested in accordance with EN 491:2011, 5.5, the mean mass shall be:
a) manufacturer’s declared mass ± 0,2 kg for tiles with a declared mass not greater than 2 kg;
b) manufacturer’s declared mass ± 10 % for tiles with a declared mass greater than 2 kg.
5.4 Fixing holes (where provided)
Fixing holes, where provided, shall be arranged so that an intended connection between th
...
