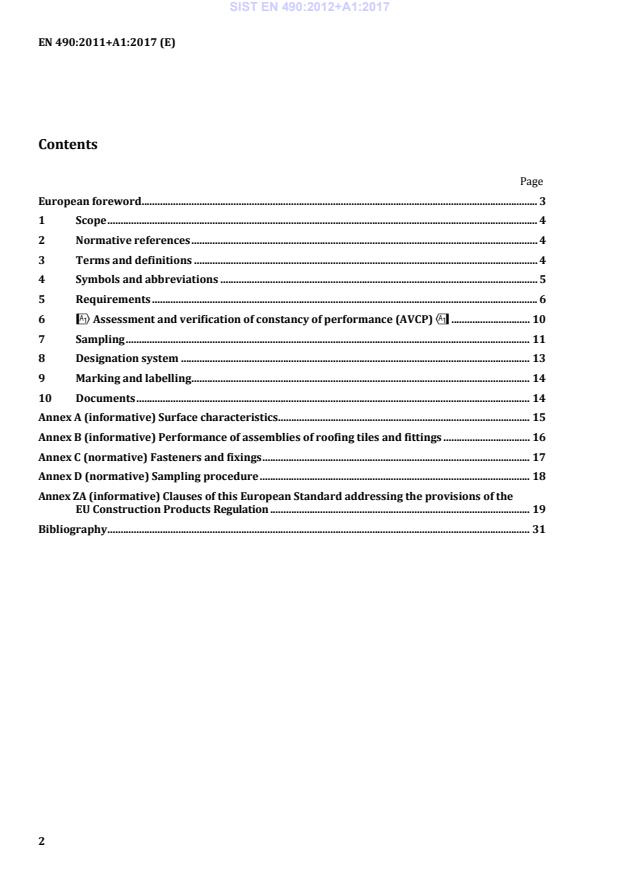

Contents
Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Symbols and abbreviations . 5
5 Requirements . 6
6 !Assessment and verification of constancy of performance (AVCP)" . 10
7 Sampling . 11
8 Designation system . 13
9 Marking and labelling . 14
10 Documents . 14
Annex A (informative) Surface characteristics. 15
Annex B (informative) Performance of assemblies of roofing tiles and fittings . 16
Annex C (normative) Fasteners and fixings . 17
Annex D (normative) Sampling procedure . 18
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the
EU Construction Products Regulation . 19
Bibliography . 31
European foreword
This document (EN 490:2011+A1:2017) has been prepared by Technical Committee CEN/TC 128 “Roof
covering products for discontinuous laying and products for wall cladding”, the secretariat of which is
held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by July 2017, and conflicting national standards shall be
withdrawn at the latest by October 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
This document includes Amendment 1 approved by CEN on 2015-11-10.
This document supersedes !EN 490:2011".
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
!This amendment to Annex ZA of EN 490:2011 implements EU Regulation no. 305/2011."
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
1 Scope
This European Standard specifies requirements for concrete roofing tiles and fittings for pitched roof
coverings and wall cladding and lining.
Concrete roofing tiles and fittings may incorporate surface coatings and glued concrete components.
NOTE 1 Information on surface characteristics is given in Annex A.
NOTE 2 Information on the performance of roof and wall assemblies is given in Annex B.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 491:2011, Concrete roofing tiles and fittings for roof covering and wall cladding — Test methods
ENV 1187, Test methods for external fire exposure to roofs
EN 13238, Reaction to fire tests for building products — Conditioning procedures and general rules for
selection of substrates
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to
the thermal attack by a single burning item
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification
using data from reaction to fire tests
EN 13501-5, Fire classification of construction products and building elements — Part 5: Classification
using data from external fire exposure to roof tests
EN ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific
value) (ISO 1716:2010)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
aggregate
concrete component consisting of uncrushed and/or crushed natural and/or artificial mineral
substances with particle sizes and shapes suitable for the production of concrete
3.2
additive
finely divided material that may be added to concrete in order to improve certain properties or to
achieve special properties
3.3
pigment
additive intended to add colour to the concrete
3.4
admixture
material which is added in small quantities relative to the mass of the cement before or during mixing
or during an additional mixing operation, causing required modifications to the properties
3.5
cement
hydraulic binder, i.e. finely ground inorganic material, which, when mixed with water, forms a paste
which sets by means of hydration reactions and processes and which, after hardening, retains its
strength and stability
3.6
fitting
component, of concrete, that is complementary to the tiles and has a special function
NOTE Fittings may contain inserts of other materials.
3.6.1
coordinated fitting
fitting that is intended to align or interlock with the tiles with which it is to be laid (e.g. interlocking
verge tile, interlocking ventilation tile, tile-and-a-half, aligning valley tile, interlocking or aligning angle
tiles)
3.7
valley tile
fitting for use at a meeting of two roof pitches forming a re-entrant angle
3.8
interlocking tile
profiled or flat tile which has a side lock, with or without a head lock feature
3.9
non-interlocking tile
profiled or flat tile without interlocks
3.10
tile with a regular front edge
tile (interlocking or non-interlocking) which, by design, has a constant or regularly varying hanging
length across the width
3.11
tile with an irregular front edge
tile (interlocking or non-interlocking), which, by design, has an irregular varying hanging length across
the width
!
3.12
product type
set of representative performance levels or classes of a construction product, in relation to its essential
characteristics, produced using a given combination of raw materials or other elements in a specific
production process"
4 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
l hanging length of a tile
l , l hanging edge length of a tile, as defined in EN 491:2011, Clause 4
2 3
c cover width of one tile
w
c cover width closed up value of 10 tiles
wc
c cover width drawn out value of 10 tiles
wd
d profile depth of a tile
F minimum transverse strength of all tiles
min
F transverse strength of an individual tile
i
IL interlocking
NL non-interlocking
RF regular front edge
IF irregular front edge
/ not applicable or not declared characteristic for designation system
5 Requirements
5.1 Materials
The concrete used in the manufacture of tiles and fittings shall be formed by mixing cement, aggregate
and water and produced by the hardening of the cement paste (cement and water).
NOTE In addition to the basic components, the concrete may also contain pigments, admixtures and/or
additives.
5.2 Dimensions
5.2.1 Hanging length and squareness
The tile hanging length shall be declared in the manufacturer’s technical specification. For tiles with a
regular front edge, the values of l shall be ± 4 mm of the manufacturer’s declared value when tested in
accordance with EN 491:2011, 5.2.
The squareness for tiles with nominally constant hanging length, when tested in accordance with
EN 491:2011, 5.2.2.1, shall be calculated as the difference between values l and l and shall be not
2 3
greater than 4 mm.
This sub-clause does not apply for tiles that are designed, for example for aesthetic reasons, with an
irregular front edge.
5.2.2 Cover width
5.2.2.1 General
The tile cover width c shall be declared in the manufacturer’s technical specification.
w
NOTE The cover width shunts may also be declared in the manufacturer’s technical specification.
This sub-clause does not apply for tiles that are designed, for example for aesthetic reasons, with a
randomly varying cover width.
5.2.2.2 Interlocking tiles
When tiles with cover width shunts declared by the manufacturer are tested in accordance with
EN 491:2011, 5.3.3.1, the cover width shall conform to the following:
— cwd/10 ≥ cw + declared “plus cover width shunt”;
— c /10 ≤ c - declared “minus cover width shunt”.
wc w
When tiles without cover width shunts, and tiles with cover width shunt but not declared by the
manufacturer, are tested in accordance with EN 491:2011, 5.3.3.1, the mean cover width shall be ± 5
mm of the manufacturer’s declared cover width.
5.2.2.3 Non-interlocking tiles
When non-interlocking tiles are tested in accordance with EN 491:2011, 5.3.3.2, the mean cover width
shall be ± 3 mm of the manufacturer’s declared value.
5.2.3 Flatness
When tiles are tested in accordance with EN 491:2011, 5.4, the gap between any designed contact point
and the flat surface shall not exceed 3 mm or c /100 mm to the nearest millimetre, whichever is the
w
greater.
This sub-clause does not apply where the manufacturer declares that:
— tiles are designed to have less than four contact points to a flat surface, and/or
—
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
