EN 497:2022/prA1
(Amendment)Specification for dedicated liquefied petroleum gas appliances - Multi purpose boiling burners for outdoor use - Cooking vessels with a diameter greater than 300 mm
- Abstract
This standard specifies the constructional and performance characteristics, safety specifications and rational use of energy, relevant test methods and marking of burners burning liquefied petroleum gas and designed to heat up vessels of diameter greater than 300 mm, containing liquids or food. This standard overs appliances, generally floor standing, fitted with one or several open burners without enclosure, designed to be used outdoors and operating with the gases corresponding to the categories indicated in 4.
- Status
- Not Published
- Publication Date
- 27-May-2026
- Technical Committee
- CEN/TC 181 - Dedicated liquified petroleum gas appliances
- Drafting Committee
- CEN/TC 181/WG 1 - Flueless space heaters
EN 497:2022/prA1 is a CEN draft amendment to EN 497:2022 for dedicated liquefied petroleum gas (LPG) appliances used outdoors to heat cooking vessels with a diameter greater than 300 mm. It updates the European Standard's scope, terms, test method, instructions, normative references, and Annex ZA, and it adds an informative Annex E on flame supervision device (FSD) choices. The amendment is aimed at manufacturers, test laboratories, certification bodies, and others who design, check, or document these outdoor LPG appliances.
What does EN 497:2022/prA1 specify?
EN 497:2022/prA1 specifies amendments to the existing European Standard for multi purpose boiling burners for outdoor use. The base standard applies to floor-standing appliances with one or more open burners, with or without enclosure, for heating vessels that contain liquids or food and are operated with the gas categories named in Clause 4.
The amendment also narrows the scope by excluding commercial uses. That matters in practice because this document is for outdoor non-commercial appliances, not for professional catering or indoor products.
| Annex | What it covers |
|---|---|
| Annex E | Explanation of the technical choices retained for the standard relating to a flame supervision device (FSD) |
| Annex ZA | Relationship between EN 497 and the essential requirements of Regulation (EU) 2016/426 aimed to be covered |
The amendment is organized as edits to Clause 1, Clause 2, Clause 3, 5.14, 5.17, 7.3.4.3, and 8.3, plus the new Annex E and a revised Annex ZA. That structure tells a reader where the scope, definitions, test method, user instructions, and EU-law link are updated.
What are the key requirements of EN 497:2022/prA1?
Scope and product definition
EN 497:2022/prA1 updates Clause 1 so the standard covers outdoor appliances with or without enclosure and excludes commercial uses. In practice, a product team needs to confirm that the appliance is an outdoor LPG appliance for non-commercial use before applying this standard.
Clause 3 also updates the definition of an appliance incorporating a gas cylinder and adds a definition of enclosure. That matters because cylinder storage/support and burner-surrounding enclosures are treated explicitly in the safety text and instructions.
Referenced components and controls
Clause 2 replaces several normative references with newer editions for flame supervision devices, multifunctional controls, rubber seals and diaphragms, and manually operated taps. In practice, the appliance design and verification work has to follow the current versions of those component standards, not earlier editions.
Flame supervision devices and enclosure wording
Clause 5.14 adds a note pointing to informative Annex E for FSD information, and Clause 5.17 replaces “compartment” with “enclosure”. In practice, the standard treats the burner-surrounding space consistently and gives the reader a separate explanation of why FSD is handled the way it is for outdoor use.
Draught resistance test
Clause 7.3.4.3 rewrites the draught resistance test. The appliance is tested at normal test pressure, each burner is covered with a test vessel, the test is run at full rate and repeated at reduced or half rate depending on the tap type, and the burner is exposed to a 4 m/s laminar draught with repeated gusts and changes in orientation.
This matters because flame stability is a central outdoor safety issue. The revised test also covers door movement where a casing door exists, so a manufacturer has to check performance under wind and opening/closing effects, not only under steady conditions.
Installation, assembly, use and maintenance instructions
Clause 8.3 adds warnings about not blocking ventilation openings, avoiding installation conditions that allow unburnt gas to accumulate below the burner, considering local installation rules, and preventing use of accessories not allowed by the instructions, such as a wind shield or additional legs. In practice, the instruction manual becomes part of the safety solution and must guide the user away from unsafe placement and accessories.
What terms does EN 497:2022/prA1 define?
- Appliance incorporating a gas cylinder - An appliance whose body or support includes a compartment for an LPG cylinder, or a fixing or support device for that cylinder.
- Enclosure - A part of the appliance that partly or completely surrounds one or more burners and creates a confined space where combustion occurs.
- Flame supervision device (FSD) - A safety device discussed in Clause 5.14 and Annex E in relation to flame control and outdoor wind conditions.
- Draught resistance - The ability of the appliance to keep safe flame behavior when exposed to wind and door movement during the test in Clause 7.3.4.3.
- Reduced rate position - The lower burner setting used in the draught test when the appliance has taps with marked positions.
- Variable positions - Tap positions where the burner output can be adjusted continuously, with the draught test repeated at half rate.
Who uses EN 497:2022/prA1?
EN 497:2022/prA1 is used by manufacturers of outdoor LPG boiling burners, especially floor-standing products for vessels over 300 mm in diameter. It is also used by test laboratories, certification and conformity assessment bodies, and technical writers who prepare installation, use, and maintenance instructions.
Quality managers, buyers, and compliance teams use it to check whether a product belongs in this product family, whether its components match the referenced standards, and whether its user information covers outdoor placement, ventilation, and accessory limits.
What changed in EN 497:2022/prA1 from the previous edition?
EN 497:2022/prA1 amends EN 497:2022 by making these stated changes:
- excluding commercial uses from the scope;
- updating the normative references;
- increasing the wind speed used in the draught resistance test;
- improving instructions on ventilation conditions and the use of accessories;
- adding a new Figure 4 for the draught-test apparatus;
- adding informative Annex E on the technical choices related to FSD;
- updating Annex ZA for the link with Regulation (EU) 2016/426.
Which standards are used with EN 497:2022/prA1?
- EN 125:2022+A1:2024 - flame supervision devices for gas burning appliances; it provides the referenced thermoelectric FSD standard.
- EN 126:2025 - safety and control devices for burners and appliances burning gaseous fuels; it provides the multifunctional control standard.
- EN 549+A1:2023+A2:2024 - rubber materials for seals and diaphragms for gas appliances and gas equipment; it supports sealing materials.
- EN 1106:2022+A1:2023 - manually operated taps for gas burning appliances; it supports the tap types used in the appliance.
- EN 30 series - cited in Annex E for products used indoors.
- EN 203 series - cited in Annex E for commercial/professional use products.
What does the EN 497:2022/prA1 document contain?
EN 497:2022/prA1 contains clause-by-clause amendment text for scope, references, definitions, flame supervision devices, enclosures, draught resistance, and instructions. It also contains a new informative Annex E that explains why the standard handles FSD and outdoor wind exposure in the way it does.
The amendment adds a new draught-test apparatus figure and renumbers the later figure accordingly. It also revises Annex ZA so the European Standard’s relationship to Regulation (EU) 2016/426 is kept aligned with the updated text.
Relations
- Effective Date
- 08-Apr-2024
Frequently Asked Questions
EN 497:2022/prA1 is a draft published by the European Committee for Standardization (CEN). Its full title is "Specification for dedicated liquefied petroleum gas appliances - Multi purpose boiling burners for outdoor use - Cooking vessels with a diameter greater than 300 mm". This standard covers: This standard specifies the constructional and performance characteristics, safety specifications and rational use of energy, relevant test methods and marking of burners burning liquefied petroleum gas and designed to heat up vessels of diameter greater than 300 mm, containing liquids or food. This standard overs appliances, generally floor standing, fitted with one or several open burners without enclosure, designed to be used outdoors and operating with the gases corresponding to the categories indicated in 4.
This standard specifies the constructional and performance characteristics, safety specifications and rational use of energy, relevant test methods and marking of burners burning liquefied petroleum gas and designed to heat up vessels of diameter greater than 300 mm, containing liquids or food. This standard overs appliances, generally floor standing, fitted with one or several open burners without enclosure, designed to be used outdoors and operating with the gases corresponding to the categories indicated in 4.
EN 497:2022/prA1 is classified under the following ICS (International Classification for Standards) categories: 97.040.20 - Cooking ranges, working tables, ovens and similar appliances. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 497:2022/prA1 has the following relationships with other standards: It is inter standard links to EN 497:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 497:2022/prA1 is associated with the following European legislation: EU Directives/Regulations: 2016/426; Standardization Mandates: M/595, M/BC/CEN/89/6. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 497:2022/prA1 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

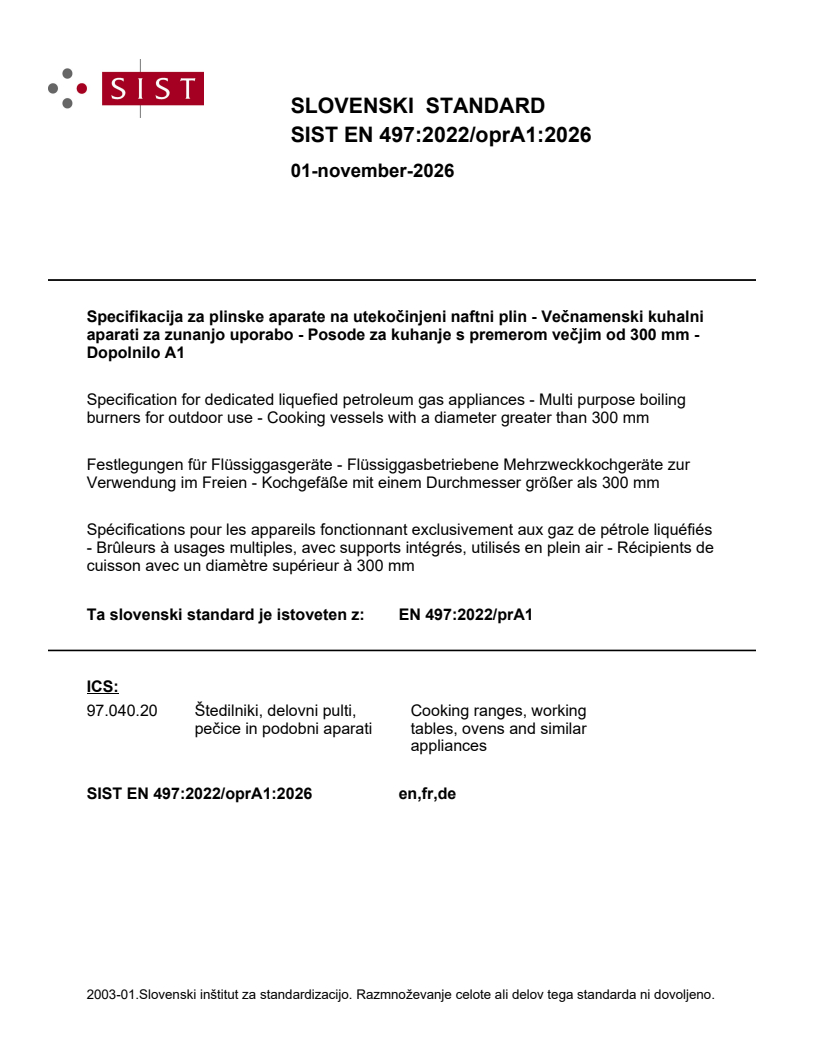

SLOVENSKI STANDARD
01-november-2026
Specifikacija za plinske aparate na utekočinjeni naftni plin - Večnamenski kuhalni
aparati za zunanjo uporabo - Posode za kuhanje s premerom večjim od 300 mm -
Dopolnilo A1
Specification for dedicated liquefied petroleum gas appliances - Multi purpose boiling
burners for outdoor use - Cooking vessels with a diameter greater than 300 mm
Festlegungen für Flüssiggasgeräte - Flüssiggasbetriebene Mehrzweckkochgeräte zur
Verwendung im Freien - Kochgefäße mit einem Durchmesser größer als 300 mm
Spécifications pour les appareils fonctionnant exclusivement aux gaz de pétrole liquéfiés
- Brûleurs à usages multiples, avec supports intégrés, utilisés en plein air - Récipients de
cuisson avec un diamètre supérieur à 300 mm
Ta slovenski standard je istoveten z: EN 497:2022/prA1
ICS:
97.040.20 Štedilniki, delovni pulti, Cooking ranges, working
pečice in podobni aparati tables, ovens and similar
appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

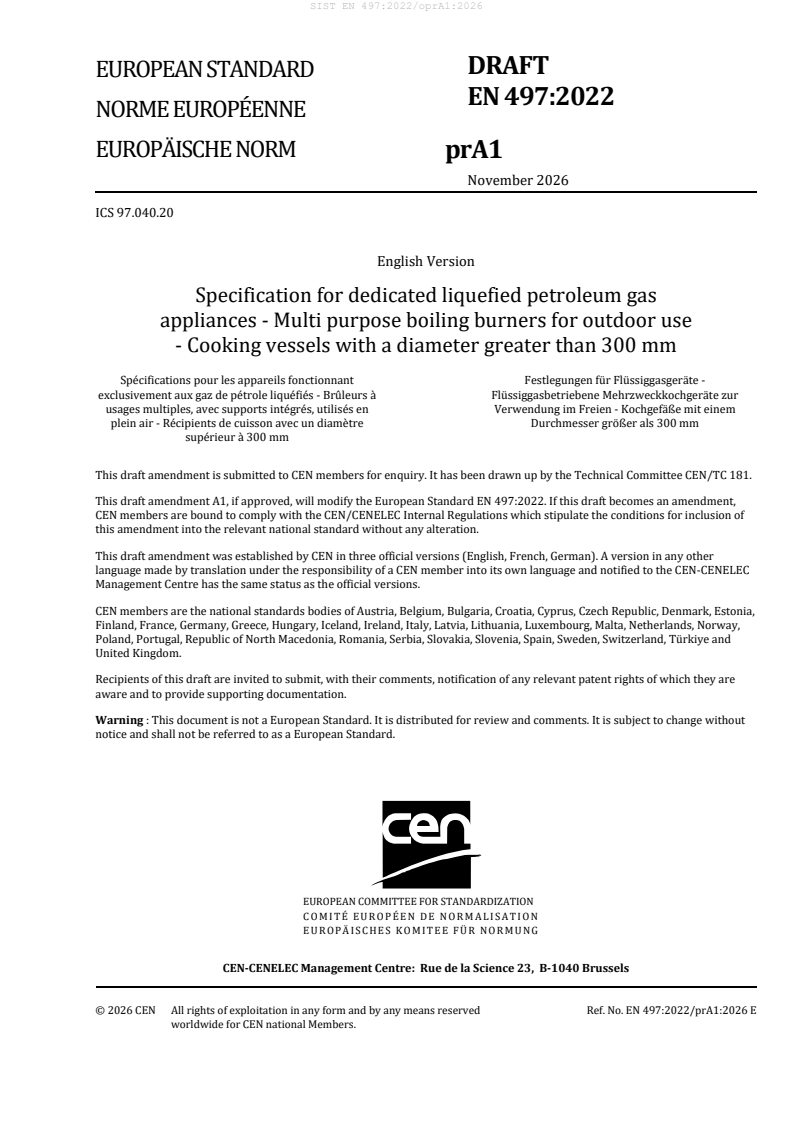

DRAFT
EUROPEAN STANDARD
EN 497:2022
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
November 2026
ICS 97.040.20
English Version
Specification for dedicated liquefied petroleum gas
appliances - Multi purpose boiling burners for outdoor use
- Cooking vessels with a diameter greater than 300 mm
Spécifications pour les appareils fonctionnant Festlegungen für Flüssiggasgeräte -
exclusivement aux gaz de pétrole liquéfiés - Brûleurs à Flüssiggasbetriebene Mehrzweckkochgeräte zur
usages multiples, avec supports intégrés, utilisés en Verwendung im Freien - Kochgefäße mit einem
plein air - Récipients de cuisson avec un diamètre Durchmesser größer als 300 mm
supérieur à 300 mm
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 181.
This draft amendment A1, if approved, will modify the European Standard EN 497:2022. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 497:2022/prA1:2026 E
worldwide for CEN national Members.

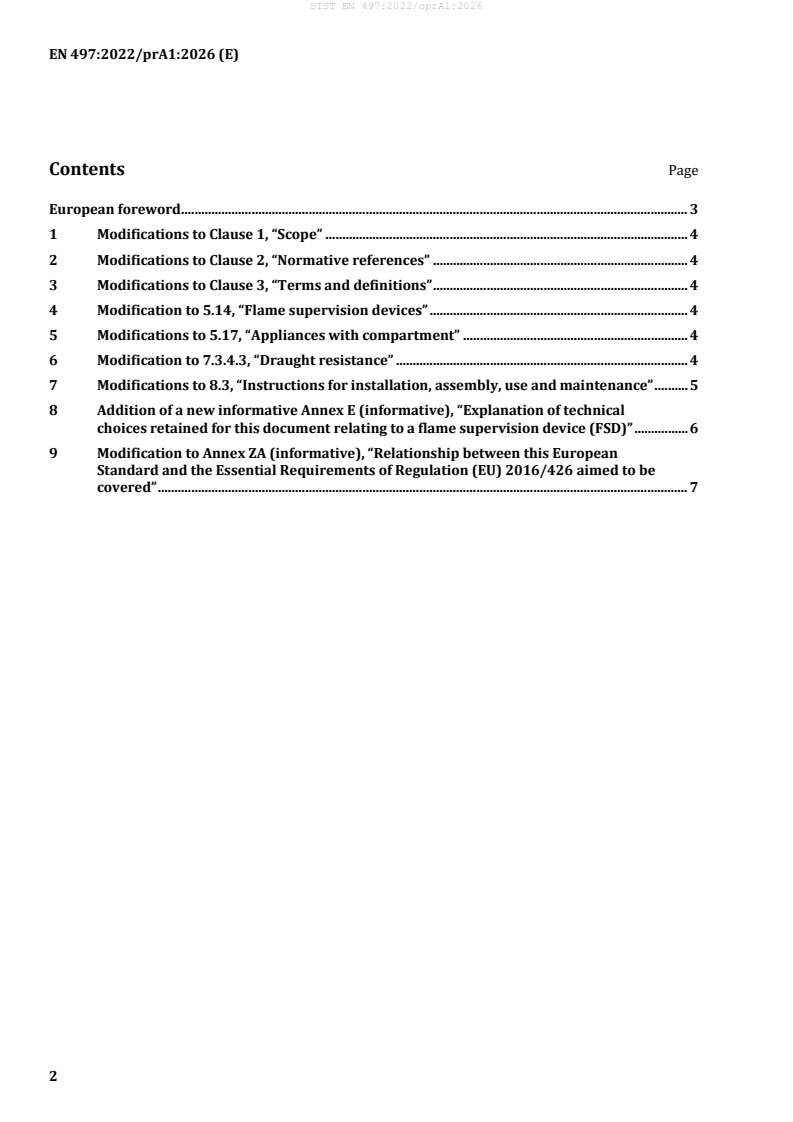

Contents Page
European foreword . 3
1 Modifications to Clause 1, “Scope” . 4
2 Modifications to Clause 2, “Normative references” . 4
3 Modifications to Clause 3, “Terms and definitions” . 4
4 Modification to 5.14, “Flame supervision devices” . 4
5 Modifications to 5.17, “Appliances with compartment” . 4
6 Modification to 7.3.4.3, “Draught resistance” . 4
7 Modifications to 8.3, “Instructions for installation, assembly, use and maintenance” . 5
8 Addition of a new informative Annex E (informative), “Explanation of technical
choices retained for this document relating to a flame supervision device (FSD)” . 6
9 Modification to Annex ZA (informative), “Relationship between this European
Standard and the Essential Requirements of Regulation (EU) 2016/426 aimed to be
covered” . 7
European foreword
This document (EN 497:2022/prA1:2026) has been prepared by Technical Committee CEN/TC 181
“Appliances and leisure vehicle installations using liquefied petroleum gas and appliances using natural
gas for outdoor use”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
This document will amend EN 497:2022 as follows:
— exclusion of commercial uses;
— updating of normative references;
— increasing of the wind speed for draught resistance;
— improvement of instructions for installation, assembly, use and maintenance requirements for
ventilation conditions and use of accessories;
— addition of a new Figure 4 describing the apparatus for the draught test;
— addition of an informative Annex E explaining some technical choices retained for this document.
1 Modifications to Clause 1, “Scope”
Add the following sentence as the penultimate paragraph:
“This document does not cover appliances for commercial uses.”.
In the third paragraph, insert “with or without enclosure” after “appliances” to read:
“This document covers appliances, with or without enclosure, generally floor standing, fitted with one…”.
2 Modifications to Clause 2, “Normative references”
Replace “EN 125:2010+A1:2015”, “EN 126:2012”, “EN 549:2019” and “EN 1106:2010” in Clause 2 and
throughout the text with the following updated references:
“EN 125:2022+A1:2024, Flame supervision devices for gas burning applian
...
