Gas fired central heating boilers - Type B boilers of nominal heat input exceeding 300 kW, but not exceeding 1 000 kW

This European Standard specifies the requirements and test methods concerning, in particular, the construction, safety, fitness for purpose, and rational use of energy, as well as the classification and marking of gas-fired central heating boilers that are fitted with atmospheric burners, fan assisted atmospheric burners or fully premixed burners, and are hereafter referred to as “boilers”.
This European Standard applies to boilers of type B, as listed in 4.2:
¾   that use one or more combustible gases of the three gas families at the pressures stated in Tables 16 and 17;
¾   that have a nominal heat input (on the basis of net calorific value) exceeding 300 kW, but not exceeding 1  000 kW, including modular boilers;
¾   where the temperature of the heat transfer fluid does not exceed 105 °C during normal operation;
¾   where the maximum operating pressure in the water circuit does not exceed 6 bar;
¾   that can give rise to condensation under certain circumstances;
¾   of the standard and low-temperature types.
This European Standard applies to boilers designed for sealed water systems or for open water systems.
This European Standard does not contain all the requirements necessary for boilers:
¾   intended to be installed in the open or in living rooms;
¾   permanently fitted with more than one flue outlet;
¾   where the combustion circuit is sealed with respect to the room where the boiler is installed;
¾   of the condensing type;
¾   intended to be connected to a common flue having mechanical extraction;
¾   fitted with a forced draught burner in accordance with EN 676 (see EN 303-7);
¾   producing hot water for domestic purposes.
This standard only covers type testing.
Matters related to quality assurance systems, tests during production, and certificates of conformity of auxiliary devices are not dealt with in this European Standard.

Heizkessel für gasförmige Brennstoffe - Heizkessel des Typs B mit einer Nennwärmebelastung größer als 300 kW aber gleich oder kleiner als 1 000 kW

Diese Norm behandelt die Anforderungen und die Prüfmethoden im Hinblick auf die Konstruktion, die Sicherheit, die Gebrauchstauglichkeit und den wirtschaftlichen Einsatz von Energie sowie die Klassifizierung und die Kennzeichnung von gasbeheizten Zentralheizungskesseln mit atmosphärischen Brennern, mit gebläseunterstützten atmosphärischen Brennern oder mit voll vorgemischten Brennern, die im weiteren Verlauf als Kessel bezeichnet werden.
Diese Norm behandelt, wie in 4.2 aufgelistet, Kessel der Bauart B:
   die ein oder mehrere Brenngase der drei Gasfamilien bei den in den Tabellen 16 und 17 angegebenen Drücken verwenden;
   die Nennwärmebelastung (bezogen auf den Heizwert) über 300 kW, aber nicht über 1000 kW (einschließlich der Kombikessel) haben;
   bei denen die Temperatur der Wärme übertragenden Flüssigkeit beim üblichen Betrieb 105 °C nicht überschreitet;
   bei denen der höchste Betriebsdruck im Wasserkreislauf 6 bar nicht überschreitet;
   bei denen unter bestimmten Umständen Kondensation eintreten kann;
   und der üblichen Bauart und der Bauart Niedertemperaturkessel.
Diese europäische Norm gilt sowohl für Kessel mit geschlossenem als auch mit offenem Wasserkreislauf.
Diese europäische Norm enthält nicht alle für Kessel erforderliche Anforderungen:
   die im Freien oder in Wohnräumen aufgestellt werden;
   die dauerhaft mit mehr als einem Abgasstutzen ausgerüstet sind;
   bei denen der Verbrennungskreis in Hinblick auf den Aufstellungsraum des Kessels abgedichtet ist;
   der Bauart Brennwertkessel;
   die an eine gemeinsame Abgasanlage mit mechanischer Abgasabführung anzuschließen sind;
   die in Übereinstimmung mit EN 676 (siehe EN 303-7) mit einem Gebläsebrenner ausgerüstet sind;
   die Warmwasser für den sanitären Bedarf erzeugen.
Diese Norm gilt nur für Typprüfungen.

Chaudières de chauffage central utilisant les combustibles gazeux - Chaudières de type B dont le débit calorifique nominal est supérieur à 300 kW mais inférieur ou égal à 1 000 kW

La présente Norme européenne prescrit les spécifications et les techniques d’essais relatives à la construction, la sécurité, l’aptitude à la fonction et l’utilisation rationnelle de l’énergie ainsi que la classification et le marquage des chaudières de chauffage central équipées de brûleurs atmosphériques avec ou sans ventilateur ou de brûleurs à pré-mélange total utilisant les combustibles gazeux, appelées ci-après « chaudières ».
La présente Norme européenne s’applique aux chaudières de Type B comme indiqué en 4.2 :
-   utilisant un ou plusieurs des gaz correspondant aux trois familles de gaz et aux pressions indiquées dans les Tableaux 16 et 17 ;
-   de débit calorifique nominal (sur le pouvoir calorifique inférieur) supérieur à 300 kW, mais inférieur ou égal à 1 000 kW y compris les chaudières modulaires ;
-   dont la température du fluide caloporteur ne dépasse pas 105 °C en fonctionnement normal ;
-   dont la pression maximale de service d’eau ne dépasse pas 6 bar ;
-   qui peuvent donner lieu à condensation dans certaines conditions ;
-   de type standard et basse température.
Cette Norme européenne s’applique aux chaudières destinées à être montées sur des systèmes de chauffage à eau chaude fermés ou ouverts.
La présente Norme européenne ne contient pas toutes les exigences nécessaires pour les chaudières :
-   destinées à être installées en plein air ou dans des locaux d’habitation ;
-   comportant de façon permanente plus d’une buse de raccordement au conduit d’évacuation des produits de combustion ;
-   dont le circuit de combustion est étanche par rapport au local où la chaudière est installée ;
-   à condensation ;
-   destinées à être raccordées à une cheminée commune à extraction mécanique ;
-   équipées de brûleurs à air soufflé conformes à l’EN 676 (par exemple EN 303-7) ;
-   produisant de l’eau chaude sanitaire pour usages domestiques.
Cette Norme européenne couvre uniquement les essais de type.

Plinski kotli za centralno gretje - Tip kotlov B z imensko močjo nad 300 kW do vključno 1000 kW

General Information

Status
Published
Publication Date
01-Aug-2006
Withdrawal Date
29-Nov-2006
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
02-Aug-2006
Completion Date
02-Aug-2006

Relations

Buy Standard

Standard
EN 13836:2007
English language
138 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Heizkessel für gasförmige Brennstoffe - Heizkessel des Typs B mit einer Nennwärmebelastung größer als 300 kW aber gleich oder kleiner als 1 000 kWChaudieres de chauffage central utilisant les combustibles gazeux - Chaudieres de type B dont le débit calorifique nominal est supérieur a 300 kW mais inférieur ou égal a 1 000 kWGas fired central heating boilers - Type B boilers of nominal heat input exceeding 300 kW, but not exceeding 1 000 kW97.100.20Plinski grelnikiGas heaters91.140.10Sistemi centralnega ogrevanjaCentral heating systemsICS:Ta slovenski standard je istoveten z:EN 13836:2006SIST EN 13836:2007en,fr,de01-februar-2007SIST EN 13836:2007SLOVENSKI
STANDARD



SIST EN 13836:2007



EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13836August 2006ICS 91.140.65 English VersionGas fired central heating boilers - Type B boilers of nominal heatinput exceeding 300 kW, but not exceeding 1 000 kWChaudières de chauffage central utilisant les combustiblesgazeux - Chaudières de type B dont le débit calorifiquenominal est supérieur à 300 kW mais inférieur ou égal à 1000 kWHeizkessel für gasförmige Brennstoffe - Heizkessel desTyps B mit einer Nennwärmebelastung größer als 300 kWaber gleich oder kleiner als 1 000 kWThis European Standard was approved by CEN on 20 April 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13836:2006: ESIST EN 13836:2007

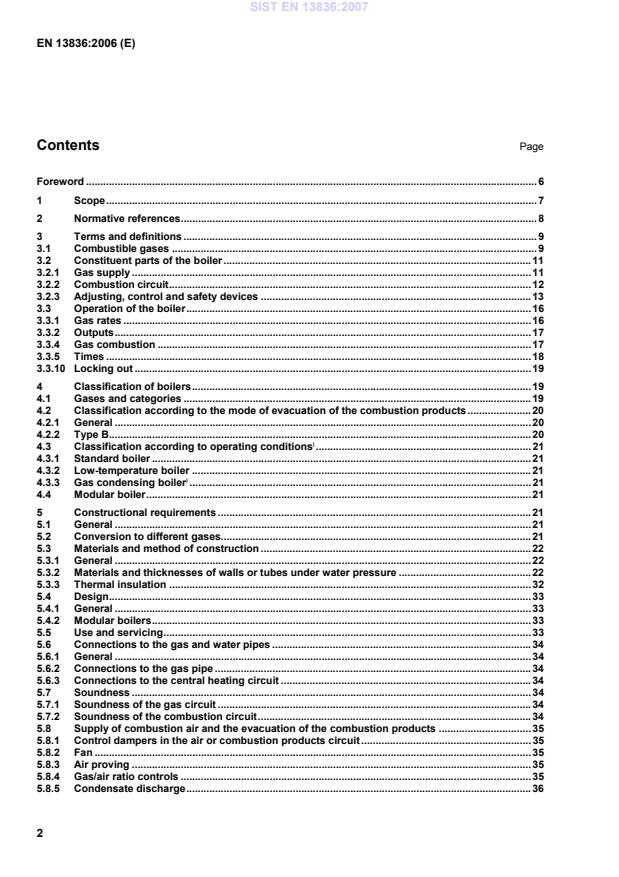

EN 13836:2006 (E) 2 Contents Page Foreword.6 1 Scope.7 2 Normative references.8 3 Terms and definitions.9 3.1 Combustible gases.9 3.2 Constituent parts of the boiler.11 3.2.1 Gas supply.11 3.2.2 Combustion circuit.12 3.2.3 Adjusting, control and safety devices.13 3.3 Operation of the boiler.16 3.3.1 Gas rates.16 3.3.2 Outputs.17 3.3.4 Gas combustion.17 3.3.5 Times.18 3.3.10 Locking out.
...
