prEN 15381

Geotextiles and geotextile-related products - Characteristics required for use in pavements and asphalt overlays

This document specifies the characteristics of metallic and non-metallic geotextiles and geotextile-related products used in the construction of pavements and asphalt overlays and the appropriate test methods to determine these characteristics.
The intended use of these geotextiles and geotextile-related products is to fulfil one or more of the following functions: reinforcement, stress relief and interlayer barrier. The use of geotextiles and geotextile-related products is to be considered as a part of an interlayer and asphalt overlay system.
This document is not applicable to geosynthetic barriers, as defined in EN ISO 10318.
This standard provides for the assessment and verification of constancy of performance (AVCP) of the product to this European Standard including factory production control procedures.
This document defines characteristics to be considered with regard to the presentation of performance.

Geotextilien und geotextilverwandte Produkte - Eigenschaften, die für die Anwendung beim Bau von Fahrbahndecken und Asphaltdeckschichten erforderlich sind

Dieses Dokument legt die Eigenschaften von metallischen und nicht metallischen Geotextilien und geotextilverwandten Produkten, die beim Bau von Fahrbahndecken und Asphaltdeckschichten verwendet werden, sowie die geeigneten Prüfverfahren zur Bestimmung dieser Eigenschaften fest.
Die bestimmungsgemäße Anwendung dieser Geotextilien und geotextilverwandten Produkte besteht in der Erfüllung einer oder mehrerer der folgenden Funktionen: Bewehren, Spannungsentlastung und Zwischenschicht-Abdeckung. Die Verwendung von Geotextilien und geotextilverwandten Produkten ist als ein Bestandteil eines Zwischenschicht- und Asphaltdeckschichtsystems zu betrachten.
Dieses Dokument ist nicht auf geosynthetische Dichtungsbahnen, wie in EN ISO 10318 festgelegt, anwendbar.
Diese Norm behandelt die Bewertung und Überprüfung der Leistungsbeständigkeit (AVCP) des Produktes bezüglich dieser Europäischen Norm und die werkseigene Produktionskontrolle.
Dieses Dokument legt die in Bezug auf die Darstellung der Leistungsfähigkeit zu berücksichtigenden Eigenschaften fest.

Géotextiles et produits apparentés - Caractéristiques requises pour l'utilisation en chaussées et revêtements asphaltiques

Le présent document spécifie les caractéristiques applicables des géotextiles (métalliques ou non) et produits apparentés utilisés dans la construction de chaussées et de revêtements asphaltiques et les méthodes d’essai appropriées pour la détermination de ces caractéristiques.
L’utilisation prévue de ces géotextiles et produits apparentés est de satisfaire l’une ou plusieurs des fonctions suivantes : le renforcement, la réduction des contraintes et l’utilisation en tant que barrière inter-couches. L’utilisation de géotextiles et produits apparentés doit être considérée comme faisant partie d’un complexe inter-couches et de revêtement asphaltique.
Le présent document ne s’applique pas aux géomembranes définies par l’EN ISO 10318.
La présente norme fournit les informations nécessaires à l’évaluation et à la vérification de la constance des performances (EVCP) du produit selon la présente norme européenne ainsi que les procédures de contrôle de la production en usine.
Le présent document définit les caractéristiques à prendre en compte en ce qui concerne la présentation des performances.

Geotekstilije in geotekstilijam sorodni izdelki - Zahtevane lastnosti za uporabo na voziščih in asfaltnih prevlekah

General Information

• Status: Not Published
• Publication Date: 02-Feb-2020
• Withdrawal Date: 02-Aug-2020
• ICS: 59.080.70 - Geotextiles
• ICS: 93.080.20 - Road construction materials
• Technical Committee: CEN/TC 189 - Geotextiles and geotextile-related products
• Drafting Committee: CEN/TC 189/WG 1 - ad hoc group Asphalt reinforcement
• Current Stage: 3098 - Decision to reject - Consensus building
• Completion Date: 11-Mar-2020
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/107 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on geotextiles
• Mandate: M/386 - AMENDMENT TO: Mandate M/107 to CEN/CENELEC concerning the execution of standardisation work for Harmonized standards on Geotextiles
• Ref Project: oSIST prEN 15381:2018 - Geotextiles and geotextile-related products - Characteristics required for use in pavements and asphalt overlays

Relations

• Revises: EN 15381:2008 - Geotextiles and geotextile-related products - Characteristics required for use in pavements and asphalt overlays
• Effective Date: 19-Jun-2013

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2018
*HRWHNVWLOLMHLQJHRWHNVWLOLMDPVRURGQLL]GHONL=DKWHYDQHODVWQRVWL]DXSRUDERQD
YR]LãþLKLQDVIDOWQLKSUHYOHNDK
Geotextiles and geotextile-related products - Characteristics required for use in
pavements and asphalt overlays
Geotextilien und geotextilverwandte Produkte - Eigenschaften, die für die Anwendung
beim Bau von Fahrbahndecken und Asphaltdeckschichten erforderlich sind
Géotextiles et produits apparentés - Caractéristiques requises pour l'utilisation dans la
construction de routes et de revêtements asphaltiques
Ta slovenski standard je istoveten z: prEN 15381
ICS:
59.080.70 Geotekstilije Geotextiles
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2018
ICS 59.080.70; 93.080.20 Will supersede EN 15381:2008
English Version
Geotextiles and geotextile-related products -
Characteristics required for use in pavements and asphalt
overlays
Géotextiles et produits apparentés - Caractéristiques Geotextilien und geotextilverwandte Produkte -
requises pour l'utilisation dans la construction de Eigenschaften, die für die Anwendung beim Bau von
routes et de revêtements asphaltiques Fahrbahndecken und Asphaltdeckschichten
erforderlich sind
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 189.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15381:2018 E
worldwide for CEN national Members.

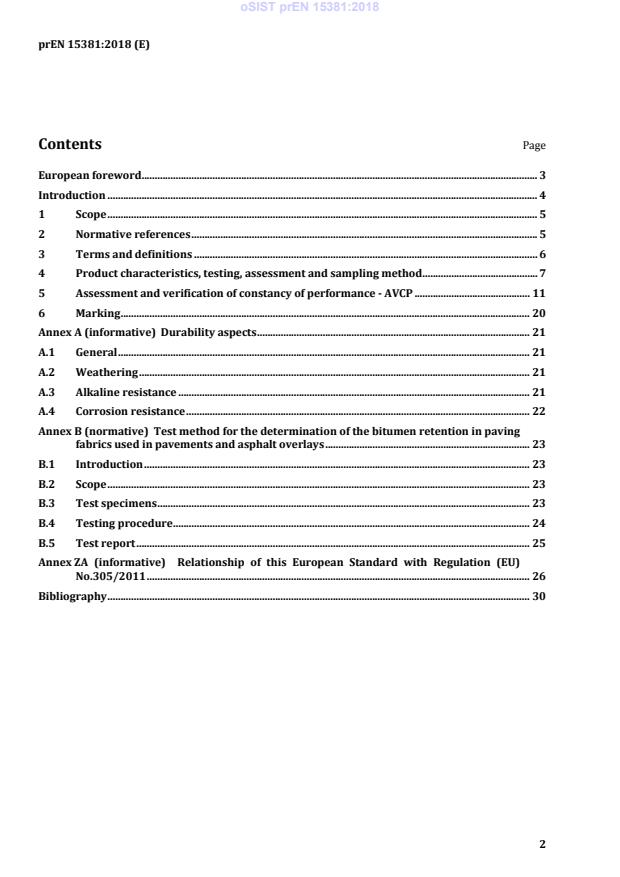

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Product characteristics, testing, assessment and sampling method . 7
5 Assessment and verification of constancy of performance - AVCP . 11
6 Marking . 20
Annex A (informative) Durability aspects . 21
A.1 General . 21
A.2 Weathering . 21
A.3 Alkaline resistance . 21
A.4 Corrosion resistance . 22
Annex B (normative) Test method for the determination of the bitumen retention in paving
fabrics used in pavements and asphalt overlays . 23
B.1 Introduction . 23
B.2 Scope . 23
B.3 Test specimens . 23
B.4 Testing procedure . 24
B.5 Test report . 25
Annex ZA (informative) Relationship of this European Standard with Regulation (EU)
No.305/2011 . 26
Bibliography . 30

European foreword
This document (prEN 15381:2018) has been prepared by Technical Committee CEN/TC 189
“Geosynthetics”, the secretariat of which is held by NBN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 15381:2008.
In comparison with the previous edition, the following technical modifications have been made:
— The template of the document was updated according to the recent status.
— Table 1a and 1b were updated, including the 'relevance', and re-designated as Table 1 and 2.
— The AVCP clause was introduced.
— All Durability aspects are covered in Annex A.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
For relationship with Regulation (EU) No. 305/2011, see informative Annex ZA, which is an integral
part of this document.
Introduction
This document allows manufacturers to describe geotextiles and geotextile-related products on the
basis of declared values for characteristics relevant to the intended use and if tested to the specified
method. It also includes procedures for evaluation of conformity and factory production control.
This document may also be used by designers, end-users and other interested parties and enables them
to define which functions and conditions of use are relevant.
Performance and index tests for several characteristics are still under study and will be included when
the standard is revised.
The term “product” which is used in this standard refers to geotextiles and geotextile-related products.
This document is part of a series of standards, addressing the requirements for geotextiles and
geotextile-related products when used in a specific application.
1 Scope
