EN 13316:2002

Tanks for transport of dangerous goods - Service equipment for tanks - Pressure balanced footvalve

This European Standard covers the pressure balanced footvalve for bottom loading and unloading and specifies the performance requirements, dimensions and tests necessary to verify the compliance of the equipment to this standard.

Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - Druckausgeglichenes Bodenventil

Diese Europäische Norm gilt für druckausgeglichene Bodenventile, durch die Tanks von unten be- und entladen werden und legt Leistungsanforderungen, entscheidende Maße sowie Prüfungen fest, die erforderlich sind um nachzuweisen, daß die Ausrüstung der vorliegenden Norm entspricht.

Citernes de transport de matières dangereuses - Equipement de service pour citernes - Clapet de fond à pression compensée

La présente Norme européenne s'applique aux clapets de fond à pression compensée destinés au chargement et au déchargement par le bas et spécifie les exigences de performance, les dimensions et les essais nécessaires pour vérifier la conformité du dispositif à la présente norme.
L'équipement spécifié dans la présente norme est adapté aux produits pétroliers liquides et autres matières dangereuses de la classe 3 de l'ADR - Accord européen relatif au transport international des marchandises dangereuses par route - (liquides inflammables) dont la tension de vapeur ne dépasse pas 110 kPa à 50 °C (y compris l'essence) et qui n'appartiennent à aucune sous-classification des produits toxiques ou corrosifs.

Posode za prevoz nevarnih snovi - Obratovalna oprema za posode - Tlačno izravnan spodnji ventil

General Information

• Status: Published
• Publication Date: 12-Nov-2002
• Withdrawal Date: 30-May-2003
• ICS: 13.300 - Protection against dangerous goods
• ICS: 23.020.20 - Vessels and containers mounted on vehicles
• ICS: 23.060.20 - Ball and plug valves
• Technical Committee: CEN/TC 296 - Tanks for transport of dangerous goods
• Drafting Committee: CEN/TC 296/WG 7 - Service equipment (including equipment for vapour recovery, bottom loading, the confinement and handling of petroleum products)
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 04-Jun-2024
• Completion Date: 23-Sep-2025
• Directive: 94/55/EC - Transport of dangerous goods by road
• Directive: 96/49/EC - Transport of dangerous goods by rail
• Directive: 96/86/EC - Transport of dangerous goods by road (94/55/EC Dir. amendment)
• Directive: 96/87/EC - Transport of dangerous goods by rail (96/49/EC Dir. amendment)
• Ref Project: SIST EN 13316:2003 - Tanks for transport of dangerous goods - Service equipment for tanks - Pressure balanced footvalve

Overview

EN 13316:2002 (CEN) specifies requirements for the pressure balanced footvalve used in bottom loading and unloading of tanks for transport of dangerous goods. The standard defines performance, dimensions, materials and tests needed to verify compliance for use with flammable liquids (ADR Class 3) with vapour pressure ≤ 110 kPa at 50 °C and petrol, excluding toxic or corrosive sub‑classes. It focuses on the valve that provides primary containment inside the tank and that opens only while externally actuated.

Key topics and technical requirements

• Function: internal self‑closing valve that permits transfer only while externally actuated and closes when actuation is removed.
• Pressure rating: designed for a working pressure of at least 500 kPa; surge pressures up to 5× MAWP must not compromise tightness or operation.
• Dimensions: intended for DN100 nominal bore pipe; mounting and run‑off flange dimensions are given in Annexes A–C.
• Flow capability: suitable for bottom loading rates up to 150 m3/h at working pressure up to 500 kPa; design must control turbulence, jetting and spray.
• Actuation: mechanical, pneumatic or other means permitted; valve must close on actuation failure and closing time after loss of actuation must be 0.5–2 s (for loading rates).
• Break‑away security: external housing shall break away on impact leaving sealing mechanism inside tank; break‑away energy ≤ 1 kJ.
• Temperature range: default design range –20 °C to +50 °C (optional extension to –40 °C or +70 °C where applicable).
• Materials & electrical: manufacturer must supply materials list for wetted parts; electrical resistance limits specified (≤10^6 Ω between conductive parts and body; bonding to tank ≤10^5 Ω).
• Strainer: provision to accept a strainer to prevent foreign objects from preventing closure.
• Testing: production and type tests required. Tests reference prEN 12266‑1 / EN 12266‑2 for shell tightness, seat tightness, operability and mechanical endurance; sampling per ISO 2859‑1 (AQL 2.5).

Applications and users

Who uses EN 13316:2002:

• Manufacturers of tank service equipment and footvalves (design & production).
• Tank builders and vehicle integrators specifying bottom‑loading systems.
• Transport operators and fleet managers ensuring equipment complies with ADR requirements.
• Inspection bodies / testing laboratories performing production and type tests.
• Regulators and safety engineers referencing standards for certification and risk control.

Practical applications include bottom loading/unloading of road tankers and vehicle‑mounted tanks transporting petrol and other specified flammable liquids where internal emergency/pressure‑balanced containment is required.

Related standards

• EN 13081, EN 13082, EN 13083, EN 13308, EN 13314, EN 13315, EN 13317 (service equipment family)
• prEN 12266‑1:1999 and EN 12266‑2:2002 (valve testing procedures)
• ISO 2859‑1 (sampling procedures)

Keywords: EN 13316:2002, pressure balanced footvalve, tanks for transport of dangerous goods, bottom loading, ADR, CEN, DN100, 500 kPa, seat tightness, break‑away.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.7ODþQRTanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - Druckausgeglichenes BodenventilCiternes de transport de matieres dangereuses - Equipement de service pour citernes - Clapet de fond a pression compenséeTanks for transport of dangerous goods - Service equipment for tanks - Pressure balanced footvalve23.060.20Zapirni ventili (kroglasti in pipe)Ball and plug valves23.020.20Posode in vsebniki, montirani na vozilaVessels and containers mounted on vehicles13.300Varstvo pred nevarnimi izdelkiProtection against dangerous goodsICS:Ta slovenski standard je istoveten z:EN 13316:2002SIST EN 13316:2003en01-december-2003SIST EN 13316:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13316November 2002ICS 13.300; 23.020.20; 23.060.20English versionTanks for transport of dangerous goods - Service equipment fortanks - Pressure balanced footvalveCiternes de transport de matières dangereuses -Equipement de service pour citernes - Clapet de fond àpression compenséeTanks für die Beförderung gefährlicher Güter -Bedienungsausrüstung von Tanks - DruckausgeglichenesBodenventilThis European Standard was approved by CEN on 31 August 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13316:2002 ESIST EN 13316:2003

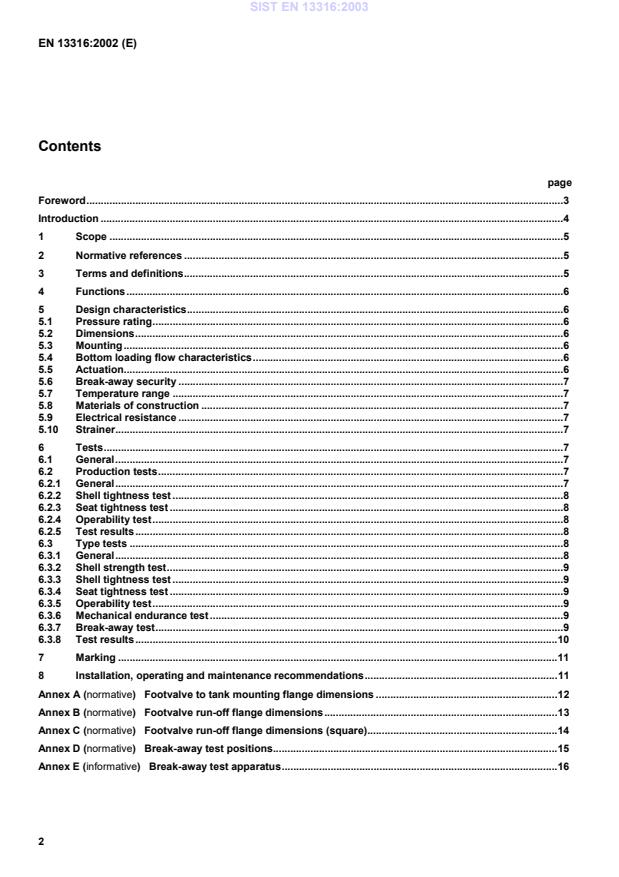

Footvalve to tank mounting flange dimensions.12Annex B (normative)
Footvalve run-off flange dimensions.13Annex C (normative)
Footvalve run-off flange dimensions (square).14Annex D (normative)
Break-away test positions.15Annex E (informative)
Break-away test apparatus.16SIST EN 13316:2003
...
