EN 13308:2002

Tanks for transport of dangerous goods - Service equipment for tanks - Non pressure balanced footvalve

This European Standard covers the non pressure balanced footvalve for bottom loading and unloading and specifies the performance requirements, dimensions and tests necessary to verify the compliance of the equipment to this standard.

Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - Nichtdruckausgeglichenes Bodenventil

Diese Europäische Norm hat das nicht druckausgeglichene Bodenventil zum Beladen und Entladen zum Inhalt und legt die Kenndaten, Abmessungen und die Prüfverfahren fest, die notwendig sind, um die Übereinstimmung der Ausrüstung mit dieser Norm festzustellen.

Citernes de transport de matières dangereuses - Equipement de service pour citernes - Clapets de fond à pression non compensée

La présente Norme européenne s'applique aux clapets de fond à pression non compensée et spécifie les exigences de performance, les dimensions et les essais nécessaires pour vérifier la conformité du dispositif à la présente norme.
L'équipement spécifié par la présente norme convient à une utilisation avec des produits pétroliers liquides et autres matières dangereuses de la classe 3 de l'ADR - Accord européen relatif au transport international des marchandises dangereuses par route (liquides inflammables) dont la tension de vapeur ne dépasse pas 110 kPa à 50 °C - (y compris l'essence) - et qui n'appartiennent à aucune sous classification des produits toxiques ou corrosifs.

Cisterne za prevoz nevarnega blaga - Oprema za obratovanje cistern - Tlačno neizravnan spodnji ventil

General Information

• Status: Published
• Publication Date: 12-Nov-2002
• Withdrawal Date: 30-May-2003
• ICS: 13.300 - Protection against dangerous goods
• ICS: 23.020.20 - Vessels and containers mounted on vehicles
• ICS: 23.060.20 - Ball and plug valves
• Technical Committee: CEN/TC 296 - Tanks for transport of dangerous goods
• Drafting Committee: CEN/TC 296/WG 7 - Service equipment (including equipment for vapour recovery, bottom loading, the confinement and handling of petroleum products)
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 04-Jun-2024
• Completion Date: 23-Sep-2025
• Directive: 94/55/EC - Transport of dangerous goods by road
• Directive: 96/49/EC - Transport of dangerous goods by rail
• Directive: 96/86/EC - Transport of dangerous goods by road (94/55/EC Dir. amendment)
• Directive: 96/87/EC - Transport of dangerous goods by rail (96/49/EC Dir. amendment)
• Directive: TRRTP121 - Sklep o objavi prilog A in B k Evropskemu sporazumu o mednarodnem cestnem prevozu nevarnega blaga (ADR)
• Ref Project: SIST EN 13308:2003 - Tanks for transport of dangerous goods - Service equipment for tanks - Non pressure balanced footvalve

Overview

EN 13308:2002 (CEN) specifies requirements for the non pressure balanced footvalve used in tanks for transport of dangerous goods. The standard covers performance, critical dimensions and required tests for footvalves used for bottom loading and unloading of flammable liquids (ADR Class 3) with vapour pressure ≤ 110 kPa at 50 °C and petrol, excluding toxic or corrosive sub‑classes. It defines design, mounting, actuation, break‑away security, materials and test regimes to verify compliance.

Key Topics and Technical Requirements

• Scope & application: Footvalves for bottom loading/unloading of road tankers transporting Class 3 liquids (vapour pressure ≤ 110 kPa) and petrol.
• Pressure and sizing:
  • Minimum working pressure (design): 500 kPa (MAWP).
  • Nominal bore: designed for DN100 pipe.
  • Bottom loading flow: suitable up to 150 m³/h at up to 500 kPa.
• Mounting & dimensions: Tank mounting and run‑off flange dimensions specified in Annexes A–C (normative).
• Actuation & safety:
  • Externally actuated (mechanical, pneumatic or other).
  • Self‑closing: valve must close if actuation fails or is disconnected (except during loading).
  • Open position must be visible; emergency mechanical operation may be provided.
  • Prevents inadvertent opening from impact or accidental action.
• Break‑away security:
  • Valve seat located within tanker envelope.
  • External housing designed to break away while leaving internal sealing intact.
  • Maximum impact energy to break away external housing: ≤ 1 kJ.
• Materials & electrical:
  • Manufacturer must supply material specs for wetted parts.
  • Electrical resistance requirements: conductive parts to valve body ≤ 10^6 Ω; bonding from valve to tank ≤ 10^5 Ω.
• Strainer: Valve must accept a strainer to prevent foreign objects impairing closure.
• Temperature range: Default −20 °C to +50 °C (extendable to −40 °C or +70 °C where needed).
• Testing & conformity:
  • Production and type tests per prEN 12266‑1 / EN 12266‑2 and sampling per ISO 2859‑1 (AQL 2.5).
  • Production tests: shell tightness, seat tightness (20 kPa), operability.
  • Type tests: shell strength, tightness, operability, mechanical endurance, break‑away, etc.

Applications and Users

• Who uses EN 13308:2002:
  • Tank and tanker manufacturers, service‑equipment suppliers.
  • Fleet operators and maintenance teams for road tankers.
  • Third‑party inspectors, conformity assessment bodies and test laboratories.
  • Regulatory and compliance professionals working with ADR/RID requirements.
• Practical uses:
  • Specify and procure compliant non pressure balanced footvalves for bottom loading/unloading systems.
  • Design validation, factory production control and type approval testing.
  • Maintenance, inspection and incident mitigation planning (break‑away behavior, bonding).

Related Standards

• EN 13081, EN 13082, EN 13083, EN 13314–13317 (service equipment for transport tanks).
• prEN 12266‑1 / EN 12266‑2 (valve testing procedures) and ISO 2859‑1 (sampling).
  EN 13308:2002 also supports compliance with ADR/RID transport requirements and is part of the CEN tanks standards programme.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - Nichtdruckausgeglichenes BodenventilCiternes de transport de matieres dangereuses - Equipement de service pour citernes - Clapets de fond a pression non compenséeTanks for transport of dangerous goods - Service equipment for tanks - Non pressure balanced footvalve23.060.20Zapirni ventili (kroglasti in pipe)Ball and plug valves23.020.20Posode in vsebniki, montirani na vozilaVessels and containers mounted on vehicles13.300Varstvo pred nevarnimi izdelkiProtection against dangerous goodsICS:Ta slovenski standard je istoveten z:EN 13308:2002SIST EN 13308:2003en01-december-2003SIST EN 13308:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13308November 2002ICS 13.300; 23.020.20; 23.060.20English versionTanks for transport of dangerous goods - Service equipment fortanks - Non pressure balanced footvalveCiternes de transport de matières dangereuses -Equipement de service pour citernes - Clapets de fond àpression non compenséeTanks für die Beförderung gefährlicher Güter -Bedienungsausrüstung von Tanks -Nichtdruckausgeglichenes BodenventilThis European Standard was approved by CEN on 22 August 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13308:2002 ESIST EN 13308:2003

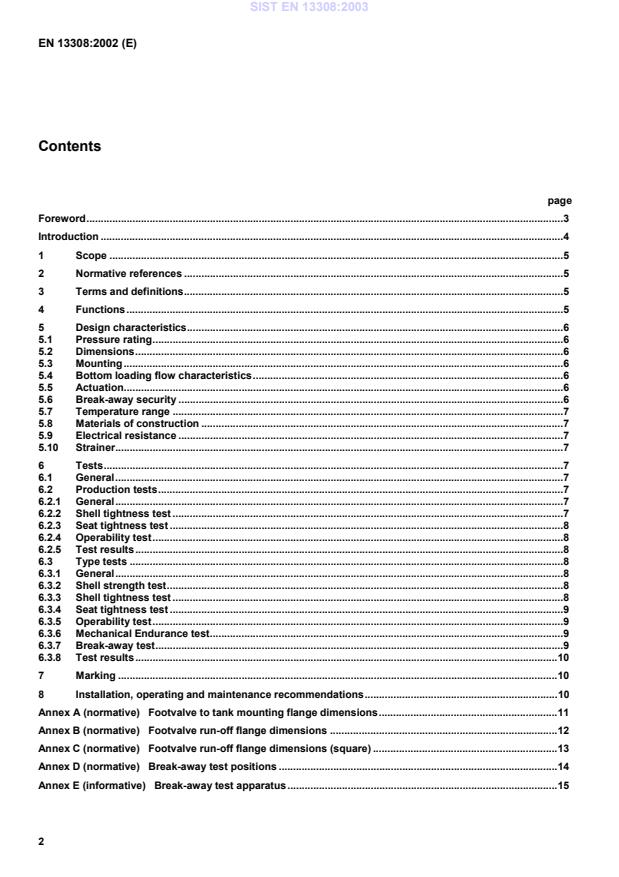

Footvalve to tank mounting flange dimensions.11Annex B (normative)
Footvalve run-off flange dimensions.12Annex C (normative)
Footvalve run-off flange dimensions (square).13Annex D (normative)
Break-away test positions.14Annex E (informative)
Break-away test apparatus.15SIST EN 13308:2003
...
