Railway applications - Acoustics - Measuring of door audible warnings

This document specifies procedures to assess acoustic signals at passenger external doors applying to all kind of rolling stock. The following applies to this standard:
-   this document refers to acoustical passenger information indicating the release, opening and closing of passenger doors;
-   this document is applicable to tonal signals with defined frequency components levels and pulse sequences;
-   this document is not applicable to spoken information or to signals comprising a sequence of impulses (such as a door finding signal).
NOTE   Acoustic door signals are defined in EN 16584 2 "Design for PRM use".

Bahnanwendung - Akustik - Messung akustischer Türsignale

Dieses Dokument legt Verfahren zur Bewertung akustischer Signale für Fahrgast-Außentüren fest, die für alle Arten von Schienenfahrzeugen gelten. Für diese Norm gilt Folgendes:
- dieses Dokument bezieht sich auf akustische Fahrgastinformationen, die auf das Entriegeln, Öffnen und Schließen von Fahrgasttüren hinweisen;
- dieses Dokument gilt für Tonsignale mit festgelegten Frequenzkomponenten-Pegeln und Impulssequenzen;
- dieses Dokument gilt nicht für gesprochene Informationen oder Signale, die eine Folge von Impulsen umfassen (wie z. B. ein Türfindungssignal).
ANMERKUNG Akustische Türsignale sind in EN 16584 2 „Gestaltung für die Nutzung durch PRM“ festgelegt.

Application ferroviaires - Acoustique - Mesurage des signaux audibles d’avertissement des portes

Le présent document spécifie les procédures pour évaluer les signaux acoustiques des portes extérieures de voitures voyageurs applicables au matériel roulant. Les éléments suivants s'appliquent à la présente norme :
-   le présent document se rapporte aux informations acoustiques de voyageurs indiquant le déverrouillage, l'ouverture et la fermeture des portes de voitures voyageurs ;
-   le présent document s'applique aux signaux tonaux avec des niveaux de composants de fréquence définis et des séquences d’impulsions ;
-   le présent document ne s'applique pas aux informations vocales ou aux signaux comprenant une séquence d’impulsions (comme un signal de localisation de porte).
NOTE   Les signaux acoustiques des portes sont définis dans l’EN 16584 2, « Conception destinée à l'usage par les PMR ».

Železniške naprave - Akustika - Merjenje zvočnih opozoril pri vratih

General Information

Publication Date
Withdrawal Date
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
Due Date
Completion Date

Buy Standard

EN 17285:2020
English language
36 pages
sale 10% off
sale 10% off
e-Library read for
1 day

Standards Content (Sample)

SIST EN 17285:2020
Železniške naprave - Akustika - Merjenje zvočnih opozoril pri vratih
Railway applications - Acoustics - Measuring of door audible warnings
Bahnanwendung - Akustik - Messung akustischer Türsignale von Eisenbahnfahrzeugen
Application ferroviaires - Acoustique - Mesurage des signaux audibles d’avertissement
des portes
Ta slovenski standard je istoveten z: EN 17285:2020
17.140.30 Emisija hrupa transportnih Noise emitted by means of
sredstev transport
45.060.20 Železniški vagoni Trailing stock
SIST EN 17285:2020 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17285:2020

---------------------- Page: 2 ----------------------
SIST EN 17285:2020

EN 17285


August 2020
ICS 17.140.30; 45.060.20
English Version

Railway applications - Acoustics - Measuring of door
audible warnings
Application ferroviaires - Acoustique - Mesurage des Bahnanwendung - Akustik - Messung akustischer
signaux audibles d'avertissement des portes Türsignale von Eisenbahnfahrzeugen
This European Standard was approved by CEN on 29 June 2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.



CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17285:2020 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 17285:2020
EN 17285:2020 (E)

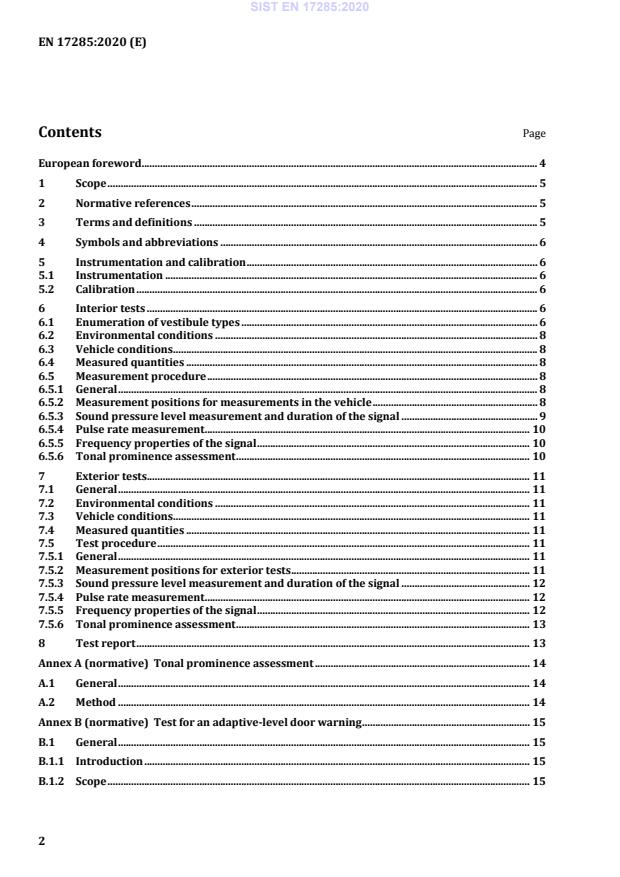

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Symbols and abbreviations . 6
5 Instrumentation and calibration . 6
5.1 Instrumentation . 6
5.2 Calibration . 6
6 Interior tests . 6
6.1 Enumeration of vestibule types . 6
6.2 Environmental conditions . 8
6.3 Vehicle conditions . 8
6.4 Measured quantities . 8
6.5 Measurement procedure .
