EN 1993-3-2:2006

Eurocode 3 - Design of steel structures - Part 3-2: Towers, masts and chimneys - Chimneys

This Part 3.2 of EN 1993 applies to the structural design of vertical steel chimneys of circular or conical section.  It covers chimneys that are cantilevered, supported at intermediate levels or guyed.

Eurocode 3 - Bemessung und Konstruktion von Stahlbauten - Teil 3-2: Türme, Maste und Schornsteine - Schornsteine

1.1   Anwendungsbereich
(1)   EN 1993-3-2 behandelt die Bemessung und Konstruktion vertikaler Stahlschorn¬steine mit zylindrischer oder konischer Form. Sie schließt Schornsteine ein, die als Kragsystem ausgebildet oder auf unterschied¬lichen Ebenen abgestützt oder abgespannt sind.
(2)   Die Regeln in diesem Teil ergänzen die Regeln von EN 1993-1-1.
(3)   Der Teil 3-2 befasst sich nur mit den Belangen der Beanspruchbarkeit (Festigkeit, Stabilität, Ermüdung) von Stahlschornsteinen.
ANMERKUNG In diesem Zusammenhang (Beanspruchbarkeit) bezieht sich der Begriff Schornstein auf:
a)   Schornsteinkonstruktionen;
b)   die zylindrischen Stahlbauteile von Türmen;
c)   den zylindrischen Stahlschaft abgespannter Maste.
(4)   Chemische Beanspruchung, thermodynami¬sches Verhalten und Wärmedämmung sind in EN 13084-1 geregelt, Bemessung und Konstruktion von Innenrohren in EN 13084-6.
(5)   Stahlbetonfundamente für Stahlschornsteine werden in EN 1992 und EN 1997 behandelt. Siehe auch EN 13084-1, 4.7 und 5.4.
(6)   Windlasten sind in EN 1991-1-4 geregelt.
ANMERKUNG Verfahren zur Berechnung der Windwirkungen auf abgespannte Schornsteine werden in EN 1993-3-1, Anhang B angegeben.
(7)   Dieser Teil enthält keine besonderen Regeln für die Bemessung und Konstruktion im Hinblick auf Erd¬beben; diese sind in EN 1998-6 enthalten. Siehe auch EN 13084-1, 5.2.4.1.
(8)   Regeln für Abspannungen und deren Anschlüsse sind in EN 1993-1-1 und in EN 1993-3-11 zu finden.
(9)   Bei der Fertigung und Montage von Stahlschornsteinen sollten EN 1090-2 und EN 13084-1 beachtet werden.
ANMERKUNG Fertigung und Montage werden nur in dem Umfang behandelt, dass die Qualität der zur Verwendung vorgesehenen Werkstoffe und Bauprodukte für tragende Teile und die Qualität der Montage erkennbar wird, die für die Gültigkeit der Bemessungsregeln vorausgesetzt wurde.
(10) Folgende Themen werden in EN 1993-3-2 behandelt:
Abschnitt 1:   Allgemeines;
Abschnitt 2:   Grundlagen der Tragwerksplanung;
Abschnitt 3:   Werkstoffe;

Eurocode 3 - Calcul des structures en acier - Partie 3-2: Tours, mâts et cheminées - Cheminées

(1)   La présente Partie 3.2 de l'EN 1993 s'applique au calcul structural des cheminées verticales en acier  à section circulaire ou conique. Elle couvre les cheminées en console, maintenues à des niveaux intermédiaires, ou haubanées.
(2)   Les dispositions figurant dans la présente Partie complètent celles données dans la Partie 1.1 de l'EN 1993.
(3)   La présente Partie 3.2 ne concerne que les exigences de résistance (solidité, stabilité et fatigue) des cheminées en acier.
NOTE   Dans ce contexte (c'est-à-dire résistance), le terme « 'cheminée »' fait référence :
a)   aux structures de cheminées
b)   aux éléments cylindriques en acier des tours
c)   aux fûts cylindriques en acier des mâts haubanés
(4)   Pour les dispositions concernant les aspects tels que l'attaque chimique, le comportement thermodynamique ou l'isolation thermique, voir l'EN 13084-1. Pour le calcul des doublages, voir l'EN 13084-6.
(5)   Les fondations en béton armé des cheminées en acier sont couvertes par l'EN 1992 et l'EN 1997. Voir également 4.7 et 5.4 de l'EN 13084-1.
(6)   Les charges dues au vent sont déterminées selon  l'EN 1991-1-4.
NOTE   Les procédures applicables à la réponse au vent des cheminées haubanées sont décrites dans l'Annexe B de l'EN 1993-3-1.
(7)   La présente Partie ne couvre pas les dispositions particulières concernant le calcul sismique, qui sont données dans l'EN 1998-6. Voir également 5.2.4.1 de l'EN 13084-1.
(8)   Des dispositions concernant les haubans et leurs attaches sont données dans l'EN 1993 3 1 et l'EN 1993 1 11.
(9)   Pour l’exécution des cheminées en acier, on se reportera à l'EN 1090, Partie 2 et à l'EN 13084-1.
NOTE   L’exécution est couverte dans la mesure nécessaire pour indiquer la qualité des matériaux et produits de construction qu’il convient de mettre en oeuvre, et le niveau d’exécution sur chantier requis pour satisfaire aux hypothèses des règles de calcul.
(10)   Les sujets suivants sont traités dans l'EN 1993-3-2 :
Section 1 :   Généralités

Evrokod 3: Projektiranje jeklenih konstrukcij – 3-2. del: Stolpi, jambori in dimniki - Dimniki

General Information

• Status: Published
• Publication Date: 24-Oct-2006
• Withdrawal Date: 30-Mar-2010
• ICS: 91.010.30 - Technical aspects
• ICS: 91.060.40 - Chimneys, shafts, ducts
• ICS: 91.080.10 - Metal structures
• ICS: 91.080.13 - Steel structures
• Technical Committee: CEN/TC 250 - Structural Eurocodes
• Drafting Committee: CEN/TC 250/SC 3 - Eurocode 3: Design of steel structures
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 25-Oct-2006
• Completion Date: 25-Oct-2006
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/265 - Mandate to CEN for the conversion of the Eurocodes from ENV into EN concerning the structural and geotechnical design of buildings and civil engineering works
• Mandate: M/BC/CEN/89/11 - Framework mandate to CEN on Eurocode work : execution of a standardization programme on Eurocodes for the structural design of building and civil engineering works
• Ref Project: SIST EN 1993-3-2:2007 - Eurocode 3 - Design of steel structures - Part 3-2: Towers, masts and chimneys - Chimneys

Relations

• Replaces: ENV 1993-3-2:1997 - Eurocode 3: Design of steel structures - Part 3-2: Towers, masts and chimneys - Chimneys
• Effective Date: 22-Dec-2008
• Revised: prEN 1993-3 - Eurocode 3 - Design of steel structures - Part 3: Towers, masts and chimneys
• Effective Date: 28-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2007
1DGRPHãþD
SIST ENV 1993-3-2:2001
Evrokod 3: Projektiranje jeklenih konstrukcij – 3-2. del: Stolpi, jambori in dimniki -
Dimniki
Eurocode 3 - Design of steel structures - Part 3-2: Towers, masts and chimneys -
Chimneys
Eurocode 3 - Bemessung und Konstruktion von Stahlbauten - Teil 3-2: Türme, Maste
und Schornsteine - Schornsteine
Eurocode 3 - Calcul des structures en acier - Partie 3-2: Tours, mâts et cheminées -
Cheminées
Ta slovenski standard je istoveten z: EN 1993-3-2:2006
ICS:
91.010.30 7HKQLþQLYLGLNL Technical aspects
91.060.40 Dimniki, jaški, kanali Chimneys, shafts, ducts
91.080.10 Kovinske konstrukcije Metal structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 1993-3-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2006
ICS 91.010.30; 91.060.40; 91.080.10 Supersedes ENV 1993-3-2:1997
English Version
Eurocode 3 - Design of steel structures - Part 3-2: Towers,
masts and chimneys - Chimneys
Eurocode 3 - Calcul des structures en acier - Partie 3-2: Eurocode 3 - Bemessung und Konstruktion von
Tours, mâts et cheminées - Cheminées Stahlbauten - Teil 3-2: Türme, Maste und Schornsteine -
Schornsteine
This European Standard was approved by CEN on 13 January 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1993-3-2:2006: E
worldwide for CEN national Members.

EN 1993-3-2: 2006 (E)

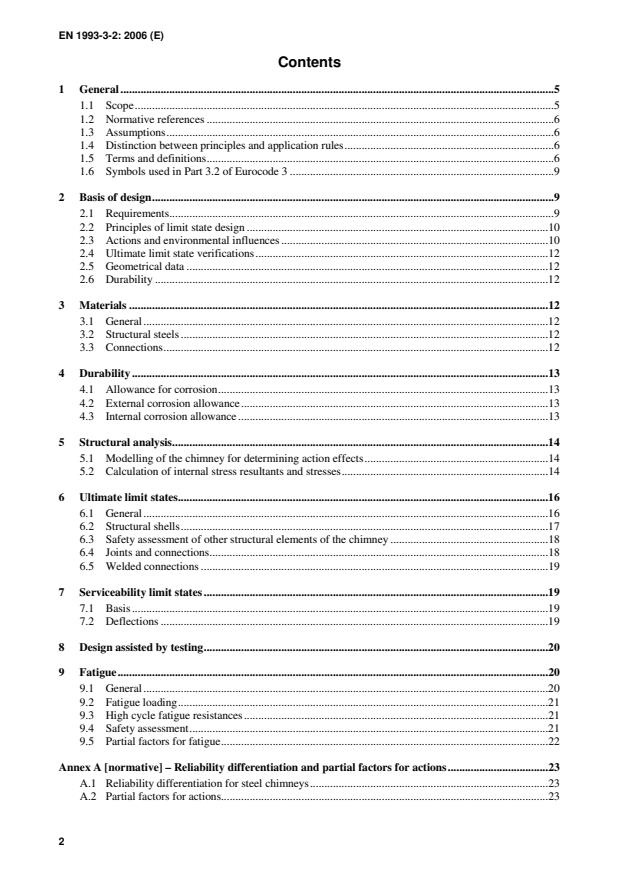

Contents
1 General .5
1.1 Scope.5
1.2 Normative references .6
1.3 Assumptions.6
1.4 Distinction between principles and application rules.6
1.5 Terms and definitions.6
1.6 Symbols used in Part 3.2 of Eurocode 3 .9
2 Basis of design.9
2.1 Requirements.9
2.2 Principles of limit state design .10
2.3 Actions and environmental influences .10
2.4 Ultimate limit state verifications.12
2.5 Geometrical data .12
2.6 Durability .12
3 Materials .12
3.1 General .12
3.2 Structural steels .12
3.3 Connections.12
4 Durability .13
4.1 Allowance for corrosion.13
4.2 External corrosion allowance.13
4.3 Internal corrosion allowance .13
5 Structural analysis.14
5.1 Modelling of the chimney for determining action effects.14
5.2 Calculation of internal stress resultants and stresses.14
6 Ultimate limit states.16
6.1 General .16
6.2 Structural shells.17
6.3 Safety assessment of other structural elements of the chimney .18
6.4 Joints and connections.18
6.5 Welded connections .19
7 Serviceability limit states .19
7.1 Basis.19
7.2 Deflections .19
8 Design assisted by testing.20
9 Fatigue.20
9.1 General .20
9.2 Fatigue loading.21
9.3 High cycle fatigue resistances.21
9.4 Safety assessment.21
9.5 Partial factors for fatigue.22
Annex A [normative] – Reliability differentiation and partial factors for actions.23
A.1 Reliability differentiation for steel chimneys.23
A.2 Partial factors for actions.23

EN 1993-3-2: 2006 (E)
Annex B [informative] – Aerodynamic and damping measures .24
B.1 General .24
B.2 Aerodynamic measures .24
B.3 Dynamic vibration absorber.25
B.4 Cables with damping devices.25
B.5 Direct damping.25
Annex C [informative] – Fatigue resistances and quality requirements .26
C.1 General .26
C.2 Enhancement of fatigue strength for special quality requirements .26
Annex D [informative] – Design assisted by testing .29
D.1 General .29
D.2 Definition of the logarithmic damping decrement .29
D.3 Procedure for measuring the logarithmic damping decrement.29
Annex E [informative] – Execution.30
E.1 General .30
E.2 Execution tolerances .30
E.3 Quality of welds and fatigue .30

EN 1993-3-2: 2006 (E)
Foreword
This European Standard EN 1993-3-2, Eurocode 3: Design of steel structures: Part 3-2 Towers, masts and
chimneys – Chimneys, has been prepared by Technical Committee CEN/TC250 « Structural Eurocodes »,
the Secretariat of which is held by BSI. CEN/TC250 is responsible for all Structural Eurocodes.

This European Standard shall be given the status of a National Standard, either by publication of an identical
text or by endorsement, at the latest by April 2007 and conflicting National Standards shall be withdrawn
at latest by March 2010.
This Eurocode supersedes ENV 1993-3-2.

According to the CEN-CENELEC Internal Regulations, the National Standard Organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and United Kingdom.

National Annex for EN 1993-3-2

This standard gives alternative procedures, values and recommendations for classes with notes indicating
where national choices may have to be made. Therefore the National Standard implementing EN 1993-3-2
should have a National Annex containing all Nationally Determined Parameters to be used for the design of
steel structures to be constructed in the relevant country.

National choice is allowed in EN 1993-3-2 through paragraphs:
– 2.3.3.1(1)
– 2.3.3.5(1)
– 2.6(1)
– 4.2(1)
– 5.1(1)
– 5.2.1(3)
– 6.1(1)P
– 6.2.1(6)
– 6.4.1(1)
– 6.4.2(1)
– 6.4.3(2)
– 7.2(1)
– 7.2(2)
– 9.1(3)
– 9.1(4)
– 9.5(1)
– A.1(1)
– A.2(1) (2 places)
– C.2(1)
EN 1993-3-2: 2006 (E)
1 General
1.1 Scope
(1) This Part 3.2 of EN 1993 applies to the structural design of vertical steel chimneys of circular or
conical section. It covers chimneys that are cantilevered, supported at intermediate levels or guyed.

(2) The provisions in this Part supplement those given in Part 1.1 of EN 1993.

(3) This Part 3.2 is concerned only with the requirement for resistance (strength, stability and fatigue) of
steel chimneys.
NOTE: In this context (i.e. resistance) the term chimney refers to:
a) chimney structures
b) the steel cylindrical elements of towers
c) the steel cylindrical shafts of guyed masts

(4) For provisions concerning aspects, such as chemical attack, thermo-dynamical performance or
thermal insulation see EN 13084-1. For the design of liners see EN 13084-6.

(5) Foundations in reinforced concrete for steel chimneys are covered in EN 1992 and EN 1997. See
also 4.7 and 5.4 of EN 13084-1.

(6) Wind loads are specified in EN 1991-1-4.

NOTE: Procedures for the wind response of guyed chimneys are given in annex B of EN 1993-3-1.

(7) This Part does not cover special provisions for seismic design, which are given in EN 1998-6. See
also 5.2.4.1 of EN 1
...
