EN ISO 11073-30200:2005/A1:2015

Health informatics - Point-of-care medical device communication - Part 30200: Transport profile - Cable connected - Amendment 1 (ISO/IEEE 11073-30200:2004/Amd 1:2015)

2014-03-04 GVN: Draft for minor revision received in ISO/CS (see notification of 2014-03-03 in dataservice).

Medizinische Informatik - Kommunikation patientennaher medizinischer Geräte - Teil 30200: Transportprofil - Drahtgebundene Übertragung - Änderung 1 (ISO/IEEE 11073-30200:2004/Amd 1:2015)

Informatique de santé - Communication entre dispositifs médicaux sur le site des soins - Partie 30200: Profil de transport - Connexion par câble - Amendement 1 (ISO/IEEE 11073-30200:2004/Amd 1:2015)

Zdravstvena informatika - Komunikacija medicinskih naprav na mestu oskrbe - 30200. del: Transportni profil - Kabelsko priključen - Dopolnilo 1 (ISO/IEEE 11073-30200:2004/Amd 1:2015)

General Information

• Status: Published
• Publication Date: 22-Sep-2015
• Withdrawal Date: 30-Mar-2016
• ICS: 35.100.40 - Transport layer
• ICS: 35.240.80 - IT applications in health care technology
• Technical Committee: CEN/TC 251 - Medical informatics
• Drafting Committee: CEN/TC 251/WG 2 - Terminology and knowledge representation
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 23-Sep-2015
• Completion Date: 23-Sep-2015
• Ref Project: SIST EN ISO 11073-30200:2005/A1:2015 - Health informatics - Point-of-care medical device communication - Part 30200: Transport profile - Cable connected - Amendment 1 (ISO/IEEE 11073-30200:2004/Amd 1:2015)

Relations

• Amends: EN ISO 11073-30200:2005 - Health informatics - Point-of-care medical device communication - Part 30200: Transport profile - Cable connected (ISO/IEEE 11073-30200:2004)
• Effective Date: 05-Mar-2014

Overview

EN ISO 11073-30200:2005/A1:2015 is an amendment to the point-of-care medical device communication transport profile for cable-connected devices. Adopted by CEN in 2015, this amendment extends ISO/IEEE 11073-30200:2004 to explicitly include IEEE 802.3 100BASE-T (Fast Ethernet) and supplies an analysis of cable-connection compatibility between ISO/IEEE 11073-30200 and IEEE Std 802.3-2008. The document supports reliable wired bedside and clinical connectivity for medical devices and is part of the ISO/IEEE 11073 family addressing medical device interoperability.

Key topics and technical focus

• Transport profile - Cable connected: Defines transport-level considerations for wired point-of-care device communication (the amendment updates/adds details relevant to cable-based links).
• IEEE 802.3 100BASE-T inclusion: Extension to support 100 Mbps Ethernet (100BASE-T) as a transport medium for ISO/IEEE 11073-30200 systems.
• Compatibility analysis: Examines interoperability and cable-connection compatibility between existing ISO/IEEE 11073-30200 implementations and IEEE 802.3 (2008) Ethernet standards.
• Interoperability considerations: Addresses legacy device integration, media translation (e.g., IrDA to wired), and networked bedside device behavior (keywords referenced in the amendment include MIB, SNTP, legacy device, IrDA).
• Standards coordination: Harmonizes IEEE and ISO provisions for wired transport in clinical environments; notes potential patent and regulatory considerations.

Practical applications

• Bedside device connectivity: Use for wired communication of patient monitors, infusion pumps, ventilators and other point-of-care equipment to clinical gateways or hospital networks.
• Device and network design: Guidance for biomedical engineers and device manufacturers implementing Ethernet 100BASE-T interfaces that must comply with ISO/IEEE 11073 transport expectations.
• Interoperability testing & integration: Reference for integrators and test labs verifying cable compatibility and behavior between medical device endpoints and hospital Ethernet infrastructure.
• Legacy migration: Helps plan migration paths from proprietary or infrared (IrDA) links to standardized wired Ethernet connections while preserving ISO/IEEE 11073 semantics.

Who should use this standard

• Medical device manufacturers and firmware/network engineers
• Hospital IT, clinical engineering and biomedical teams
• Systems integrators and interoperability test laboratories
• Standards bodies and regulatory professionals focused on medical device communication

Related standards

• ISO/IEEE 11073 family (point-of-care device communication)
• IEEE Std 802.3-2008 (Ethernet)
• Standards on MIBs and time synchronization (SNTP) referenced in interoperability analysis

Keywords: ISO 11073-30200, EN ISO 11073-30200:2005/A1:2015, IEEE 802.3 100BASE-T, point-of-care medical device communication, transport profile, cable connected, medical device interoperability, bedside connectivity.

Standards Content (Sample)

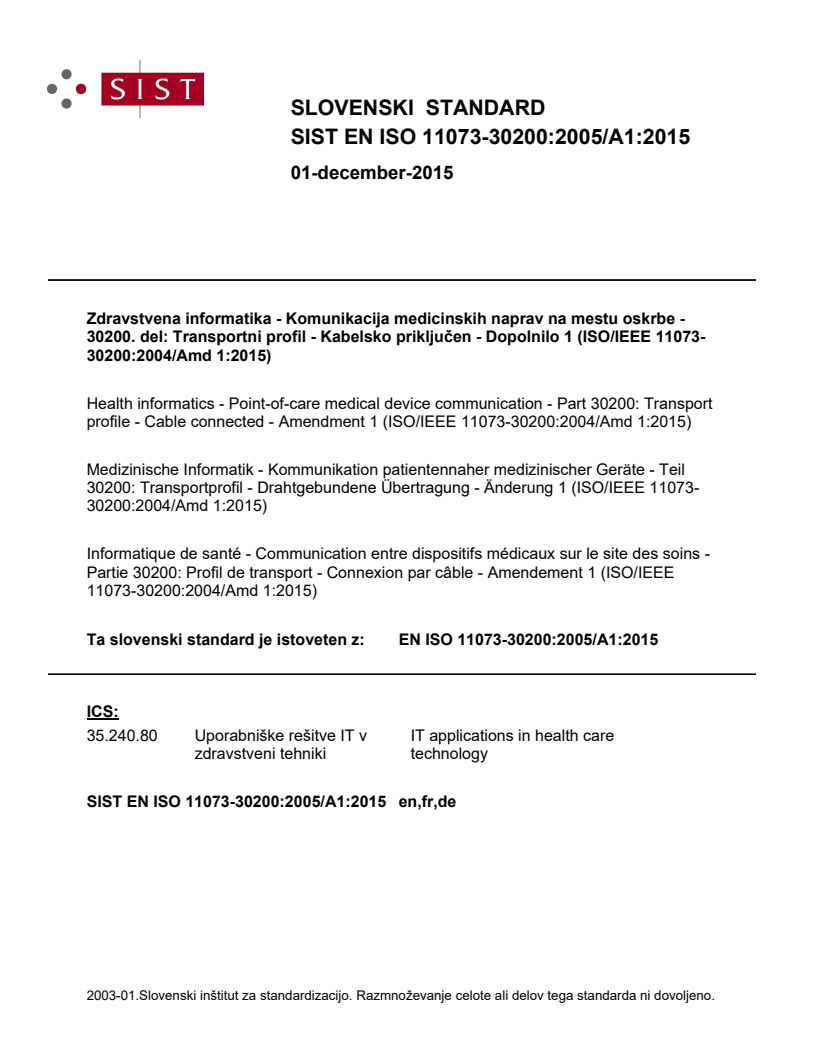

SLOVENSKI STANDARD
01-december-2015
=GUDYVWYHQDLQIRUPDWLND.RPXQLNDFLMDPHGLFLQVNLKQDSUDYQDPHVWXRVNUEH
GHO7UDQVSRUWQLSURILO.DEHOVNRSULNOMXþHQ'RSROQLOR,62,(((
$PG
Health informatics - Point-of-care medical device communication - Part 30200: Transport
profile - Cable connected - Amendment 1 (ISO/IEEE 11073-30200:2004/Amd 1:2015)
Medizinische Informatik - Kommunikation patientennaher medizinischer Geräte - Teil
30200: Transportprofil - Drahtgebundene Übertragung - Änderung 1 (ISO/IEEE 11073-
30200:2004/Amd 1:2015)
Informatique de santé - Communication entre dispositifs médicaux sur le site des soins -
Partie 30200: Profil de transport - Connexion par câble - Amendement 1 (ISO/IEEE
11073-30200:2004/Amd 1:2015)
Ta slovenski standard je istoveten z: EN ISO 11073-30200:2005/A1:2015
ICS:
35.240.80 Uporabniške rešitve IT v IT applications in health care
zdravstveni tehniki technology
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 11073-

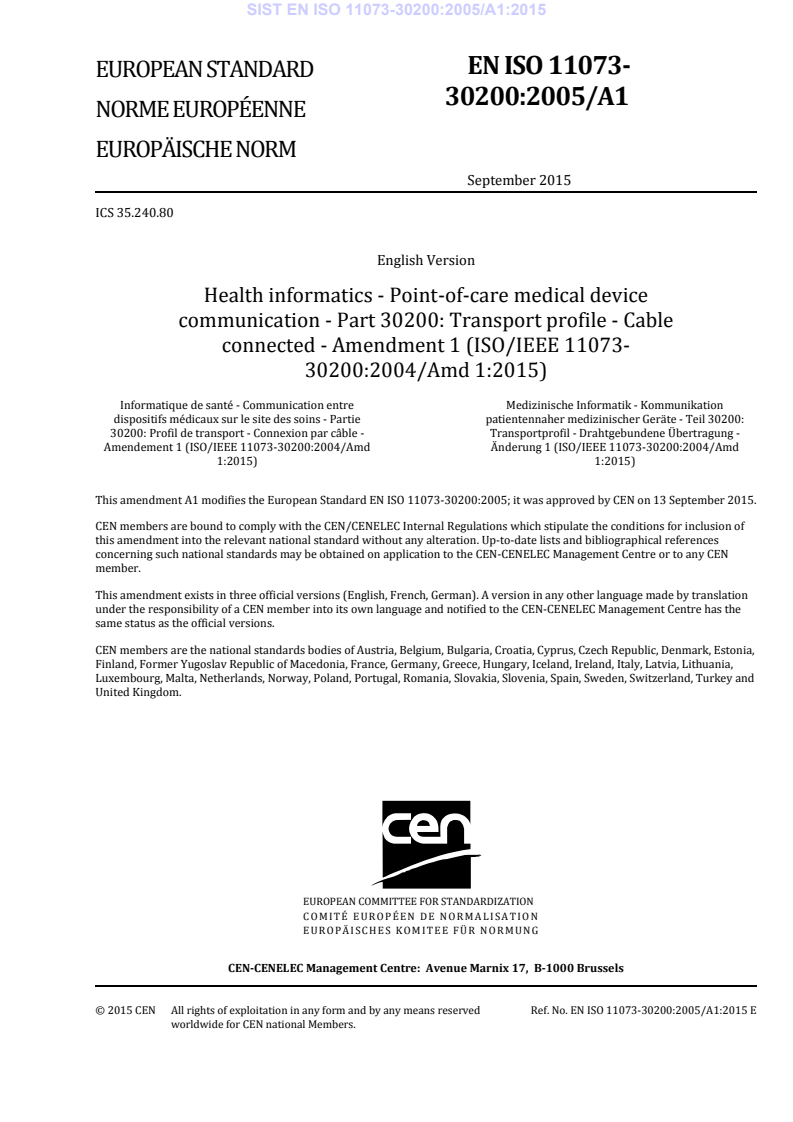

EUROPEAN STANDARD
30200:2005/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2015
ICS 35.240.80
English Version
Health informatics - Point-of-care medical device
communication - Part 30200: Transport profile - Cable
connected - Amendment 1 (ISO/IEEE 11073-
30200:2004/Amd 1:2015)
Informatique de santé - Communication entre Medizinische Informatik - Kommunikation
dispositifs médicaux sur le site des soins - Partie patientennaher medizinischer Geräte - Teil 30200:
30200: Profil de transport - Connexion par câble - Transportprofil - Drahtgebundene Übertragung -
Amendement 1 (ISO/IEEE 11073-30200:2004/Amd Änderung 1 (ISO/IEEE 11073-30200:2004/Amd
1:2015) 1:2015)
This amendment A1 modifies the European Standard EN ISO 11073-30200:2005; it was approved by CEN on 13 September 2015.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 11073-30200:2005/A1:2015 E
worldwide for CEN national Members.

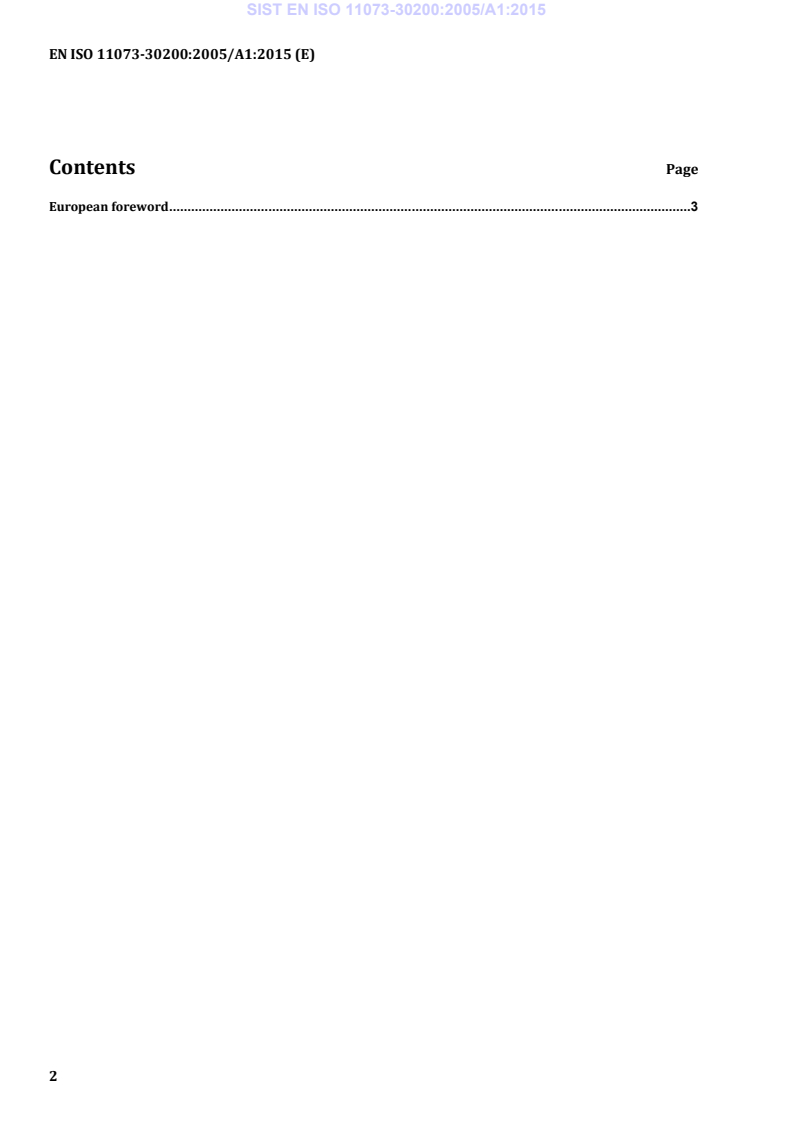

Contents Page
European foreword.3

European foreword
The text of ISO 11073-30200:2004/Amd1:2015 has been prepared by Technical Committee ISO/TC 215
“Health informatics” of the International Organization for Standardization (ISO) and has been taken
over as EN ISO 11073-30200:2005/A1:2015 by Technical Committee CEN/TC 251 “Health informatics”
the secretariat of which is held by NEN.
This Amendment to the European Standard EN ISO 11073-30200:2005 shall be given the status of a
national standard, either by publication of an identical text or by endorsement, at the latest by March
2016, and conflicting national standards shall be withdrawn at the latest by March 2016.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 11073-30200:2004/Amd 1:2015 has been approved by CEN as EN ISO 11073-
30200:2005/A1:2015 without any modification.
INTERNATIONAL ISO/IEEE
STANDARD 11073-30200
First edition
2004-12-15
AMENDMENT 1
2015-03-01
Health informatics — Point-of-care
medical device communication —
Part 30200:
Transport profile — Cable connected
AMENDMENT 1
Informatique de santé — Communication entre dispositifs médicaux sur
le site des soins —
Partie 30200: Profil de transport — Connexion par câble
AMENDEMENT 1
Reference number
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)

©
IEEE 2004
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)

©  IEEE 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from ISO, IEC or IEEE at the respective
address below.
ISO copyright office IEC Central Office Institute of Electrical and Electronics Engineers, Inc.
Case postale 56 3, rue de Varembé 3 Park Avenue, New York
CH-1211 Geneva 20 CH-1211 Geneva 20 NY 10016-5997, USA
Tel. + 41 22 749 01 11 Switzerland E-mail [e-mail]
Fax + 41 22 749 09 47 E-mail [e-mail] Web www.ieee.org
E-mail [e-mail] Web www.iec.ch
Web www.iso.org
Published in Switzerland
ii © IEEE 2004 – All rights reserved

ISO/IEEE 11073-30200:2004/Amd.1:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating
Committees of the IEEE Standards Association (IEEE-SA) Standards Board. The IEEE develops its standards
through a consensus development process, approved by the American National Standards Institute, which
brings together volunteers representing varied viewpoints and interests to achieve the final product. Volunteers
are not necessarily members of the Institute and serve without compensation. While the IEEE administers the
process and establishes rules to promote fairness in the consensus development process, the IEEE does not
independently evaluate, test, or verify the accuracy of any of the information contained in its standards.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is called to the possibility that implementation of this standard may require the use of subject matter
covered by patent rights. By publication of this standard, no position is taken with respect to the existence or
validity of any patent rights in connection therewith. ISO/IEEE is not responsible for identifying essential
patents or patent claims for which a license may be required, for conducting inquiries into the legal validity or
scope of patents or patent claims or determining whether any licensing terms or conditions provided in
connection with submission of a Letter of Assurance or a Patent Statement and Licensing Declaration Form, if
any, or in any licensing agreements are reasonable or non-discriminatory. Users of this standard are expressly
advised that determination of the validity of any patent rights, and the risk of infringement of such rights, is
entirely their own responsibility. Further information may be obtained from ISO or the IEEE Standards
Association.
Amendment 1 to ISO/IEEE 11073-30200:2004 was prepared by the 11073 Committee of the Engineering in
Medicine and Biology Society of the IEEE (as IEEE 11073-30200a-2011). It was adopted by Technical
Committee ISO/TC 215, Health informatics, in parallel with its approval by the ISO/IEC national bodies, under
the “fast-track procedure” defined in the Partner Standards Development Organization cooperation agreement
between ISO and IEEE. IEEE is responsible for the maintenance of this document with participation and input
from ISO/IEC national bodies.
© IEEE 2004 – All rights reserved iii

ISO/IEEE 11073-30200:2004/Amd.1:2015(E)
(blank page)
iv © IEEE 2004 – All rights reserved

Health informatics—Point-of-care medical device communication

Part 30200: Transport profile—
Cable connected
Amendment 1
IEEE Engineering in Medicine and Biology Society
Sponsored by the
IEEE 11073™ Standards Committee
IEEE
IEEE Std 11073-30200a™-2011
3 Park Avenue
(Amendment to
New York, NY 10016-5997
USA ISO/IEEE 11073-30200:2004)
16 September 2011
TM
IEEE Std 11073-30200a -2011
(Amendment to
ISO/IEEE Std 11073-30200:2004)
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—
Cable connected
Amendment 1
Sponsor
TM
IEEE 11073 Standards Committee
of the
IEEE Engineering in Medicine and Biology Society
Approved 16 June 2011
IEEE-SA Standards Board
Abstract: ISO/IEEE Std 11073-30200:2004 is extended in this amendment to include
IEEE 802.3 100BASE-T and analysis of the compatibility of cable connections between ISO/IEEE
TM
Std 11073-30200:2004 and IEEE Std 802.3 -2008.
Keywords: bedside, IEEE 11073, IEEE Std 802.3-2008, Infrared Data Association (IrDA), legacy
device, medical device, medical device communications, MIB, patient, SNTP
•
The Institute of Electrical and Electronics Engineers, Inc.
3 Park Avenue, New York, NY 10016-5997, USA
All rights reserved. Published 16 September 2011. Printed in the United States of America.
IEEE is a registered trademark in the U.S. Patent & Trademark Office, owned by the Institute of Electrical and Electronics
Engineers, Incorporated.
PDF: ISBN 978-0-7381-6677-3 STD97123
Print: ISBN 978-0-7381-6678-0 STDPD97123
IEEE prohibits discrimination, harassment and bullying. For more information, visit http://www.ieee.org/web/aboutus/whatis/policies/p9-26.html.
No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior written permission
of the publisher.
IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating Committees of
the IEEE Standards Association (IEEE-SA) Standards Board. The IEEE develops its standards through a consensus
development process, approved by the American National Standards Institute, which brings together volunteers
representing varied viewpoints and interests to achieve the final product. Volunteers are not necessarily members of the
Institute and serve without compensation. While the IEEE administers the process and establishes rules to promote
fairness in the consensus development process, the IEEE does not independently evaluate, test, or verify the accuracy
of any of the information or the soundness of any judgments contained in its standards.
Use of an IEEE Standard is wholly voluntary. The IEEE disclaims liability for any personal injury, property or other
damage, of any nature whatsoever, whether special, indirect, consequential, or compensatory, directly or indirectly
resulting from the publication, use of, or reliance upon this, or any other IEEE Standard document.
The IEEE does not warrant or represent the accuracy or content of the material contained herein, and expressly
disclaims any express or implied warranty, including any implied warranty of merchantability or fitness for a specific
purpose, or that the use of the material contained herein is free from patent infringement. IEEE Standards documents
are supplied “AS IS.”
The existence of an IEEE Standard does not imply that there are no other ways to produce, test, measure, purchase,
market, or provide other goods and services related to the scope of the IEEE Standard. Furthermore, the viewpoint
expressed at the time a standard is approved and issued is subject to change brought about through developments in the
state of the art and comments received from users of the standard. Every IEEE Standard is subjected to review at least
every five years for revision or reaffirmation, or every ten years for stabilization. When a document is more than five
years old and has not been reaffirmed, or more than ten years old and has not been stabilized, it is reasonable to
conclude that its contents, although still of some value, do not wholly reflect the present state of the art. Users are
cautioned to check to determine that they have the latest edition of any IEEE Standard.
In publishing and making this document available, the IEEE is not suggesting or rendering professional or other
services for, or on behalf of, any person or entity. Nor is the IEEE undertaking to perform any duty owed by any other
person or entity to another. Any person utilizing this, and any other IEEE Standards document, should rely upon his or
her independent judgment in the exercise of reasonable care in any given circumstances or, as appropriate, seek the
advice of a competent professional in determining the appropriateness of a given IEEE standard.
Interpretations: Occasionally questions may arise regarding the meaning of portions of standards as they relate to
specific applications. When the need for interpretations is brought to the attention of IEEE, the Institute will initiate
action to prepare appropriate responses. Since IEEE Standards represent a consensus of concerned interests, it is
important to ensure that any interpretation has also received the concurrence of a balance of interests. For this reason,
IEEE and the members of its societies and Standards Coordinating Committees are not able to provide an instant
response to interpretation requests except in those cases where the matter has previously received formal consideration.
A statement, written or oral, that is not processed in accordance with the IEEE-SA Standards Board Operations Manual
shall not be considered the official position of IEEE or any of its committees and shall not be considered to be, nor be
relied upon as, a formal interpretation of the IEEE. At lectures, symposia, seminars, or educational courses, an
individual presenting information on IEEE standards shall make it clear that his or her views should be considered the
personal views of that individual rather than the formal position, explanation, or interpretation of the IEEE.
Comments for revision of IEEE Standards are welcome from any interested party, regardless of membership affiliation
with IEEE. Suggestions for changes in documents should be in the form of a proposed change of text, together with
appropriate supporting comments. Recommendations to change the status of a stabilized standard should include a
rationale as to why a revision or withdrawal is required. Comments and recommendations on standards, and requests
for interpretations should be addressed to:
Secretary, IEEE-SA Standards Board
445 Hoes Lane
Piscataway, NJ 08854-4141
USA
Authorization to photocopy portions of any individual standard for internal or personal use is granted by The Institute
of Electrical and Electronics Engineers, Inc., provided that the appropriate fee is paid to Copyright Clearance Center.
To arrange for payment of licensing fee, please contact Copyright Clearance Center, Customer Service, 222 Rosewood
Drive, Danvers, MA 01923 USA; [phone]. Permission to photocopy portions of any individual standard for
educational classroom use can also be obtained through the Copyright Clearance Center.

Introduction
This introduction is not part of IEEE Std 11073-30200a-2011, Health informatics—Point-of-care medical device
communication—Part 30200: Transport profile—Cable connected—Amendment 1.
This amendment extends ISO/IEEE Std 11073-30200:2004 to include IEEE 802.3 100BASE-T, and it
includes analysis of the compatibility of cable connections between ISO/IEEE Std 11073-30200:2004 and
a
IEEE Std 802.3-2008 [B10].
Notice to users
Laws and regulations
Users of these documents should consult all applicable laws and regulations. Compliance with the
provisions of this standard does not imply compliance to any applicable regulatory requirements.
Implementers of the standard are responsible for observing or referring to the applicable regulatory
requirements. IEEE does not, by the publication of its standards, intend to urge action that is not in
compliance with applicable laws, and these documents may not be construed as doing so.
Copyrights
This document is copyrighted by the IEEE. It is made available for a wide variety of both public and
private uses. These include both use, by reference, in laws and regulations, and use in private self-
regulation, standardization, and the promotion of engineering practices and methods. By making this
document available for use and adoption by public authorities and private users, the IEEE does not waive
any rights in copyright to this document.
Updating of IEEE documents
Users of IEEE standards should be aware that these documents may be superseded at any time by the
issuance of new editions or may be amended from time to time through the issuance of amendments,
corrigenda, or errata. An official IEEE document at any point in time consists of the current edition of the
document together with any amendments, corrigenda, or errata then in effect. In order to determine whether
a given document is the current edition and whether it has been amended through the issuance of
amendments, corrigenda, or errata, visit the IEEE Standards Association web site at
http://ieeexplore.ieee.org/xpl/standards.jsp, or contact the IEEE at the address listed previously.
For more information about the IEEE Standards Association or the IEEE standards development process,
visit the IEEE-SA web site at http://standards.ieee.org.
a
The numbers in brackets correspond to those of the bibliography in Annex P.
iv
Errata
Errata, if any, for this and all other standards can be accessed at the following URL:
http://standards.ieee.org/reading/ieee/updates/errata/index.html. Users are encouraged to check this URL
for errata periodically.
Interpretations
Current interpretations can be accessed at the following URL: http://standards.ieee.org/reading/ieee/interp/
index.html.
Patents
Attention is called to the possibility that implementation of this standard may require use of subject matter
covered by patent rights. By publication of this standard, no position is taken with respect to the existence
or validity of any patent rights in connection therewith. The IEEE is not responsible for identifying
Essential Patent Claims for which a license may be required, for conducting inquiries into the legal validity
or scope of Patents Claims or determining whether any licensing terms or conditions provided in
connection with submission of a Letter of Assurance, if any, or in any licensing agreements are reasonable
or non-discriminatory. Users of this standard are expressly advised that determination of the validity of any
patent rights, and the risk of infringement of such rights, is entirely their own responsibility. Further
information may be obtained from the IEEE Standards Association.
v
Participants
At the time this standard was submitted to the IEEE-SA Standards Board for approval, the InterLAN
Working Group had the following membership:
Malcolm Clarke, Chair
Mark Schnell, Vice Chair
Chuck Baker Nicolae Goga Paul Schluter
Douglas P. Bogia Kai Hassing Rick Schrenker
Jon Camp Stuart Higgins Seith Seidman
Thomas Canup Nandu Kushalnagar Mazen Shihabi
Randy Carroll Mike Miller Lars Steubesand
Tony Chan Melvin Reynolds Stan Wiley
Todd Cooper Shekar Roa Jan Wittenber
Mark Craig Jr. Judi Romijn Tetsuya Yuda
Juergen Fischbach Honggang Zhang

The following members of the individual balloting committee voted on this standard. Balloters may have
voted for approval, disapproval, or abstention.

Hugh Barrass Atsushi Ito Bartien Sayogo
Christopher Biernacki Raj Jain Gil Shultz
Keith Chow Piotr Karocki James Smith
Malcolm Clarke Randall Krohn Lars Steubesand
Randall Groves William Lumpkins Walter Struppler
Kai Hassing Greg Luri Jan Wittenber
Werner Hoelzl Wayne W. Manges Oren Yuen
Melvin Reynolds
When the IEEE-SA Standards Board approved this standard on 16 June 2011, it had the following
membership:
Richard H. Hulett, Chair
John Kulick, Vice Chair
Robert Grow, Past Chair
Judith Gorman, Secretary
Masayuki Ariyoshi Jim Hughes Gary Robinson
William Bartley Joseph L. Koepfinger* Jon Rosdahl
Ted Burse David Law Sam Sciacca
Clint Chaplin Thomas Lee Mike Seavey
Wael Diab Hung Ling Curtis Siller
Jean-Philippe Faure Oleg Logvinov Phil Winston
Alex Gelman Ted Olsen Howard Wolfman
Paul Houzé Don Wright
*Member Emeritus
vi
Also included are the following nonvoting IEEE-SA Standards Board liaisons:
Satish Aggarwal, NRC Representative
Richard DeBlasio, DOE Representative
Michael Janezic, NIST Representative

Don Messina
IEEE Standards Program Manager, Document Development

Kathryn M. Bennett
IEEE Standards Program Manager, Technical Program Development

vii
Contents
1. Overview . 2
3.1 Definitions . 3
3.2 Acronyms and abbreviations . 5
4. Goals for this standard . 5
4.1 Compliance with other standards . 5
6. Physical layer . 5
Annex A (normative) Phyiscal layer . 6
Annex E (informative) Detailed rationale for pin assignments . 8
Annex F (informative) IEEE Std 802.3-2008 10BASE-T/100BASE-TX . 9
Annex O (informative) Analysis of compatibility between ISO/IEEE Std 11073-30200:2004 and 10BASE-
T/100BASE-TX of IEEE Std 802.3-2008 . 10
Annex OP (informative) Bibliography . 36

viii
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—
Cable connected
Amendment 1
IMPORTANT NOTICE: This standard is not intended to ensure safety, security, health, or
environmental protection. Implementers of the standard are responsible for determining appropriate
safety, security, environmental, and health practices or regulatory requirements.
This IEEE document is made available for use subject to important notices and legal disclaimers.
These notices and disclaimers appear in all publications containing this document and may
be found under the heading “Important Notice” or “Important Notices and Disclaimers
Concerning IEEE Documents.” They can also be obtained on request from IEEE or viewed at
http://standards.ieee.org/IPR/disclaimers.html.
NOTE—The editing instructions contained in this corrigendum define how to merge the material contained therein into
the existing base standard and its amendments to form the comprehensive standard.
The editing instructions are shown in bold italic. Four editing instructions are used: change, delete, insert, and replace.
Change is used to make corrections in existing text or tables. The editing instruction specifies the location of the change
and describes what is being changed by using strikethrough (to remove old material) and underscore (to add new
material). Delete removes existing material. Insert adds new material without disturbing the existing material. Insertions
may require renumbering. If so, renumbering instructions are given in the editing instruction. Replace is used to make
changes in figures or equations by removing the existing figure or equation and replacing it with a new one. Editing
instructions, change markings, and this NOTE will not be carried over into future editions because the changes will be
incorporated into the base standard.
Notes in text, tables, and figures are given for information only and do not contain requirements needed to implement the standard.
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)
IEEE Std 11073-30200a-2011
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—Cable connected—Amendment 1
1. Overview
Change text as shown:
This standard is divided into 11 clauses, as follows:
⎯ Clause 1 provides an overview of this standard.
⎯ Clause 2 lists references to other standards that are useful in applying this standard.
⎯ Clause 3 provides definitions and abbreviations.
⎯ Clause 4 provides goals for this standard.
⎯ Clause 5 provides an overview of network topology and layering.
⎯ Clause 6 provides a profile of the physical layer.
⎯ Clause 7 provides a profile of the data link layer.
⎯ Clause 8 provides a profile of the network layer.
⎯ Clause 9 provides a profile of the transport layer.
⎯ Clause 10 describes the optional time synchronization service.
⎯ Clause 11 provides labeling and conformance requirements.
This standard also contains 1516 annexes, as follows:
⎯ Annex A describes the physical layer.
⎯ Annex B provides information on the maximum cable length.
⎯ Annex C provides examples of physical link media.
⎯ Annex D provides example schematics for modular adapters.
⎯ Annex E provides a detailed rationale for pin assignments.
⎯ Annex F describes the use of IEEE 802.3 10BASE-T/100BASE-TX with this standard.
⎯ Annex G provides a discussion of power delivery considerations.
⎯ Annex H provides examples of simple bedside communications controller (BCC) and device
communications controller (DCC) designs.
⎯ Annex I provides an example of an isolated BCC design.
⎯ Annex J provides an optical isolator design example.
⎯ Annex K provides marking guidelines.
⎯ Annex L provides protocol examples, particularly of connection establishment.
⎯ Annex M defines the Infrared Data Association (IrDA) profile specifications adapted from the
IrDA implementation guidelines.
⎯ Annex N provides guidelines for using the SNTP time synchronization protocol.
⎯ Annex O provides an analysis of compatibility between ISO/IEEE Std 11073-30200:2004 and
10BASE-T/100BASE-TX of IEEE Std 802.3-2008 [B10].
⎯ Annex OP provides bibliographical references.
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)
IEEE Std 11073-30200a-2011
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—Cable connected—Amendment 1
3. Definitions, acronyms, and abbreviations
3.1 Definitions
Change the first paragraph and insert new footnote as shown. Delete [B2] from Annex O and renumber
subsequent references in Annex O:
For the purposes of this document, the following terms and definitions apply. The Authoritative Dictionary
of IEEE Standards Terms, Seventh Edition, [B2]The IEEE Standards Dictionary: Glossary of Terms &
Definitions should be consulted for terms not defined in this clause.
Note that numerous definitions and abbreviations from IEEE Std 802.3–2008 [B10] are used in this
document. Those definitions and abbreviations will not be repeated here. For specific information, please
refer to Section One, subclause 1.4 and subclause 1.5, of IEEE Std 802.3-2008.
Change existing definitions and insert new definitions as shown:
3.1.1 10BASE-T: IEEE Std 802.3-2008 1998 Edition,physical layer specification for Ethernet over two
pairs of unshielded twisted-pair (UTP) media at 10 Mb/s.
100BASE-TX: IEEE Std 802.3-2008 specifies operation over two copper media: two pairs of shielded
twisted-pair cable (STP) and two pairs of unshielded twisted-pair cable (Category 5 UTP). For the purposes
of this standard, only UTP is permitted.
3.1.2 baud: A unit of signaling speed, expressed as the number of times per second the signal can change
the electrical state of the transmission line or other medium.
NOTE—Depending on the encoding strategies, a signal event may represent a single bit, more, or less, than one bit.
3.1.3 bedside communications controller (BCC): A communications controller, typically located at a
patient bedside, that serves to interface between one or more medical devices. The BCC may be embedded
into local display, monitoring, or control equipment. Alternatively, it may be part of a communications
router to a remote hospital host computer system.
3.1.4 beginning of frame (BOF): An octet specified by infrared link access protocol (IrLAP).
3.1.5 category 5 (CAT-5) balanced cable: The designation applied to 100 ∧ unshielded twisted-pair
(UTP) cables and associated connecting hardware whose transmission characteristics are specified up to
100 MHz.(ANSI/TIA/EIA-568-A-1995)
3.1.6 cyclic redundancy check (CRC): The result of a calculation carried out on the octets within an
IrLAP frame; also called a frame check sequence. The CRC is appended to the transmitted frame. At the
receiver, the calculation creating the CRC may be repeated, and the result compared to that encoded in the
signal. Syn: frame check sequence.
3.1.7 device communications controller (DCC): A communications interface associated with a medical
device. A DCC may support one or more physically distinct devices acting as a single network
communications unit. Its purpose is to provide a point-to-point serial communication link to a BCC.
The IEEE Standards Dictionary: Glossary of Terms & Definitions is available at http://standards.ieee.org.
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)
IEEE Std 11073-30200a-2011
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—Cable connected—Amendment 1

3.1.8 electromagnetic compatibility (EMC): The ability of a device, equipment, or system to function
satisfactorily in its electromagnetic environment without introducing intolerable electromagnetic
disturbances to anything in that environment.
3.1.9 electromagnetic interference (EMI): Signals emanating from external sources (e.g., power supplies,
transmitters) or internal sources (e.g., adjacent electronic components, energy sources) that disrupt or
prevent operation of electronic systems.
3.1.10 electrostatic discharge (ESD): The sudden transfer of charge between bodies of differing
electrostatic potentials that may produce voltages or currents that could destroy or damage electrical
components.
3.1.11 frame check sequence: See: cyclic redundancy check.
3.1.12 high-level data link control (HDLC): A standard protocol defined by ISO for bit-oriented, frame
delimited data communications.
3.1.13 information access service (IAS): A component of infrared link management protocol (IrLMP).
3.1.14 local area network (LAN): A communication network to interconnect a variety of intelligent
devices (e.g., personal computers, workstations, printers, file storage devices) that can transmit data over a
limited area, typically within a facility.
3.1.15 medical information bus (MIB): The informal name for the ISO/IEEE 11073 family of standards.
3.1.16 octet: A group of eight adjacent bits.
3.1.17 primary station: As defined by the infrared link access protocol (IrLAP), the station on the data
link that assumes responsibility for the organization of data flow and for unrecoverable data link error
conditions. It issues commands to the secondary stations and gives them permission to transmit.
3.1.18 protocol data unit (PDU): Information delivered as a unit between peer entities that contains
control information and, optionally, data.
3.1.19 quality of service (QoS): The four negotiated parameters for a link: signaling speed, maximum
turnaround time, data size, and disconnect threshold.
3.1.20 radio frequency (RF): (A) (Loosely) The frequency in the portion of the electromagnetic spectrum
that is between the audio-frequency portion and the infrared portion. (B) A frequency useful for radio
transmission.
3.1.21 radio frequency interference (RFI): See: radio interference.
3.1.22 radio interference: Degradation of the reception of a wanted signal caused by radio frequency (RF)
disturbance.
3.1.23 RJ-45: (A) AT&T Registered Jack designation for the eight-pin modular connectors that meet the
requirements of IEC 60603-7:1996 and ISO/IEC 8877:1992. (B) An eight-pin modular telephone plug.
3.1.24 RS-232: The serial interface defined in ANSI/TIA/EIA-232-F-1997.
3.1.25 secondary station: As defined by the infrared link access protocol (IrLAP), any station on the data
link that does not assume the role of the primary station. It will initiate transmission only as a result of
receiving explicit permission to do so from the primary station.
3.1.26 service access point (SAP): An address that identifies a user of the services of a protocol entity.
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)
IEEE Std 11073-30200a-2011
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—Cable connected—Amendment 1

3.1.27 service data unit (SDU): Information that is delivered as a unit between peer service access points
(SAPs). See: service access point.
3.1.28 set normal response mode (SNRM): A high-level data link control (HDLC) message sent by a
bedside communications controller (BCC) to a device communications controller (DCC) when a successful
connection to the network has occurred.
3.2 Acronyms and abbreviations
Insert the following new abbreviation in alphabetical order as shown:
NTP network time protocol
PoC point of care
PLL phase-locked loop
4. Goals for this standard
Insert the following new subclause as shown:
4.1 Compliance with other standards
Devices that comply with this standard may also be required to comply with other domain- and device-
specific standards that supersede the requirements of this standard and IEEE Std 802.3-2008 [B10] to
which this standard refers with respect to issues including safety, reliability, and risk management. A user
of this standard is expected to be familiar with all other such standards that apply and to comply with any
higher specifications thus imposed. Typically, medical devices will comply with the
IEC 60601-1:2005 [B6] base standards and its parts, such as IEC 60601-1-1:2000 [B7], with respect to
electrical and mechanical safety and any device specific standard as might be defined in
IEC 60601-1-2:2007 [B8]. Software aspects may apply through standards such as EN 62304:2005 [B5].
Devices that comply with this standard shall implement higher layers of network software as appropriate to
the application. The requirements on performance of such applications and conformance are defined
elsewhere and are outside the scope of this standard. Additionally, the network environment within which
devices operate should be specified. Use of any medical equipment within a network environment shall be
subject to risk assessment and risk management appropriate to the application and use and should adhere to
standards such as ISO 14971:2007 [B11] and IEC 80001-1:2010 [B9]. The requirements of such risk
assessment and risk management and conformance are outside the scope of this standard.
6. Physical layer
Insert the following text to the dashed list as shown:

—Annex F describes the use of 10BASE-T/100BASE-TX with this standard.

ISO/IEEE 11073-30200:2004/Amd 1:2015(E)
IEEE Std 11073-30200a-2011
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—Cable connected—Amendment 1

Annex A
(normative)
Physical layer
A.1 Overview
Change the following text as shown:
A.1.4 10BASE-T/100BASE-TX
This standard provides a measure of compatibility with high-speed communication using 10BASE-T and
100BASE-TX as defined in Section One and Section Two, respectively, of
IEEE Std 802.3-2008 [B10]Clause 14 of IEEE Std 802.3, 1998 Edition.
A.4 Connector pin assignments and functions
A.4.3 Signal names and functions
Replace Table A.4 with the following table:
Table A.4—Signal names and functions
BCC connector DCC connector Function
bBPWR dBPWR Power from BCC
N/A dDPWR Power from DCC and sense BCC connection (+)
bGND dGND Signal ground
bRxD dRxD RS-232 data receive
bTxD dTxD RS-232 data transmit
bCS+ N/A Sense DCC connection (+)
bCS– dCS– Connection sense (–)
bRD+ dRD+ 10BASE-T/100BASE-TX receive data (+)
bRD– dRD– 10BASE-T/100BASE-TX receive data (–)
bTD+ dTD+ 10BASE-T/100BASE-TX transmit data (+)
bTD– dTD– 10BASE-T/100BASE-TX transmit data (–)

Change the third and fourth paragraphs as shown:
This standard is compatible with a 10BASE-T/100BASE-TX interface, supported by the RD± and TD±
signals (pins 1-2 and 3-6). A BCC port may be designed to support the ability to detect an
ISO/IEEE 11073-30200 (RS-232) connection or a 10BASE-T/100BASE-TX connection and to
communicate with either device. However, all 10BASE-T/100BASE-TX functions for BCCs and DCCs are
ISO/IEEE 11073-30200:2004/Amd 1:2015(E)
IEEE Std 11073-30200a-2011
Health informatics—Point-of-care medical device communication
Part 30200: Transport profile—Cable connected—Amendment 1

out of the scope of this standard. Refer to Annex F for more information on the 10BASE-T/100BASE-TX
interface.
A BCC can sense the connection of a DCC by testing the resistance across its bCS+ and bCS– pins. The
alternative names bTD+ and bTD– indicate the 10BASE-T/100BASE-TX transmit data function.
A DCC may provide power on its dDPWR line to a line-extender or communications adapter. A DCC can
sense its connection to a BCC by testing the resistance between its dDPWR and dCS– pins. The alternative
names dTD+ and dTD– indicate the 10BASE-T transmit data function.
A.4.4 BCC pin assignments and functions
Change the third paragraph as shown:
The bRD± pins of the BCC shall be shorted together or terminated with R < 110 (R = 100 preferred) to
allow a DCC to detect its connection to the BCC. A BCC port with 10BASE-T/100BASE-TX capability
automatically satisfies this requirement due to the low dc resistance (< 0.5 ) of the bRD± input transformer
windings.
A.4.5 DCC pin assignments and functions
Change the third and fourth paragraphs as shown:
The dRD± pins of the DCC shall be shorted together or terminated with R < 110 Ω (R = 100 Ω preferred) to
allow a BCC to detect its connection to the DCC. The short or termination shall not be electrically
connected to any other internal DCC circuitry (i.e., there is no dc path to ground). A DCC with 10BASE-
T/100BASE-TX capability automatically satisfies this requirement due to the low dc resistance (< 0.5 Ω) of
the dRD± input transformer windings.
A DCC may provide circuitry to sense its connection to a BCC by testing the dc resistance between its
dDPWR and dCS– pins. For a DCC that provides power on its dDPWR pin, the connection sense circuit
should tolerate or detect the reduced voltage on the dDPWR line due to a line extender or adapter that uses
more current than dDPWR can provide. Alternatively, a DCC that provides the zero-power option (and
does not have 10BASE-T/100BASE-TX capability) may tie dDPWR to dGND and apply a test current to
its dCS– pin.
SIST EN ISO 11073-30200:2005/A1:20
...
