EN 16952:2018

Agricultural machinery - Rough-terrain Work Platforms for Orchard’s operations (WPO) - Safety

1.1   This European Standard, when used together with EN ISO 4254 1 and EN 15811, specifies safety requirements and measures for self-propelled rough-terrain work platforms for orchard’s operations (WPO) operating at a maximum of 3 m high as defined in 3.1, where the vertical projection of the centre of the area of the platform in all platform configurations at the maximum chassis inclination specified by the manufacturer is always inside the tipping lines, used in agriculture, designed to work on unimproved natural terrain and/or disturbed terrain and intended to move at least two persons to working positions in an orchard where they are carrying out fruit picking, thinning out, pruning, or other operations related to orchard from the work platform.
NOTE   For examples of rough-terrain work platforms for orchard’s operations (WPO), see Figures E. 1 to E.3.
This European Standard describes methods for the elimination or reduction of hazards arising from the intended use of these machines in the course of normal operation and service, except hazards related to conveyor belts and elevators for the bin. In addition, it specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer.
When requirements of this document are different from those which are stated in EN ISO 4254 1, the requirements of this document take precedence over the requirements of EN ISO 4254 1 for machines that have been designed and built according to the provisions of this document.
This European Standard, taken together with EN ISO 4254 1 and EN 15811, deals with all the significant hazards, hazardous situations and events (as listed in Table 1) relevant to WPOs, when they are used as intended and under the conditions of misuse foreseeable by the manufacturer.
It does not cover the hazards arising from:
a)   use in potentially explosive atmospheres;
b)   getting on and off the work platform at changing levels;
c)   environmental aspects;
d)   road safety.
1.2   This European Standard does not apply to:
a)   Mobile Elevating Work Platforms (MEWPs) (see EN 280);
NOTE 1   Figure E.4 gives an example of this type of machine.
b)   boom-type MEWPs (see EN 280);
NOTE 2   Figure E.5 and E.6 give examples of this type of machine.
c)   tail lifts (see EN 1756-1 and EN 1756-2);
d)   mast climbing work platforms (see EN 1495);
e)   lifting tables (see EN 1570-1);
f)   aircraft ground support equipment (see e.g. EN 1915-1 and EN 1915-2);
g)   elevating operator positions on industrial trucks (see EN 1726-2);
h)   unguided work cages suspended from lifting appliances (see e.g. EN 1808);
i)    machines having centre of the area of the platform outside the tipping lines.
NOTE 3   Figure E.7 gives an example of this type of machine.

Landmaschinen - Geländearbeitsbühnen für Obstplantagearbeiten (WPO) - Sicherheit

1.1   Diese Europäische Norm legt, wenn sie zusammen mit EN ISO 4254-1 und EN 15811 verwendet wird, Sicherheitsanforderungen und Sicherheitsmaßnahmen für alle Arten und Größen von selbstfahrenden Geländearbeitsbühnen für Obstplantagearbeiten (WPO), wie in 3.1 definiert, fest, die in der Landwirtschaft verwendet werden, die für die Arbeit auf naturbelassenem gewachsenem und/oder aufgewühltem Gelände konstruiert sind und die dafür vorgesehen sind, mindestens zwei Personen zu Arbeitspositionen in einer Obstplantage zu bewegen, in denen sie Fruchtpflücke-, Plenter-, Beschneide-Arbeiten oder andere Arbeiten der Obstplantagenpflege von der Arbeitsbühne aus ausführen, bei denen vorgesehen ist, dass Personen die Arbeitsbühne nur in Grundstellungen auf Bodenebene oder auf dem Fahrgestell betreten und verlassen.
Sie beschreibt Verfahren zur Beseitigung oder Reduzierung von Gefährdungen, die durch die vorgesehene Verwendung dieser Maschinen durch mindestens zwei Personen (Bediener) im Verlauf von normalem Betrieb und Wartung entstehen, ausgenommen Gefährdungen in Bezug auf Förderbänder und Gabelzinken. Außerdem legt sie die Art der Informationen über sicheres Arbeiten fest (einschließlich Restrisiken), die vom Hersteller zur Verfügung zu stellen sind.
Unterscheiden sich Anforderungen aus diesem Dokument von denen, die in EN ISO 4254-1 angegeben sind, haben die Anforderungen dieses Dokumentes, für Maschinen, die nach den Festlegungen aus diesem Dokument ausgelegt und gebaut worden sind, Vorrang vor den Anforderungen von EN ISO 4254-1.
Diese Europäische Norm behandelt, zusammen mit EN 4254-1 und EN 15811, alle signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse (wie in Tabelle 1 aufgelistet) zu WPOs, wenn diese wie vorgesehen verwendet werden und unter Bedingungen von Fehlanwendung, die vom Hersteller vorhersehbar sind.
Sie deckt nicht die Gefährdungen ab, die entstehen durch:
a)   die Verwendung in potentiell explosiven Atmosphären;
b)   Aufsteigen auf und Absteigen von der Arbeitsbühne bei sich ändernden Höhen.
1.2   Diese Europäische Norm gilt nicht für:
a)   fahrbare Hubarbeitsbühnen (MEWPs) (siehe EN 280);
ANMERKUNG 1   Bild D.4 zeigt ein Beispiel für diesen Maschinentyp.
b)   Ausleger-MEWPs (siehe EN 280);
ANMERKUNG 2   Bilder D.5 und D.6 zeigt Beispiele für diesen Maschinentyp.
c)   Hubladebühnen (siehe EN 1756-1 und EN 1756-2);
d)   mastgeführte Kletterbühnen (siehe EN 1495);
e)   Hubtische (siehe EN 1570);
f)   Luftfahrt-Bodengeräte (siehe z. B. EN 1915-1 und EN 1915-2);
g)   hebbare Fahrerplätze auf Flurförderzeugen (siehe EN 1726-2);
h)   ungeführter Arbeitskorb, aufgehängt an Hebezeug (siehe z. B. EN 1808).

Matériel agricole - Plateformes élévatrices tout terrain pour arboriculture (PEMPA) - Sécurité

1.1   La présente Norme européenne, utilisée conjointement avec l'EN ISO 4254 1 et l'EN 15811, spécifie des prescriptions et mesures techniques de sécurité pour plates-formes élévatrices tout terrain automotrices pour arboriculture (PEMPA) opérant à une hauteur maximale de 3 m telles que définies en 3.1, dont la projection verticale du centre de la surface de la plate-forme se trouve toujours à l'intérieur des lignes de renversement, dans toutes les configurations de la plate-forme et à l'inclinaison maximale du châssis spécifiée par le fabricant, utilisées en agriculture, conçues pour le travail sur un terrain naturel non aménagé et/ou terrain non nivelé, et destinées à déplacer au minimum deux personnes dans un verger vers des positions de travail où les travaux de récolte, d'éclaircissage, d'élagage ou d'autres opérations en rapport avec l'entretien du verger depuis la plate-forme élévatrice sont réalisés.
NOTE   Pour des exemples de plates-formes élévatrices tout terrain pour arboriculture (PEMPA), voir les Figures E.1 à E.3.
La présente Norme européenne décrit les méthodes permettant de réduire ou d’éliminer les phénomènes dangereux liés à l'utilisation prévue de ces machines dans des conditions normales de fonctionnement et de service, à l'exception des phénomènes dangereux liés aux bandes transporteuses et aux appareils de levage pour le palox. En outre, elle spécifie le type d'informations que le fabricant doit donner sur les pratiques d'utilisation sûre (y compris les risques résiduels).
Lorsque des exigences du présent document diffèrent de celles indiquées dans l'EN ISO 4254 1, les exigences du présent document prévalent sur celles de l'EN ISO 4254 1, et ce pour les machines conçues et fabriquées conformément aux exigences du présent document.
La présente Norme européenne, utilisée conjointement avec l'EN ISO 4254 1 et l'EN 15811, traite de tous les phénomènes dangereux, situations et événements dangereux significatifs (tels qu'énumérés au Tableau 1), relatifs aux plates-formes élévatrices tout terrain pour arboriculture (PEMPA) lorsqu'elles sont utilisées normalement et dans les conditions de mauvais usage prévisible par le fabricant.
Elle ne couvre pas les phénomènes dangereux résultant :
a)   de l'utilisation dans des atmosphères explosibles ;
b)      de niveaux différents d'accès et de sortie de la plate-forme ;
c)   d'aspects liés à l'environnement ;
d)   de la sécurité routière.
1.2   La présente Norme européenne ne s'applique pas :
a)   aux plates-formes élévatrices mobiles de personnel (PEMP) (voir l'EN 280) ;
NOTE 1   La Figure E.4 présente un exemple de ce type de machine.
b)   aux PEMP de type à rampes (voir l'EN 280) ;
NOTE 2   Les Figure E.5 et E.6 présentent un exemple de ce type de machine.
c)   aux hayons élévateurs (voir l'EN 1756-1 et l'EN 1756-2) ;
d)   aux plates-formes de travail se déplaçant le long de mâts (voir l'EN 1495) ;
e)   aux tables élévatrices (voir l'EN 1570-1) ;
f)   au matériel au sol pour aéronefs (voir par exemple l'EN 1915-1 et l'EN 1915-2) ;
g)   aux postes de conduite élevables des chariots de manutention (voir l'EN ISO 3691-3) ;
h)   aux nacelles non guidées, suspendues à des appareils de levage (voir par exemple l'EN 1808) ;
i)   aux machines dont le centre de la surface de la plate-forme se trouve hors des lignes de renversement.
NOTE 3   La Figure E.7 présente un exemple de ce type de machine.

Kmetijski stroji - Grobe terenske delovne platforme za dejavnosti v sadovnjakih (WPO) - Varnost

Ta evropski standard, kadar se uporablja skupaj s standardoma EN ISO 4254 1 in EN 15811, določa varnostne zahteve in ukrepe za vse vrste in velikosti samognanih grobih terenskih delovnih platform za dejavnosti v sadovnjakih (WPO), kot je opredeljeno v točki 3.1, ki se uporabljajo v kmetijstvu, so zasnovane za delo na neizboljšanem naravnem in/ali motenem terenu ter so namenjene premikanju najmanj dveh oseb na delovna mesta v sadovnjaku, kjer izvajajo obiranje sadežev, redčenje sadežev, obrezovanje dreves ali druga opravila, povezana z vzdrževanjem sadovnjaka, na delovni platformi z namenom, da osebe prihajajo na delovno platformo in odhajajo z nje le na dostopnih mestih na nivoju tal ali šasiji.
Opisuje metode za odpravljanje ali zmanjšanje nevarnosti, ki jih z namensko uporabo teh strojev povzročata najmanj dve osebi (upravljavca) med običajnim delovanjem in servisiranjem, razen nevarnosti, povezanih s trakovi tračnih transporterjev in vilicami. Določa tudi vrsto informacij o varnih delovnih praksah (vključno z ostalimi tveganji), ki jih mora zagotoviti proizvajalec.
Ko se zahteve tega dokumenta razlikujejo od zahtev, navedenih v standardu EN ISO 4254 1, imajo zahteve tega dokumenta prednost pred zahtevami standarda EN ISO 4254 1 za stroje, ki so zasnovani in izdelani v skladu z določbami tega dokumenta.
Ta evropski standard skupaj s standardoma EN ISO 4254 1 and EN 15811 obravnava vse večje nevarnosti, nevarne razmere in dogodke (kot je navedeno v preglednici 1), povezane z grobimi terenskimi delovnimi platformami za dejavnosti v sadovnjakih, kadar se te uporabljajo za predviden namen in pod pogoji nepravilne uporabe, ki jih predvidi proizvajalec.
Ne obravnava nevarnosti, ki izhajajo iz:
a) uporabe v potencialno eksplozivnih atmosferah;
b) prihajanja na ploščad in odhajanja z nje z drugih nivojev.
1.2 Ta evropski standard se ne uporablja za:
a) premične dvižne delovne ploščadi (MEWP) (glej standard EN 280);
OPOMBA 1: Na sliki D.4 je prikazan primer te vrste stroja.
b) premične dvižne delovne ploščadi z ročico (glej standard EN 280);
OPOMBA 2: Na slikah D.5 in D.6 sta prikazana primera te vrste stroja.
c) dvižne ploščadi (glej standarda EN 1756-1 in EN 1756-2);
d) delovne ploščadi, ki se vzpenjajo ob jamboru (glej standard EN 1495);
e) dvižne mize (glej standard EN 1570);
f) podporno opremo na tleh za letalski promet (glej npr. standarda EN 1915-1 in EN 1915-2);
g) dvižne vozniške prostore na vozilih za talni transport (glej standard EN 1726-2);
h) nevodene delovne košare, ki visijo z dvižnih naprav (glej npr. standard EN 1808).

General Information

• Status: Withdrawn
• Publication Date: 19-Jun-2018
• Withdrawal Date: 22-Sep-2025
• ICS: 53.020.99 - Other lifting equipment
• ICS: 65.060.99 - Other agricultural machines and equipment
• Technical Committee: CEN/TC 144 - Tractors and machinery for agriculture and forestry
• Drafting Committee: CEN/TC 144/WG 1 - General safety requirements
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 20-Oct-2021
• Completion Date: 23-Sep-2025
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: SIST EN 16952:2018 - Agricultural machinery - Rough-terrain Work Platforms for Orchard’s operations (WPO) - Safety

Relations

• Merged Into: EN 16952:2018+A1:2021 - Agricultural machinery - Rough-terrain Work Platforms for Orchard’s operations (WPO) - Safety
• Effective Date: 26-May-2021
• Amended By: EN 16952:2018/FprA1 - Agricultural machinery - Rough-terrain Work Platforms for Orchard’s operations (WPO) - Safety
• Effective Date: 30-Jan-2019

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kmetijski stroji - Grobe terenske delovne platforme za dejavnosti v sadovnjakih (WPO) - VarnostAgricultural machinery - Rough-terrain Work Platforms for Orchard’s operations (WPO) - Safety65.060.99Drugi kmetijski stroji in opremaOther agricultural machines and equipment53.020.99Druga dvigalna opremaOther lifting equipmentICS:Ta slovenski standard je istoveten z:EN 16952:2018SIST EN 16952:2018en,fr,de01-oktober-2018SIST EN 16952:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16952
June
t r s z ICS
w uä r t rä { {â
x wä r x rä { { English Version
Agricultural machinery æ Roughæterrain Work Platforms Matériel agricole æ Sécurité æ Plateformes élévatrices
Landmaschinen æ Geländearbeitsbühnen für This European Standard was approved by CEN on
s z September
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x { w tã t r s z ESIST EN 16952:2018

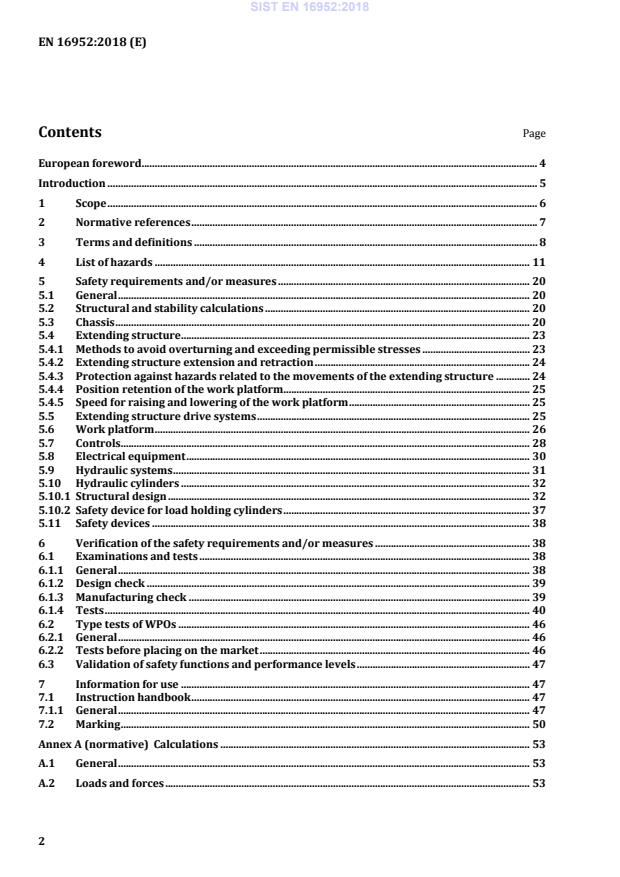

Calculations . 53 A.1 General . 53 A.2 Loads and forces . 53 SIST EN 16952:2018

Requirements for protective curtains . 65 B.1 General . 65 B.2 Tensile resistance test . 65 B.3 Perforation resistance test . 65 B.4 Wear resistance test . 65 Annex C (normative)
Additional requirements for wireless controls and control systems . 66 C.1 General . 66 C.2 Unauthorized use . 66 C.3 Control limitation . 66 C.4 Stop . 66 C.5 Serial data communication . 67 C.6 Use of more than one operator control station . 67 C.7 Battery-powered operator control stations . 67 C.8 Receiver . 67 C.9 Warnings . 67 C.10 Information for use . 67 Annex D (informative)
Calculation examples - factor "z", kerb test . 68 Annex E
(informative)
Examples of Machines . 72 E.1 Examples of Machines covered by the standard. 72 E.2 Examples of Machines excluded from the scope of the standard . 74 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EU aimed to be covered . 78 Bibliography . 79
machine users/employees (e.g. trade unions, organizations for people with special needs); —
service providers, e.g. for maintenance (small, medium and large enterprises); — consumers (in case of machinery intended for use by consumers). The above-mentioned stakeholder groups have been given the possibility to participate at the drafting process of this document. SIST EN 16952:2018

machines having centre of the area of the platform outside the tipping lines. NOTE 3 Figure E.7 gives an example of this type of machine. SIST EN 16952:2018

IEC Electropedia: available at http://www.electropedia.org/
ISO Online browsing platform: available at http://www.iso.org/obp 3.1 rough-terrain work platforms for orchard’s operations (WPO) self-propelled machine used in agriculture, designed to work on unimproved natural terrain and/or disturbed terrain, which consists as a minimum of a work platform with controls, an extending structure and a chassis, where the vertical projection of the center of the area of the platform in all platform configurations at the maximum chassis inclination specified by the manufacturer is always inside the tipping lines, for which travelling is allowed with lowered and with raised work platform and it is controlled from a point of control at the chassis or at the work platform, which is intended to move at least two persons to working positions in an orchard where they are carrying out fruit picking, thinning out, pruning, or other operations related to the orchard from the work platform Note 1 to entry:
See Figure 1. 3.2 work platform fenced platform or a cage which can be moved under load to the required working position and from which carrying out fruit picking, thinning out, pruning, or other operations related to orchard’s upkeep can be carried out Note 1 to entry:
See Figure 1. 3.3 platform extension extension part of the work platform which can shift laterally in respect of the direction of motion of the WPO, and which extends the work platform in order to facilitate the approach to the orchard to perform the necessary operations 3.4 extending structure structure which is connected to the chassis and supports the work platform. It allows vertical movement of the work platform to its required position Note 1 to entry:
Example of extending structure: scissors mechanism. Note 2 to entry:
See Figure 1. 3.5 chassis base of the WPO Note 1 to entry: See Figure 1. SIST EN 16952:2018

The system includes the measuring device(s), the way the measuring devices are incorporated in the machinery and the signal processing system. 3.15 wireless control means by which the WPO operator’s commands are transmitted without any physical connection for at least part of the distance between the control console and the rest of the control system SIST EN 16952:2018

WPO usually have more than one working space. 3.17 elevator for the bin front or rear mounted lifting equipment provided to move the bin from ground to the platform and vice-versa Note 1 to entry:
Fork lift is a possible elevator for the bin.
Key 1 work platform (see 3.2) 2 extending structure (see 3.4) 3 chassis (see 3.5) Figure 1 — Illustration of some definitions 3.18 side limit slope maximum slope in degrees perpendicular to the longitudinal axis of the WPO that can be achieved without tipping of the WPO 3.19 longitudinal limit slope maximum slope in degrees with the longitudinal axis of the WPO parallel to the slope that can be achieved without tipping of the WPO SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.1 Mechanical hazard A.1.1 Crushing hazard — Controls 4.5.3; 5.1.3.2; 5.1.8; 6.1 5.3.12; 5.4.3.2; 5.6.10; 5.7 — Boarding means 4.7.1.1.2; 4.7.1.2.5; 4.7.2; 4.8 No requirements in addition to those in EN ISO 4254-1:2015 — Platforms 4.7.2 5.4, 5.5, 5.6 — Power transmission 6.4 5.4 — Working tools 4.10 NS —Service/maintenance 4.11; 4.17.1; 4.17.3; 4.9.2; 4.9.3 5.4.4 —Roll-over 5.1.2.3; 5.7 5.2; 5.3; 5.4.1; 5.4.2 —Shearing/pinching points 5.1.4 5.4.3 — Moving the machine 5.2 5.3; — Stability 6.2 5.2; 5.3; 5.4.1, 5.4.2 — Mounting of machines 6.2.2; 6.2.3; 6.3 5.6.11 SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.1.2 Shearing hazard — Controls 4.5.3; 5.1.3.2; 5.1.8; 6.1 5.4.3.2; 5.7 — Boarding means 4.7.1.1.2; 4.7.1.2.5; 4.7.2; 4.8 No requirements in addition to those in EN ISO 4254-1:2015 — Platforms 4.7.2.2 5.4, 5.5, 5.6 — Power transmission 6.4 5.4 — Working tools 4.10 NS —Service/maintenance 4.11; 4.17.1; 4.17.3; 4.9.2; 4.9.3 5.4.4, —Roll-over 5.1.2.3; 5.7 5.2; 5.3; 5.4.1; 5.4.2 —Shearing/pinching points 5.1.4 5.4.3 — Moving the machine 5.2 5.3 — Stability 6.2 5.2; 5.3; 5.4.1, 5.4.2 — Mounting of machines 6.2.2; 6.2.3; 6.3 5.6.11 A.1.3 Cutting or severing hazard — Working tools 4.9.2; 4.9.3 NS A.1.4 Entanglement hazard — Power transmission 6.4 5.3.9 — Working tools 4.9.2; 4.9.3 NS — Starting/stopping the engine 5.1.8 NS A.1.5 Drawing-in or trapping hazard — Power transmission 6.4 5.4.3; 5.5 — Working tools 4.9.2; 4.9.3 NS — Starting/stopping the engine 5.1.8 NS A.1.6 Impact hazard — Boarding means 4.7.1.2.5 5.1; 5.6.3 — Folding elements 4.9.2; 4.9.3 5.6 — Steering 5.1.3.1 NS A.1.7 Stabbing or puncture hazard — Working tools 4.9.2; 4.9.3 NS A.1.8 Friction or abrasion hazard — Controls 4.5.3; 5.1.3.2 5.7.7 — Electrical equipment 4.12 5.8.4 — Boarding means 4.7.1.1.2 No requirements in addition to those in EN ISO 4254-1:2015 A.1.9 High-pressure fluid injection or ejection hazard — Hydraulic components 4.13; 6.5 5.9; 5.10 SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.2 Electrical hazards A.2.1 Contact of persons with live parts (direct contact) — Electrical equipment 4.12; 5.3; 6.5 5.8 A.2.2 Contact of persons with parts which have become live under fault y conditions (indirect contact) — Electrical equipment 4.12.1 5.8 A.2.3 Approach to live parts under high voltage — Overhead power lines 8.2.3; 8.3.4 No requirements in addition to those in EN ISO 4254-1:2015 A.2.4 Thermal radiation or other phenomena such as the projection of molten particles and chemical effects from short circuits, overloads, etc. — Electrical equipment 4.12.2; 5.3.1 5.8 A.2.5 Electromagnetic phenomena — Electrical equipment 4.18 5.8.6 A.3 Thermal hazards
Burns, scalds and other injuries by possible contact of persons with objects or materials with an extreme high or low temperature, by f lames or explosions and also by the radiation of heat sources — Operating fluids
4.15
5.3.10
— Cab material 5.1.6
5.6.2
— Hot surfaces 5.5 No requirements in addition to those in EN ISO 4254-1:2015 SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.4 Hazards generated by noise
Hearing loss (deafness), other physiological disorders (e.g. loss of balance, loss of awareness) Accidents due to interference with speech communication and acoustic warning signals — Noise 4.3 No requirements in addition to those in EN ISO 4254-1:2015 A.5 Vibration hazards A.5.1 Discomfort, low-back morbidity — Machine design 4.4 5.6.9; — Seat 5.1.2 NS A.6 Hazards generated by materials and substances A.6.1 Hazards from contact with, or inhalation, of harmful fluids, gases, mists, fumes and dusts — Operating fluids
4.15; 5.4
5.9; 5.10
— Cab material 5.1.6 NS — Battery 5.3.1 5.3.13; — Exhaust gases 5.6 5.3.10 A.6.2 Fire or explosion hazard — Cab material 5.1.6 NS A.7 Hazards generated by neglecting ergonomic principles in machinery design A.7.1 Unhealthy postures or excessive effort — Controls
4.5
5.7.1 letter b
— Boarding means 4.7; 4.8 5.6.3 — Service and maintenance 4.11; 4.17.4 NS — Operator station 5.1.1; 5.1.3; 5.1.5.2 5.6.2 A.7.2 Inadequate consideration of hand– arm or foot–leg anatomy — Controls
4.5
NS
— Boarding means 4.7; 4.8 NS — Operator station 5.1 NS SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.7.3 Neglected use of personal protective equipment — Operator’s manual 8.2.3 NS A.7.4 Inadequate local lighting — Visibility 5.1.7. 3 NS A.7.5 Mental overload and under load, stress — Controls 4.5 NS A.7.6 Human error, human behaviour — Controls
4.5
5.7
— Operator’s manual
8.2
7.1
— Signs 8.3 7.2 A.7.7 Inadequate design, location or identification manual controls — Controls 4.5; 5.1.3; 6.1 5.7 A.8 Combination of hazards — Individual assemblies
4.16
No requirements in addition to those in EN ISO 4254-1:2015 — Operator’s manual 8.1; 8.2 7.2 A.9 Unexpected start-up, unexpected overrun/overspeed A.9.1 Failure/disorder of the control system — Service and maintenance
4.11
No requirements in addition to those in EN ISO 4254-1:2015 — Electrical equipment 4.12 5.11 — Connections 6.5 5.8 A.9.2 Restoration of energy supply after an interruption — Controls 4.5; 6.1 5.7 A.9.3 External influences on electrical equipment — Cables 4.12.1 5.8 A.9.4 Other external influences (gravity, wind, etc.) — Stability 6.2.1.1; 6.2.1.2 5.4.1 SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.9.5 Errors made by the operator (due to mismatch of machinery with human characteristics and abilities — Controls 4.5; 6.1.2
5.7
— Boarding means 4.7; 4.8
NS
— Operator station 5.1
NS
— Moving the machine 5.2
No requirements in addition to those in EN ISO 4254-1:2015 — Mounting of machines 6.2; 6.3
5.6.11 — Service and maintenance 4.17
No requirements in addition to those in EN ISO 4254-1:2015 — Operator’s manual 8.2.3 7.2 A.10 Impossibility of stopping the machine in the best possible conditions — Controls
4.5; 4.19; 6.1
5.3; 5.5; 5.7 — Starting/stopping the engine 5.1.8
A.11 Variations in the rotational speed of tools — PTO drive shaft 6.4; 8.1; 8.2 NS A.12 Failure of power supply — Supports
4.11
5.5
— Electrical equipment
4.12
5.8
— Connections
6.5 No requirements in addition to those in EN ISO 4254-1:2015 - Others
5.7.6, 5.7.8 A.13 Failure of the control circuit — Electrical equipment 4.12; 4.20 5.11 A.14 Errors of fitting — Mounting of machines
6.2; 6.3
5.6.11
— Operator’s manual
8.1; 8.2
7.2
EN ISO 4254-1:2015 Clause/subclause of this Standard A.15 Break-up during operation — Guards and barriers
4.10
5.6;
— Supports
4.11
5.4.1
— Hydraulic components
4.13
5.9
— Pneumatic components 4.14 No requirements in addition to those in EN ISO 4254-1:2015 A.16 Falling or ejected objects or fluids — Supports
4.11
NS
— Hydraulic components
4.13
5.9
— Folding elements 4.9.2; 4.9.3 NS A.17 Loss of stability/overturning of machinery — Stability
6.2
5.2; 5.3; 5.4; 5.6
— Roll-over 5.1.2.3; 5.7 5.2; 5.3; 5.4; 5.6
A.18 Slip, trap and fall of persons (related to machinery) — Boarding means 4.7; 4.8 5.6 Additional hazards, hazardous situations and hazardous events due to mobility A.19 Related to the travelling function A.19.1 Movement when starting the engine — Propulsion of machine
5.1.2.3
No requirements in addition to those in EN ISO 4254-1:2015 — Starting/stopping the engine 5.1.8 5.7.7 A.19.2 Moving without a driver at the driving position — Propulsion of machine
5.1.3
5.7.1
— Starting/stopping the engine 5.1.8 5.3.6 A.19.3 Movement without all parts in a safe position — Folding elements 4.9.2; 4.9.3 5.3 SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.19.4 Insufficient ability of machinery to be slowed down, stopped and immobilized — Propulsion of machine 5.1.3 5.3 A.20 Link to the work position A.20.1 Fall of persons during access to (or at/from) the work position — Boarding means 4.7; 4.8 5.1; 5.6 A.20.2 Exhaust gases/lack of oxygen at the work position — Gases 5.4.1; 5.6 5.3.9 A.20.3 Fire (flammability of the cab, lack of extinguishing means) — Cab material 5.1.6 5.6.2 A.20.4 Mechanical hazards at the working position: a) contact with wheels; b) rollover; c) fall of objects, penetration by objects; — Shearing/pinching points
4.5.3; 4.7. 1.2.5; 5.1.4
NS
— Wheels
4.7.1.1.2
NS
— PTO drive shaft
4.8.2.3
NS
— Supports
4.11
NS
— Roll-over 5.1.2.3; 5.7 NS A.20.5 Insufficient visibility from the work positions — Visibility 5.1.7 5.3.1 A.20.6 Inadequate lighting — Visibility 5.1.7. 3 NS A.20.7 Inadequate seating — Operator’s seat 5.1.2 NS SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.20.8 Noise at work position — Operator’s work station 4.3 5.1 A.20.9 Insufficient means for evacuation/ emergency exit — Emergency exit 5.1.5 5.7.7 A.21 Due to the control system A.21.1 Inadequate location of manual controls — Controls 4.5; 4.11.1.2; 5.1.2.1; 6.1.1; 6.1.2 5.7 A.21.2 Inadequate design of manual con- trols and their mode of operation — Controls 4.5; 5.1.3; 5.1.8 5.7; 5.11 A.22 From handling the machine (lack of stability) — Stability
6.2
5.3; 5.4; 5.7 — Roll-over 5.1.2.3; 5.7 5.3; 5.4; 5.7 A.23 Due to the power source and to the transmission of power A.23.1 Hazards from the engine and the batteries — Starting/stopping the engine
5.1.8
5.7.7;
— Battery 5.3 5.3 A.23.2 Hazards from transmission power between machines — Power transmission 6.4 No requirements in addition to those in EN ISO 4254-1:2015 A.23.3 Hazards from coupling and towing — Mounting of machines 6.2.2; 6.2.3; 6.3 5.3.4 SIST EN 16952:2018

EN ISO 4254-1:2015 Clause/subclause of this Standard A.24 From/to third persons A.24.1 Unauthorized start-up and use — Starting/stopping the engine 5.1.8.1 5.3.6 A.24.2 Lack or inadequacy of visual or acoustic warning means — Visibility 5.1.7 5.3.1 A.25 Insufficient instructions for the driver/operator — Operator’s manual 8.1; 8.2 7.1; 7.2 a
With reference to EN ISO 4254-1:2015, Table A.1. 5 Safety requirements and/or measures 5.1 General The WPO shall be in accordance with the safety requirements and/or protective measures of this clause. In addition, the WPO shall be designed according to the principles of EN ISO 12100, for hazards relevant, but not significant, which are not dealt with by this document. Unless otherwise specified in this European Standard, the machine shall comply with the requirements of EN ISO 4254-1. Means of access from the ground level to the work platform when lowered shall be provided. 5.2 Structural and stability calculations Structural and stability calculations shall be performed according to Annex A. 5.3 Chassis 5.3.1 An audible alarm shall start when the machine starts to travel in reverse direction and shall last as long as the machine travels in reverse direction or a rear view camera according to ISO 16001 shall be provided, with which the danger zone behind the machine can be in clear view of the operator. 5.3.2 Every WPO shall have an easily identifiable visual and acoustic signal clearly perceivable at least by the driver to indicate that the inclination of the machine in any direction is approaching the maximum operating slope given in the manufacturer's instruction handbook. The triggering of the visual and acoustic signal shall be preferably performed in a graduated manner. At least, the visual signal shall be triggered at 70% of the maximum operating slope and the acoustic signal shall reach full intensity at 90% of the maximum operating slope. When travelling out of the transport position the maximum operating slope given in the manufacturer's instruction handbook and determined according to 6.1.4.2 is reached, the WPO shall have a device that stops automatically the WPO and restart of travelling and any other movement which leads to further instability shall be prevented. A tolerance of ±10% of the maximum operating slope is allowed. Movements to reduce instability shall be permitted. Restart of travelling and other movements shall be SIST EN 16952:2018

in an orchard in order to avoid unexpected deterioration (e.g. due to frost, humidity). For attaching of a tow bar a coupling device shall be provided. Attachment points for tying down shall be provided; if specified by the manufacturer, the wheels axles of the machine can be used as attachment points for tying down. For towing the machine in case of a failure, provisions shall be available (e.g. a means of releasing an automatically applied brake). 5.3.5 WPOs shall be stable during travelling both in transport and extended position. The extended position shall be verified as specified in 6.1.4.2. WPOs shall also be stable while travelling on a horizontal surface in all working positions. This requirement is met if the WPO does not become unstable during the kerb and depression tests (6.1.4.2.6.2). If elevators for the bin are fitted on the chassis, longitudinal stability of the WPO shall be ensured during all phases of their operation. 5.3.6 WPOs shall be equipped with a device to prevent unauthorised use (e.g. lockable switch). 5.3.7 Compliance with the required travel speed limits when the work platform is out of the transport position, shall be achieved automatically. It shall not be possible to exceed the travel speed of 0,7 m/s with work platforms out of the transport position. The device to limit the speed shall be in accordance with 5.11. When the load on the platform does not exceed the rated load as defined in A.3.1 minus the weight of all the permitted full bins then a travel speed up to 1,4 m/s is allowed; all the other vertical loads (persons and
tools) shall be taken into account. This shall be ensured by an automatic control system limiting the speed according to the measured load on the platform. The system shall be in accordance with 5.11. SIST EN 16952:2018

[m] 0,35 0,5 0,7 1 1,4 2 3,6 5 5.3.9 Guards shall comply with EN 15811. They shall be provided to prevent persons at control positions, or standing adjacent to the WPO at ground level or at other points of access, touching hot parts or dangerous parts of drive systems, both when the platform is in and out of the transport position. Opening or removal of these guards shall only be possible by devices located in fully enclosed and lockable enclosures (e.g. cabs, compartments) or by the use of tools or keys provided with the WPO. When it is foreseen (e.g. routine maintenance) that the fixed guards will be removed regularly then the fastenings shall remain attached to the guards or to the machine. 5.3.10 The exhaust from internal combustion engines shall be directed away from the driver's station and all working operator's positions as defined by the manufacturer. 5.3.11 The filling points of fluid reservoirs (other than for fire resistant fluids) shall be positioned to avoid any fire from overfilling or spillage onto very hot parts (e.g. engine exhausts). Information about fuel and hydraulic oil levels shall be given in a safe position close to the filling point or the operator station if this is not possible. 5.3.12 Any control position at the base or ground level shall provide the operator with visual contact with the resulting movements where these might create a hazard. 5.3.13 Batteries and containers of all WPOs shall be constrained to prevent displacement which gives rise to danger. Means shall be provided so that in the event of overturning the battery assembly will be constrained, so as to avoid the risk of injury to the operator which could occur by the battery being displaced or electrolyte being ejected. Suitable ventilation holes shall be provided in the b
...
