Hot rolled steel channels, I and H sections - Dimensions and masses

This European standard specifies the nominal dimensions and masses of the hot rolled steel channels, I and H sections.
The following shapes are covered by this standard:
Sections:
-   Parallel flange I sections IPE;
-   Wide flange beams HE;
-   Extra wide flange beams HL and HLZ;
-   Wide flange columns HD;
-   Wide flange bearing piles HP and UBP;
-   Universal beams UB;
-   Universal columns UC;
-   Taper flange I sections IPN and J.
Channels:
-   Parallel flange channels UPE and PFC;
-   Taper flange channels UPN, U and CH.
These requirements do not apply to hot rolled steel channels, I and H sections from stainless steel.

Warmgewalzter U-Profilstahl, I- und H-Träger - Maße und Masse

Diese Europäische Norm legt die Maße und Masse für warmgewalzte U-Profile, I und H Träger aus Stahl fest.
Diese Norm gilt für folgende Produkte:
Träger:
-   I-Träger mit parallelen Flanschflächen, IPE-Reihe
-   Breite I-Träger mit parallelen Flanschflächen, HE-Reihe
-   Breite I-Träger mit besonders breiten Flanschen, HL und HLZ-Reihe
-   Breite I-Träger, Breitflansch und Stützenprofile, HD-Reihe
-   Breite I-Träger mit gleicher Dicke für Flansche und Steg, HP und UBP-Reihe
-   Universal I-Träger, UB-Reihe
-   Universal I-Träger, UC-Reihe
-   I-Träger mit geneigten inneren Flanschflächen, IPN und J-Reihe
U-Profile:
-   U-Profile mit parallelen Flanschflächen, UPE und PFC-Reihe
-   U-Profile mit geneigten inneren Flanschflächen, UPN, U und CH-Reihe.
Die Festlegungen dieser Norm gelten nicht für warmgewalzte U-Profile, I und H Träger aus nicht rostendem Stahl.

Profilés en U en aciers laminés à chaud, poutrelles I et H - Dimensions et masses

Cette norme européenne spécifie les dimensions et masses nominales des profilés en U en aciers laminés à chaud, et des poutrelles I et H.
Les formes suivantes sont couvertes par cette norme :
Poutrelles :
-   Poutrelles en I à ailes parallèles IPE
-   Poutrelles à larges ailes HE
-   Poutrelles à très larges ailes HL et HLZ
-   Poutrelles-poteaux à large ailes HD
-   Poutrelles-pieux à larges ailes HP and UBP
-   Poutrelles universelles UB
-   Poutrelles-poteaux universelles UC
-   Poutrelles en I à ailes inclinées IPN and J
Profilés :
-   Profils en U à ailes parallèles UPE et PFC
-   Profils en U à ailes inclinées UPN, U and CH
Ces exigences ne s'appliquent ni aux profilés en U en acier laminés à chaud ni aux poutrelles I et H en acier inoxydable.

Vroče valjani jekleni profili I in H - Mere in mase

Ta evropski standard določa nazivne mere in mase vroče valjanih jeklenih profilov, prerezov I in H.
Ta evropski standard zajema naslednje oblike:
Prerezi:
– vzporedna prirobnica I IPE
– široki nosilci prirobnice HE
– izjemno široki nosilci prirobnice HL
– široki stebri prirobnice HD
– široki nosilni piloti prirobnice HP in UBP
– univerzalni nosilci UB
– univerzalni stebri UC
– konična prirobnica IPN in J
Profili:
– vzporedni profili prirobnice UPE in PFC
– konični profili prirobnice UPN, U in CH
Te zahteve ne veljajo za vroče valjane jeklene profile, prereza I in H iz nerjavnega jekla.

General Information

Status
Published
Publication Date
17-Jan-2017
Current Stage
9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
Completion Date
03-Sep-2022

Buy Standard

Standard
EN 10365:2017
English language
33 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Warmgewalzter U-Profilstahl, I und H Träger - Maße und MasseProfilés en U en aciers laminés à chaud, poutrelles I et H - Dimensions, masses et propriétés des profilésHot rolled steel channels, I and H sections - Dimensions and masses77.140.70Jekleni profiliSteel profilesICS:Ta slovenski standard je istoveten z:EN 10365:2017SIST EN 10365:2017en,fr,de01-marec-2017SIST EN 10365:2017SLOVENSKI

STANDARD
SIST EN 10365:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10365
January
t r s y ICS
y yä s v rä y r English Version

Hot rolled steel channelsá I and H sections æ Dimensions and masses Profilßs en U en aciers laminßs à chaudá poutrelles I et H æ Dimensions et masses

Warmgewalzter UæProfilstahlá Iæ und HæTräger æ Maße und Masse This European Standard was approved by CEN on

s v November
t r s xä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels

t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s r u x wã t r s y ESIST EN 10365:2017

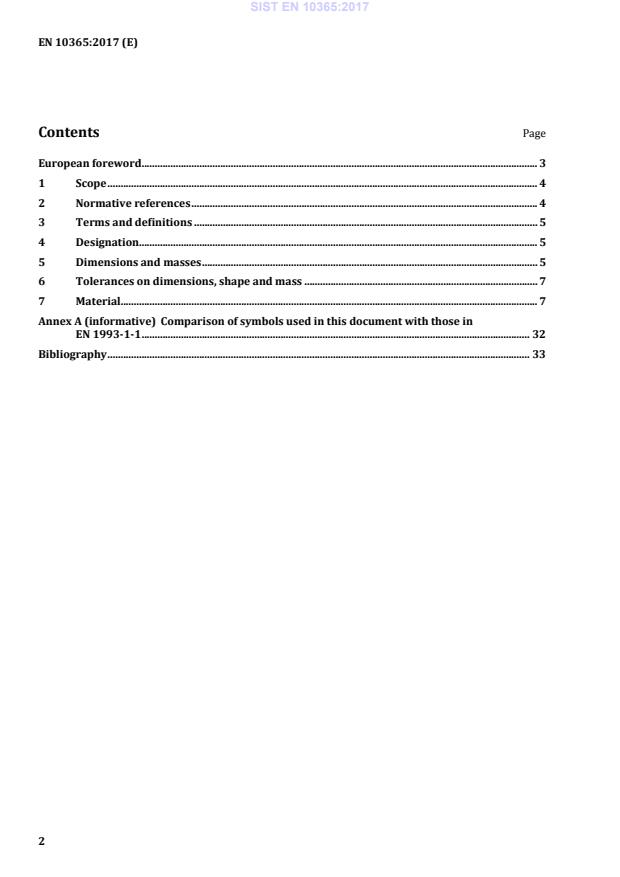

EN 10365:2017 (E) 2 Contents Page European foreword ....................................................................................................................................................... 3 1 Scope .................................................................................................................................................................... 4 2 Normative references .................................................................................................................................... 4 3 Terms and definitions ................................................................................................................................... 5 4 Designation........................................................................................................................................................ 5 5 Dimensions and masses ................................................................................................................................ 5 6 Tolerances on dimensions, shape and mass ......................................................................................... 7 7 Material ............................................................................................................................................................... 7 Annex A (informative)

Comparison of symbols used in this document with those in EN 1993-1-1 .................................................................................................................................................... 32 Bibliography ................................................................................................................................................................. 33

SIST EN 10365:2017

EN 10365:2017 (E) 3 European foreword This document (EN 10365:2017) has been prepared by Technical Committee ECISS/TC 103 “Structural steels other than reinforcements”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2017, and conflicting national standards shall be withdrawn at the latest by July 2017. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This project was submitted to the Enquiry under reference prEN 16828. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

SIST EN 10365:2017

EN 10365:2017 (E) 4 1 Scope This European standard specifies the nominal dimensions and masses of the hot rolled steel channels, I and H sections. The following shapes are covered by this standard: Sections: — Parallel flange I sections IPE; — Wide flange beams HE; — Extra wide flange beams HL and HLZ; — Wide flange columns HD; — Wide flange bearing piles HP and UBP; — Universal beams UB; — Universal columns UC; — Taper flange I sections IPN and J. Channels: — Parallel flange channels UPE and PFC; — Taper flange channels UPN, U and CH. These requirements do not apply to hot rolled steel channels, I and H sections from stainless steel. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 10024, Hot rolled taper flange I sections - Tolerances on shape and dimensions EN 10025-1, Hot rolled products of structural steels - Part 1: General technical delivery conditions EN 10025-2, Hot rolled products of structural steels - Part 2: Technical delivery conditions for non-alloy structural steels EN 10025-3, Hot rolled products of structural steels - Part 3: Technical delivery conditions for normalized/normalized rolled weldable fine grain structural steels EN 10025-4, Hot rolled products of structural steels - Part 4: Technical delivery conditions for thermomechanical rolled weldable fine grain structural steels EN 10025-5, Hot rolled products of structural steels - Part 5: Technical delivery conditions for structural steels with improved atmospheric corrosion resistance EN 10034, Structural steel I and H sections - Tolerances on shape and dimensions SIST EN 10365:2017

EN 10365:2017 (E) 5 EN 10079, Definition of steel products EN 10279, Hot rolled steel channels - Tolerances on shape, dimensions and mass 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 10079 apply. 4 Designation A section shall be designated according to Tables 1 to 15. This form of designation shall be used in any enquiry and order. 5 Dimensions and masses Hot rolled steel channels, I and H sections complying with this European Standard shall be manufactured with the specified dimensions given in the Table 1 to 15 and according to Figures 1 to 4 below. Radii of fillets and toes of shape profiles vary with individual manufacturers and therefore are not specified. The masses per unit length specified in Tables 1 to 15 were calculated on the basis of a density of 7850 kg/m3.

Figure 1 — IPE, HE, HL, HD, HP, UBP, UB and UC parallel flange sections SIST EN 10365:2017

EN 10365:2017 (E) 6
Figure 2 — Taper flange I sections IPN, J and extra wide flange beams HLZ
Figure 3 — Parallel flange channels UPE and PFC
Figure 4 — Taper flange channels UPN, U and CH SIST EN 10365:2017

EN 10365:2017 (E) 7 6 Tolerances on dimensions, shape and mass Tolerances on dimensions, shape and mass shall be as given in EN 10034 for I (parallel flanges) and H sections. Tolerances on dimensions, shape and mass shall be as given in EN 10024 for taper flange I sections. Tolerances on dimensions, shape and mass shall be as given in EN 10279 for channels. Tolerances for shapes not included in the mentioned standards shall be as agreed upon between the manufacturer and the purchaser. 7 Material Sections and channels shall preferably be made from steel of a grade as specified in EN 10025-1, EN 10025-2, EN 10025-3, EN 10025-4 and EN 10025-5. Other steel grades as specified in EN 10225, EN 10028-2 and EN 10273 may also be used for specific applications. The desired steel grade shall be specified at the time of ordering. SIST EN 10365:2017

EN 10365:2017 (E) 8 Table 1 — Parallel flange I sections IPE Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 IPE AA 80 4,9 78,0 46,0 3,2 4,2 6,3 IPE A 80 5,0 78,0 46,0 3,3 4,2 6,4 IPE 80 6,0 80,0 46,0 3,8 5,2 7,6 IPE AA 100 6,7 97,6 55,0 3,6 4,5 8,6 IPE A 100 6,9 98,0 55,0 3,6 4,7 8,8 IPE 100 8,1 100,0 55,0 4,1 5,7 10,3 IPE AA 120 8,4 117,0 64,0 3,8 4,8 10,7 IPE A 120 8,7 117,6 64,0 3,8 5,1 11,0 IPE 120 10,4 120,0 64,0 4,4 6,3 13,2 IPE AA 140 10,1 136,6 73,0 3,8 5,2 12,8 IPE A 140 10,5 137,4 73,0 3,8 5,6 13,4 IPE 140 12,9 140,0 73,0 4,7 6,9 16,4 IPE AA 160 12,3 156,4 82,0 4,0 5,6 15,7 IPE A 160 12,7 157,0 82,0 4,0 5,9 16,2 IPE 160 15,8 160,0 82,0 5,0 7,4 20,1 IPE AA 180 14,9 176,4 91,0 4,3 6,2 19,0 IPE A 180 15,4 177,0 91,0 4,3 6,5 19,6 IPE 180 18,8 180,0 91,0 5,3 8,0 23,9 IPE O 180 21,3 182,0 92,0 6,0 9,0 27,1 IPE AA 200 18,0 196,4 100,0 4,5 6,7 22,9 IPE A 200 18,4 197,0 100,0 4,5 7,0 23,5 IPE 200 22,4 200,0 100,0 5,6 8,5 28,5 IPE O 200 25,1 202,0 102,0 6,2 9,5 32,0 IPE AA 220 21,2 216,4 110,0 4,7 7,4 27,0 IPE A 220 22,2 217,0 110,0 5,0 7,7 28,3 IPE 220 26,2 220,0 110,0 5,9 9,2 33,4 IPE O 220 29,4 222,0 112,0 6,6 10,2 37,4 IPE AA 240 24,9 236,4 120,0 4,8 8,0 31,7 IPE A 240 26,2 237,0 120,0 5,2 8,3 33,3 IPE 240 30,7 240,0 120,0 6,2 9,8 39,1 IPE O 240 34,3 242,0 122,0 7,0 10,8 43,7 SIST EN 10365:2017

EN 10365:2017 (E) 9 Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 IPE A 270 30,7 267,0 135,0 5,5 8,7 39,2 IPE 270 36,1 270,0 135,0 6,6 10,2 45,9 IPE O 270 42,3 274,0 136,0 7,5 12,2 53,8 IPE A 300 36,5 297,0 150,0 6,1 9,2 46,5 IPE 300 42,2 300,0 150,0 7,1 10,7 53,8 IPE O 300 49,3 304,0 152,0 8,0 12,7 62,8 IPE A 330 43,0 327,0 160,0 6,5 10,0 54,7 IPE 330 49,1 330,0 160,0 7,5 11,5 62,6 IPE O 330 57,0 334,0 162,0 8,5 13,5 72,6 IPE A 360 50,2 357,6 170,0 6,6 11,5 64,0 IPE 360 57,1 360,0 170,0 8,0 12,7 72,7 IPE O 360 66,0 364,0 172,0 9,2 14,7 84,1 IPE A 400 57,4 397,0 180,0 7,0 12,0 73,1 IPE 400 66,3 400,0 180,0 8,6 13,5 84,5 IPE O 400 75,7 404,0 182,0 9,7 15,5 96,4 IPE V 400 84,0 408,0 182,0 10,6 17,5 107,0 IPE A 450 67,2 447,0 190,0 7,6 13,1 85,6 IPE 450 77,6 450,0 190,0 9,4 14,6 98,8 IPE O 450 92,4 456,0 192,0 11,0 17,6 117,7 IPE V 450 107 460,0 194,0 12,4 19,6 132,0 IPE A 500 79,4 497,0 200,0 8,4 14,5 101,1 IPE 500 90,7 500,0 200,0 10,2 16,0 115,5 IPE O 500 107 506,0 202,0 12,0 19,0 136,7 IPE V 500 129 514,0 204,0 14,2 23,0 164,1 IPE A 550 92,1 547,0 210,0 9,0 15,7 117,3 IPE 550 106 550,0 210,0 11,1 17,2 134,4 IPE O 550 123 556,0 212,0 12,7 20,2 156,1 IPE V 550 159 566,0 216,0 17,1 25,2 202,0 IPE A 600 108 597,0 220,0 9,8 17,5 137,0 IPE 600 122 600,0 220,0 12,0 19,0 156,0 IPE O 600 154 610,0 224,0 15,0 24,0 196,8 IPE V 600 184 618,0 228,0 18,0 28,0 233,8 SIST EN 10365:2017

EN 10365:2017 (E) 10 Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 IPE 750 × 134 134 750,0 264,0 12,0 15,5 170,6 IPE 750 × 147 147 753,0 265,0 13,2 17,0 187,5 IPE 750 × 173 173 762,0 267,0 14,4 21,6 221,3 IPE 750 × 196 196 770,0 268,0 15,6 25,4 250,8 SIST EN 10365:2017

EN 10365:2017 (E) 11 Table 2 — Wide flange beams HE Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 HE 100 AA 12,2 91,0 100,0 4,2 5,5 15,6 HE 100 A 16,7 96,0 100,0 5,0 8,0 21,2 HE 100 B 20,4 100,0 100,0 6,0 10,0 26,0 HE 100 C 30,9 110,0 103,0 9,0 15,0 39,3 HE 100 M 41,8 120,0 106,0 12,0 20,0 53,2 HE 120 AA 14,6 109,0 120,0 4,2 5,5 18,6 HE 120 A 19,9 114,0 120,0 5,0 8,0 25,3 HE 120 B 26,7 120,0 120,0 6,5 11,0 34,0 HE 120 C 39,2 130,0 123,0 9,5 16,0 49,9 HE 120 M 52,1 140,0 126,0 12,5 21,0 66,4 HE 140 AA 18,1 128,0 140,0 4,3 6,0 23,0 HE 140 A 24,7 133,0 140,0 5,5 8,5 31,4 HE 140 B 33,7 140,0 140,0 7,0 12,0 43,0 HE 140 C 48,2 150,0 143,0 10,0 17,0 61,5 HE 140 M 63,2 160,0 146,0 13,0 22,0 80,6 HE 160 AA 23,8 148,0 160,0 4,5 7,0 30,4 HE 160 A 30,4 152,0 160,0 6,0 9,0 38,8 HE 160 B 42,6 160,0 160,0 8,0 13,0 54,3 HE 160 C 59,2 170,0 163,0 11,0 18,0 75,4 HE 160 M 76,2 180,0 166,0 14,0 23,0 97,1 HE 180 AA 28,7 167,0 180,0 5,0 7,5 36,5 HE 180 A 35,5 171,0 180,0 6,0 9,5 45,3 HE 180 B 51,2 180,0 180,0 8,5 14,0 65,3 HE 180 C 69,8 190,0 183,0 11,5 19,0 89,0 HE 180 M 88,9 200,0 186,0 14,5 24,0 113,3 HE 200 AA 34,6 186,0 200,0 5,5 8,0 44,1 HE 200 A 42,3 190,0 200,0 6,5 10,0 53,8 HE 200 B 61,3 200,0 200,0 9,0 15,0 78,1 HE 200 C 81,9 210,0 203,0 12,0 20,0 104,4 HE 200 M 103 220,0 206,0 15,0 25,0 131,3 HE 220 AA 40,4 205,0 220,0 6,0 8,5 51,5 SIST EN 10365:2017

EN 10365:2017 (E) 12 Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 HE 220 A 50,5 210,0 220,0 7,0 11,0 64,3 HE 220 B 71,5 220,0 220,0 9,5 16,0 91,0 HE 220 C 94,1 230,0 223,0 12,5 21,0 119,9 HE 220 M 117 240,0 226,0 15,5 26,0 149,4 SIST EN 10365:2017

EN 10365:2017 (E) 13 Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 HE 240 AA 47,4 224,0 240,0 6,5 9,0 60,4 HE 240 A 60,3 230,0 240,0 7,5 12,0 76,8 HE 240 B 83,2 240,0 240,0 10,0 17,0 106,0 HE 240 C 119 255,0 244,0 14,0 24,5 152,2 HE 240 M 157 270,0 248,0 18,0 32,0 199,6 HE 260 AA 54,1 244,0 260,0 6,5 9,5 69,0 HE 260 A 68,2 250,0 260,0 7,5 12,5 86,8 HE 260 B 93,0 260,0 260,0 10,0 17,5 118,4 HE 260 C 132 275,0 264,0 14,0 25,0 168,4 HE 260 M 172 290,0 268,0 18,0 32,5 219,6 HE 280 AA 61,2 264,0 280,0 7,0 10,0 78,0 HE 280 A 76,4 270,0 280,0 8,0 13,0 97,3 HE 280 B 103 280,0 280,0 10,5 18,0 131,4 HE 280 C 145 295,0 284,0 14,5 25,5 185,2 HE 280 M 189 310,0 288,0 18,5 33,0 240,2 HE 300 AA 69,8 283,0 300,0 7,5 10,5 88,9 HE 300 A 88,3 290,0 300,0 8,5 14,0 112,5 HE 300 B 117 300,0 300,0 11,0 19,0 149,1 HE 300 C 177 320,0 305,0 16,0 29,0 225,1 HE 300 M 238 340,0 310,0 21,0 39,0 303,1 HE 320 AA 74,2 301,0 300,0 8,0 11,0 94,6 HE 320 A 97,6 310,0 300,0 9,0 15,5 124,4 HE 320 B 127 320,0 300,0 11,5 20,5 161,3 HE 320 C 186 340,0 305,0 16,0 30,5 236,9 HE 320 M 245 359,0 309,0 21,0 40,0 312,0 HE 340 AA 78,9 320,0 300,0 8,5 11,5 100,5 HE 340 A 105 330,0 300,0 9,5 16,5 133,5 HE 340 B 134 340,0 300,0 12,0 21,5 170,9 HE 340 M 248 377,0 309,0 21,0 40,0 315,8 HE 360 AA 83,7 339,0 300,0 9,0 12,0 106,6 HE 360 A 112 350,0 300,0 10,0 17,5 142,8 HE 360 B 142 360,0 300,0 12,5 22,5 180,6 HE 360 M 250 395,0 308,0 21,0 40,0 318,8 SIST EN 10365:2017

EN 10365:2017 (E) 14 Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 HE 400 AA 92,4 378,0 300,0 9,5 13,0 117,7 HE 400 A 125 390,0 300,0 11,0 19,0 159,0 HE 400 B 155 400,0 300,0 13,5 24,0 197,8 HE 400 M 256 432,0 307,0 21,0 40,0 325,8 HE 450 AA 99,7 425,0 300,0 10,0 13,5 127,1 HE 450 A 140 440,0 300,0 11,5 21,0 178,0 HE 450 B 171 450,0 300,0 14,0 26,0 218,0 HE 450 M 263 478,0 307,0 21,0 40,0 335,4 HE 500 AA 107 472,0 300,0 10,5 14,0 136,9 HE 500 A 155 490,0 300,0 12,0 23,0 197,5 HE 500 B 187 500,0 300,0 14,5 28,0 238,6 HE 500 M 270 524,0 306,0 21,0 40,0 344,3 HE 550 AA 120 522,0 300,0 11,5 15,0 152,8 HE 550 A 166 540,0 300,0 12,5 24,0 211,8 HE 550 B 199 550,0 300,0 15,0 29,0 254,1 HE 550 M 278 572,0 306,0 21,0 40,0 354,4 HE 600 AA 129 571,0 300,0 12,0 15,5 164,1 HE 600 A 178 590,0 300,0 13,0 25,0 226,5 HE 600 B 212 600,0 300,0 15,5 30,0 270,0 HE 600 M 285 620,0 305,0 21,0 40,0 363,7 HE 600 × 337 337 632,0 310,0 25,5 46,0 429,2 HE 600 × 399 399 648,0 315,0 30,0 54,0 508,5 HE 650 AA 138 620,0 300,0 12,5 16,0 175,8 HE 650 A 190 640,0 300,0 13,5 26,0 241,6 HE 650 B 225 650,0 300,0 16,0 31,0 286,3 HE 650 M 293 668,0 305,0 21,0 40,0 373,7 HE 650 × 343 343 680,0 309,0 25,0 46,0 437,5 HE 650 × 407 407 696,0 314,0 29,5 54,0 518,8 HE 700 AA 150 670,0 300,0 13,0 17,0 190,9 HE 700 A 204 690,0 300,0 14,5 27,0 260,5 HE 700 B 241 700,0 300,0 17,0 32,0 306,4 HE 700 M 301 716,0 304,0 21,0 40,0 383,0 HE 700 × 352 352 728,0 308,0 25,0 46,0 448,6 SIST EN 10365:2017

EN 10365:2017 (E) 15 Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 HE 700 × 418 418 744,0 313,0 29,5 54,0 531,9 HE 800 AA 172 770,0 300,0 14,0 18,0 218,5 HE 800 A 224 790,0 300,0 15,0 28,0 285,8 HE 800 B 262 800,0 300,0 17,5 33,0 334,2 HE 800 M 317 814,0 303,0 21,0 40,0 404,3 HE 800 × 373 373 826,0 308,0 25,0 46,0 474,6 HE 800 × 444 444 842,0 313,0 30,0 54,0 566,0 HE 900 AA 198 870,0 300,0 15,0 20,0 252,2 HE 900 A 252 890,0 300,0 16,0 30,0 320,5 HE 900 B 291 900,0 300,0 18,5 35,0 371,3 HE 900 M 333 910,0 302,0 21,0 40,0 423,6 HE 900 × 391 391 922,0 307,0 25,0 46,0 497,7 HE 900 × 466 466 938,0 312,0 30,0 54,0 593,7 HE 1000 AA 222 970,0 300,0 16,0 21,0 282,2 HE 1000 × 249 249 980,0 300,0 16,5 26,0 316,8 HE 1000 A 272 990,0 300,0 16,5 31,0 346,8 HE 1000 B 314 1000,0 300,0 19,0 36,0 400,0 HE 1000 M 349 1008,0 302,0 21,0 40,0 444,2 HE 1000 × 393 393 1016,0 303,0 24,4 43,9 500,2 HE 1000 × 415 415 1020,0 304,0 26,0 46,0 528,7 HE 1000 × 438 438 1026,0 305,0 26,9 49,0 556,0 HE 1000 × 494 494 1036,0 309,0 31,0 54,0 629,1 HE 1000 × 584 584 1056,0 314,0 36,0 64,0 743,7 SIST EN 10365:2017

EN 10365:2017 (E) 16 Table 3 — Extra wide flange beams HL and HLZ Designation
Dimensions
G h b s t A

kg/m mm mm mm mm cm2 HL 920 × 344 344 927,0 418,0 19,3 32,0 437,2 HL 920 × 368 368 931,0 419,0 20,3 34,3 465,6 HL 920 × 390 390 936,0 420,0 21,3 36,6 494,3 HL 920 × 420 420 943,0 422,0 22,5 39,9 534,1 HL 920 × 449 449 948,0 423,0 24,0 42,7 571,4 HL 920 × 491 491 957,0 422,0 25,9 47,0 623,3 HL 920 × 537 537 965,0 425,0 28,4 51,1 682,5 HL 920 × 588 588 975,0 427,0 31,0 55,9 748,1 HL 920 × 656 656 987,0 431,0 34,5 62,0 835,3 HL 920 × 725 725 999,0 434,0 38,1 68,1 922,9 HL 920 × 787 787 1011,0 437,0 40,9 73,9 1002,0 HL 920 × 970 970 1043,0 446,0 50,0 89,9 1236,6 HL 920 × 1077 1077 1061,0 451,0 55,0 99,1 1371,5 HL 920 × 1194 1194 1081,0 457,0 60,5 109,0 1521,5 HL 920 × 1269 1269 1093,0 461,0 64,0 115,1 1616,5 HL 920 × 1377 1377 1093,0 473,0 76,7 115,1 1753,7 HL 1000 AA 296 982,0 400,0 16,5 27,1 377,6 HL 1000 A 321 990,0 400,0 16,5 31,0 408,8 HL 1000 B 371 1000,0 400,0 19,0 36,1 472,8 HL 1000 M 412 1008,0 402,0 21,1 40,0 525,1 HL 1000 × 443 443 1012,0 402,0 23,6 41,9 563,7 HL 1000 × 483 483 1020,0 404,0 25,4 46,0 615,1 HL 1000 × 539 539 1030,0 407,0 28,4 51,1 687,2 HL 1000 × 554 554 10

...
