EN 13618:2016
(Main)Flexible hose assemblies in drinking water installations - Functional requirements and test methods
Flexible hose assemblies in drinking water installations - Functional requirements and test methods
This European Standard specifies the requirements and test methods for materials, dimensions and function for flexible hose assemblies for drinking water installations, braided or not, designed for use with drinking water with an allowable maximum operating pressure (PMA) of 1 MPa and maximum operating temperature 70 °C to connect sanitary tap ware, heaters and similar appliances.
NOTE Flexible hose assemblies intended to be used as integral parts of electrical appliances are covered by EN 61770.
Flexible Schlauchverbindungen in Trinkwasser-Installationen - Funktionsanforderungen und Prüfverfahren
Diese Europäische Norm dient der Festlegung von Anforderungen und Prüfverfahren für Werkstoffe, Maße und Funktionsweise von flexiblen Schlauchverbindungen für Trinkwasseranlagen, mit oder ohne Umflechtung, zur Anwendung mit Trinkwasser mit einem maximal zulässigen Betriebsdruck (PMA) von 1 MPa und einer maximalen Betriebstemperatur von 70 °C, die zum Anschluss von Sanitärarmaturen, Trinkwassererwärmern und ähnlichen Geräten vorgesehen sind.
ANMERKUNG Flexible Schlauchverbindungen, die zur Verwendung als integrale Bestandteile von elektrischen Geräten vorgesehen sind, werden von EN 61770 abgedeckt.
Tuyaux flexibles pour installations d'eau potable - Exigences fonctionnelles et méthodes d'essai
La présente Norme européenne spécifie les exigences et les méthodes d’essai relatives aux matériaux, aux dimensions et au fonctionnement des ensembles flexibles pour installations d'eau potable, avec ou sans tresse, conçus pour être utilisés avec de l’eau potable à une pression maximale admissible de service (PMA) de 1 MPa et à une température maximale de fonctionnement de 70 °C en vue du raccordement de robinetterie sanitaire et d’appareils de production d’eau chaude sanitaire.
NOTE Les ensembles flexibles destinés à être utilisés comme des parties intégrantes d’appareils électriques sont traités dans l’EN 61770 [1].
Gibljivi cevni priključki v inštalacijah za pitno vodo - Funkcionalne zahteve in preskusne metode
Ta evropski standard določa zahteve in preskusne metode za materiale, mere in funkcijo gibljivih cevnih priključkov v inštalacijah za pitno vodo, pletenih ali nepletenih, zasnovanih za uporabo s pitno vodo z najvišjim dovoljenim tlakom (PMA) 1 MPa in najvišjo delovno temperaturo 70 °C za priključitev sanitarnih pip, grelnikov in podobnih aparatov.
OPOMBA: Gibljivi cevni priključki, ki se uporabljajo kot sestavni deli električnih aparatov, so zajeti v standardu EN 61770.
General Information
- Status
- Published
- Publication Date
- 13-Dec-2016
- Withdrawal Date
- 29-Jun-2017
- Technical Committee
- CEN/TC 164 - Water supply
- Drafting Committee
- CEN/TC 164/WG 12 - Flexible hoses assemblies
- Current Stage
- 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
- Start Date
- 23-Jun-2022
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 05-Dec-2014
Overview
EN 13618:2016 - "Flexible hose assemblies in drinking water installations - Functional requirements and test methods" (CEN) defines requirements and test procedures for flexible hose assemblies used in drinking water systems. It covers braided and non‑braided hose assemblies intended to connect sanitary tapware, heaters and similar appliances, with an allowable maximum operating pressure (PMA) of 1 MPa and maximum operating temperature 70 °C. The standard addresses materials, dimensions, hygiene and performance verification through defined test methods.
Key Topics
- Scope & exclusions
- Applies to flexible hose assemblies for drinking water installations (PMA 1 MPa, Tmax 70 °C).
- Flexible hoses that are integral parts of electrical appliances are covered by EN 61770 (note).
- Materials & hygiene
- Chemical compatibility and hygienic fitness for contact with drinking water; materials must not alter water quality, taste or smell.
- Components
- Internal hoses, braiding (stainless steel or synthetic), sleeves, fittings and sealings - dimensional and functional requirements.
- Functional requirements
- Tightness, mechanical strength, bending performance and sealing integrity of fittings and hose assemblies.
- Test methods
- Detailed normative tests including: flow rate, ageing by hot storage, tensile, hydrostatic pressure, hydraulic performance and durability, pressure jumps, temperature cycling, corrosion resistance, UV resistance, bending and frost resistance.
- Specific tests on fittings (dimensions, ammonium stress corrosion test, tightening and bending tests).
- Designation & marking
- Requirements for product identification, marking and designation to ensure traceability and correct use.
Applications
Who uses EN 13618:2016 and why:
- Manufacturers of flexible hose assemblies - to design and verify compliance with European functional requirements and test regimes.
- Test laboratories - to perform standardized performance, durability and corrosion tests (e.g., ammonia stress corrosion).
- Specifiers, installers and plumbers - to select hoses suitable for domestic and commercial drinking water connections (sanitary tapware, heaters).
- Regulators and procurement teams - to reference technical and hygienic requirements in product standards and procurement specifications.
Practical benefits include improved safety, predictable hydraulic performance, longer service life and reduced risk of contamination in drinking water installations.
Related standards
- EN 61770 - flexible connections as parts of electrical appliances (exclusion)
- EN 806‑2 - design for water installations inside buildings
- EN ISO 228‑1 / ISO 7‑1 - pipe thread dimensions and tolerances
- ISO 6957 - ammonia test for stress corrosion resistance
- EN 1254 series - plumbing fittings
Keywords: EN 13618:2016, flexible hose assemblies, drinking water installations, test methods, functional requirements, braided hose, PMA 1 MPa, corrosion resistance.
Frequently Asked Questions
EN 13618:2016 is a standard published by the European Committee for Standardization (CEN). Its full title is "Flexible hose assemblies in drinking water installations - Functional requirements and test methods". This standard covers: This European Standard specifies the requirements and test methods for materials, dimensions and function for flexible hose assemblies for drinking water installations, braided or not, designed for use with drinking water with an allowable maximum operating pressure (PMA) of 1 MPa and maximum operating temperature 70 °C to connect sanitary tap ware, heaters and similar appliances. NOTE Flexible hose assemblies intended to be used as integral parts of electrical appliances are covered by EN 61770.
This European Standard specifies the requirements and test methods for materials, dimensions and function for flexible hose assemblies for drinking water installations, braided or not, designed for use with drinking water with an allowable maximum operating pressure (PMA) of 1 MPa and maximum operating temperature 70 °C to connect sanitary tap ware, heaters and similar appliances. NOTE Flexible hose assemblies intended to be used as integral parts of electrical appliances are covered by EN 61770.
EN 13618:2016 is classified under the following ICS (International Classification for Standards) categories: 23.040.70 - Hoses and hose assemblies; 91.140.60 - Water supply systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13618:2016 has the following relationships with other standards: It is inter standard links to EN 13618:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 13618:2016 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Flexible Schlauchverbindungen in Trinkwasser-Installationen - Funktionsanforderungen und PrüfverfahrenTuyaux flexibles pour installations d'eau potable - Exigences fonctionnelles et méthodes d'essaiFlexible hose assemblies in drinking water installations - Functional requirements and test methods91.140.60Sistemi za oskrbo z vodoWater supply systems23.040.70Gumene cevi in armatureHoses and hose assembliesICS:Ta slovenski standard je istoveten z:EN 13618:2016SIST EN 13618:2017en,fr,de01-februar-2017SIST EN 13618:2017SLOVENSKI
STANDARDSIST EN 13618:20111DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13618
December
t r s x ICS
t uä r v rä y râ
{ sä s v rä x r Supersedes EN
s u x s zã t r s sEnglish Version
Flexible hose assemblies in drinking water installations æ Functional requirements and test methods Tuyaux flexibles pour installations d 5eau potable æ Exigences fonctionnelles et méthodes d 5essai
Flexible Schlauchverbindungen in TrinkwasseræInstallationen æ Funktionsanforderungen und Prüfverfahren This European Standard was approved by CEN on
s w August
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u x s zã t r s x ESIST EN 13618:2017

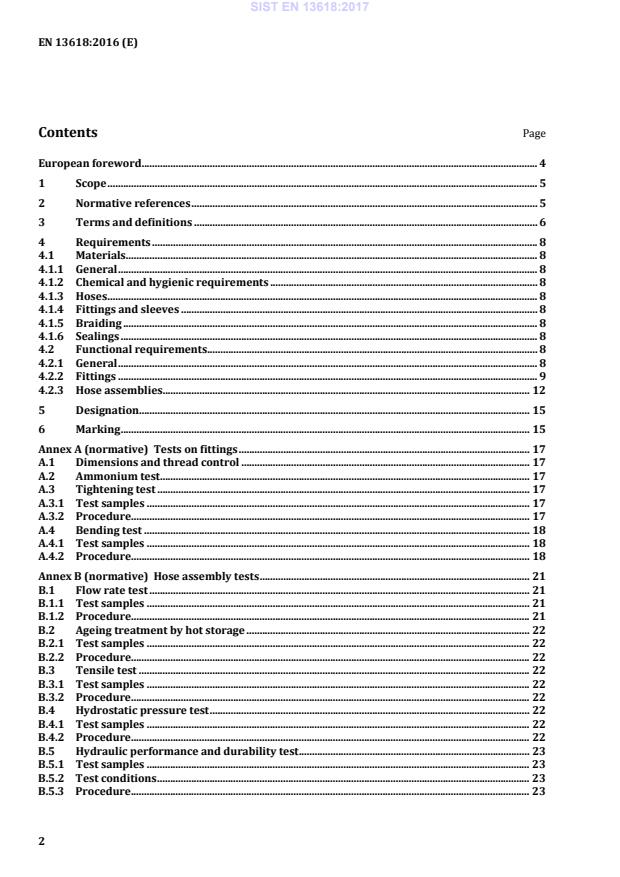

Tests on fittings . 17 A.1 Dimensions and thread control . 17 A.2 Ammonium test. 17 A.3 Tightening test . 17 A.3.1 Test samples . 17 A.3.2 Procedure. 17 A.4 Bending test . 18 A.4.1 Test samples . 18 A.4.2 Procedure. 18 Annex B (normative)
